Product Description

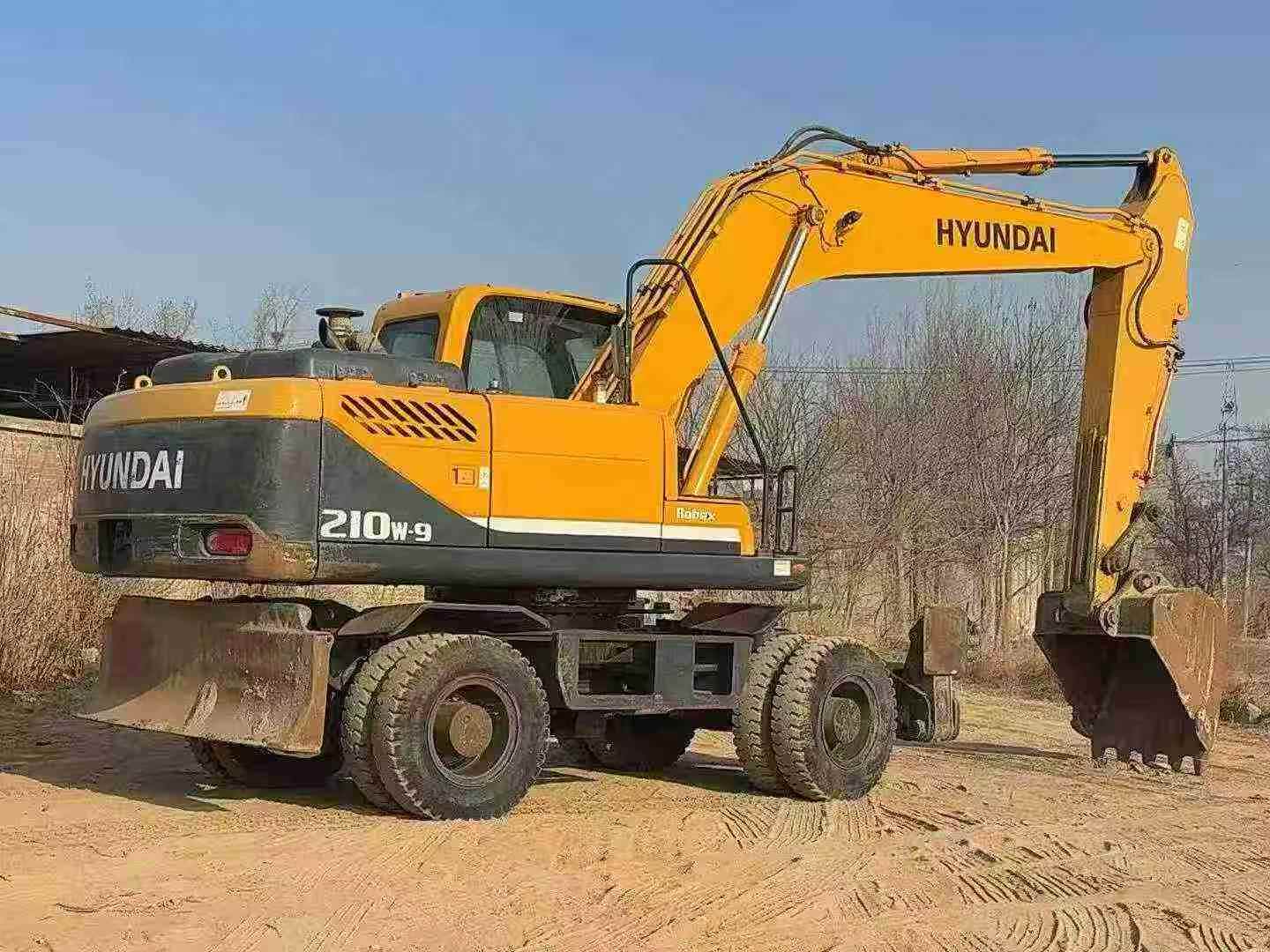

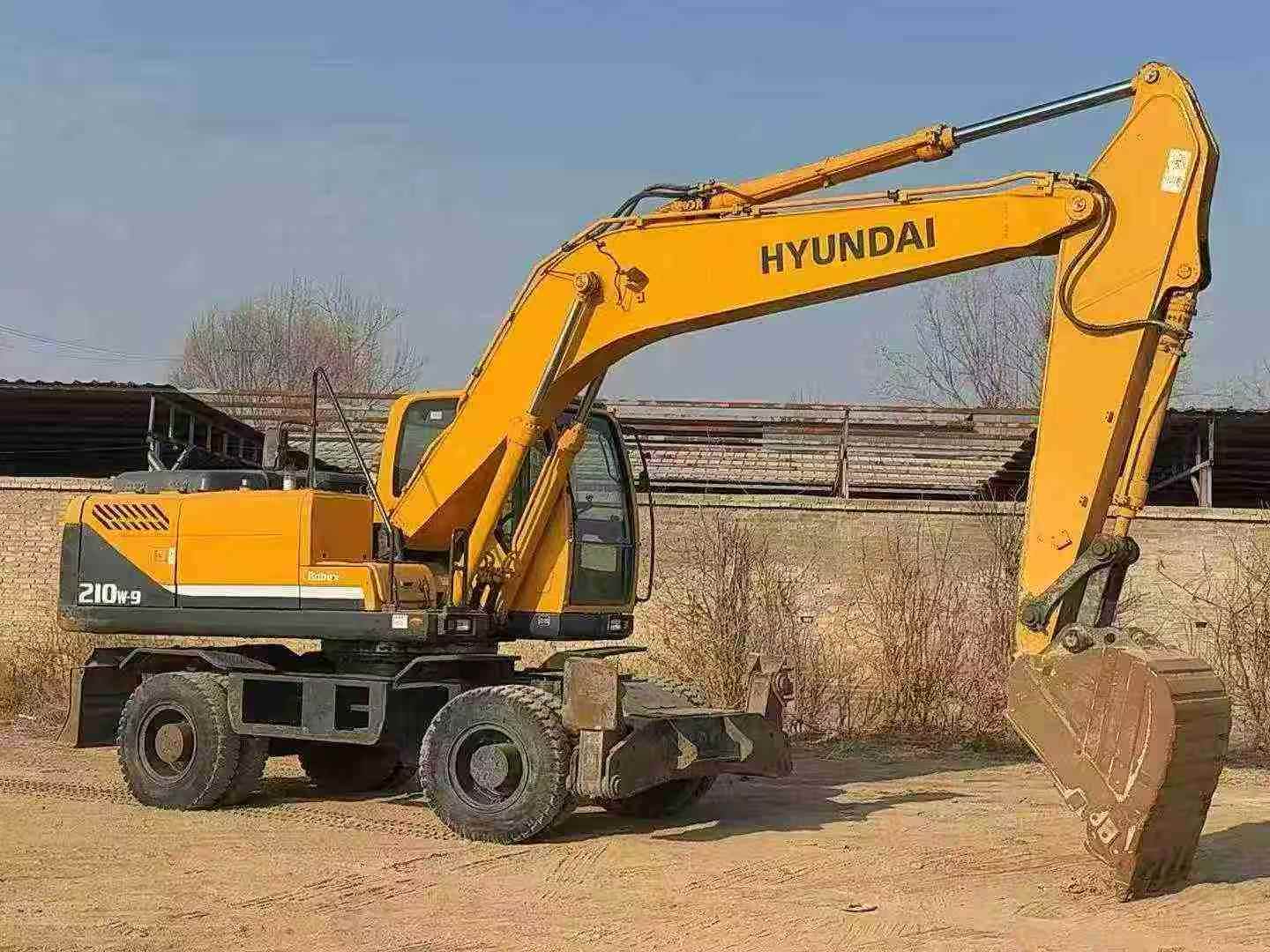

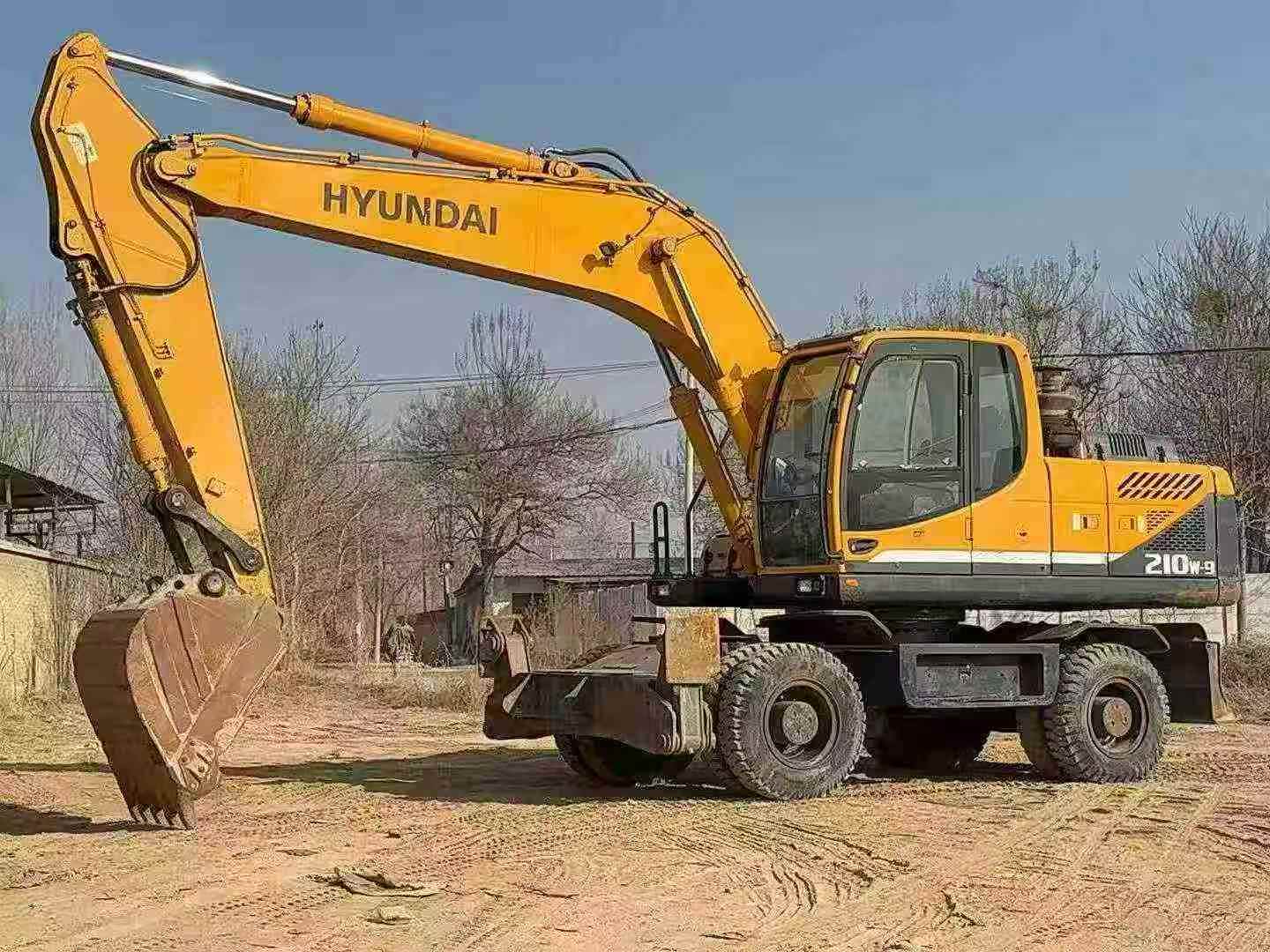

Built to withstand the demands of heavy-duty construction, this 2016 Hyundai R210W-9 wheeled excavator represents proven engineering excellence from Hebei. Operating at 21 tons with a robust working weight of 20,560 kg, this machine delivers consistent performance through its powerful Cummins B5.9-C engine, generating 124 kW at 1950 rpm. With over seven years of operational history, this workhorse demonstrates the durability that defines Hyundai's joint venture manufacturing standards.
Engineered for versatility, the R210W-9 features impressive digging capabilities with a maximum reach of 9,960 mm and excavation depth of 6,380 mm. The bucket digging force of 149.1 kN and rod digging force of 106.9 kN ensure reliable material handling across diverse applications. Its two-speed axial piston motor drive system provides a forward speed of 35 km/h, while the 31.5° climbing ability tackles challenging terrain with confidence.
Key specifications include:
- Bucket capacity: 0.51-1.34 m³ with backhoe configuration
- Dual variable swash plate piston pumps: 222 L/min each
- 310L fuel capacity for extended operation
- Water-cooled six-cylinder turbocharged engine
- Compact transport dimensi
| Specifications | Value |
|---|---|
| No. | 1010029 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20560 |
| Bucket capacity (m³) | 0.51-1.34 |
| Boom length (mm) | 5.65 |
| Rod length (mm) | 2.92 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 124/1950 |
| Total displacement (L) | 5. 9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m/rpm) | 68.4/1500 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 31.5 ° |
| Bucket digging force (kN) | 149.1 |
| Rod digging force (kN) | 106.9 |
| Minimum turning radius (m) | 6.69 |
| Maximum tractive force (kN) | 108 |
| Driving form | A two-speed axial piston motor drives the transmission |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Quantitative swash plate plunger motor |
| Type of walking hydraulic motor | Two-speed axial plunger motor |
| Maximum flow of main pump (l/min) | 222 x 2 |
| Main safety valve Pressure (Mpa) | 38 |
| Traveling Hydraulic Circuit (Mpa) | 38 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-120 x 1290 |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 140 x 1510 |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 125 x 1055 |
| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | 38 |
| Pilot Oil Circuit (MPa) | 4 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2530 |
| Total transport height (mm) | 3500 |
| Counterweight ground clearance (mm) | 1305 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 308 |
| Total tire outside width (mm) | 640 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 365 |
| Minimum turning radius of front working device (mm) | 3580 |
| Back end turning radius (mm) | 2800 |
| Onboard width (mm) | 2530 |
| Maximum digging radius (mm) | 9960 |
| Maximum excavation radius (mm) | 9750 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7160 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum digging depth (mm) | 6210 |
| Minimum turning radius (mm) | 3580 |
| Bulldozer lift or depth (mm) | 445 |
| Dodging plate width × height (mm) | 2490 x 610 |
| Leg width (mm) | 3370 |
