Product Description

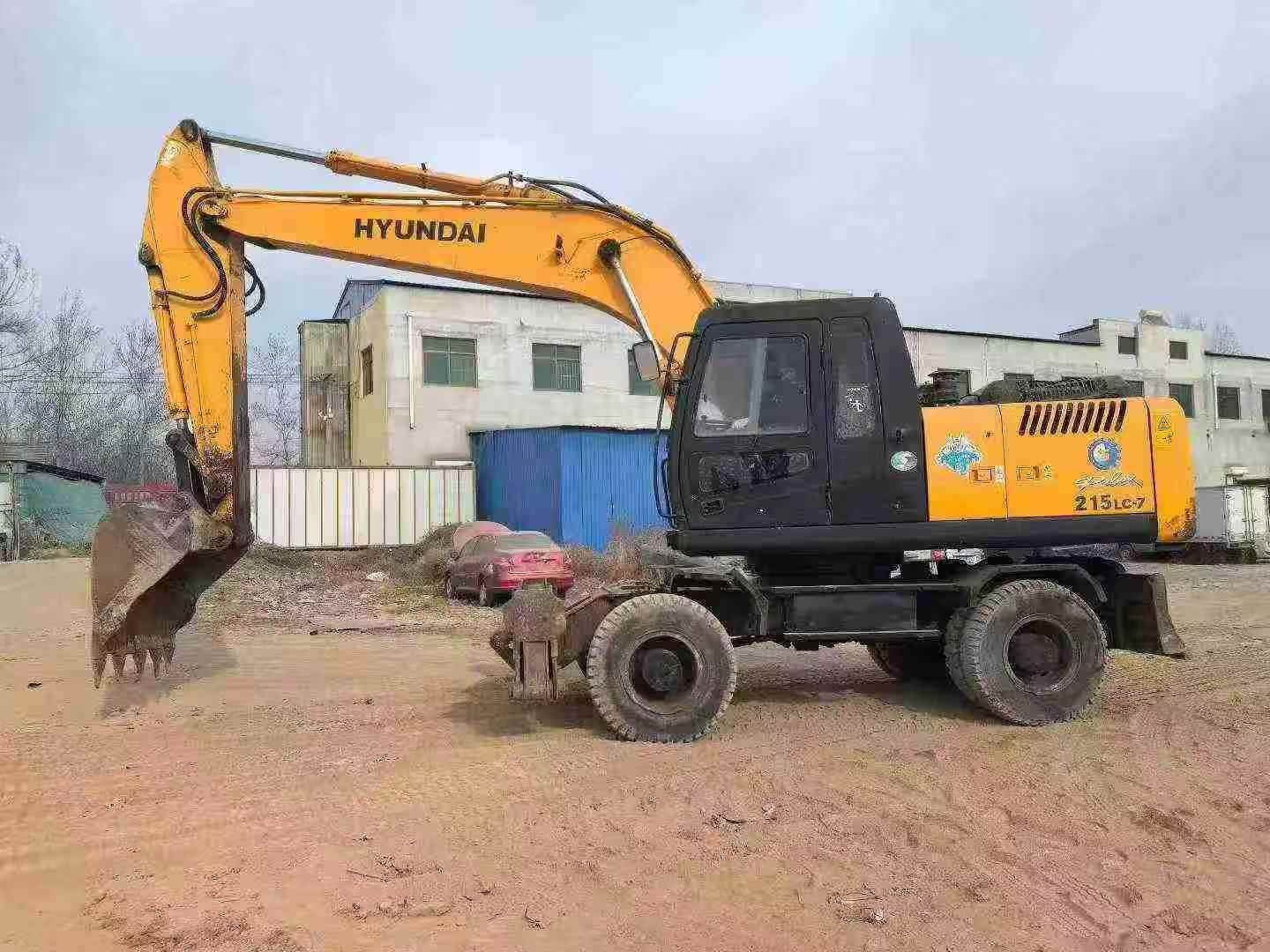

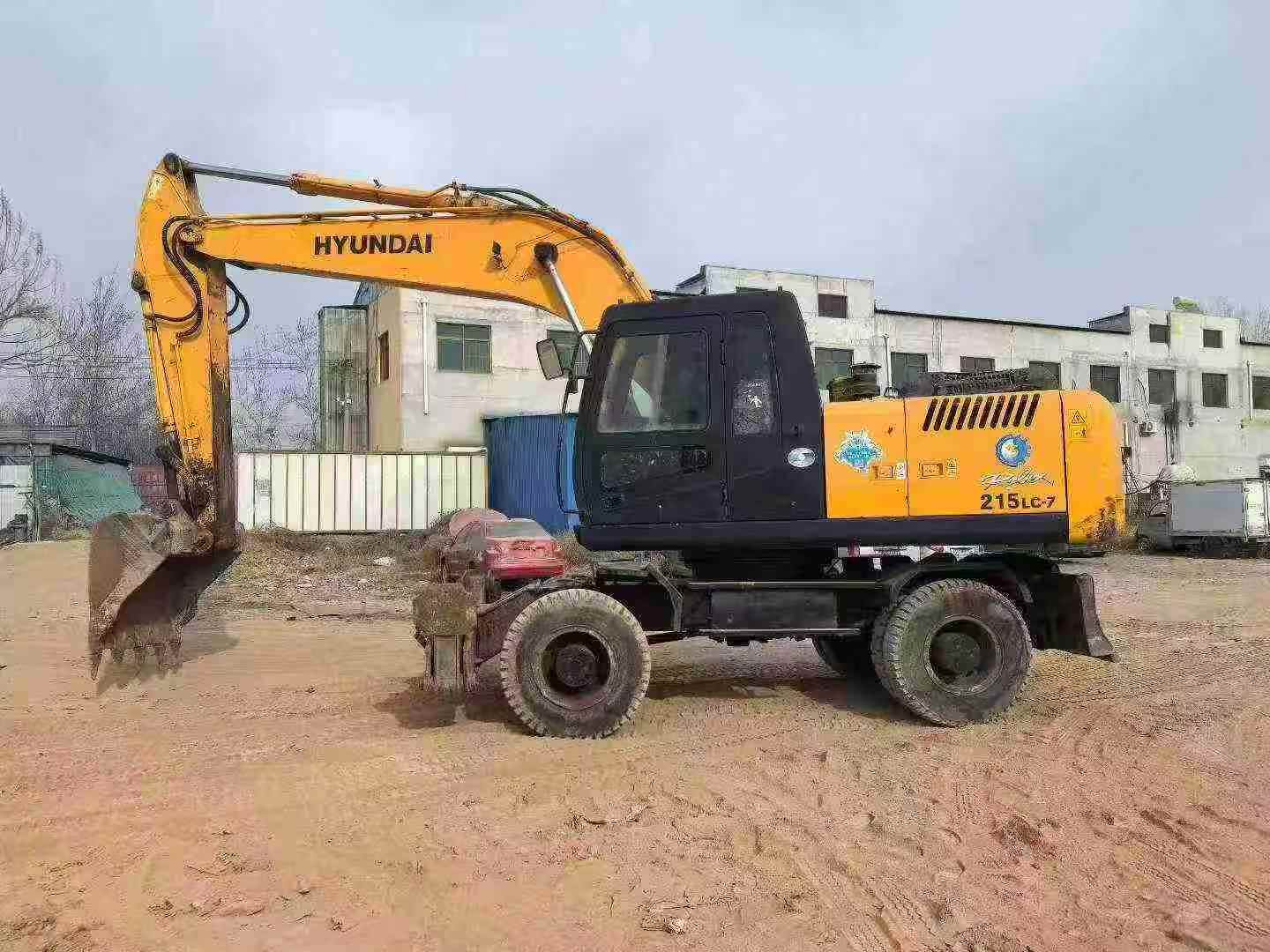

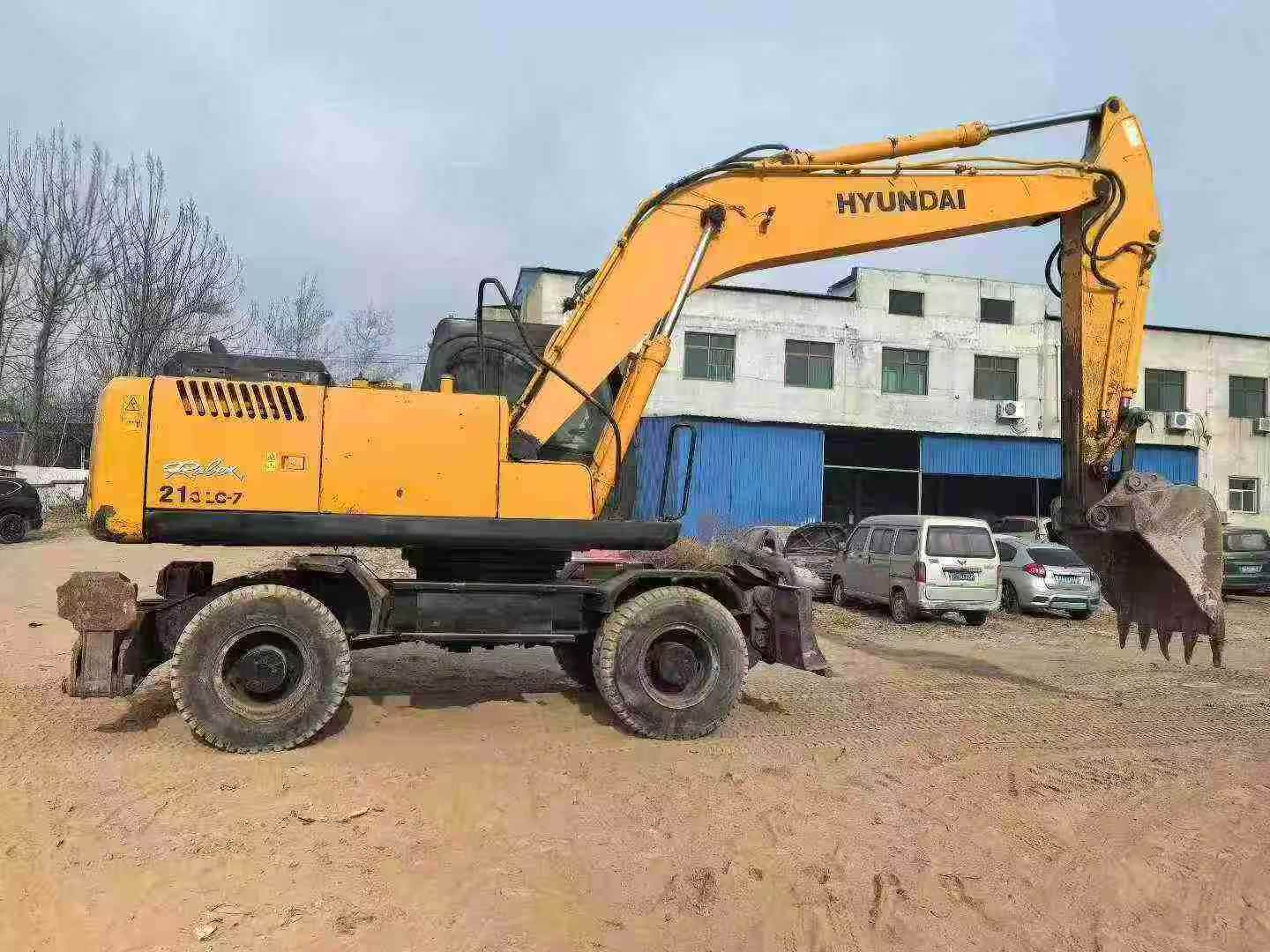

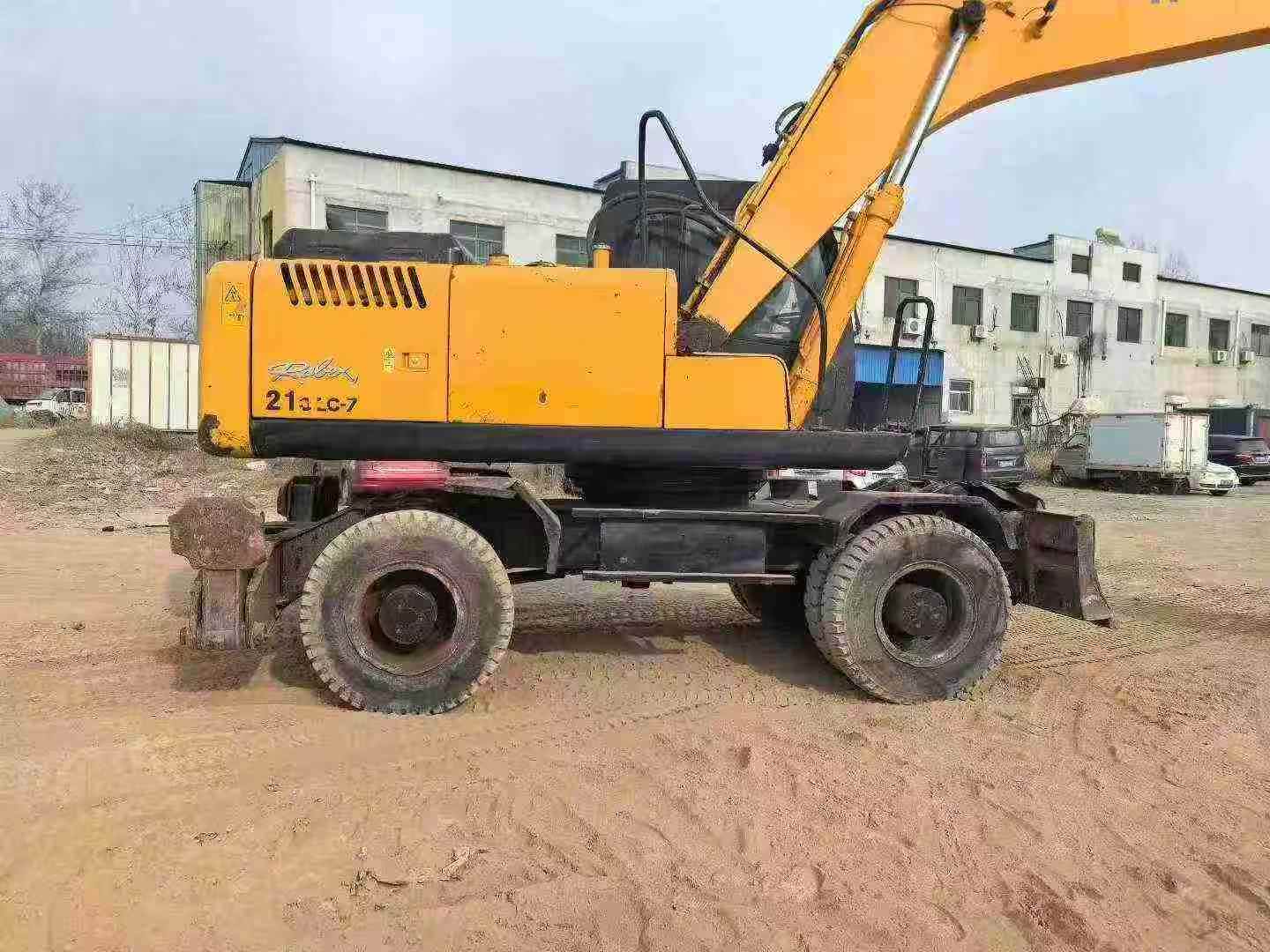

Engineered for demanding excavation work, this 2016 Hyundai R210WVS delivers reliable performance with operator-focused design. Powered by a Hyundai HE6.7 engine producing 129 kW at 2200 rpm, this 21-ton excavator combines robust hydraulic capacity with precise control. The dual variable plunger pumps supply 2×228 L/min flow, ensuring responsive operation across all functions.
Operator efficiency remains central to this machine's design. Cabin visibility benefits from strategic placement at 3,180 mm transport height, providing clear sightlines to the 9,960 mm maximum digging radius. Stability is reinforced through a 2,800 mm wheelbase and 1,874 mm wheel base configuration, while the 345 mm minimum ground clearance maintains balance on uneven terrain. Hydraulic precision allows for controlled movements, with rotation speed reaching 10.3 rpm for smooth positioning.
- Working weight: 20,800 kg with 0.92 m³ bucket capacity
- Maximum digging depth: 6,380 mm
- Boom/arm configuration: 5,650 mm / 2,920 mm

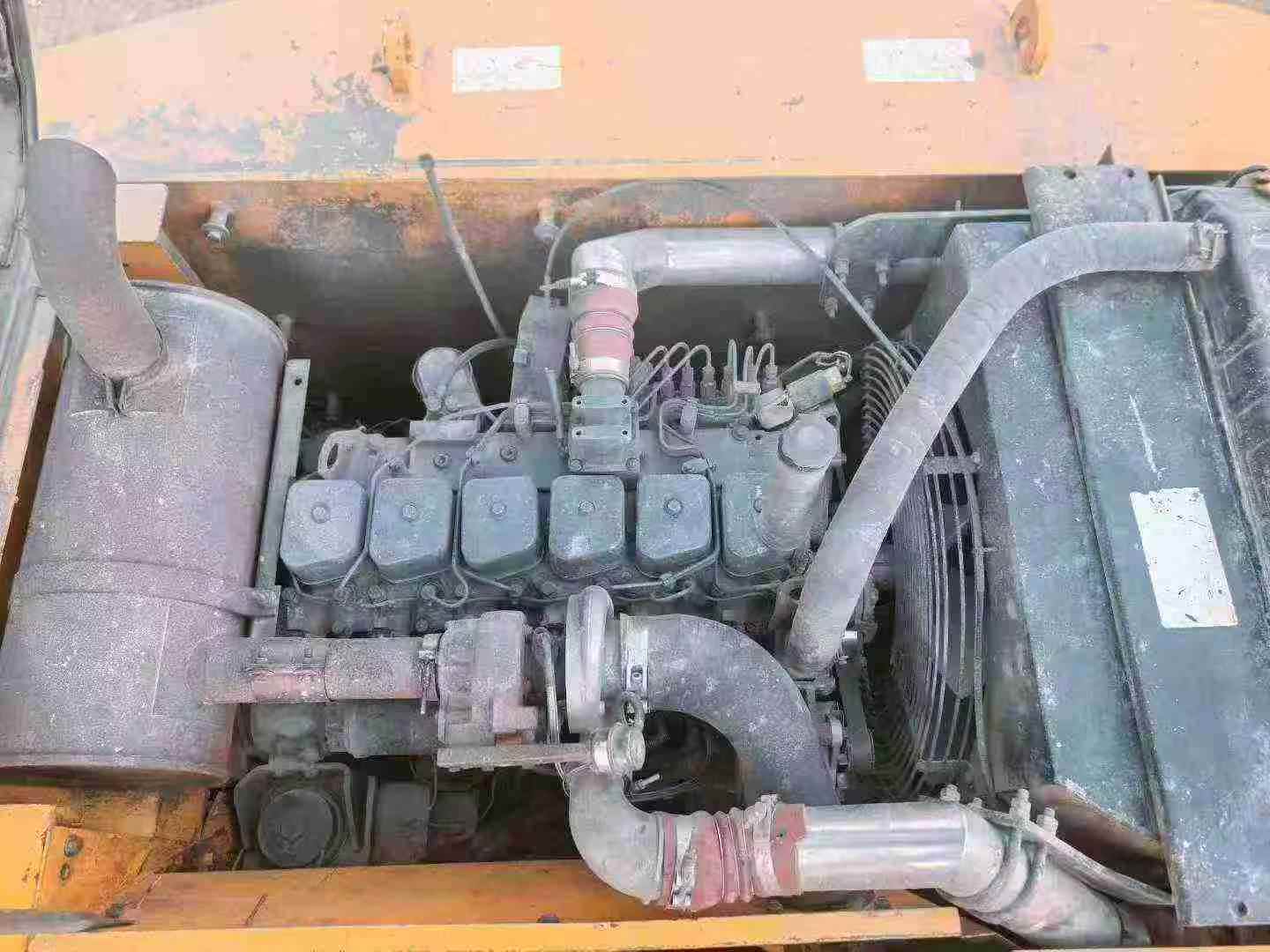

- Water-cooled 6-cylinder engine with 6.7 L displacement
- Currently located in Hebei
| Specifications | Value |
|---|---|
| No. | 1010494 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20,800 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai HE6.7 |
| Rated power (kw/rpm) | 129/2200 |
| Total displacement (L) | 6.7 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 9.3/37.9 |
| Rotation speed (rpm) | 10.3 |
| Minimum turning radius (m) | 6.69 |
| Maximum flow of main pump (l/min) | 2*228 |
| Main pump type | Two variable plunger pump |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 9,680 / 9,570 / 9,500 |
| Total transport width (mm) | 2,490 |
| Total transport height (mm) | 3,180 |
| Counterweight ground clearance (mm) | 1305 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 345 |
| Back end turning radius (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum excavation radius (mm) | 9750 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7160 |
| Maximum vertical digging depth (mm) | 5810 |
| Minimum turning radius (mm) | 3580 |
| Bulldozer lift or depth (mm) | 445*120 |
| Dodging plate width × height (mm) | 2,490*610 |
