2019 Hyundai R215-7

1/9
Buy Hyundai R215-7 Used Excavator / 1
Buy Hyundai R215-7 Used Excavator / 2
Buy Hyundai R215-7 Used Excavator / 3
Buy Hyundai R215-7 Used Excavator / 4
Buy Hyundai R215-7 Used Excavator / 5
Buy Hyundai R215-7 Used Excavator / 6
Buy Hyundai R215-7 Used Excavator / 7

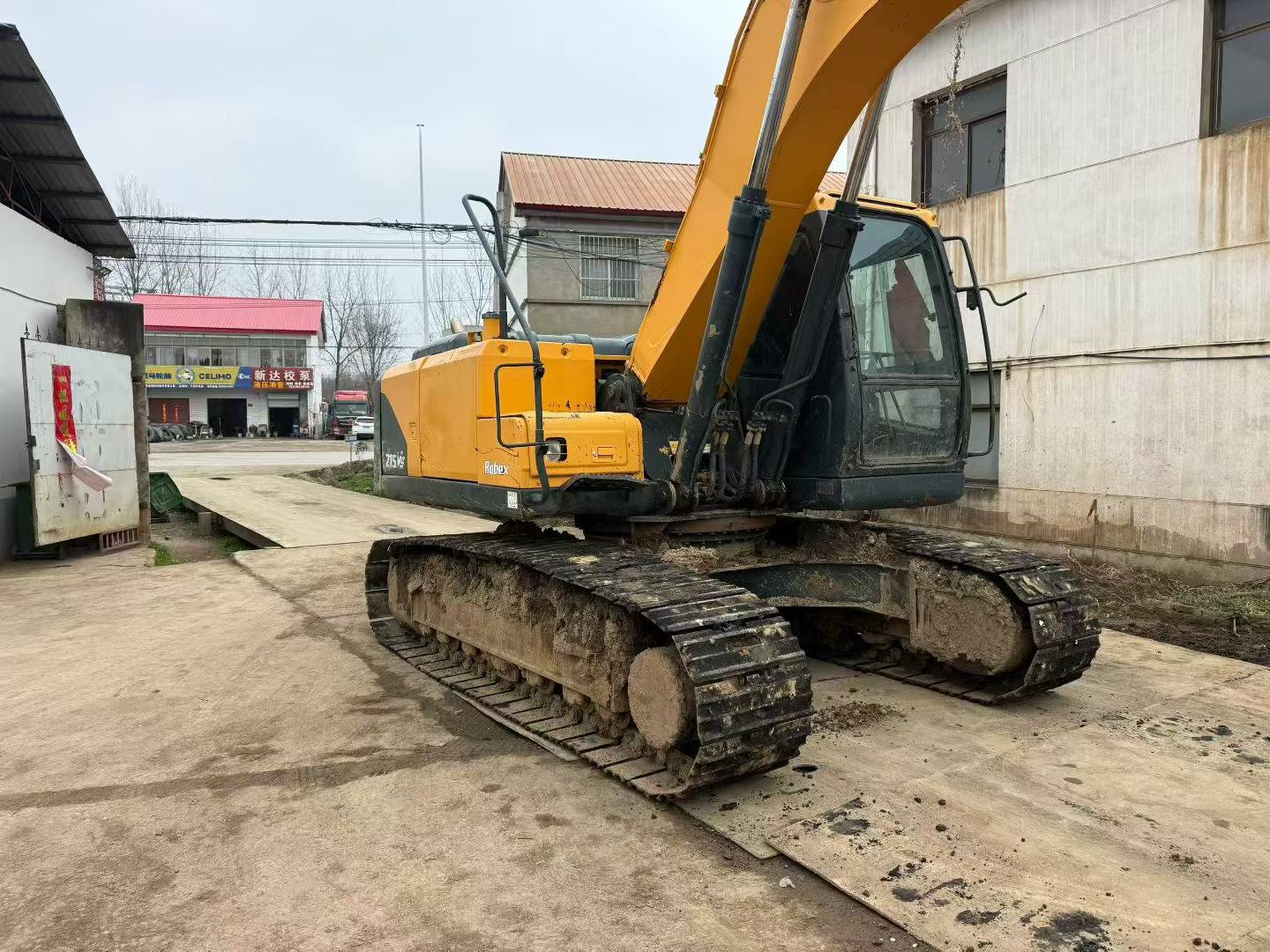

Buy Hyundai R215-7 Used Excavator / 8
Buy Hyundai R215-7 Used Excavator / 9

Product Description

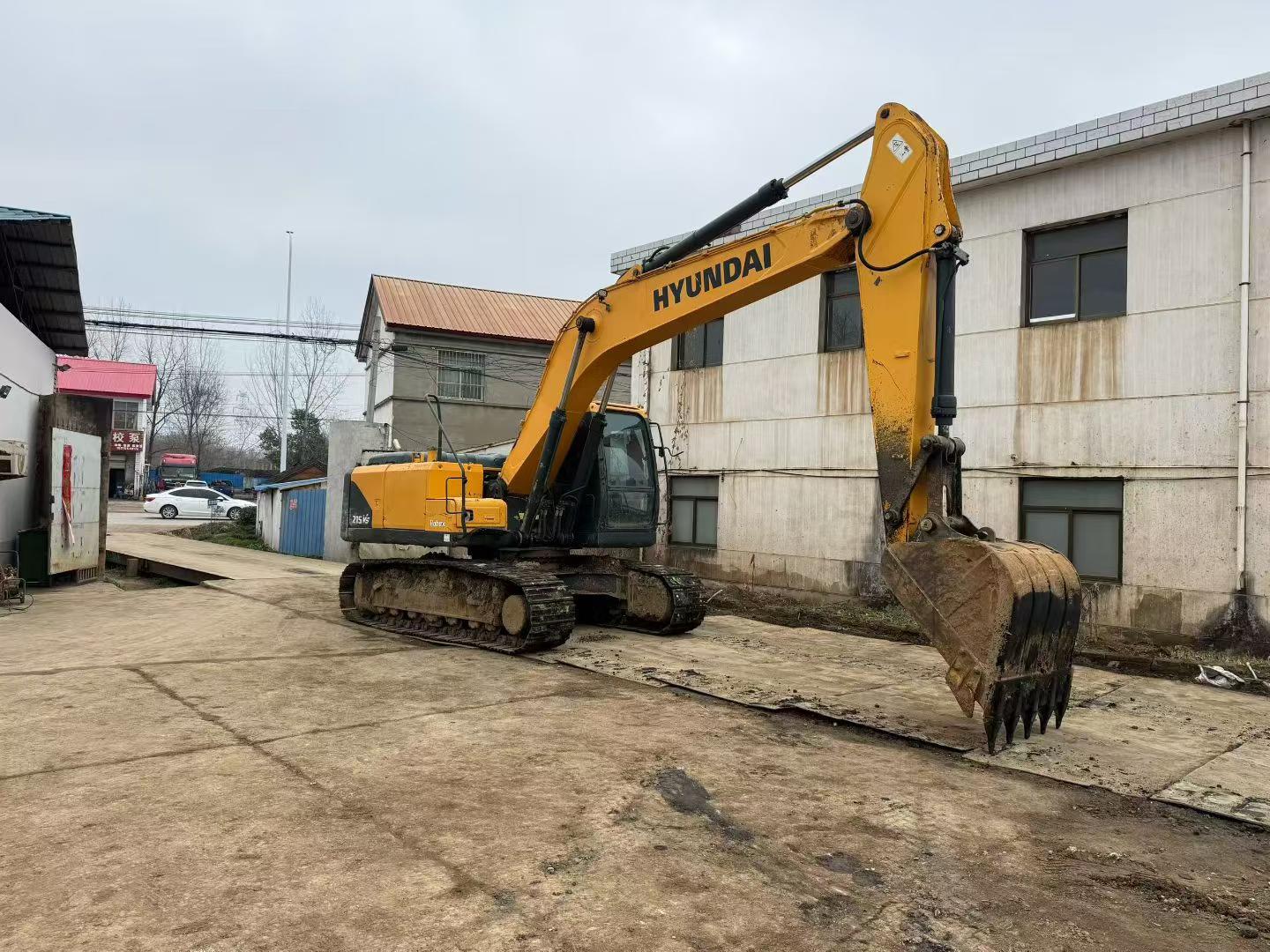

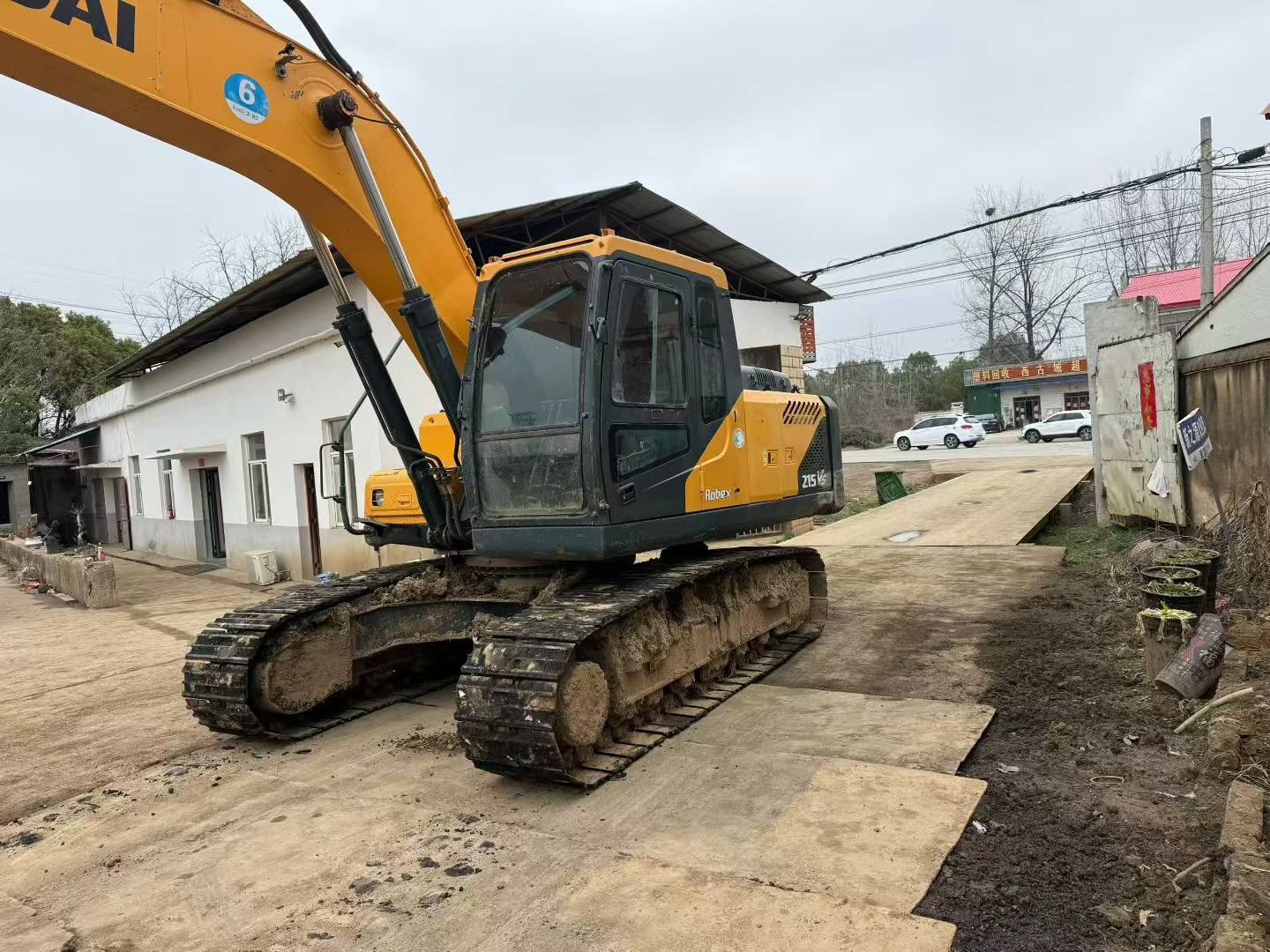

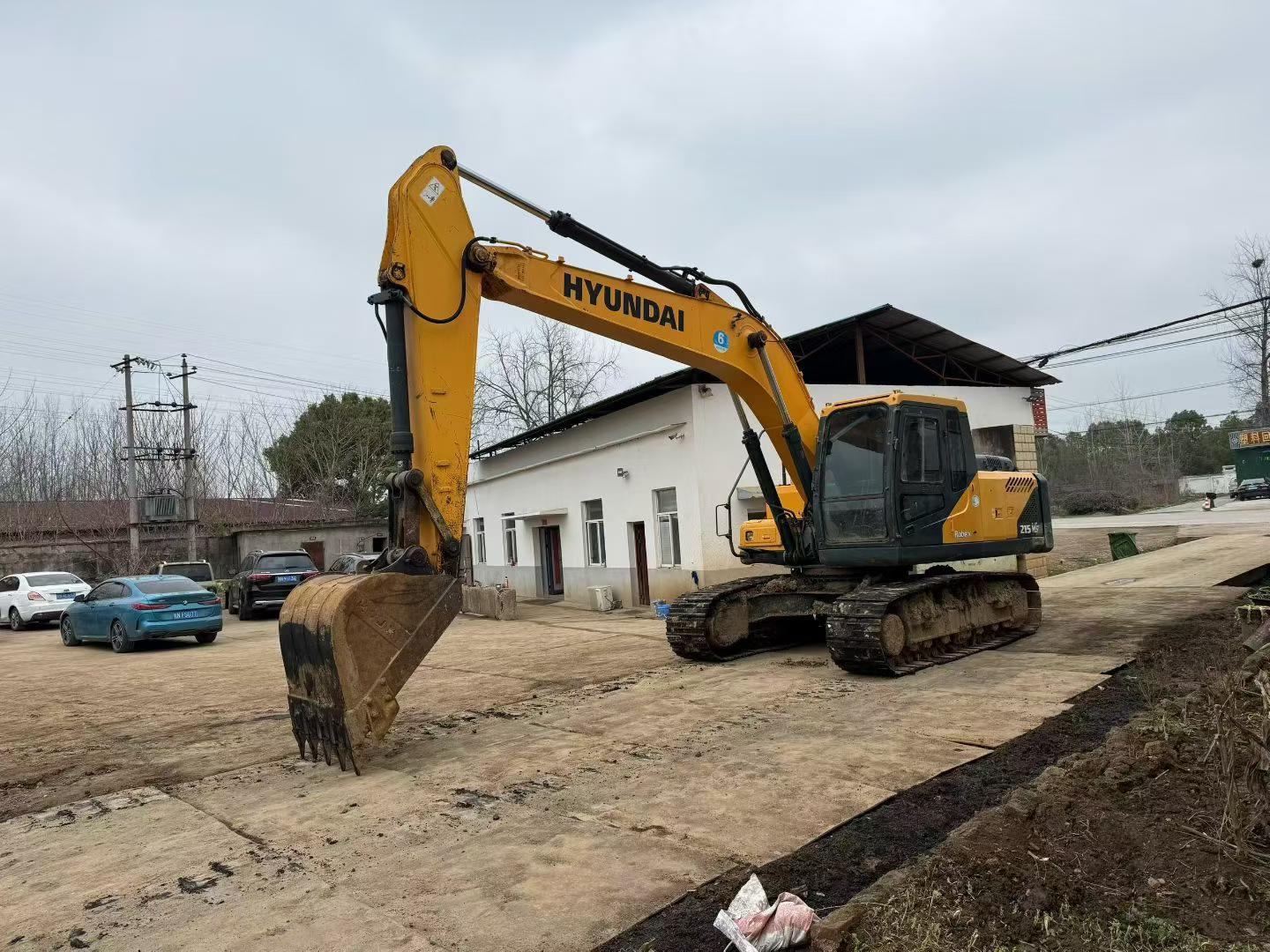

Built for high-volume earthmoving and precision excavation, this 2019 Hyundai R215-7 delivers 21 tons of proven performance across demanding jobsites. Powered by a Hyundai D6BT-C turbocharged engine producing 110kW at 1950 rpm, this crawler excavator combines power and efficiency through its water-cooled, six-cylinder direct injection system. The 0.92 m³ backhoe bucket generates 123.3 kN digging force, while the 5650mm boom and 2920mm arm provide a maximum digging reach of 9930mm and depth of 6800mm—ideal for foundation work, trenching, and material handling operations.

Hydraulic systems feature dual variable axial piston pumps delivering 2×220 L/min flow at 280 MPa working pressure, ensuring responsive control during grading and loading cycles. Track configuration includes 600mm-wide plates with 2200mm gauge for stable operation on slopes up to 35°. Operating weight of 20,700 kg balances stability with transportability at 9510mm length. Currently located in Anhui Province, this joint venture-manufactured excavator arrives site-ready with 320L fuel capacity and proven Hyundai reliability for contractors requiring immediate deployment on excavation, utility, or demolition projects.

SpecificationsValue
No.1046983
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

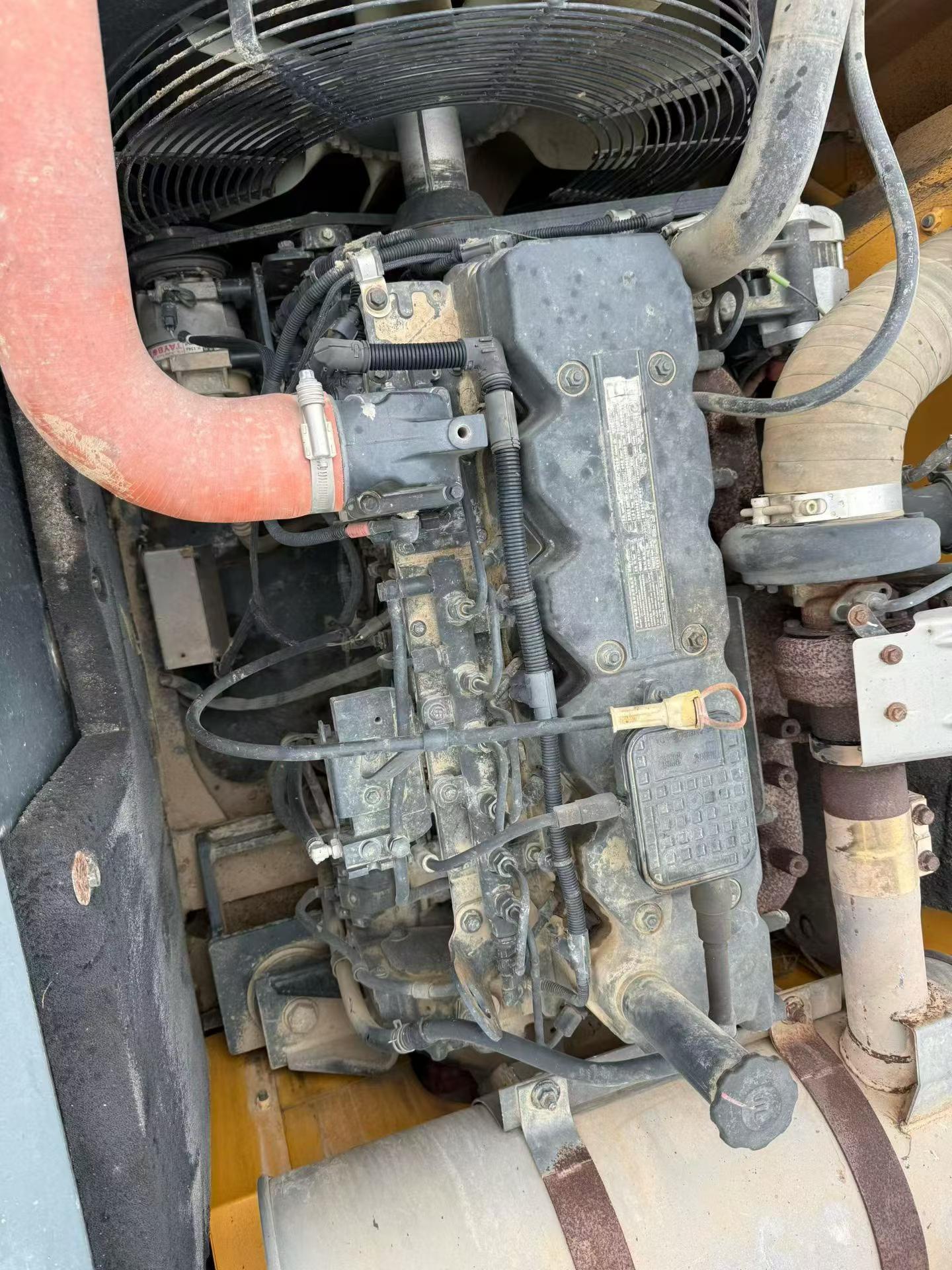

Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47

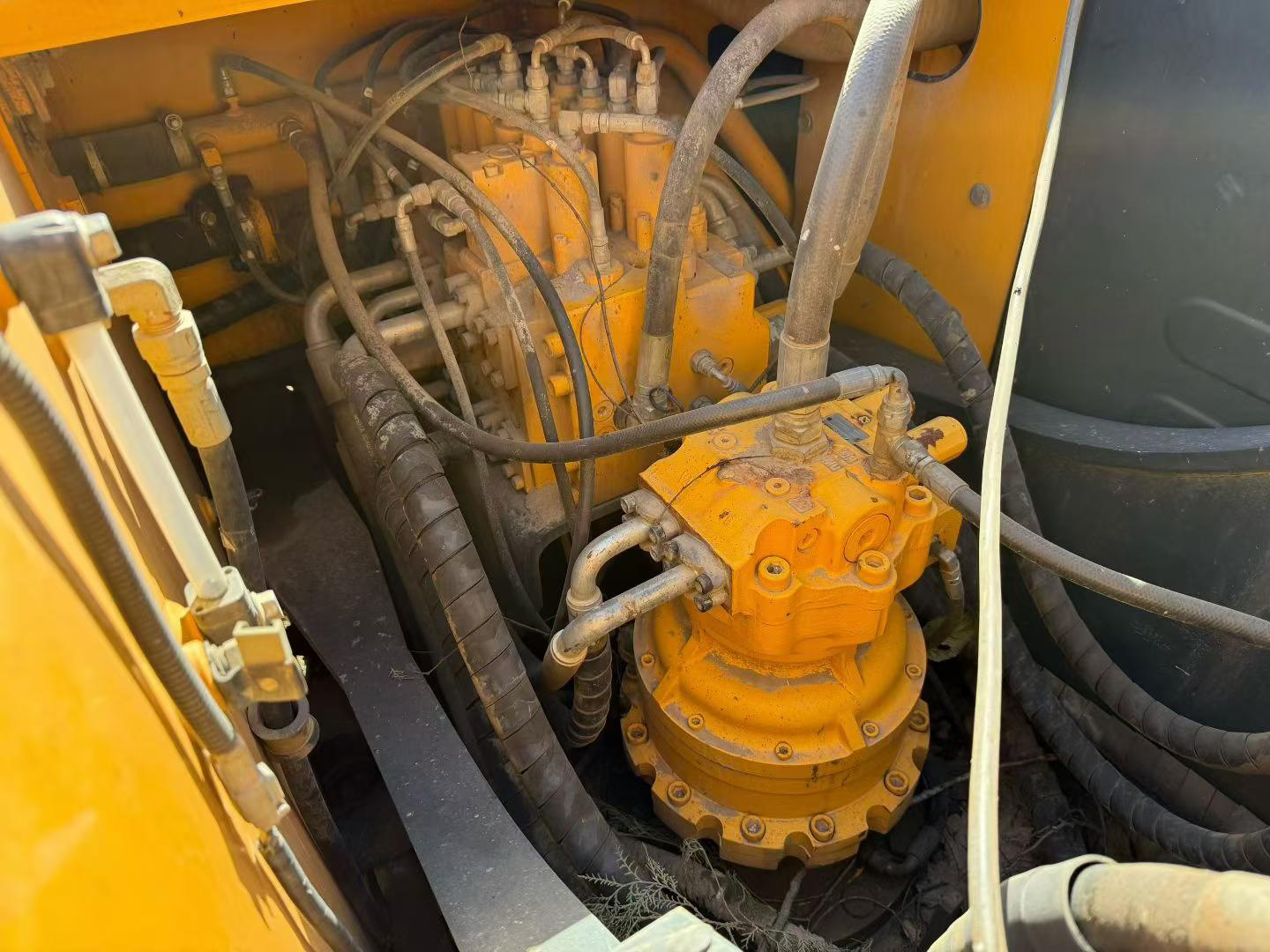

Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240

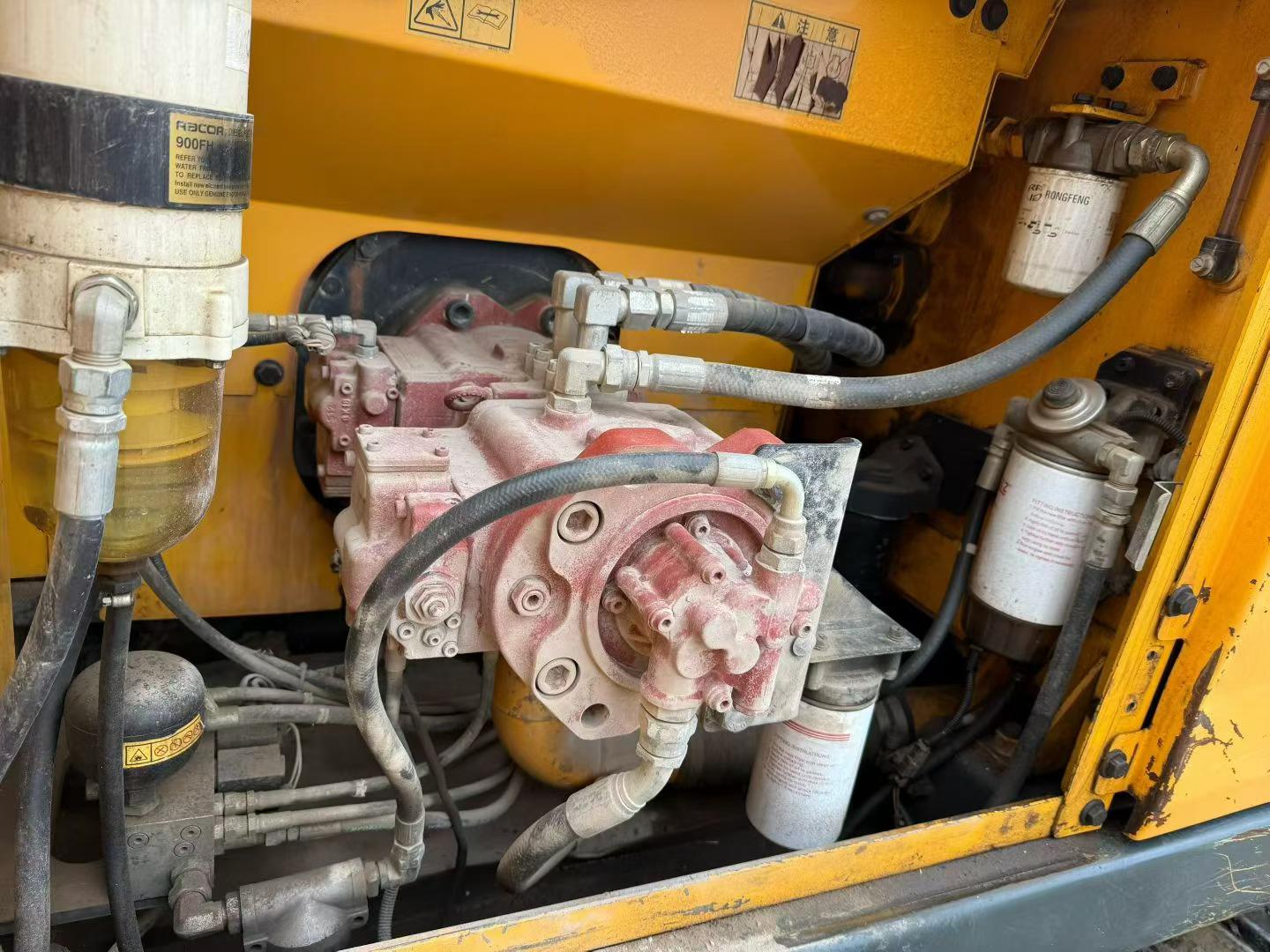

Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.1046983

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2019

Location:

Anhui China

Pub Date
