Product Description

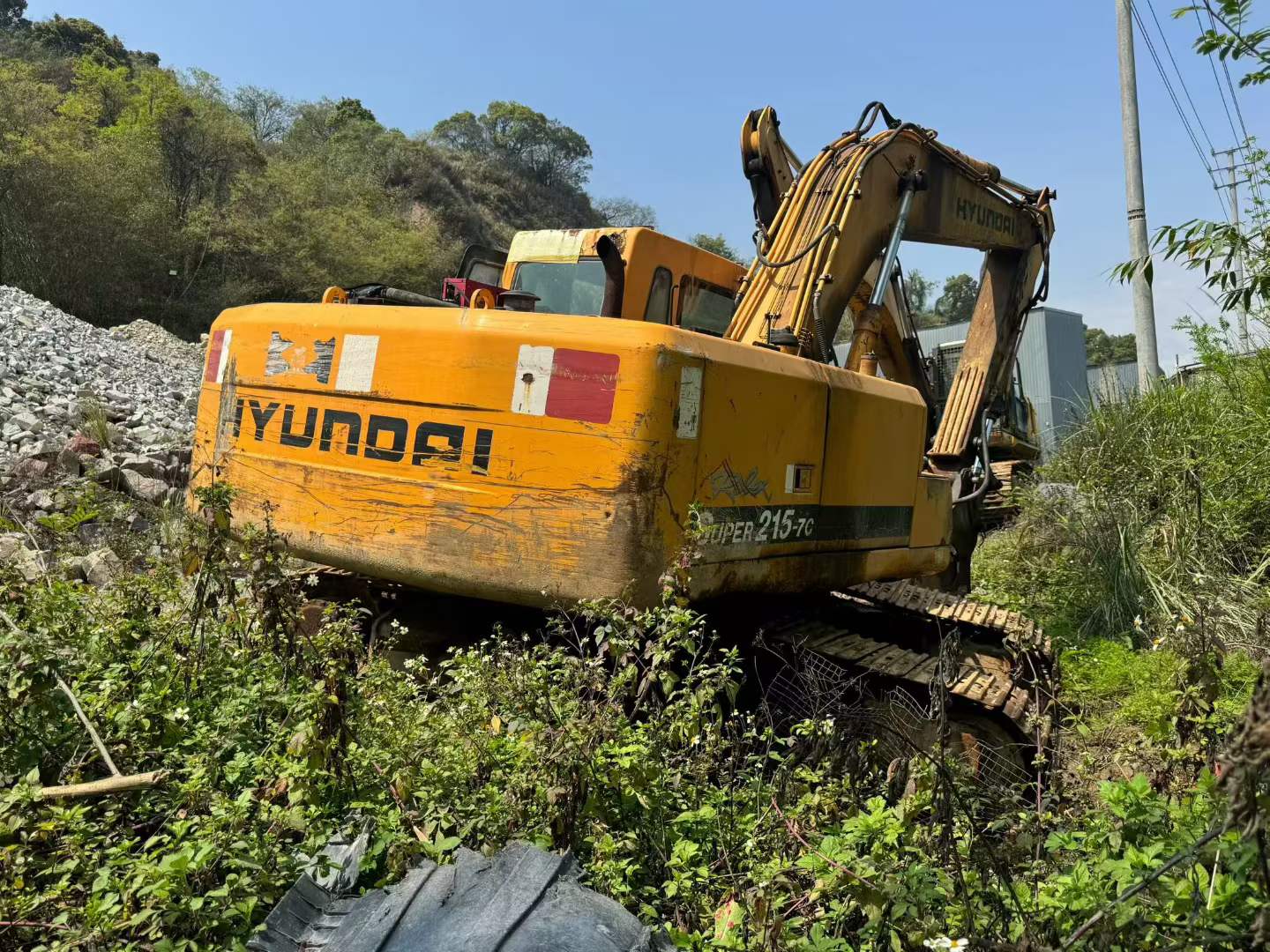

Engineered for demanding excavation work, this 2016 Hyundai R215-7C delivers 21-ton class performance with precision-tuned hydraulics and a Cummins B5.9-C engine generating 112 kW at 1950 rpm. Dual variable axial piston pumps supply 440 l/min combined flow, driving maximum bucket digging force of 132.4 kN and arm force of 95.1 kN—critical metrics for high-production earthmoving operations.
Key specifications include:
- Operating weight: 20,700 kg with 0.92 m³ bucket capacity
- Maximum digging reach: 9,930 mm; depth: 6,800 mm

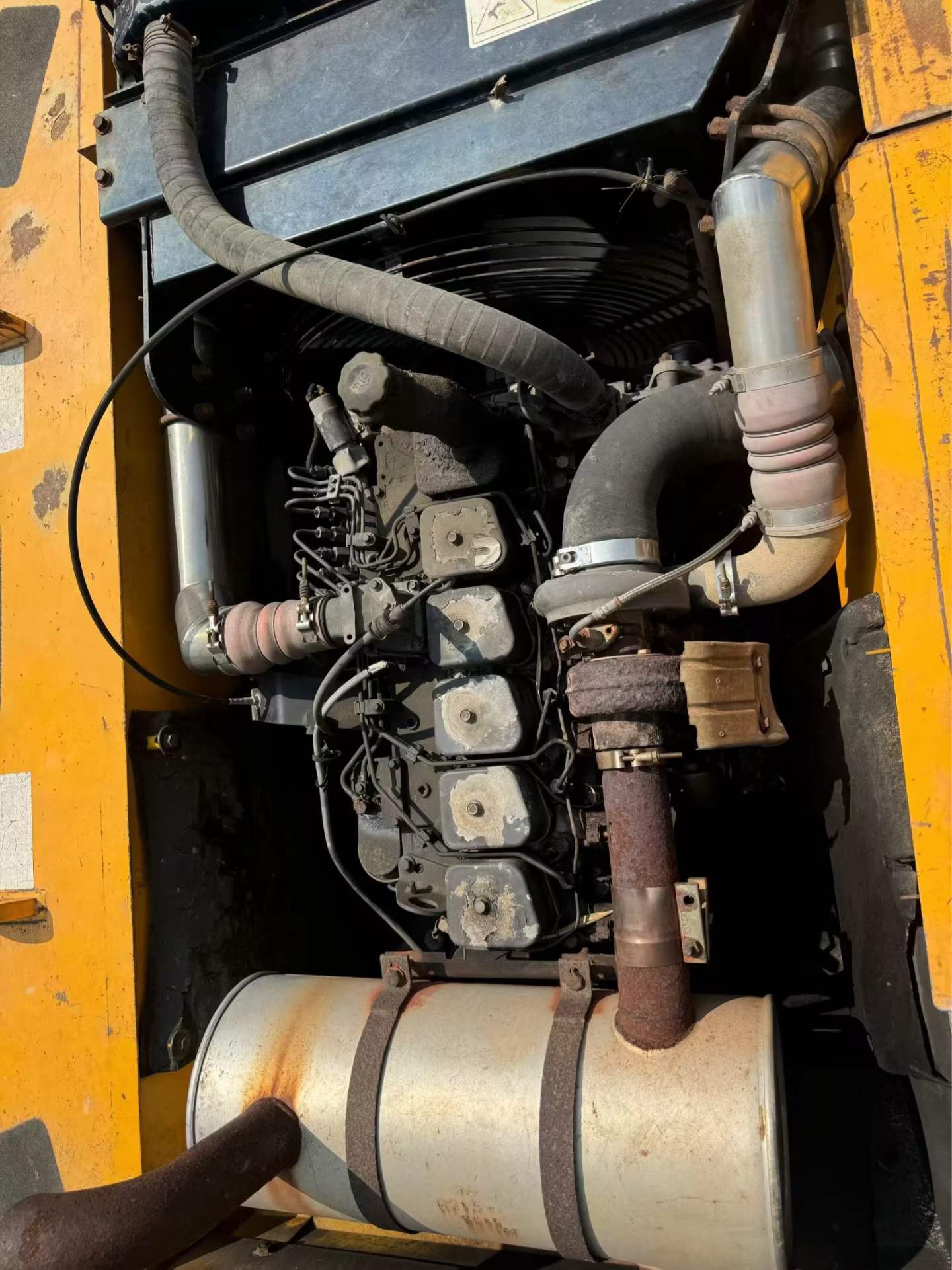

- Six-cylinder turbocharged intercooled direct injection engine with 5.9L displacement
- Hydraulic system pressure: 300 MPa working circuit, 165L tank capacity
- Swing speed: 12.5 rpm with quantitative swash plate motor
- Travel speed range: 3.5–5.2 km/h with variable piston motor drive
Currently located in Maoming, Guangdong, this joint venture-manufactured excavator combines proven R215-7C series reliability with comprehensive hydraulic architecture suited for construction, demolition, and land development applications requiring consistent productivity.
| Specifications | Value |
|---|---|
| No. | 1046186 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |

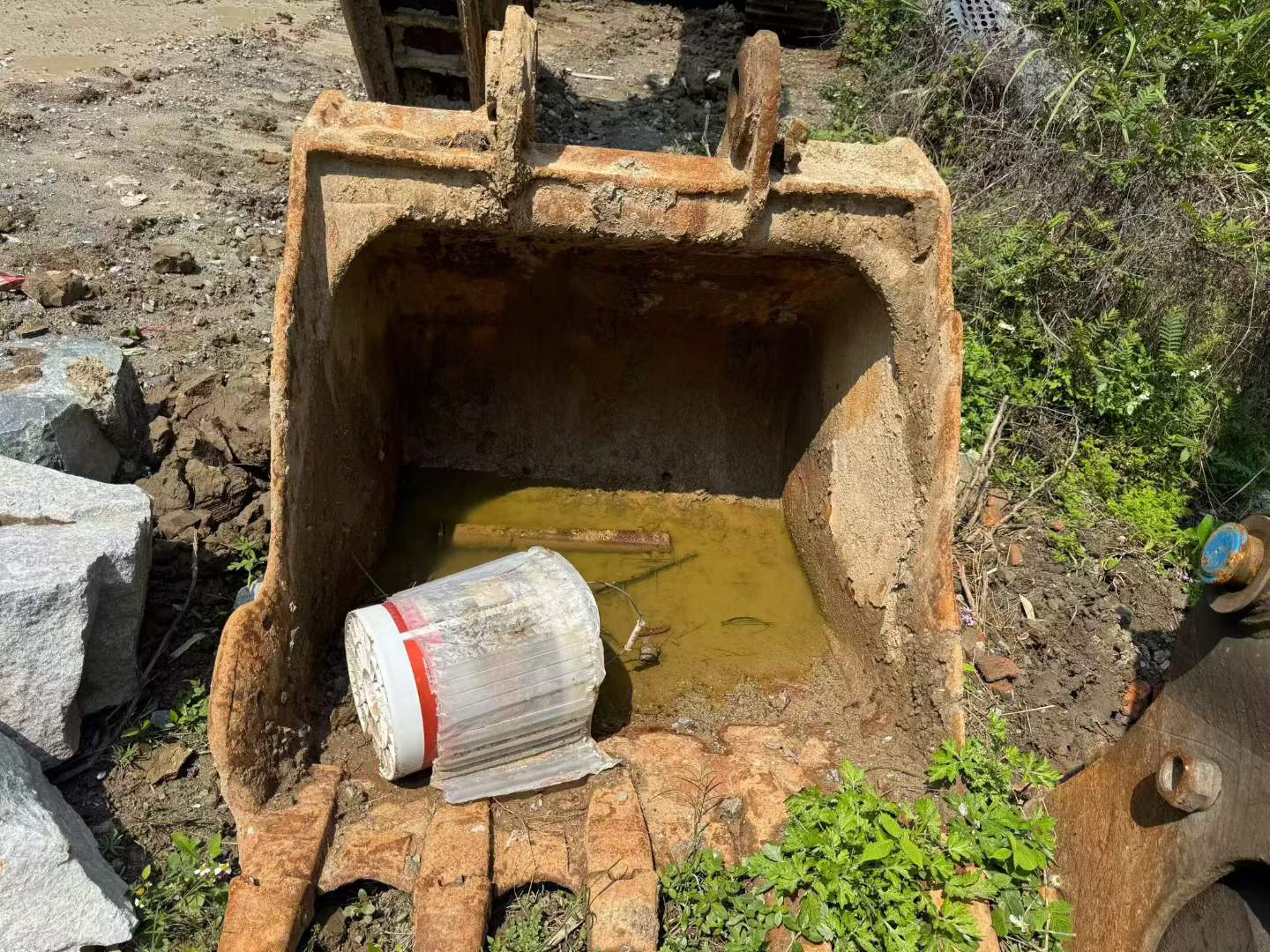

| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2990 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m) | 62.6/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.9 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 132.4 |
| Rod digging force (kN) | 95.1 |
| Maximum tractive force (kN) | 19500 |
| Travel speed (km/h) | 3.5-5.2 |

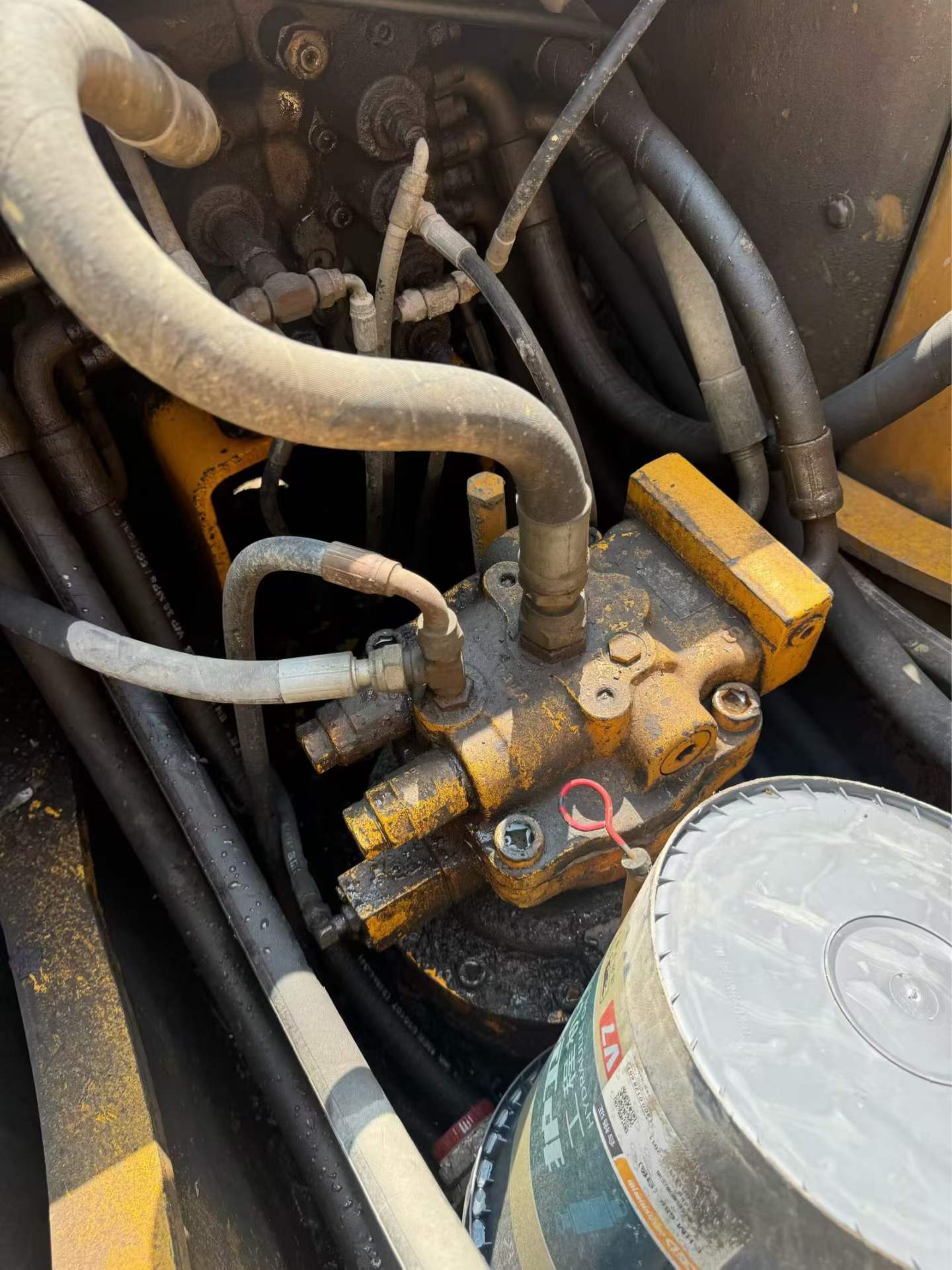

| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 300 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Hydraulic crushing pipeline is standard | no |

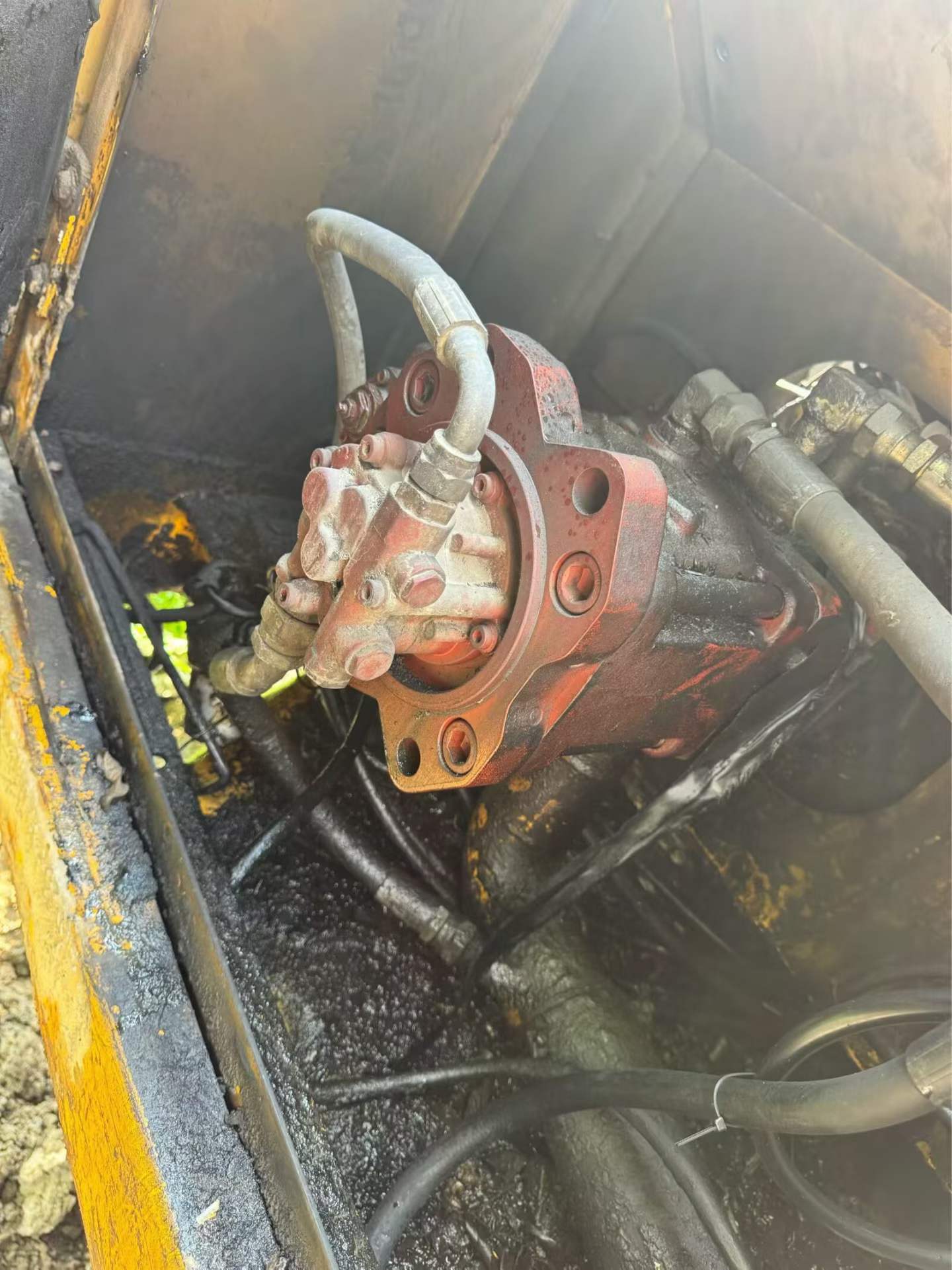

| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
