Product Description

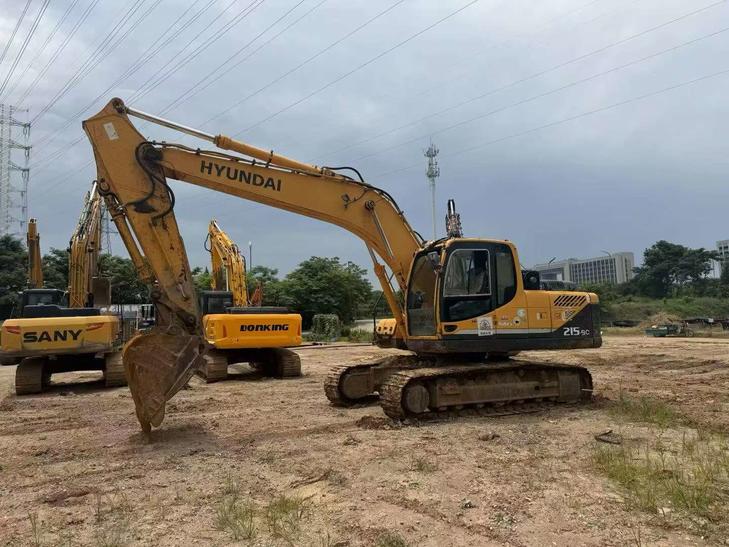

This 2020 Hyundai R215-9 excavator represents a solid mid-size crawler solution for contractors seeking reliable performance in earthmoving applications. Currently located in Zhejiang, China, this machine delivers the proven capabilities of Hyundai's 9-series platform with approximately 21-ton operating weight and efficient hydraulic systems designed for productivity in construction, excavation, and material handling operations.
Key features of the R215-9 include:
- Hyundai diesel engine delivering robust power and fuel efficiency
- Advanced hydraulic system for smooth, responsive control
- Spacious operator cabin with ergonomic controls
- Durable undercarriage built for extended service life
- Versatile bucket configurations for various applications
This pre-owned unit offers an economical entry point into quality Korean engineering. Inspection welcomed for serious buyers evaluating equipment additions to their fleet.
| Specifications | Value |
|---|---|
| No. | 1083420 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai D6BV-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 568.4 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 143.7 |
| Rod digging force (kN) | 102.4 |
| Maximum tractive force (kN) | 195 |
| Travel speed (km/h) | 5.3/3.4 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston pump |
| Type of walking hydraulic motor | Variable swash plate axial piston pump |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
