Product Description

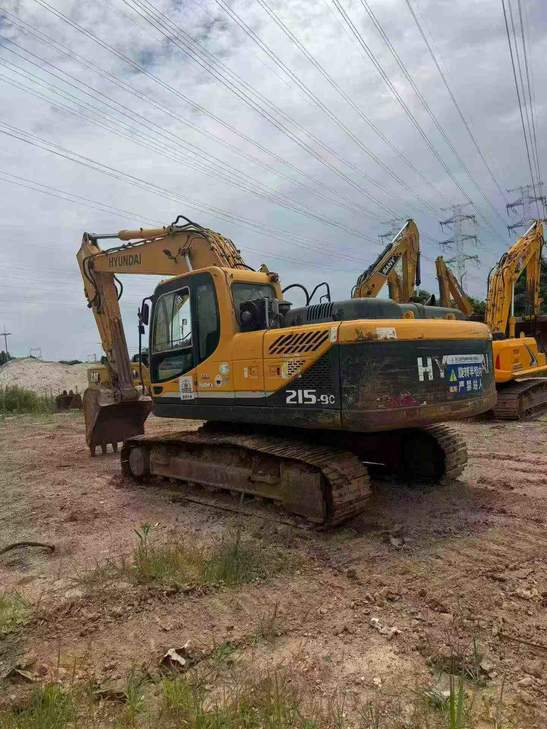

This 2020 Hyundai R215-9C crawler excavator offers reliable performance for mid-sized earthmoving operations. With approximately four years of field use, this machine represents a cost-effective entry point into Hyundai's proven 9C series. Currently located in Zhejiang, China, the unit is priced competitively at approximately 110,000 RMB, reflecting its operational history and current market position.
Key specifications and features:
- 21-ton operating weight class suitable for general construction and excavation
- Hyundai 9C series hydraulic system with efficient fuel consumption
- Cab design with improved operator visibility and ergonomics
- Standard boom and arm configuration for versatile digging applications
- Service records and operational history available upon request
This excavator is available for inspection in Zhejiang province. Contact us for detailed condition reports, additional photos, or to schedule an on-site evaluation.
| Specifications | Value |
|---|---|
| No. | 1083551 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C(6BTAA) |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m/rpm) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Working form | 6 cylinder, 4 stroke, turbocharged intercooled engine. |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 148.9 |
| Rod digging force (kN) | 106.8 |
| Maximum tractive force (kN) | 191.1 |
| Travel speed (km/h) | 3.5-5.2 |
| Rotary hydraulic motor type | Swash plate plunger motor with automatic braking |
| Type of walking hydraulic motor | Two-speed swashplate plunger motor with automatic brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
