Product Description

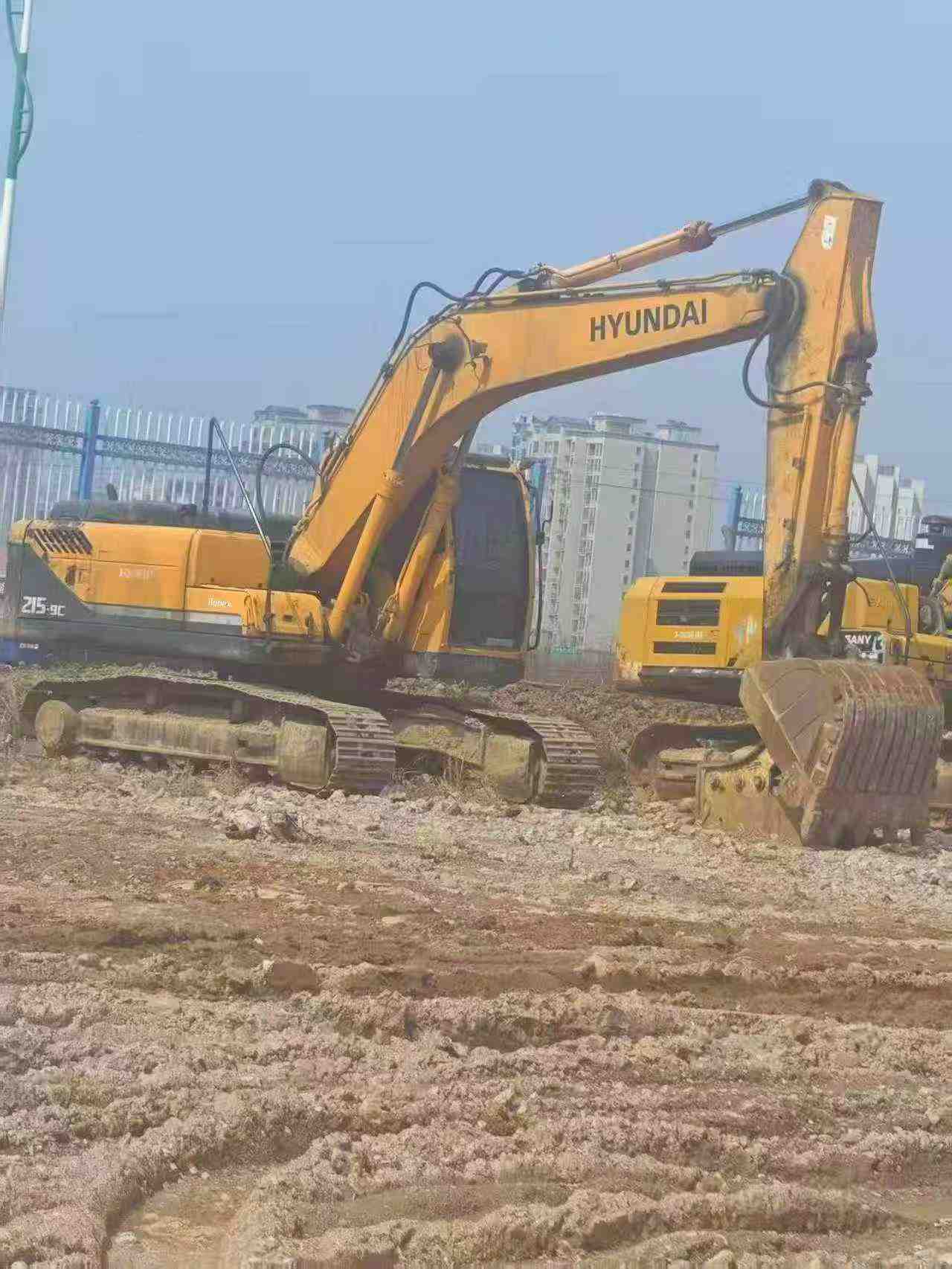

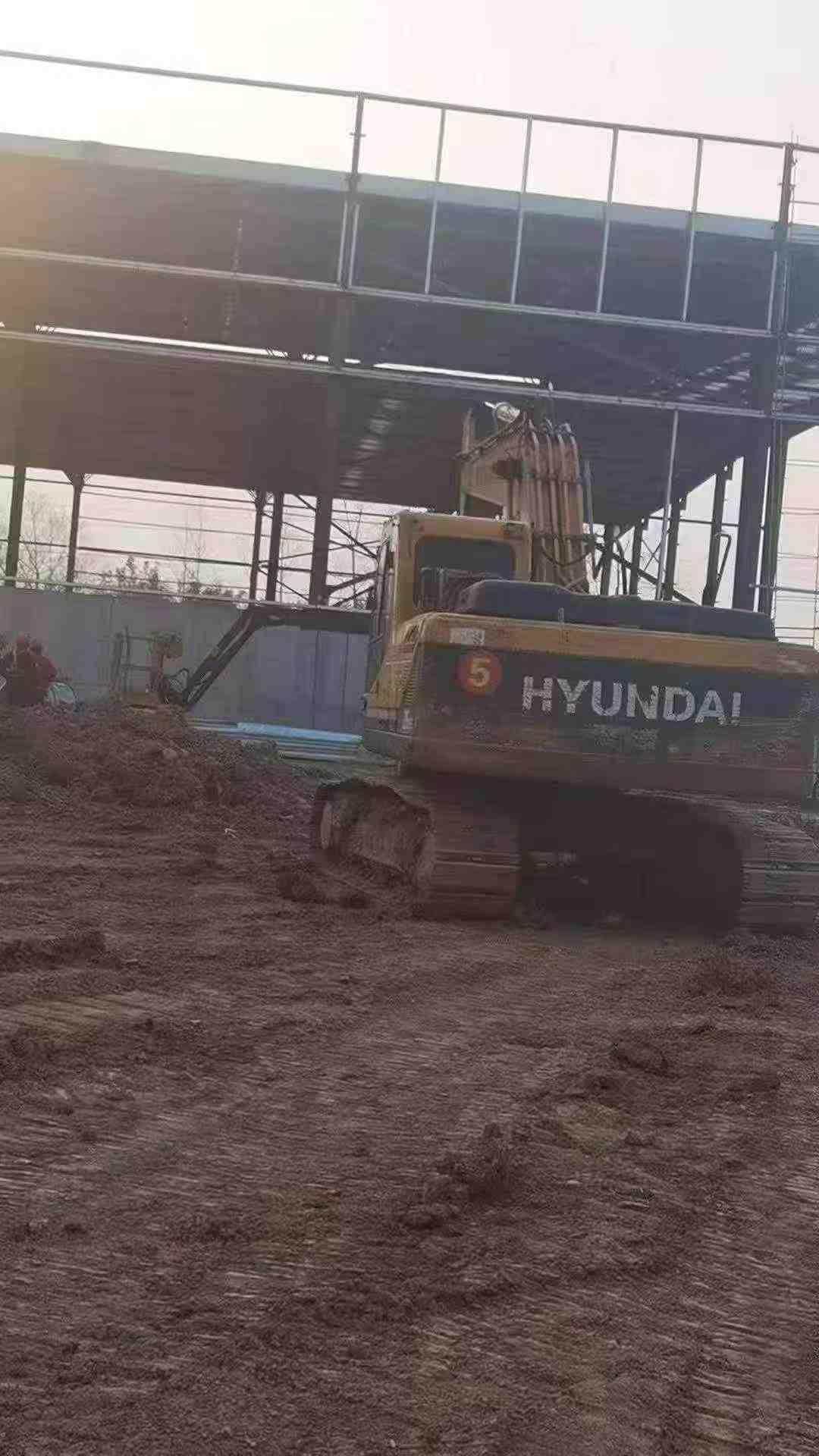

This 2020 Hyundai R215-9C excavator is currently located in Shandong, China, and comes equipped with a hydraulic hammer attachment. With over 100,000 CNY in value, this machine represents a solid investment for contractors seeking reliable mid-sized excavation equipment. The R215-9C is known for its fuel efficiency and robust hydraulic system, making it suitable for demolition, foundation work, and general earthmoving applications.
- Year: 2020
- Model: Hyundai R215-9C
- Configuration: Includes hydraulic hammer
- Location: Shandong Province, China
- Operating Weight Class: ~21 tons
- Condition: Used, operational
This excavator offers a practical solution for operations requiring both digging and breaking capabilities. The integrated hammer attachment adds versatility for rock breaking and concrete demolition tasks. Inspection and shipping arrangements can be coordinated from the Shandong location.
| Specifications | Value |
|---|---|
| No. | 1084872 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

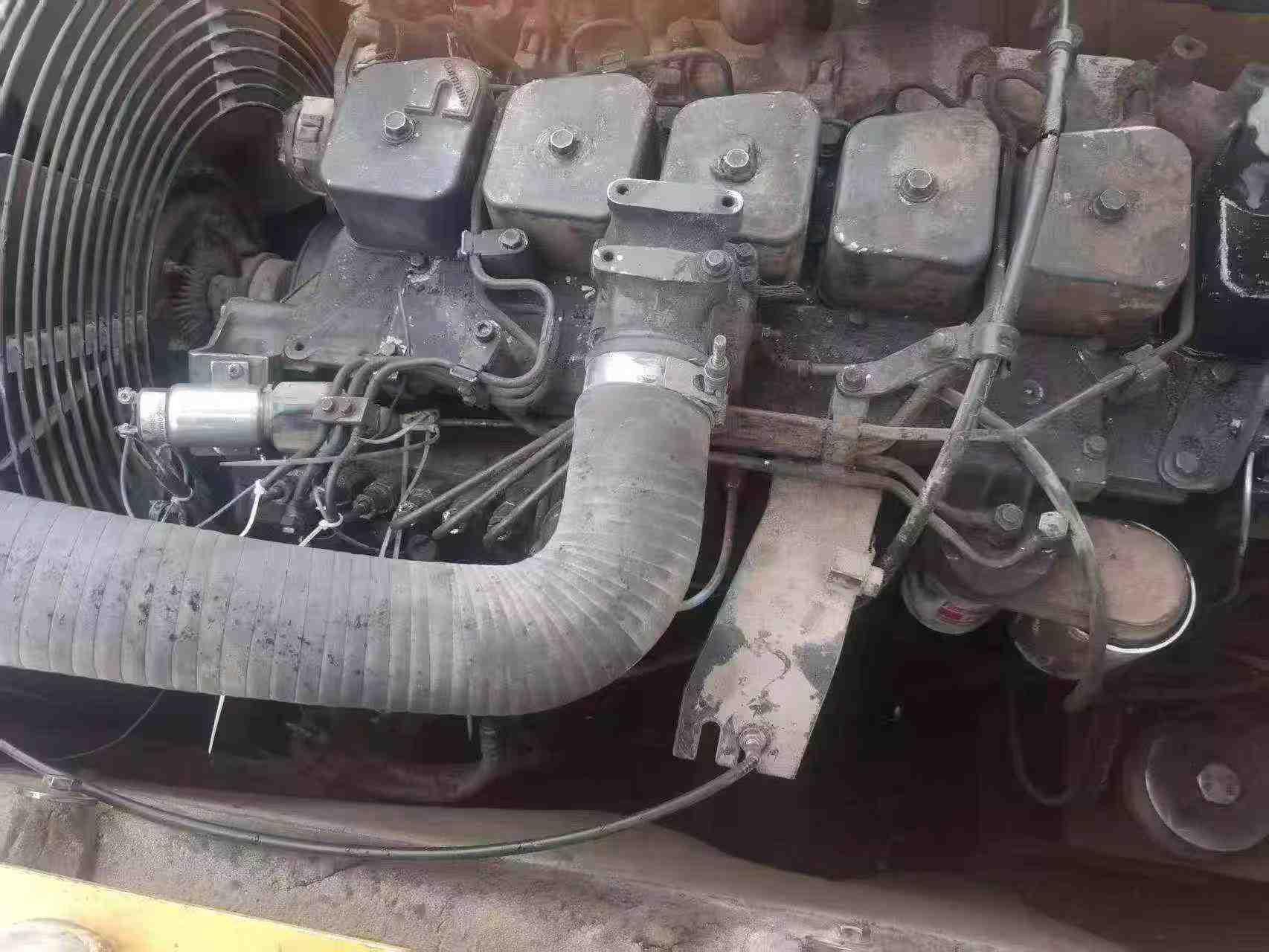

| Engine type | Cummins B5.9-C(6BTAA) |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m/rpm) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Working form | 6 cylinder, 4 stroke, turbocharged intercooled engine. |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 148.9 |
| Rod digging force (kN) | 106.8 |
| Maximum tractive force (kN) | 191.1 |
| Travel speed (km/h) | 3.5-5.2 |
| Rotary hydraulic motor type | Swash plate plunger motor with automatic braking |
| Type of walking hydraulic motor | Two-speed swashplate plunger motor with automatic brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
