Product Description

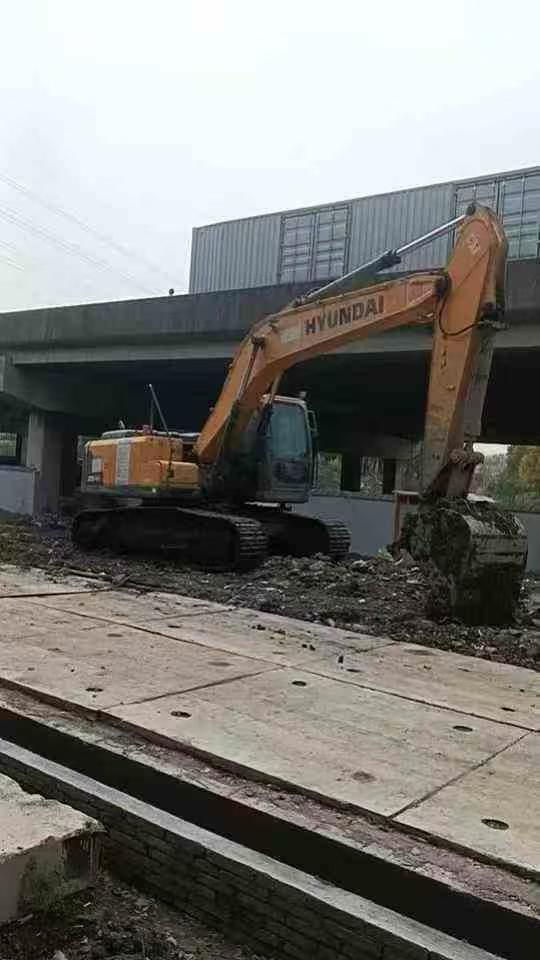

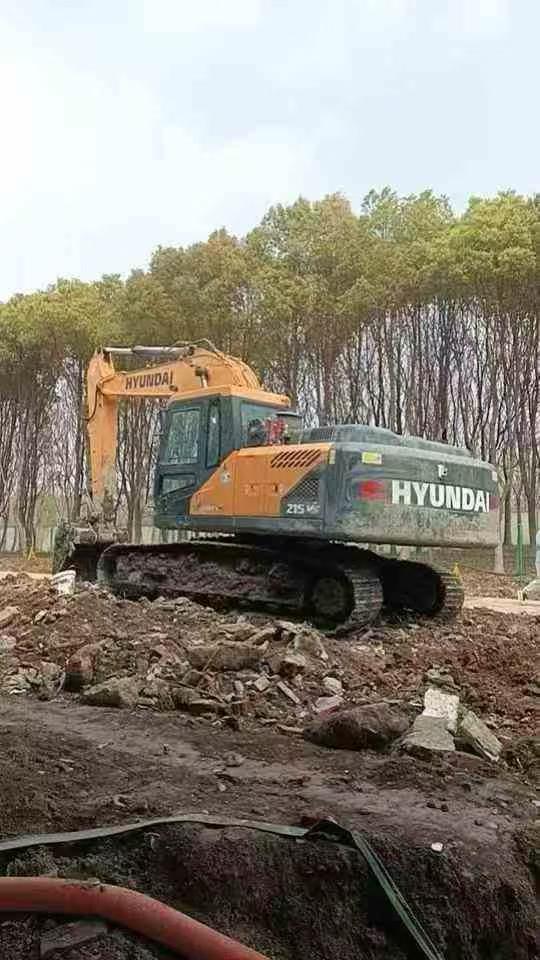

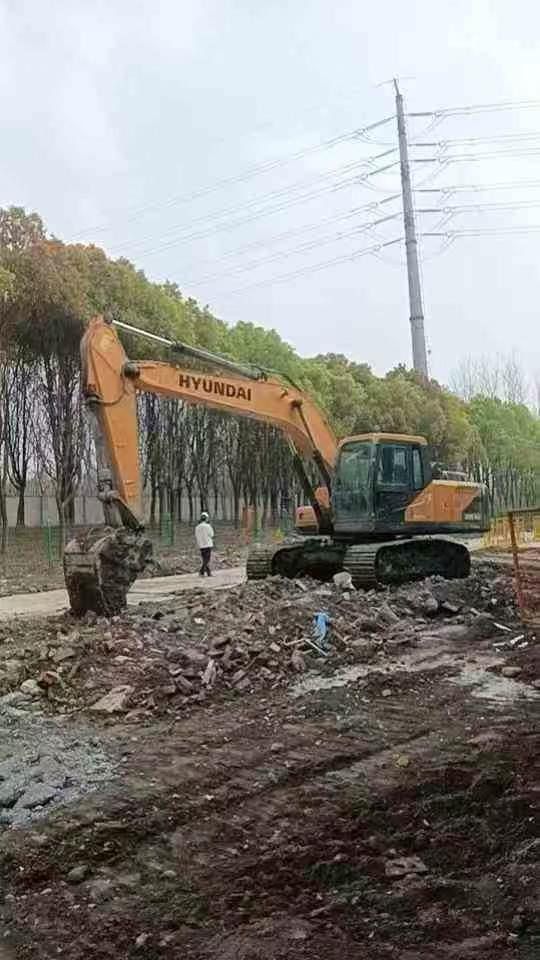

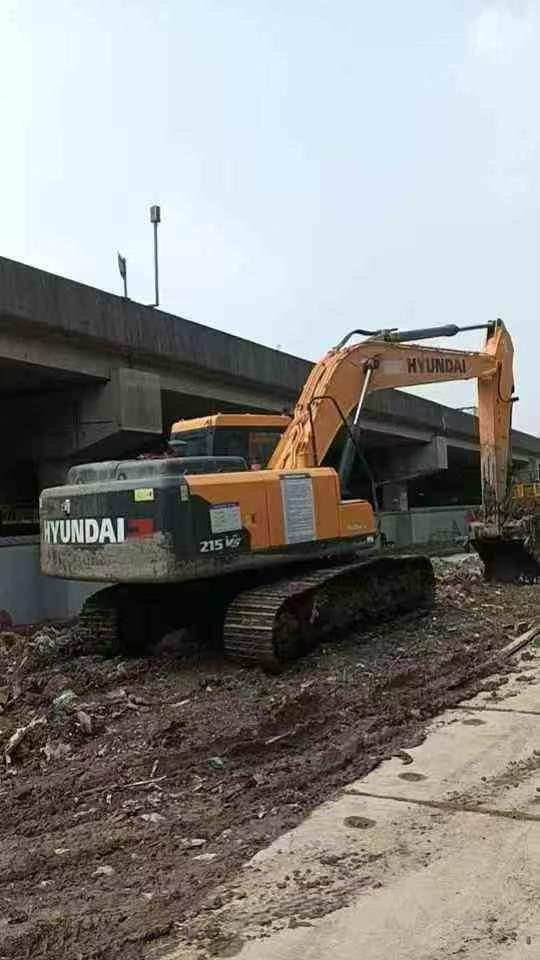

Engineered for demanding excavation operations, this 2019 Hyundai R215VS delivers 21-ton performance through precision-tested hydraulic systems and proven power delivery. Powered by a Cummins QSB7 turbocharged engine generating 125 kW at 1900 rpm, the machine maintains consistent output across extended duty cycles. Dual variable plunger pumps supply 444 l/min combined flow at 300 MPa working pressure, enabling responsive control across all functions. Operating weight of 20,900 kg provides stability for a maximum digging reach of 9,930 mm and depth capability to 6,800 mm with the 0.92 m³ backhoe bucket.
- Cummins QSB7 6-cylinder water-cooled engine: 125 kW rated power, 6.7 L displacement
- Advanced hydraulics: dual 222 l/min variable pumps, 300 MPa working circuit
- Axial piston motors with automatic braking on rotation and travel circuits
- 5,650 mm boom and 2,920 mm stick configuration for versatile reach
- Two-speed travel system: 5.6 km/h high range, 70% gradeability
- 340 L fuel capacity and 180 L hydraulic reservoir for extended operation
- Currently located in Suzhou, Jiangsu—joint venture quality standards
| Specifications | Value |
|---|---|
| No. | 1050545 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

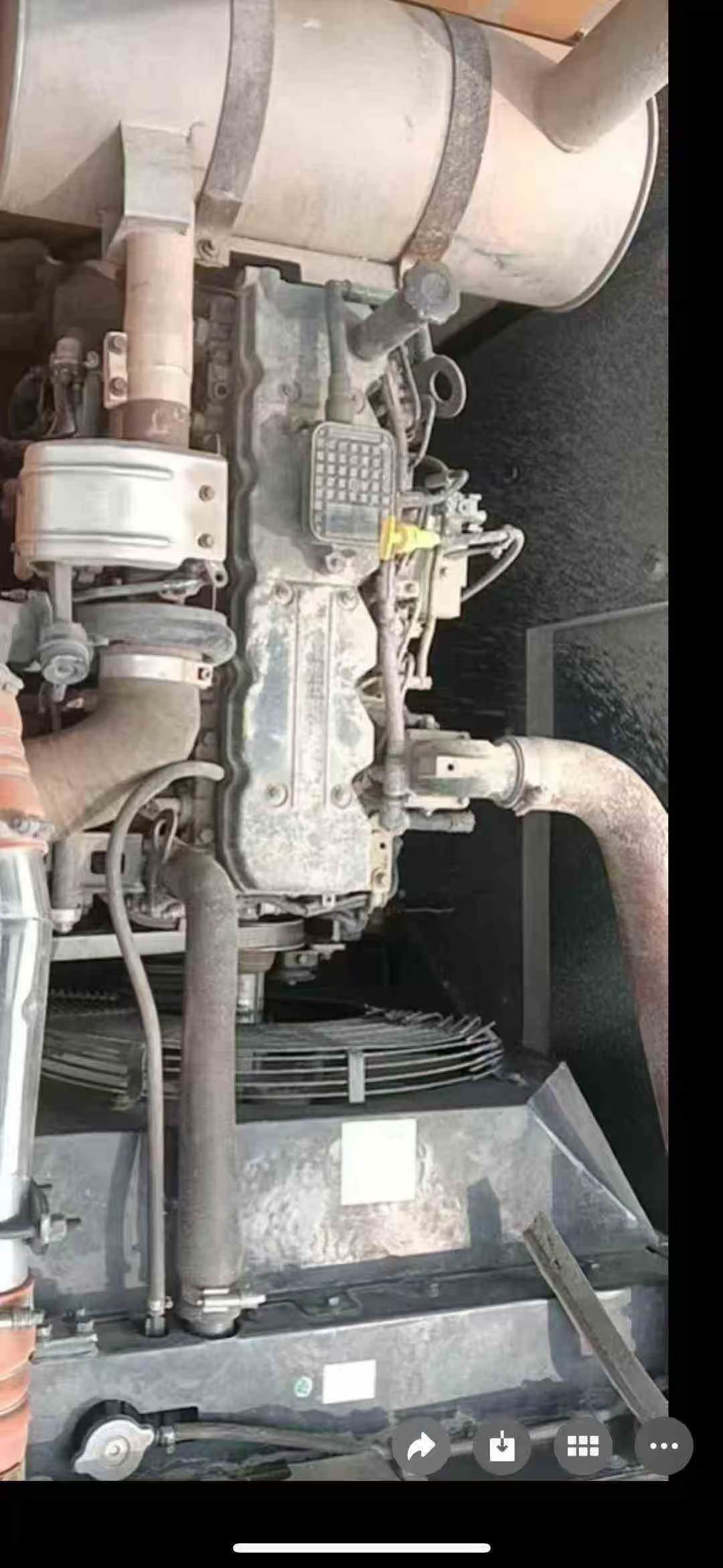

| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6 / 3.7 |

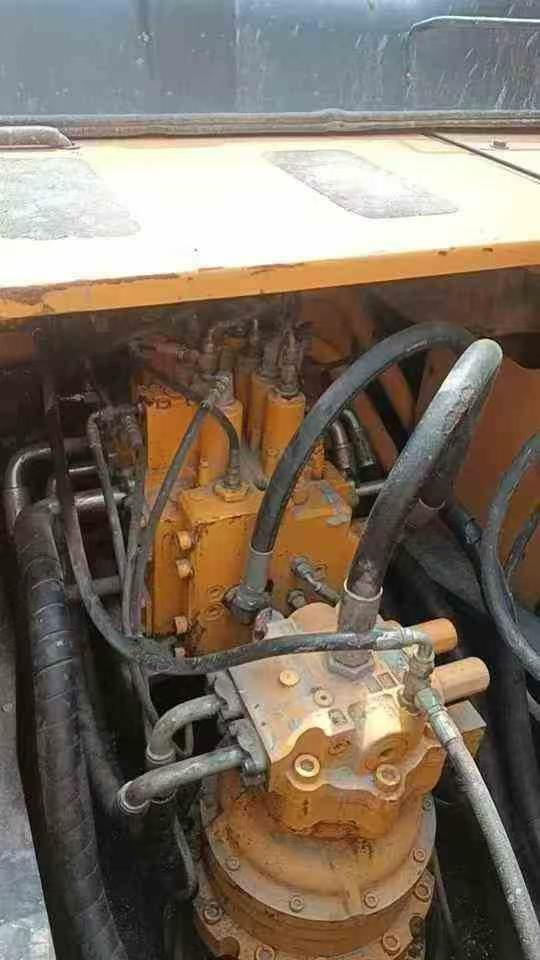

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 350 |
| Rotary Hydraulic Circuit (Mpa) | 250 |

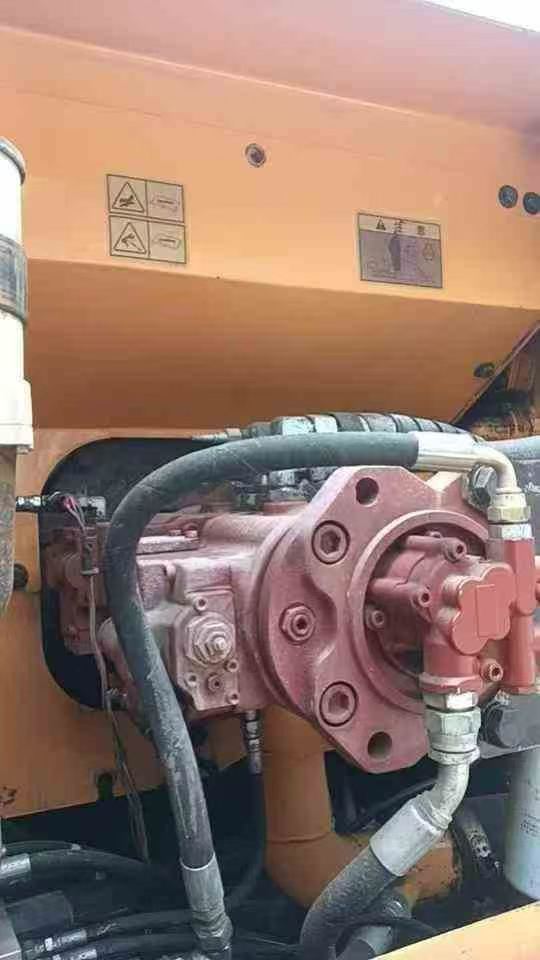

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 120 x ø 80 x 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 95 x 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 125 x ø 85 x 1320 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3770 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Maximum excavation radius of stop surface (mm) | 9760 |
