Product Description

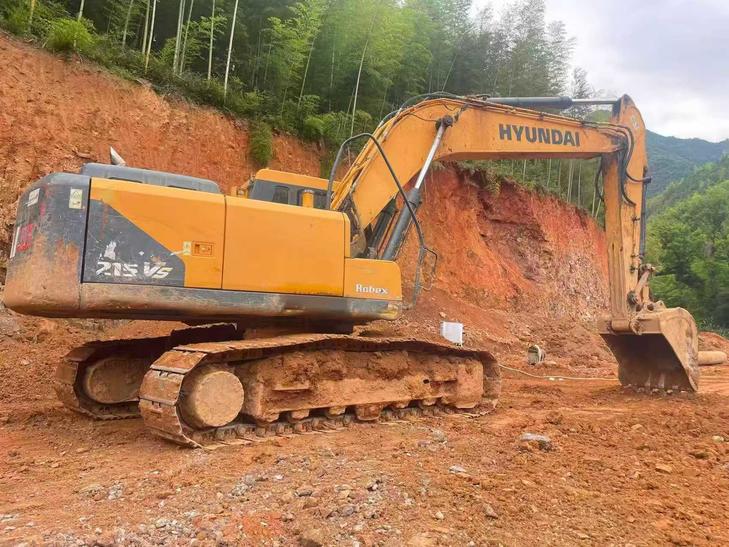

This 2019 Hyundai R215VS crawler excavator represents a reliable mid-size option for construction and earthmoving operations. Currently located in Zhejiang, China, this machine offers the operational capabilities expected from Hyundai's VS series, designed for versatility and productivity in demanding work environments.
The R215VS features a proven hydraulic system and engine configuration suitable for a wide range of applications including excavation, trenching, and material handling. With approximately 5 years of service, this unit provides an opportunity to acquire established Hyundai engineering at a competitive price point.
- Operating weight class: Approximately 21 tons
- Suitable for medium-duty construction projects
- Hyundai VS series reliability and parts availability
- Currently available in Zhejiang, China
Interested buyers are encouraged to contact us directly for detailed inspection reports, service history, and current operational status. Pre-purchase evaluation recommended for all industrial equipment acquisitions.
| Specifications | Value |
|---|---|
| No. | 1099564 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6 / 3.7 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 350 |
| Rotary Hydraulic Circuit (Mpa) | 250 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 120 x ø 80 x 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 95 x 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 125 x ø 85 x 1320 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3770 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Maximum excavation radius of stop surface (mm) | 9760 |
