Product Description
Built for the long haul, this 2021 Hyundai R215VS excavator demonstrates exceptional durability with proven performance in demanding applications. Operating at 21 tons with a robust 20,900 kg working weight, this machine combines the reliability of a Cummins QSB7 engine delivering 125 kW at 1900 rpm with Hyundai's renowned engineering excellence. Designed as a workhorse for heavy-duty excavation, it features a 0.92 m³ bucket capacity and impressive reach specifications including a 9,930 mm maximum digging radius and 6,800 mm digging depth.

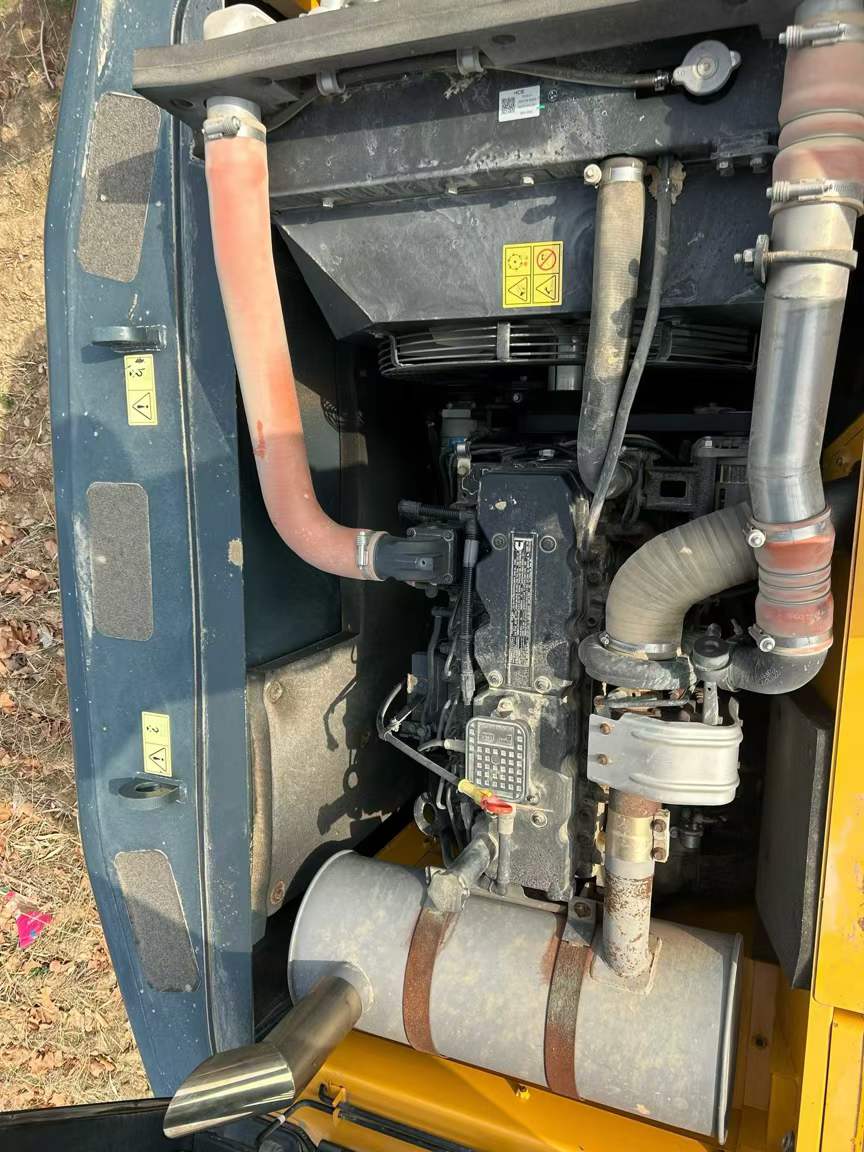

- Cummins QSB7 6-cylinder turbocharged engine with water cooling
- Two variable plunger pumps with 2 x 222 l/min maximum flow
- Advanced hydraulic system: 300 MPa working circuit, 270 L capacity
- Superior climbing ability: 70% gradient capability
- Substantial fuel capacity: 340 L tank for extended operation
- Dual-speed travel system: 5.6 / 3.7 km/h
- Currently located in Dezhou, Shandong, ready for global shipment
With minimal operational hours for its age, this proven performer represents a sound investment in reliable heavy equipment backed by joint venture manufacturing standards.
| Specifications | Value |
|---|---|
| No. | 1038083 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6 / 3.7 |

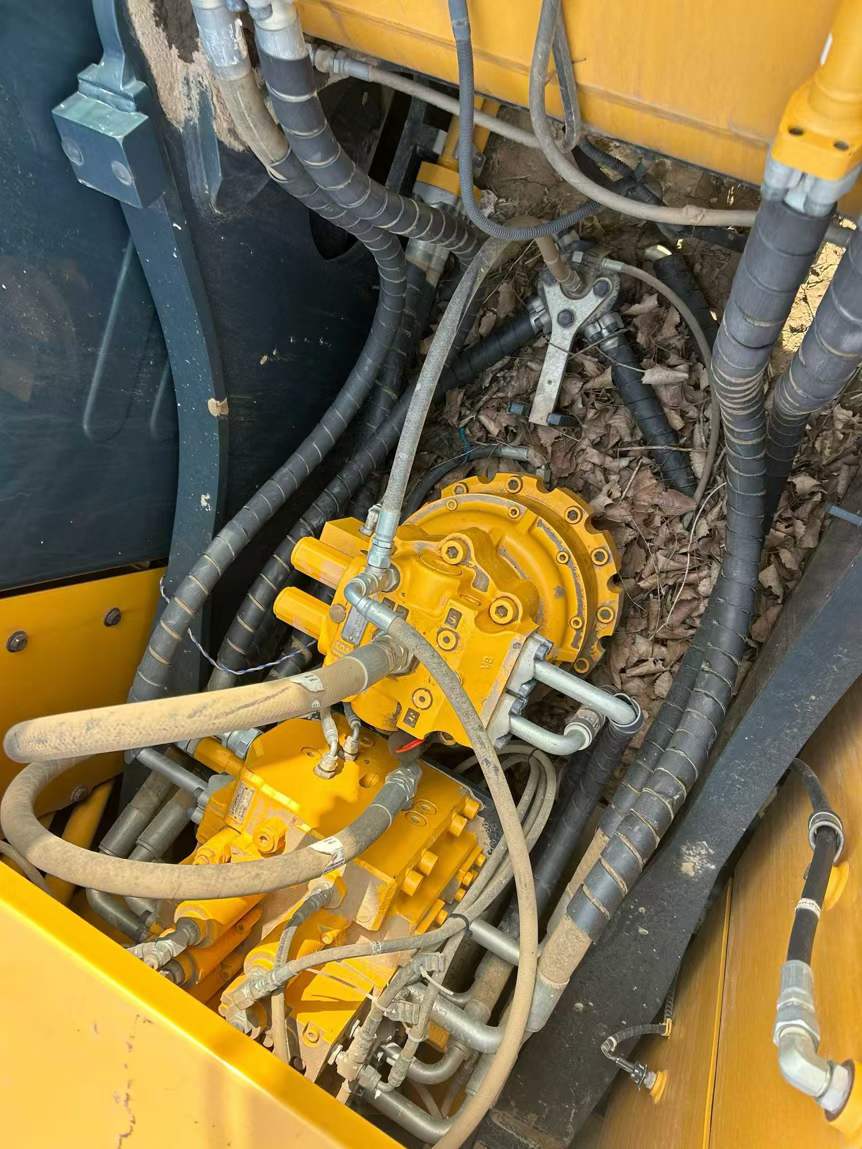

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 350 |
| Rotary Hydraulic Circuit (Mpa) | 250 |

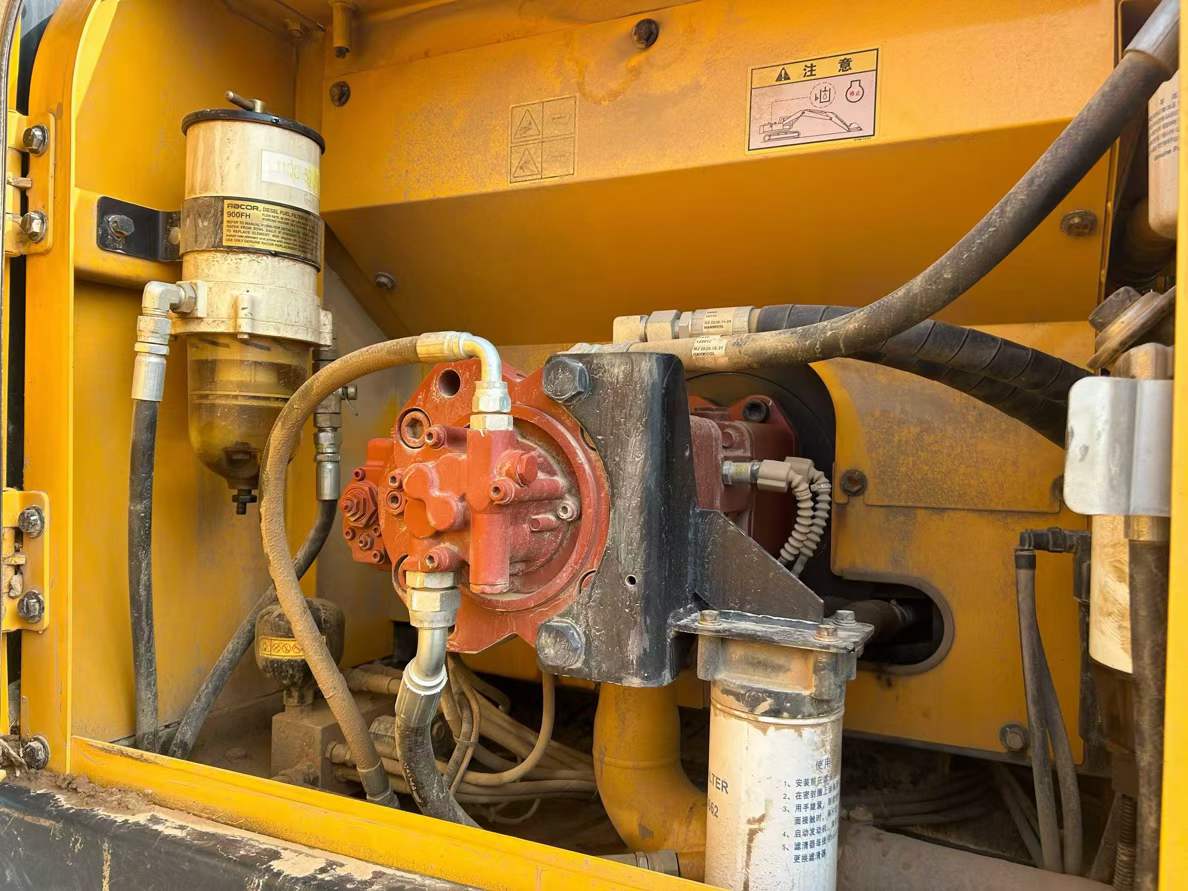

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 120 x ø 80 x 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 95 x 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 125 x ø 85 x 1320 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3770 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |

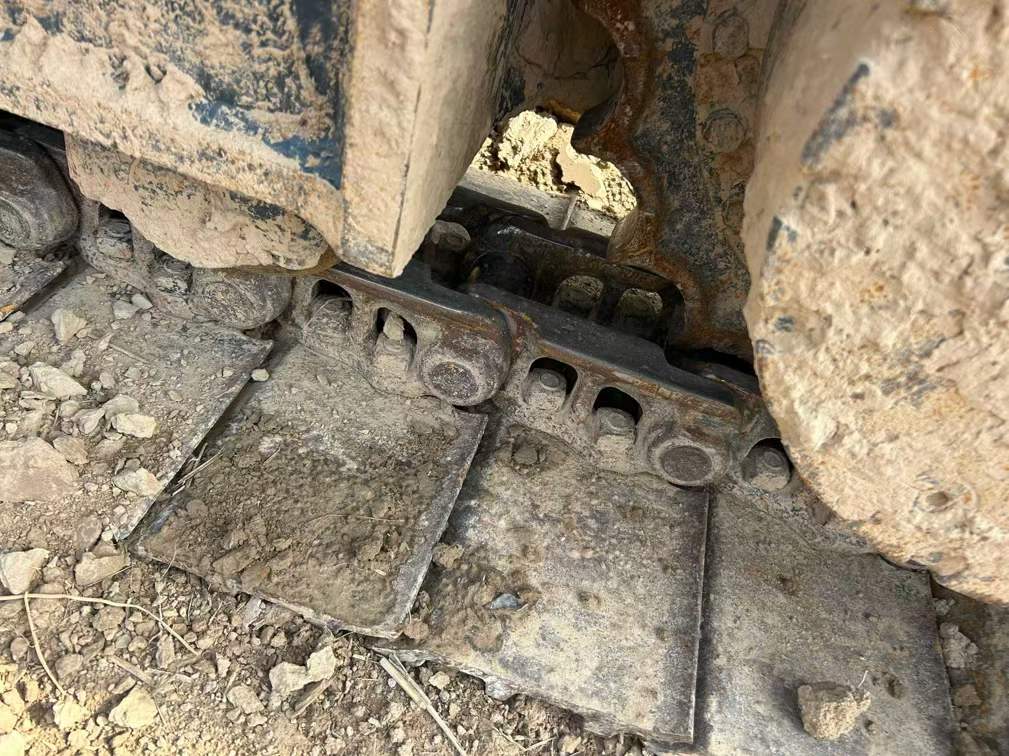

| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Maximum excavation radius of stop surface (mm) | 9760 |
