Product Description
Available now in 贵州, this 2010 Hyundai R215VSN excavator eliminates factory lead times and delivers immediate deployment to your worksite. Operating at 21 tons with a robust 19,900 kg working weight, this machine combines proven Cummins QSB7 power (125 kw at 1900 rpm) with efficient hydraulic performance for demanding excavation tasks across Guizhou's challenging terrain.

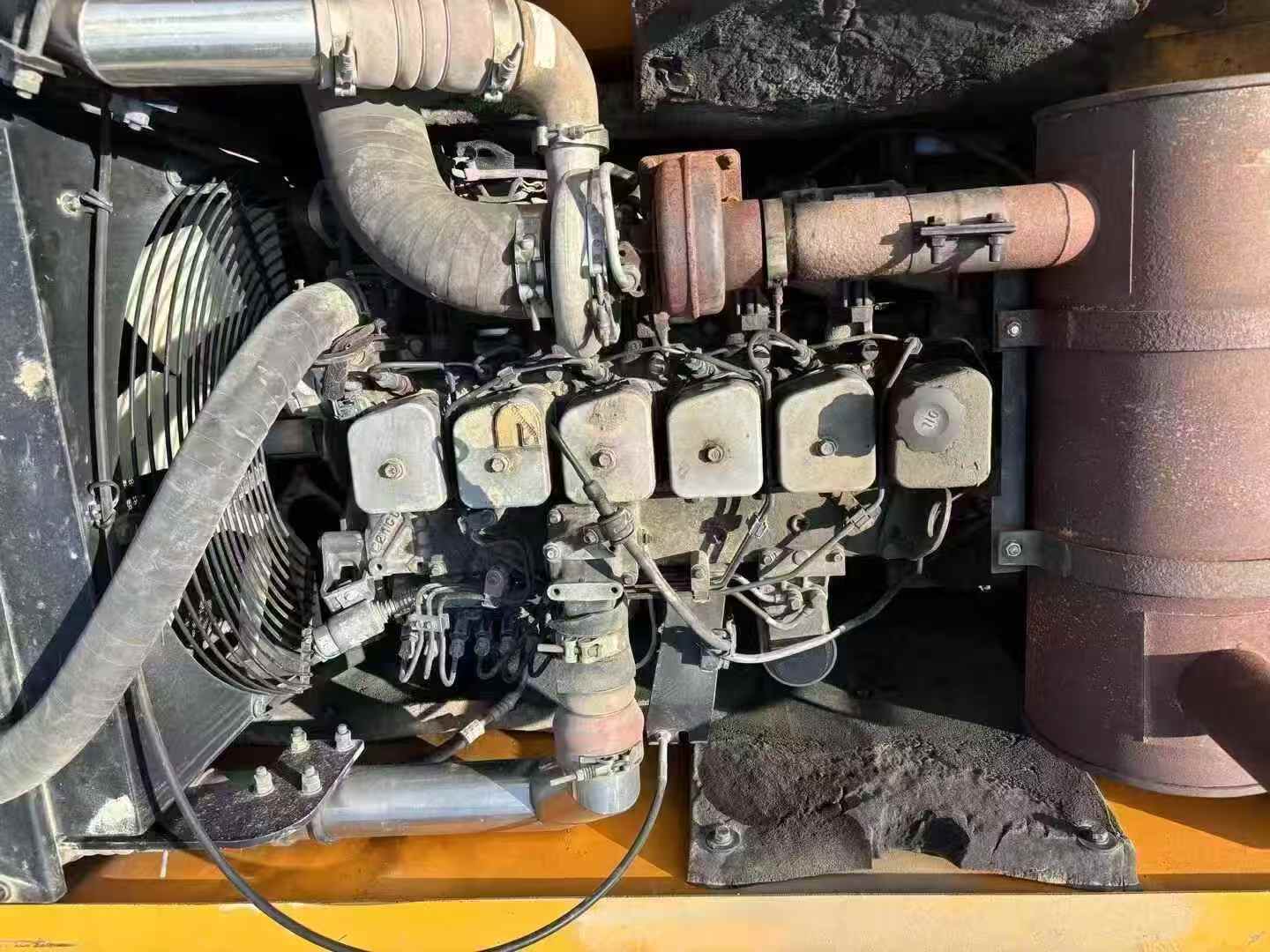

Engineered for productivity, the R215VSN features a 9,720 mm maximum digging radius and 6,550 mm digging depth, powered by dual variable plunger pumps delivering 2×222 l/min flow. The 0.83 m³ backhoe bucket, 5,650 mm boom, and 2,700 mm arm configuration provide versatile reach and breakout force. Water-cooled 6-cylinder engine with 6.7L displacement ensures reliable operation, while the two-speed axial plunger travel motors deliver 5.9/3.8 km/h speeds with 70% climbing capability.
- Immediate availability in 贵州 – skip months of waiting
- Fast deployment: ready for site work without delay
- Proven joint venture quality with imported components
- 340L fuel capacity for extended operation cycles
- Compact 2,800 mm transport width for regional mobility
Secure this ready-to-work excavator today and maintain
| Specifications | Value |
|---|---|
| No. | 994538 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |

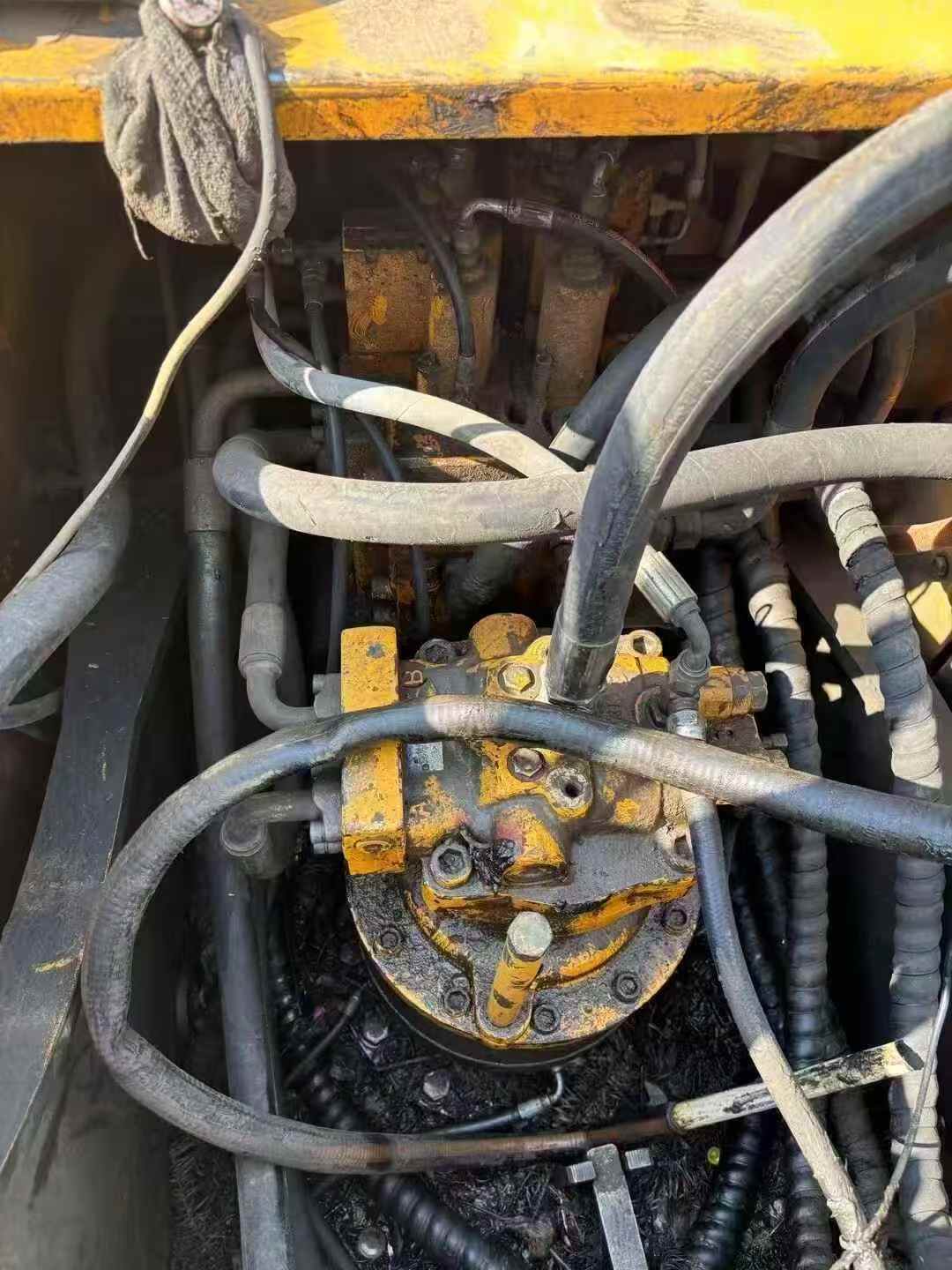

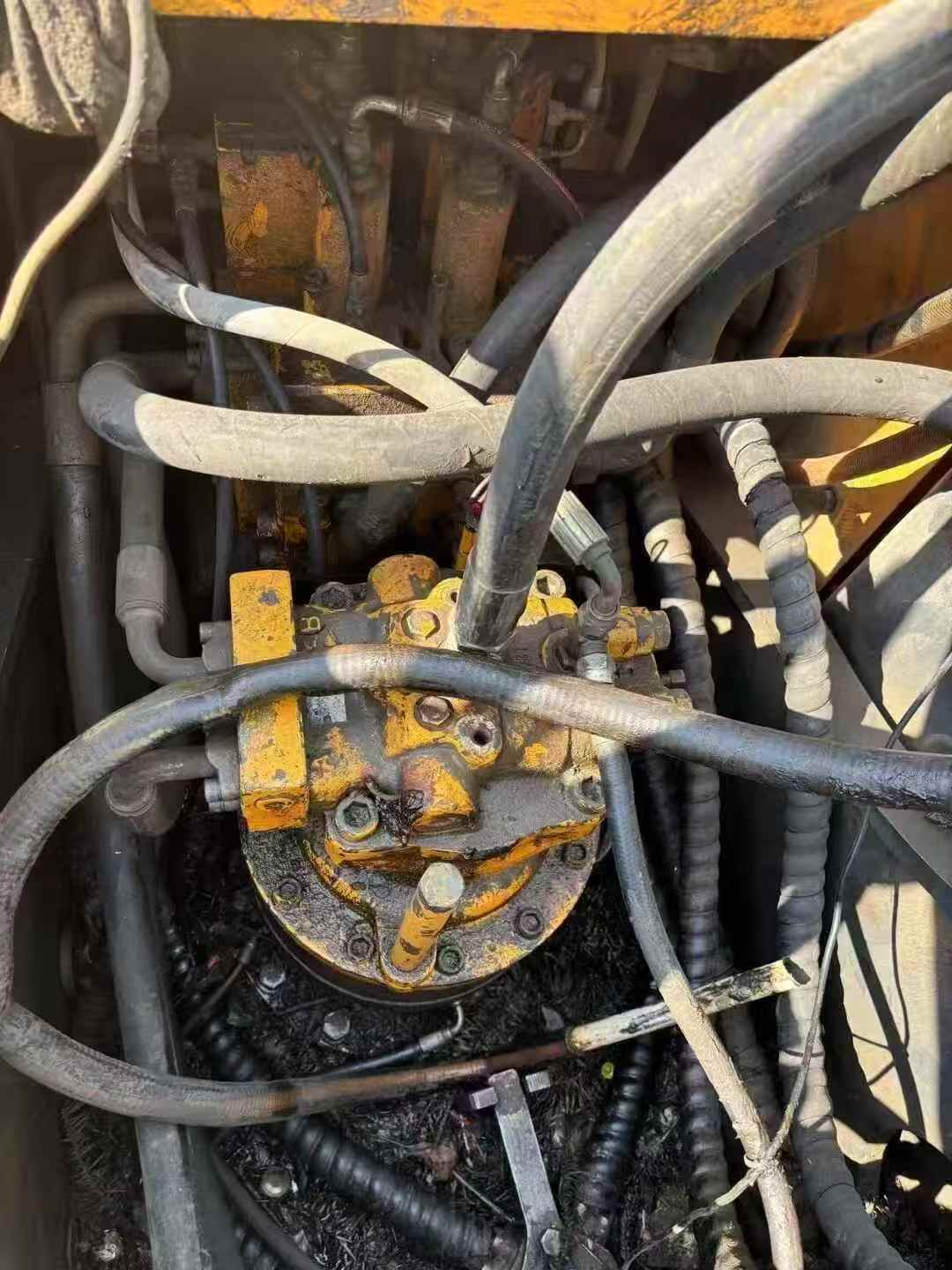

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
