Product Description

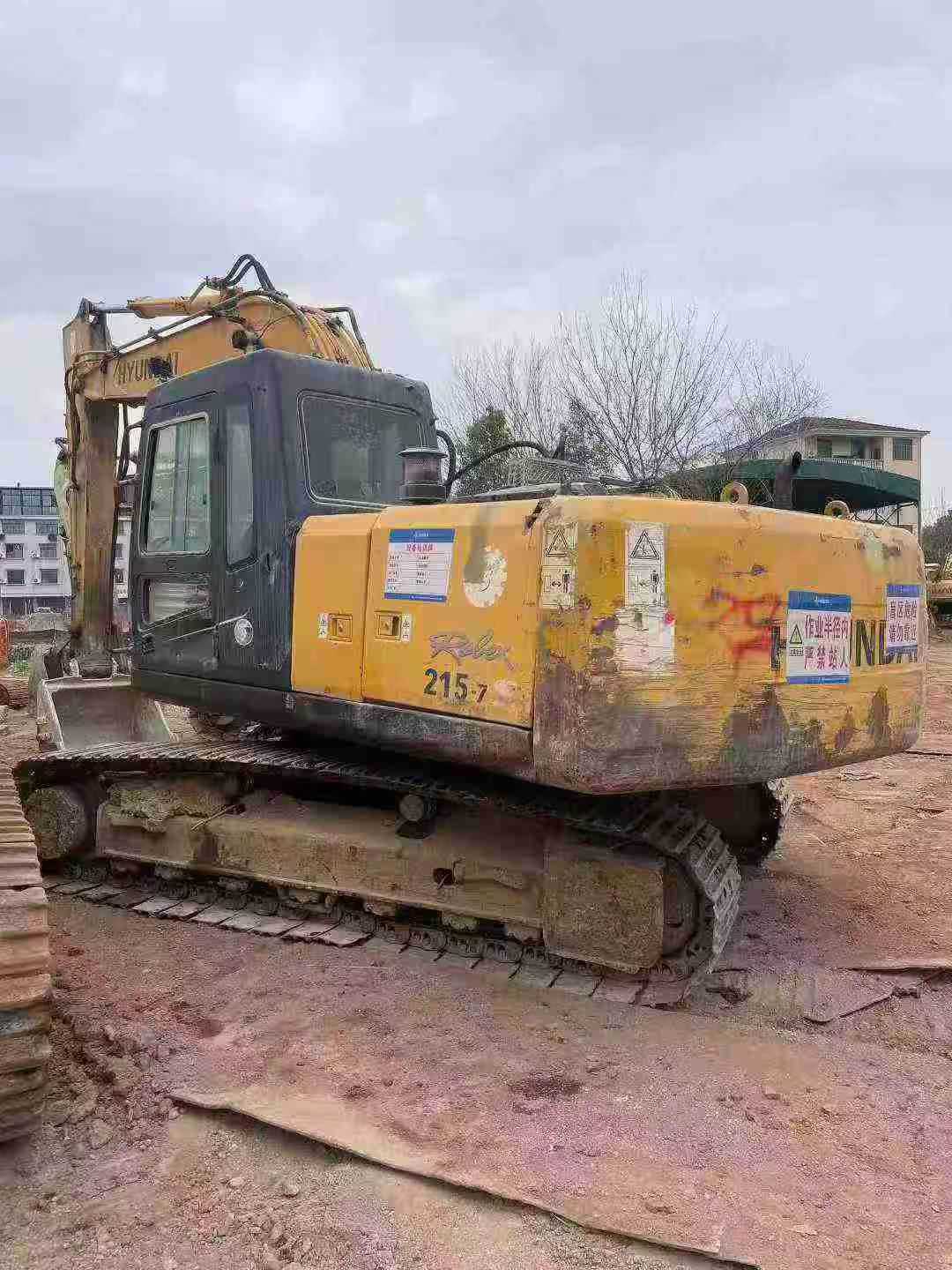

Commanding a 21-ton workhorse from Hunan, operators benefit from the R215VSN's precision-engineered control systems and robust hydraulic architecture. Built with a Cummins QSB7 engine delivering 125kW at 1900rpm, this excavator combines reliable power with responsive handling across demanding jobsites. The dual variable plunger pumps supply 2×222 L/min flow, ensuring smooth simultaneous operations while maintaining exceptional bucket and boom control.
Operator-centric design features include:
- Enhanced visibility with 2970mm transport height and optimized cabin positioning
- Stable platform supported by 19,900kg working weight and 2830mm rear turning radius
- Precise maneuverability with 11.4rpm rotation speed and two-speed travel system (5.9/3.8 km/h)
- Confident grading capability on slopes up to 70% with axial piston hydraulic motors
- Extended reach of 9720mm maximum digging radius with 6550mm depth capacity
Water-cooled 6-cylinder configuration maintains consistent performance during extended shifts, while the 0.83m³ backhoe bucket handles substantial material volumes. Hydraulic responsiveness and mechanical stability make this joint venture model a dependable choic
| Specifications | Value |
|---|---|
| No. | 996221 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

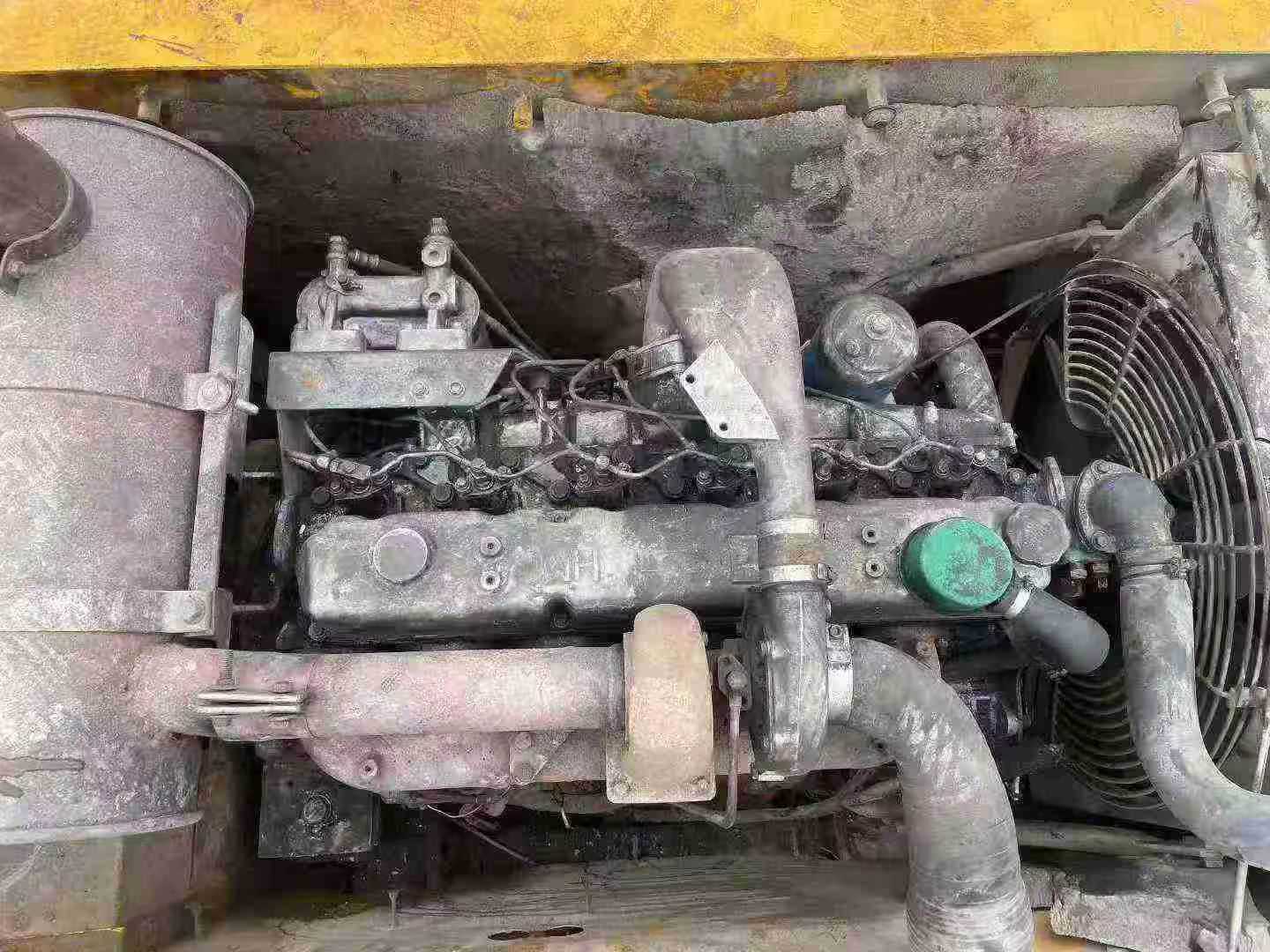

| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |

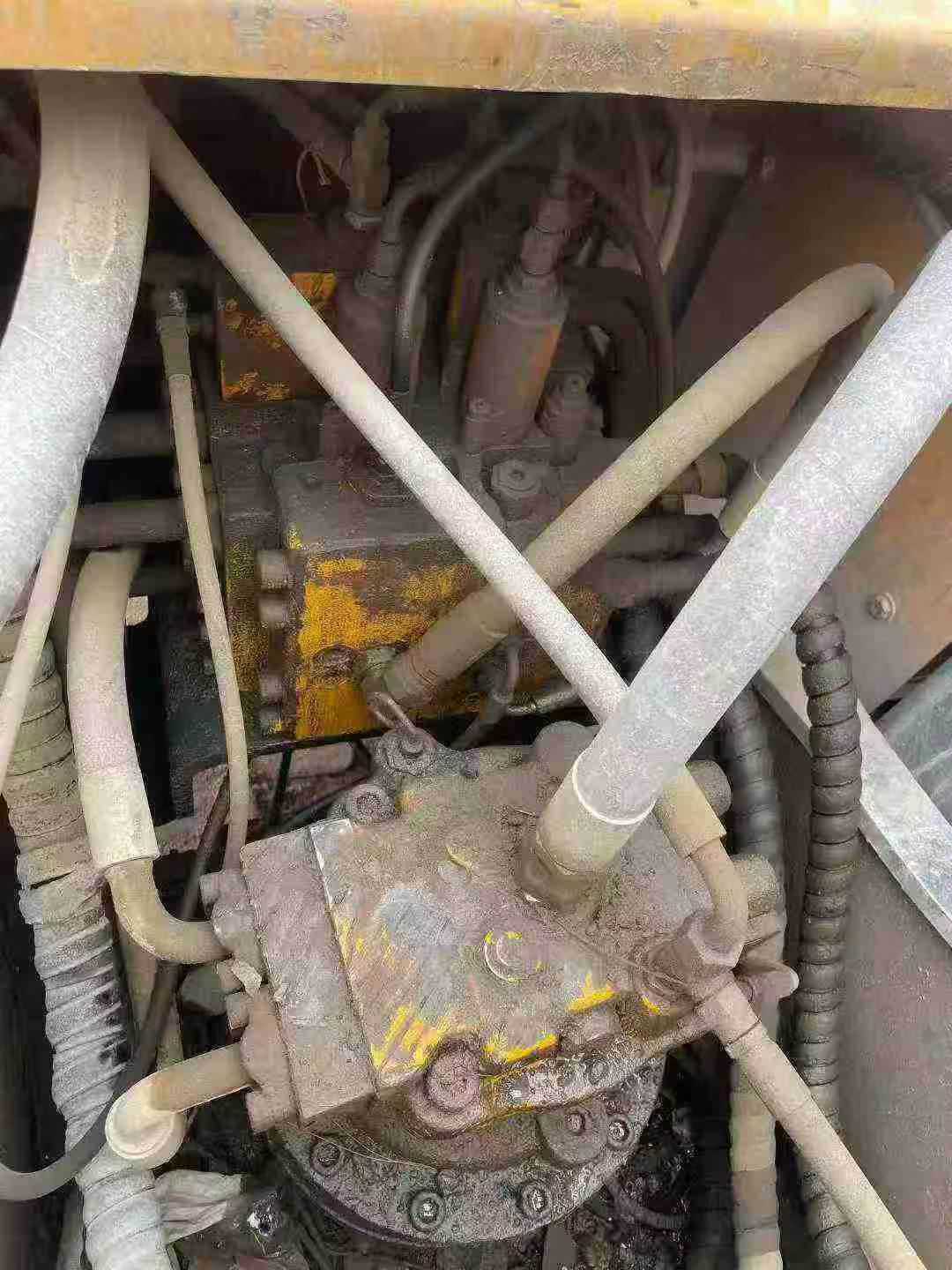

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
