Product Description
Commanding a 21-ton workhorse from 2011, operators benefit from Hyundai's proven R215VSN design engineered for precision and control. This excavator delivers exceptional stability through its 19,900 kg working weight, while the Cummins QSB7 engine provides reliable 125 kW power at 1900 rpm. Hydraulic responsiveness comes from dual variable plunger pumps flowing 2×222 l/min, ensuring smooth operation across all functions.
Cabin visibility remains a priority with strategic placement offering clear sightlines to the 0.83 m³ backhoe bucket throughout its impressive 9,720 mm maximum digging radius. Operators appreciate the intuitive controls paired with an 11.4 rpm rotation speed for efficient positioning. Two-speed axial plunger motors with integrated braking deliver confident travel performance at 5.9 km/h, while the 70% climbing ability tackles challenging terrain with authority.
- Working reach: 9,550 mm at ground level, 6,550 mm maximum depth
- Boom/arm configuration: 5,650 mm/2,700 mm for versatile applications
- Hydraulic system: 270 L capacity with water-cooled efficiency
- Compact transport: 9,500 mm length, 2,800 mm width
- Location: Linyi, Shandong
| Specifications | Value |
|---|---|
| No. | 1010334 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

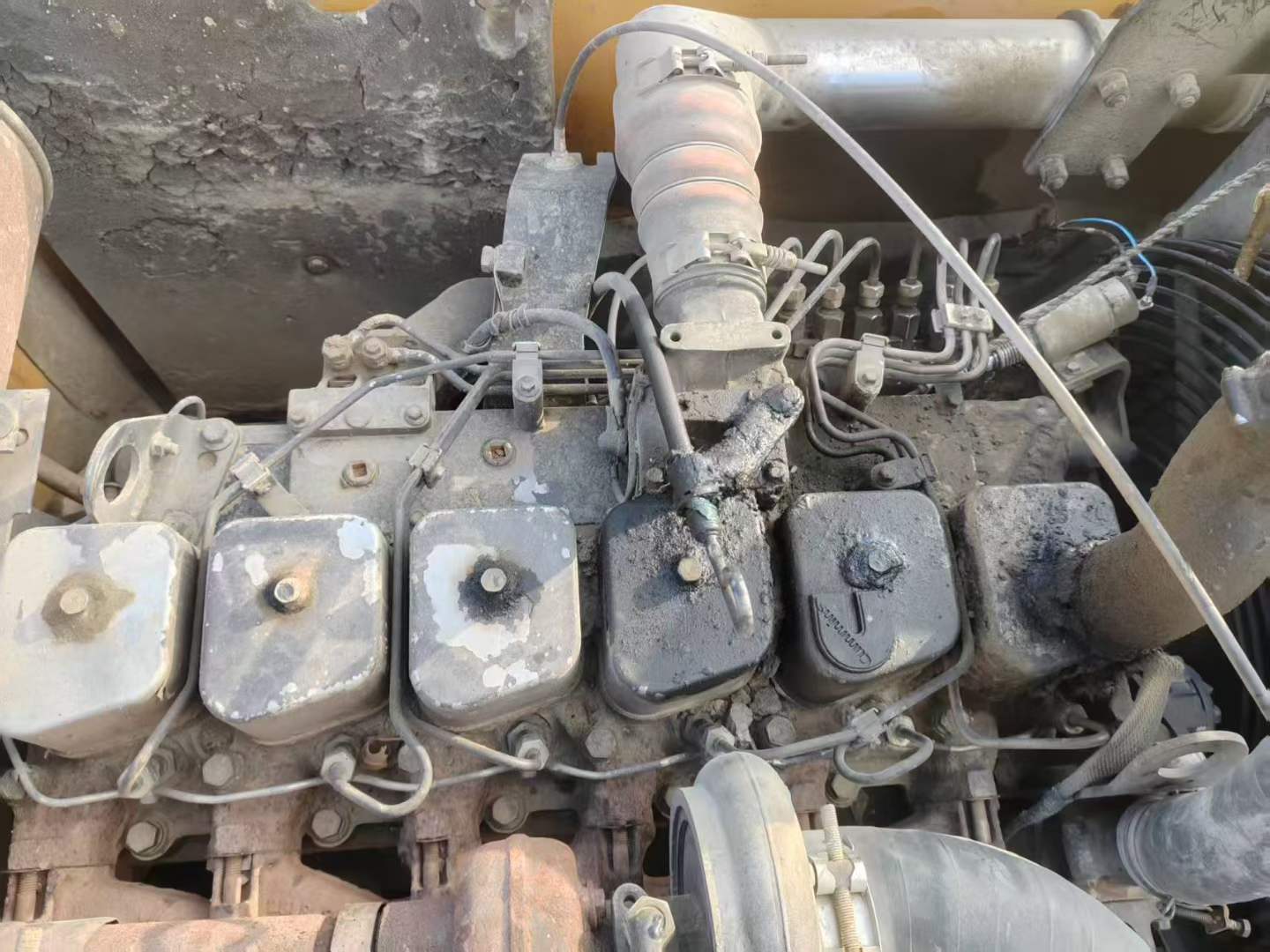

| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |

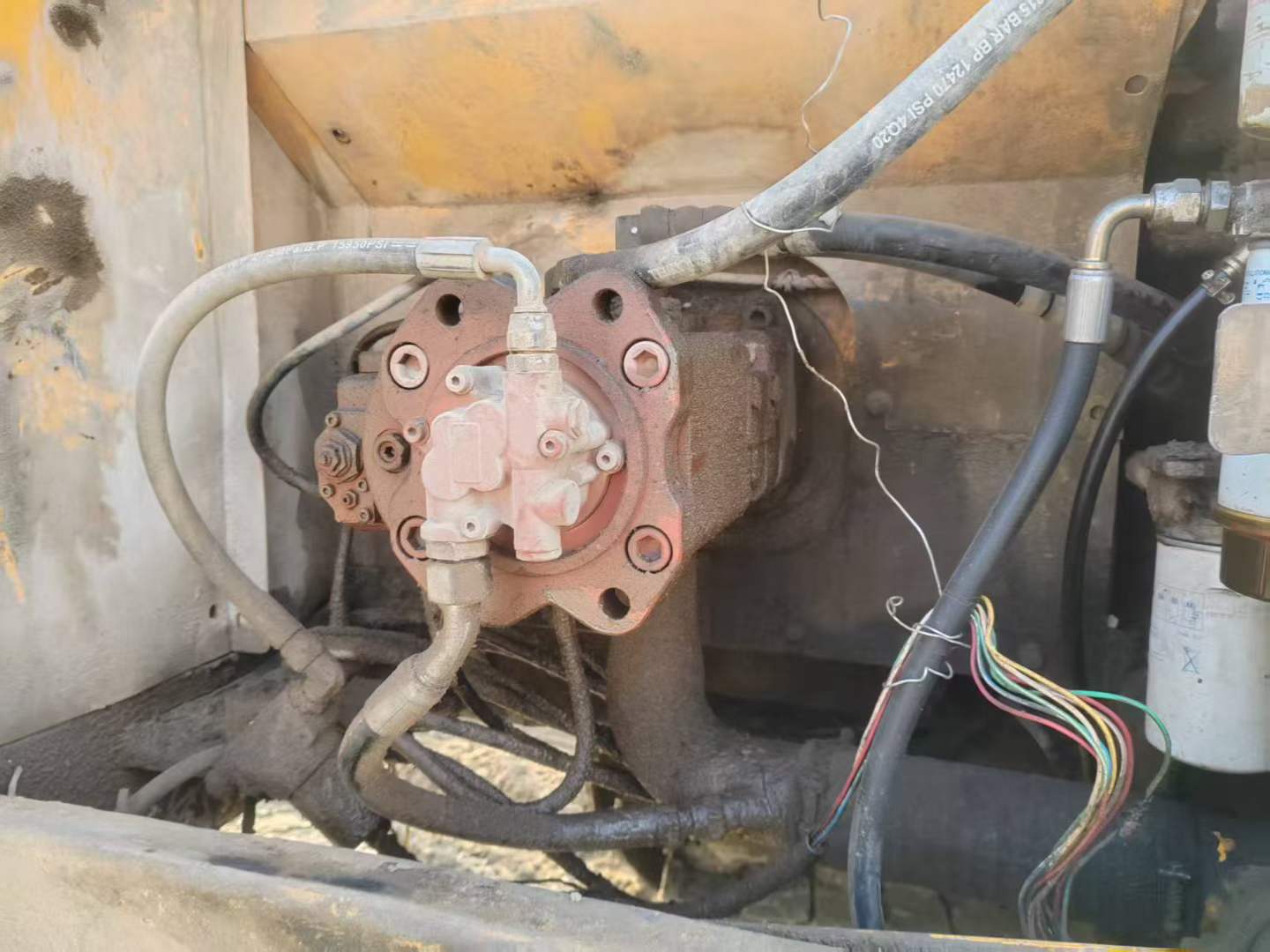

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
