Product Description

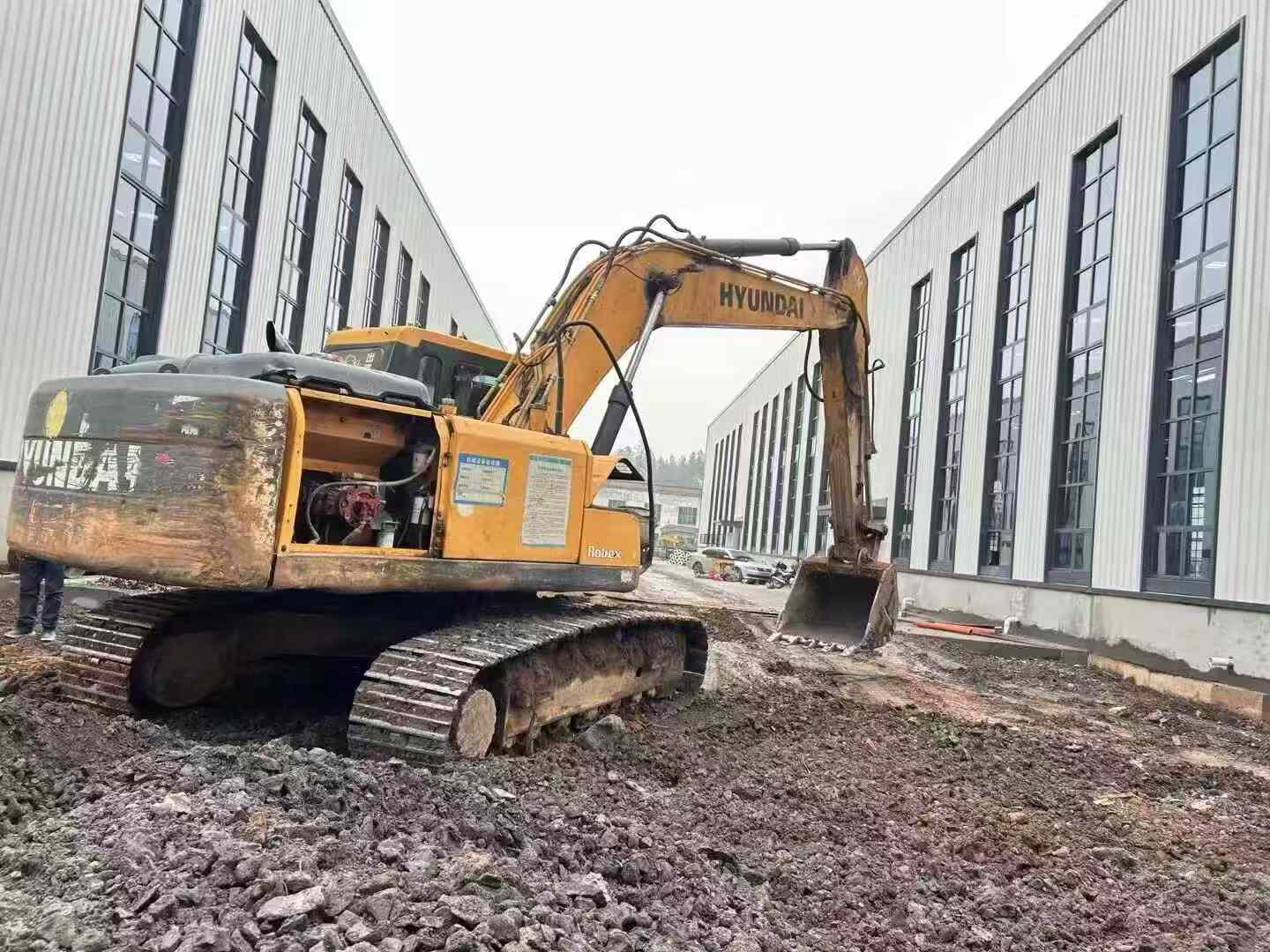

Built for demanding jobsites, this 2017 Hyundai R215VSN excavator delivers 21 tons of proven performance with a Cummins QSB7 engine producing 125kW at 1900rpm. Currently located in Jiangxi, this machine combines a 5650mm boom and 2700mm arm with an 0.83m³ backhoe bucket to tackle excavation, grading, and demolition tasks with precision. Maximum digging depth reaches 6550mm, while the 9720mm digging radius provides extensive working coverage for foundation work, trenching, and material handling operations.
- Cummins QSB7 water-cooled engine with 6.7L displacement for reliable power delivery
- Dual variable plunger pumps supplying 2×222 L/min for responsive hydraulic performance
- Two-speed travel system (5.9/3.8 km/h) with 70% climbing capability for challenging terrain
- 11.4 rpm rotation speed with axial piston motor and automatic braking
- 340L fuel capacity and 270L hydraulic system for extended operation cycles
- Compact transport dimensions (9500×2800×2970mm) for efficient site-to-site mobility
Ready to deploy immediately with complete hydraulic systems and proven joint venture engineering. This machine is equipped to handle high-volume earthmoving and pr
| Specifications | Value |
|---|---|
| No. | 998751 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
