Product Description

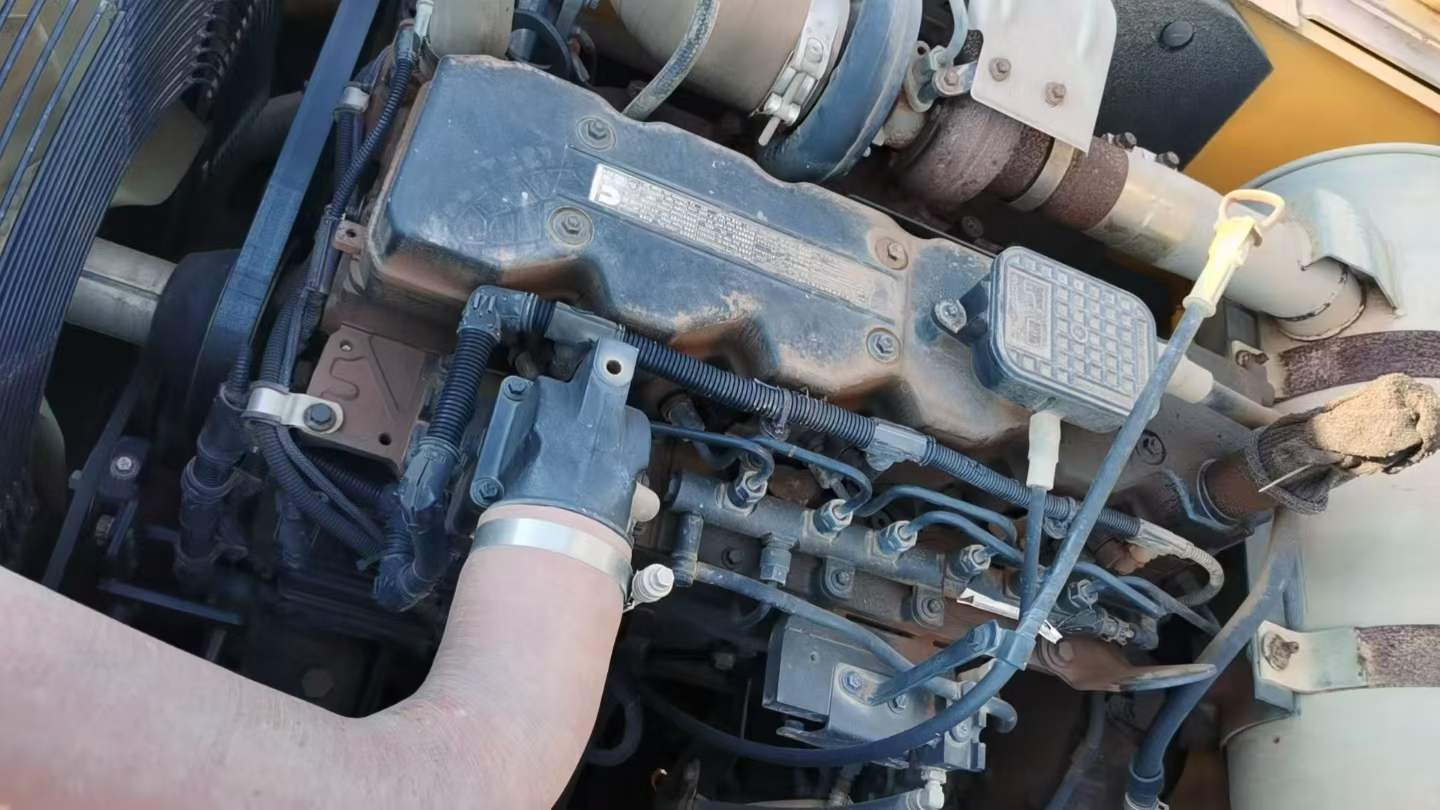

With a working weight of 19,900 kg and a bucket capacity of 0.83 m³, this 2019 Hyundai R215VSN excavator is ideal for demanding tasks such as digging, grading, and demolition. Powered by a Cummins QSB7 engine, it delivers 125 kW at 1,900 rpm, ensuring reliable performance on any job site.
- Equipped with a 6.7L displacement engine, providing 67 N.m of maximum torque at 1,500 rpm
- Features a two-speed axial plunger motor for efficient travel at speeds of 5.9 km/h and 3.8 km/h
- Boasts a maximum digging depth of 6,550 mm and a maximum excavation height of 9,640 mm
- Includes a robust hydraulic system with a total capacity of 270 L, powered by two variable plunger pumps
- Ready to work immediately, with a minimum turning radius of 3,470 mm for enhanced maneuverability
Located in 江西宜春, this Hyundai R215VSN is a versatile and powerful addition to any construction fleet, designed to tackle a wide range of site-specific tasks with ease.
| Specifications | Value |
|---|---|
| No. | 1000973 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
