Product Description

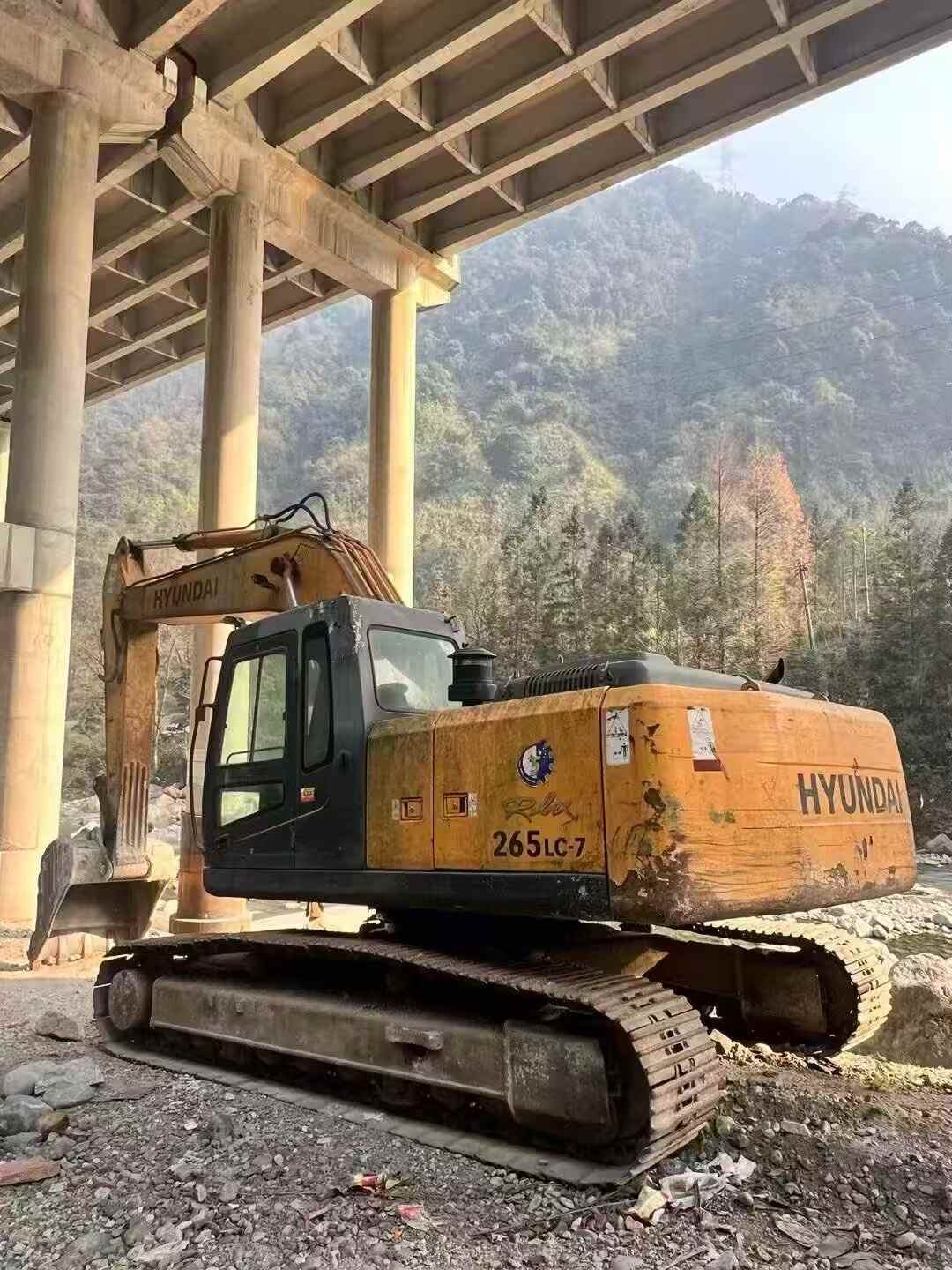

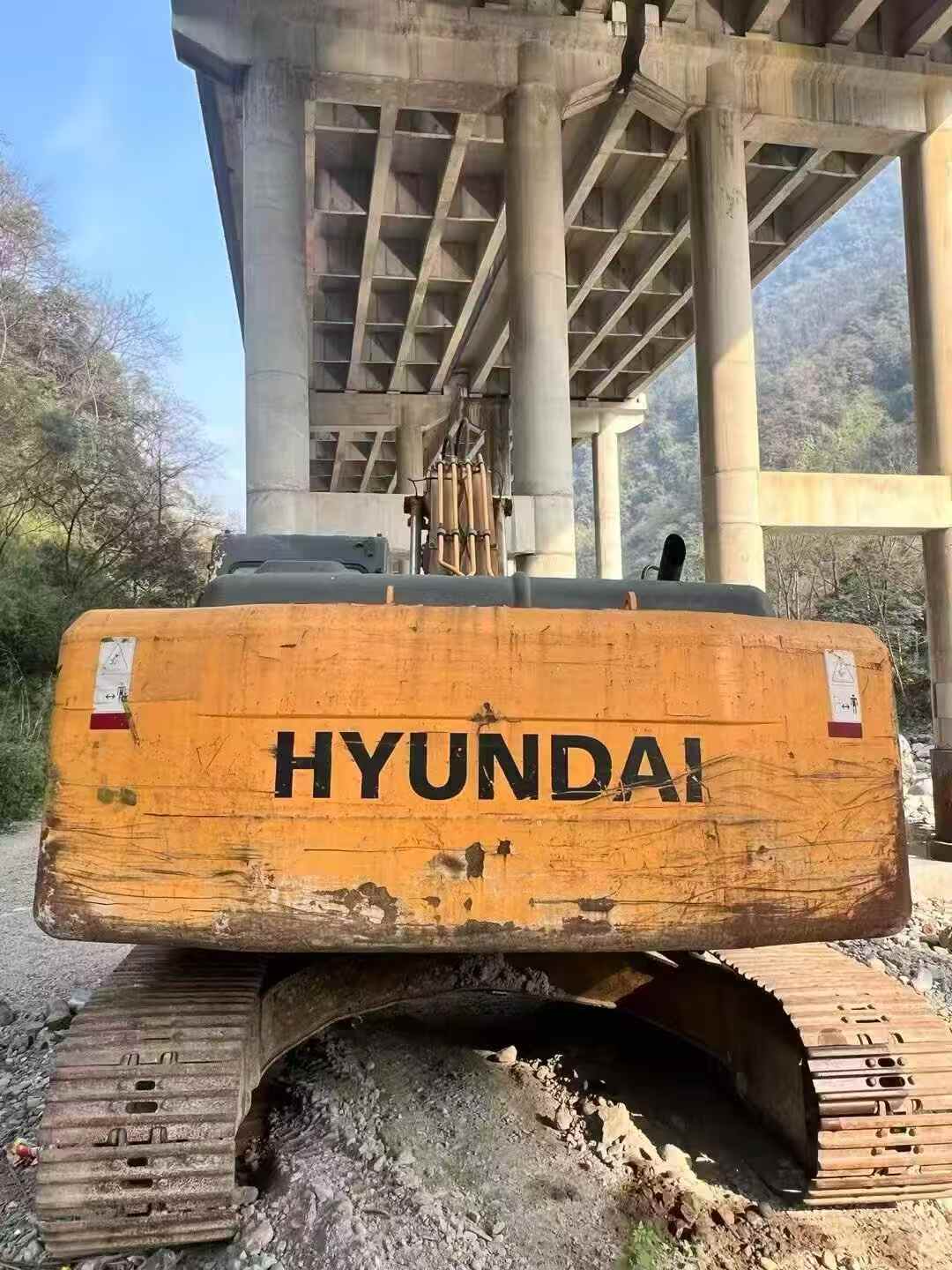

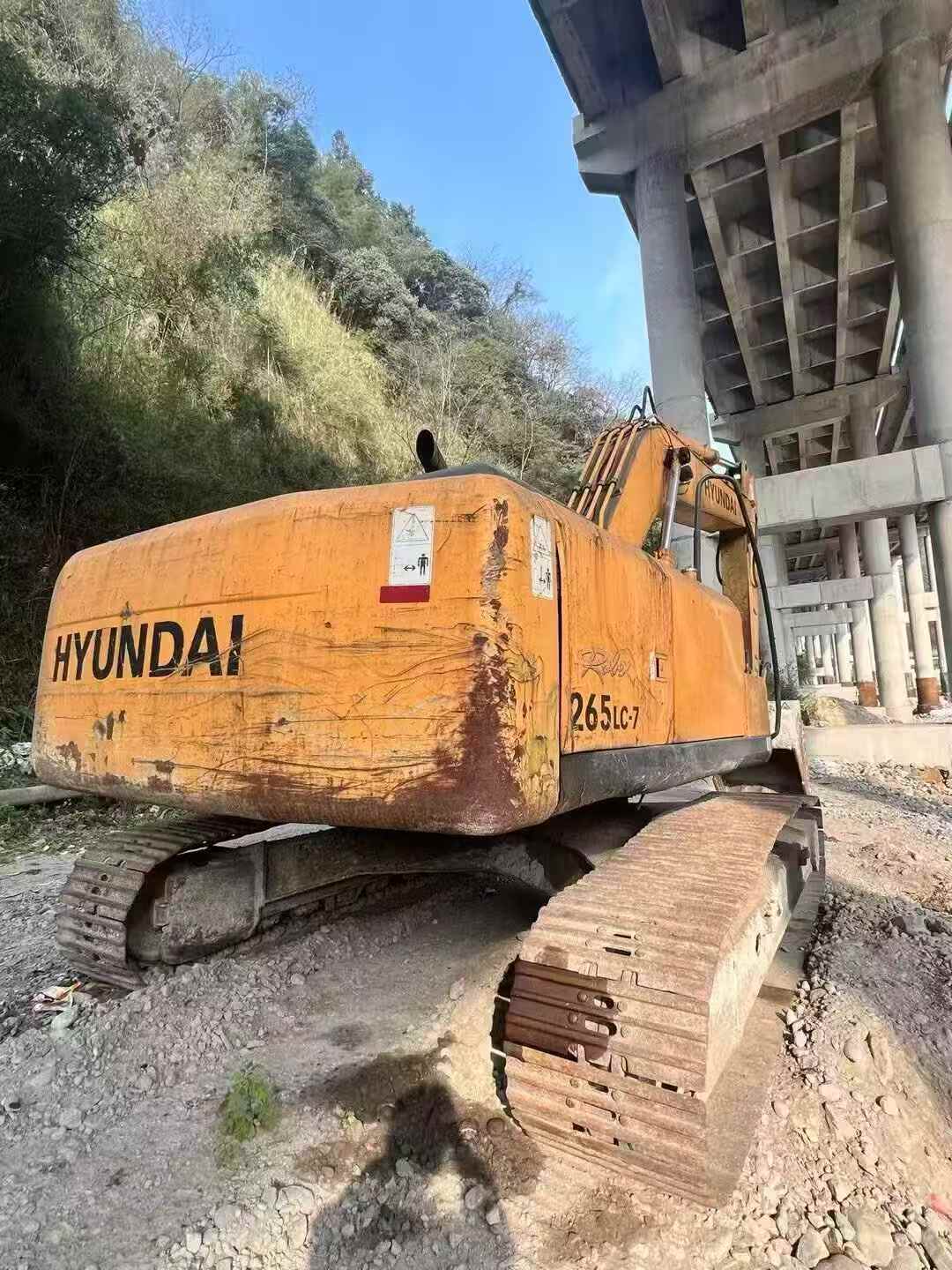

Engineered with Cummins B5.9-C power delivering 133kW at 2000rpm, this 2016 Hyundai R265LC-7 brings proven reliability to demanding excavation work. Operating at 26 tons with a 25,200kg working weight, the machine balances substantial digging force—178.5kN bucket and 118.7kN arm force—with a manageable 51kPa ground pressure for stability across varied terrain.
Dual variable axial piston pumps provide 2×224 L/min flow capacity, driving hydraulic circuits rated to 330MPa for responsive control under load. The 1.08m³ backhoe bucket, paired with a 5,850mm boom and 3,050mm arm, achieves a maximum digging reach of 10,360mm and depth to 7,000mm. Water-cooled inline-six displacement of 5.88L ensures consistent performance in extended operations.
Key specifications include:
- Maximum digging height: 9,670mm with 6,630mm dump clearance
- 12.6rpm rotation speed and 70% gradeability
- Travel speed: 3.5–5.5 km/h across 600mm track plates
- 340L fuel capacity and 190L hydraulic reservoir
Currently located in Guizhou, this joint-venture manufactured unit represents Hyundai's mid-range crawler excavator engineering for infrastructure and earthmoving applications.
| Specifications | Value |
|---|---|
| No. | 1050759 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.08 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

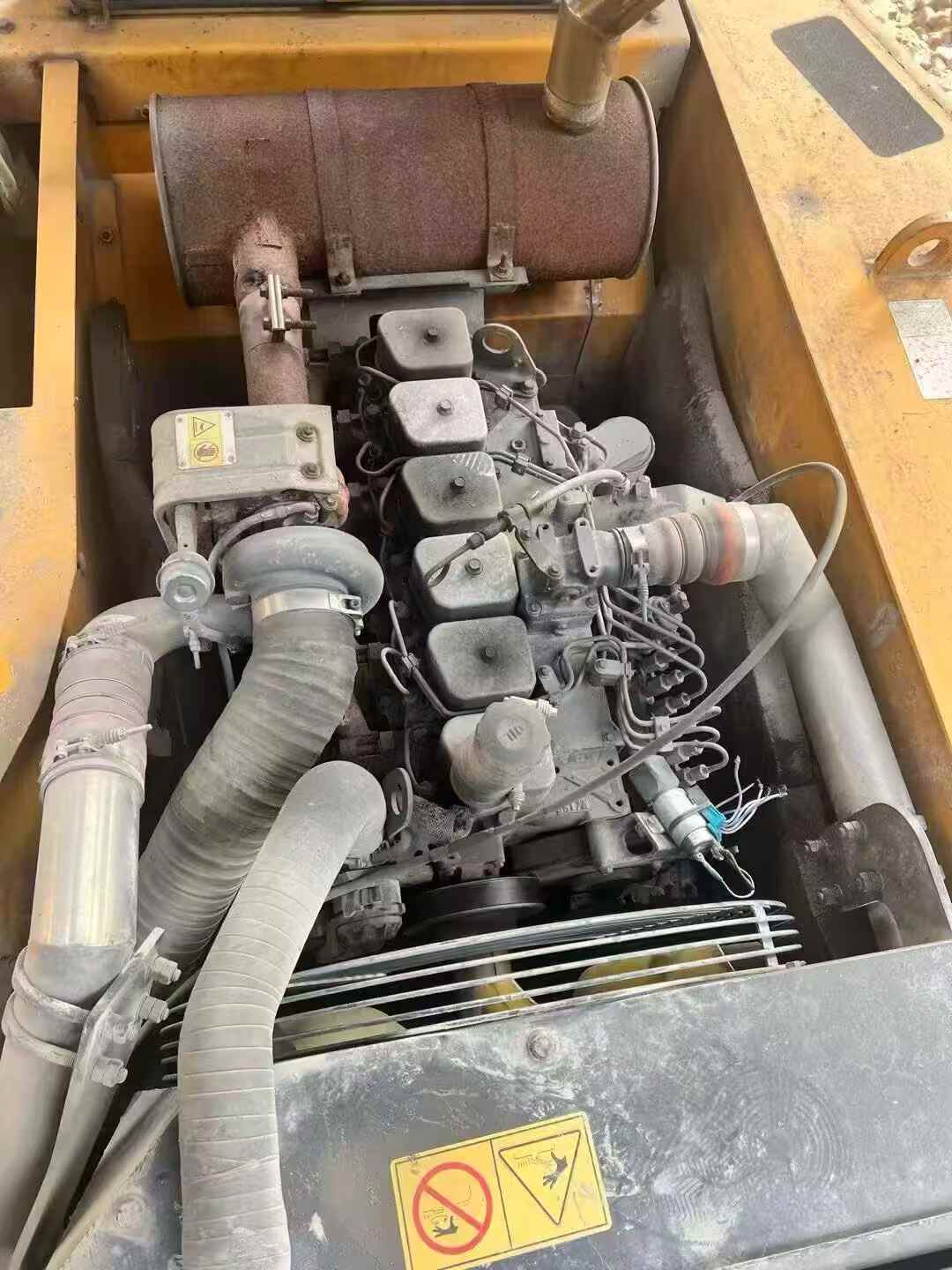

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 133/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5880 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 178.5 |
| Rod digging force (kN) | 118.7 |
| Travel speed (km/h) | 3.5-5.5 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 275 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 * 90 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1345 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3220 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2965 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum digging radius (mm) | 10360 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6630 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10190 |
| Maximum effective digging depth (mm) | 6380 |
