Product Description

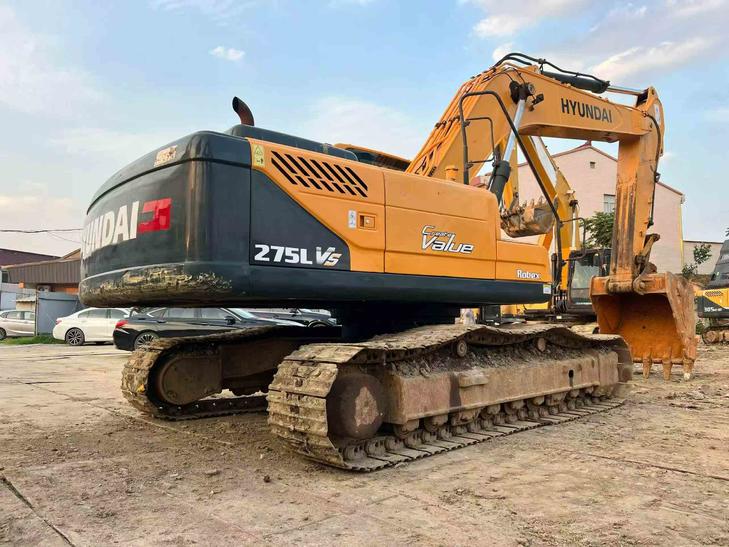

Built for serious excavation work, this 2016 Hyundai R275LC-9T delivers 27-ton class performance at a fraction of new equipment costs. Powered by a Cummins C8.3-C six-cylinder, four-stroke turbocharged intercooled engine producing 196 kW at 1,900 RPM, this machine combines proven hydraulic efficiency with a 1.35 m³ backhoe bucket — making it a smart capital allocation for contractors who demand output without overspending on depreciation.
- Engine: Cummins C8.3-C | 196 kW / 1,900 RPM | Max Torque: 1,218.1 N.m
- Operating Weight: 25,700 kg | Ground Pressure: 51 kPa
- Bucket Digging Force: 178 kN | Rod Digging Force: 125 kN
- Maximum Digging Depth: 6,900 mm | Max Digging Radius: 10,200 mm
- Maximum Tractive Force: 211.6 kN | Travel Speed: 5.3 / 3.3 km/h
- Hydraulic System: 2× variable swash plate axial piston pumps | Max Flow: 2×222 L/min
- Fuel Tank: 400 L | Hydraulic Tank: 165 L
- Location: Jiangsu, China — available for international shipping
Sourced from Jiangsu Province and maintained to operational standards, this unit represents a cost-effective path to high-capacity excavation. For operations scaling output without absorbing new-machine pricing, the R275LC-9T stands as a proven, dependable choice.
| Specifications | Value |
|---|---|
| No. | 1080480 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 196/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 1218.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 178 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 211.6 |
| Travel speed (km/h) | 5.3/3.3 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | 2* variable swash plate axial piston pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 165 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3036 |
| Onboard width (mm) | 2840 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum height at minimum turning radius (mm) | 3600 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
