2020 Hyundai R275LC-9T

1/9
Buy Hyundai R275LC-9T Used Excavator / 1
Buy Hyundai R275LC-9T Used Excavator / 2
Buy Hyundai R275LC-9T Used Excavator / 3
Buy Hyundai R275LC-9T Used Excavator / 4
Buy Hyundai R275LC-9T Used Excavator / 5
Buy Hyundai R275LC-9T Used Excavator / 6
Buy Hyundai R275LC-9T Used Excavator / 7
Buy Hyundai R275LC-9T Used Excavator / 8
Buy Hyundai R275LC-9T Used Excavator / 9

Product Description

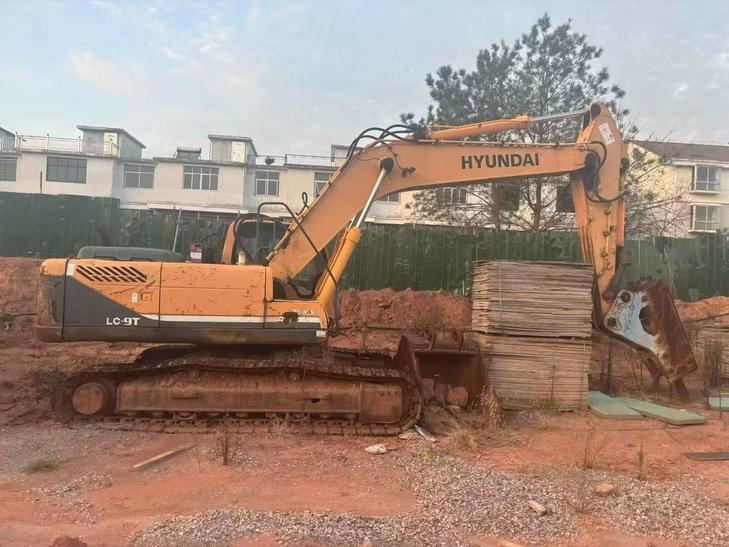

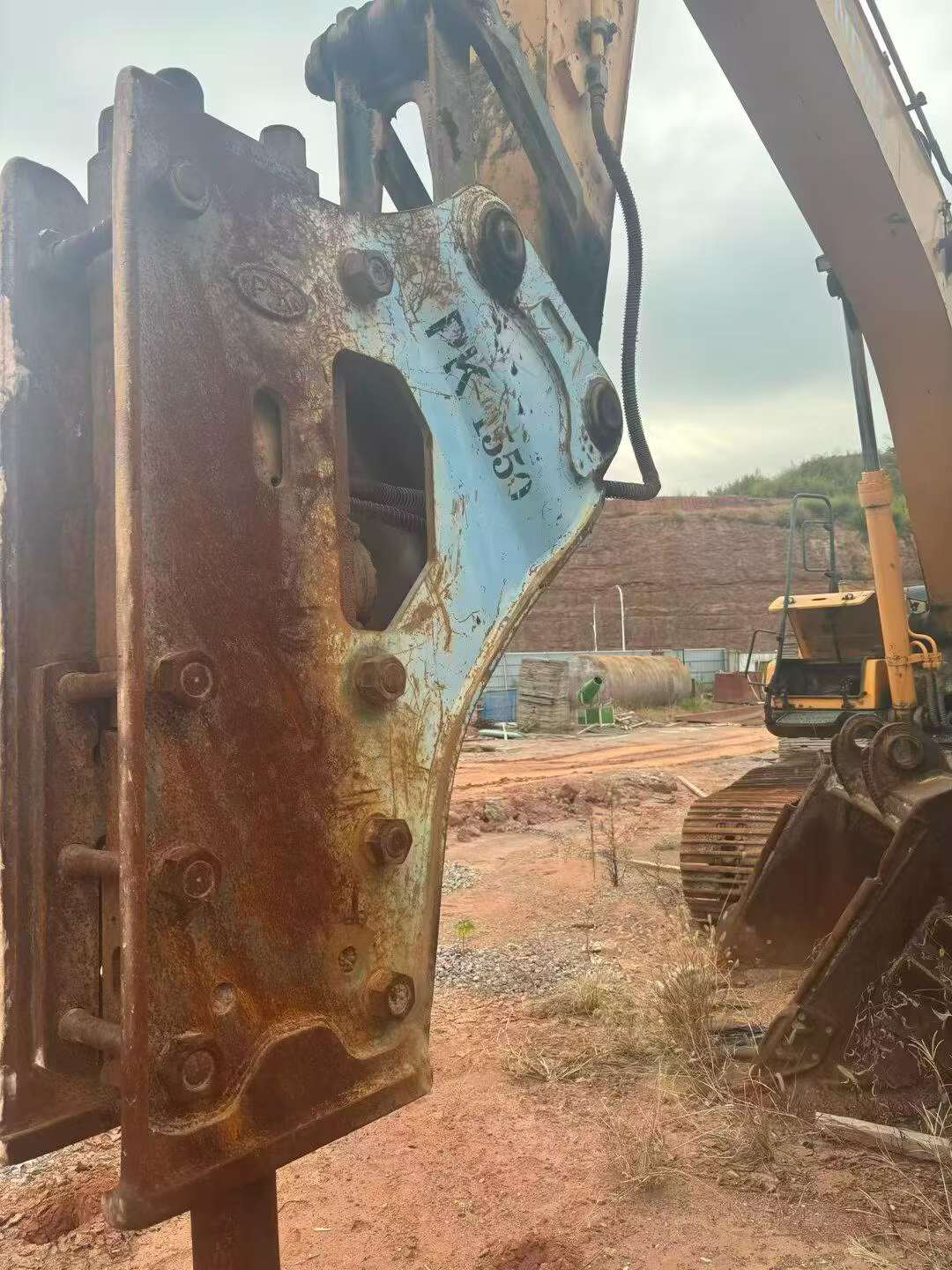

Discover the Hyundai R275LC-9T, a robust and reliable excavator from 2020, now available in Zhejiang, China. This machine is equipped with a powerful 155 hammer, making it ideal for demanding construction and demolition tasks. With approximately 100,000 operating hours, this excavator has proven its durability and efficiency on various job sites. The R275LC-9T is designed to deliver high performance and productivity, ensuring that your projects are completed on time and to the highest standards. Invest in this well-maintained Hyundai excavator to enhance your fleet's capabilities and tackle even the toughest jobs with confidence.

SpecificationsValue
No.1080418
Tonnage (tons)27
Working weight (kg)25700
Bucket capacity (m³)1.35
Boom length (mm)5850
Rod length (mm)2850
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins C8.3-C
Rated power (kw/rpm)196/1900
Cooling modewater-cooling
Maximum torque (N.m/rpm)1218.1
Number of cylinders (PCS)6
Displacement (L)8.3
Working formSix-cylinder four-stroke turbocharged intercooled direct injection engine
Ground specific pressure (Kpa)51
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)178
Rod digging force (kN)125
Maximum tractive force (kN)211.6
Travel speed (km/h)5.3/3.3
Main overflow set pressure (Mpa)35
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2*222
Main pump type2* variable swash plate axial piston pump
Working Hydraulic Circuit (Mpa)35
Fuel Tank (L)400
Hydraulic Tank (L)165
Total transport length (mm)9930
Total transport width (mm)3180
Total transport height (mm)3280
Full cab height (mm)2990
Counterweight ground clearance (mm)1115
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)3036
Onboard width (mm)2840
Total track length (mm)4640
Track gauge (mm)2580
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3830
Maximum height at minimum turning radius (mm)3600
Maximum digging radius (mm)10200
Maximum digging depth (mm)6900
Maximum excavation height (mm)9960
Maximum unloading height (mm)6900
Maximum vertical digging depth (mm)6020
Maximum excavation radius of stop surface (mm)10050
Maximum effective digging depth (mm)6700
see more

Overview

No.1080418

Brand Name:

Hyundai

Model Number:

R275LC-9T

Year:

2020

Location:

Zhejiang China
