Product Description

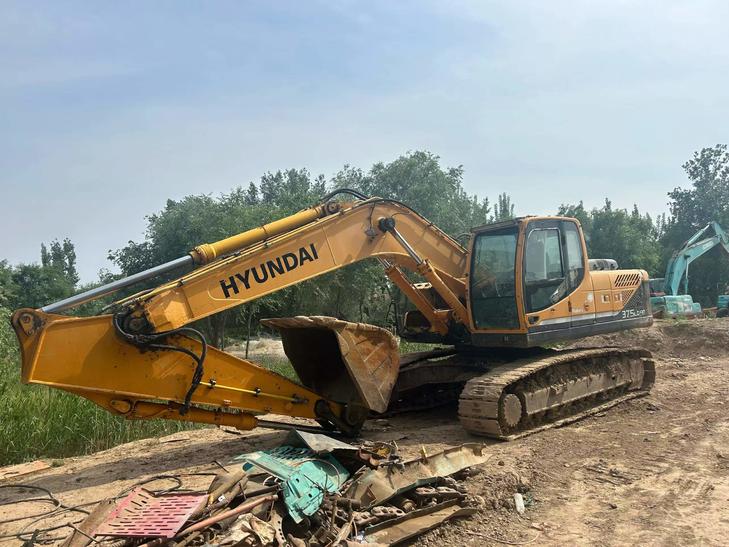

This 2020 Hyundai R275LC-9T excavator represents a solid investment for contractors seeking reliable mid-size earthmoving equipment. Currently located in Shandong, China, this machine offers proven performance from Hyundai's well-established 9T series platform. The R275LC-9T is designed for general excavation, site development, and material handling applications across construction and infrastructure projects.
Key features include:
- Hyundai's fuel-efficient engine technology for reduced operating costs
- Long crawler configuration (LC) for enhanced stability on variable terrain
- Spacious operator cab with ergonomic controls
- Robust hydraulic system suited for demanding applications
- Well-maintained condition with competitive pricing
This used excavator provides an opportunity to acquire quality Hyundai construction equipment at an accessible price point. Ideal for expanding fleets or replacing aging machinery while maintaining operational standards.
| Specifications | Value |
|---|---|
| No. | 1087910 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 196/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 1218.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 178 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 211.6 |
| Travel speed (km/h) | 5.3/3.3 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | 2* variable swash plate axial piston pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 165 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3036 |
| Onboard width (mm) | 2840 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3830 |
| Maximum height at minimum turning radius (mm) | 3600 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
