Product Description

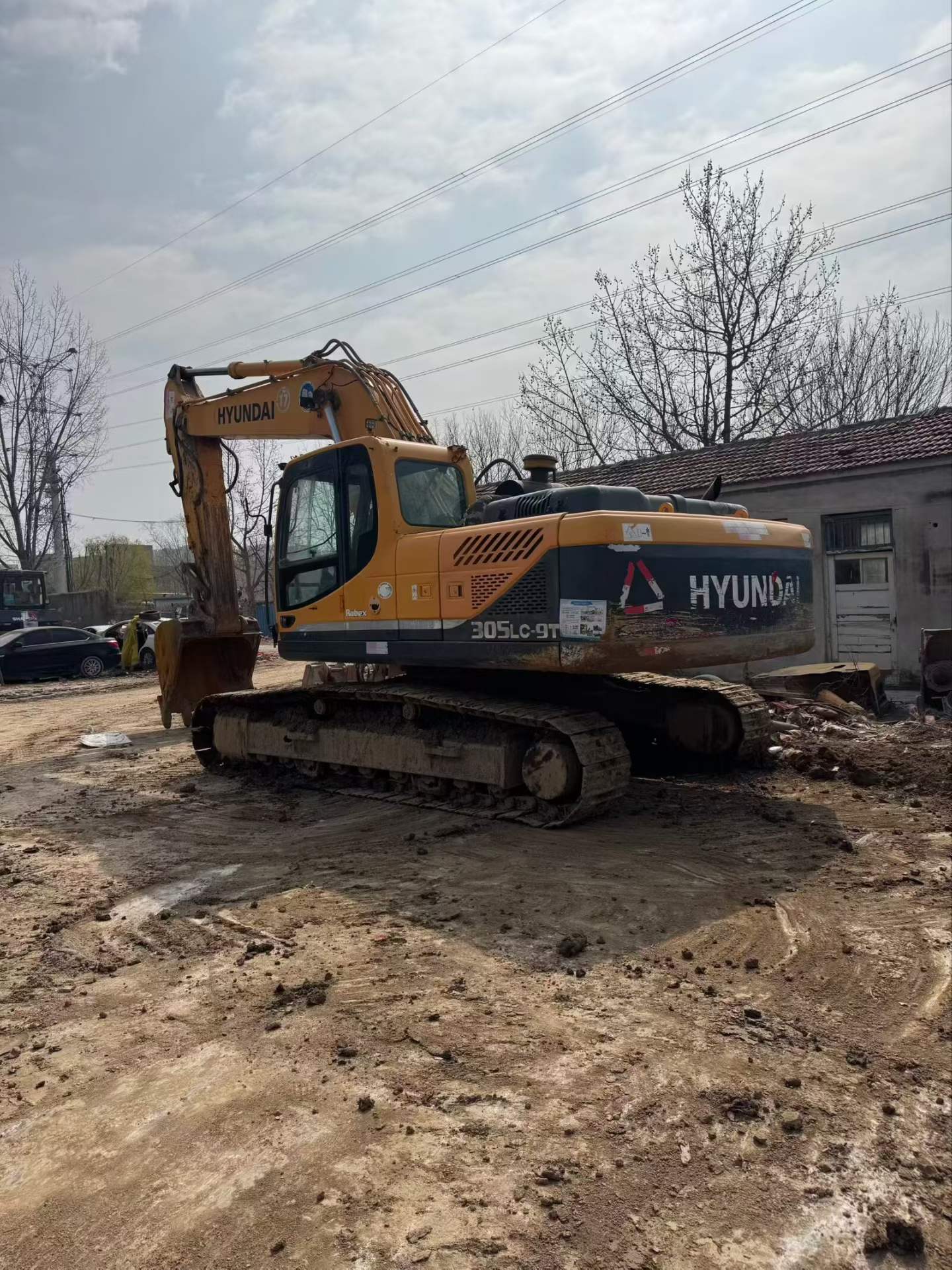

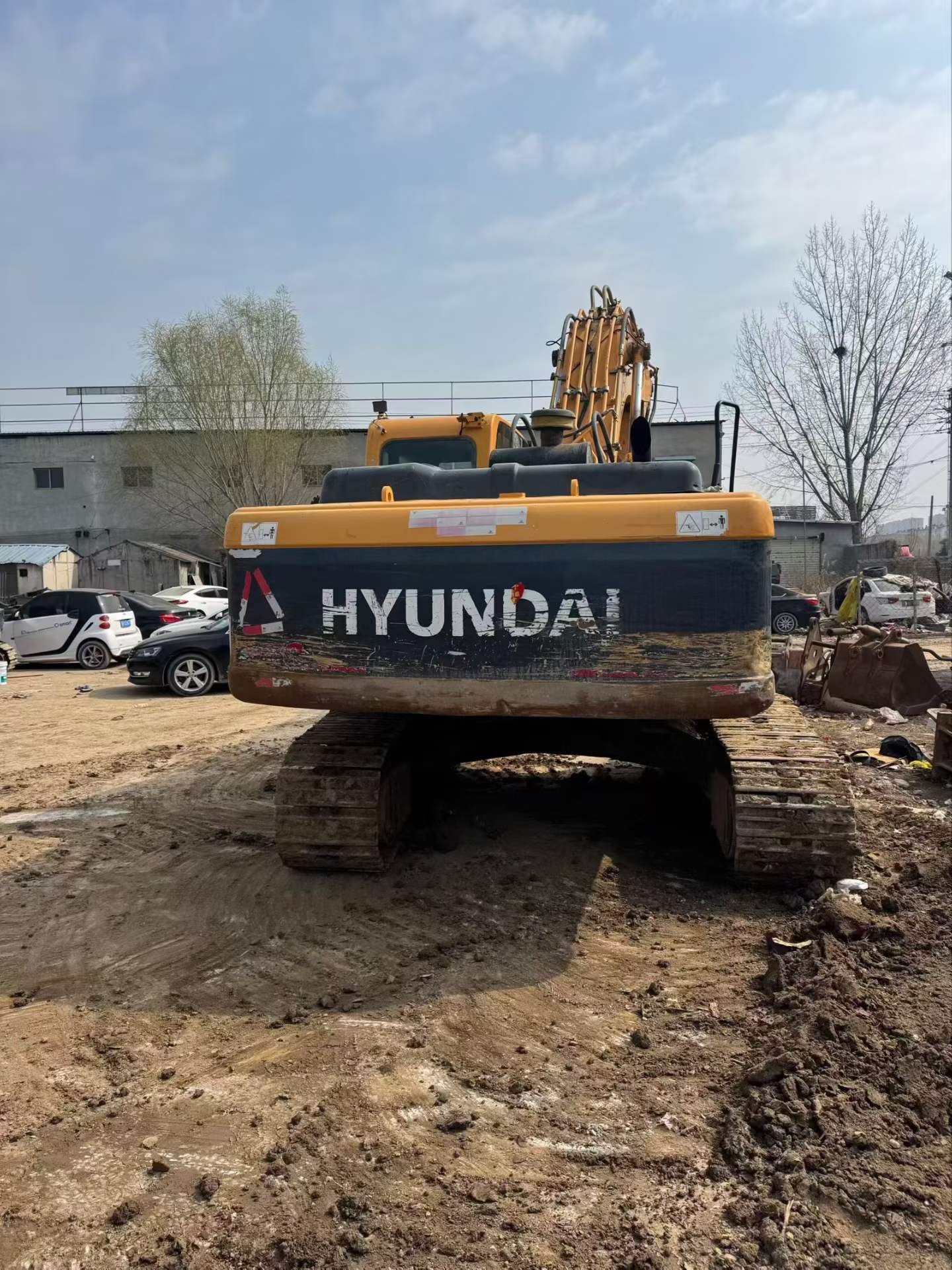

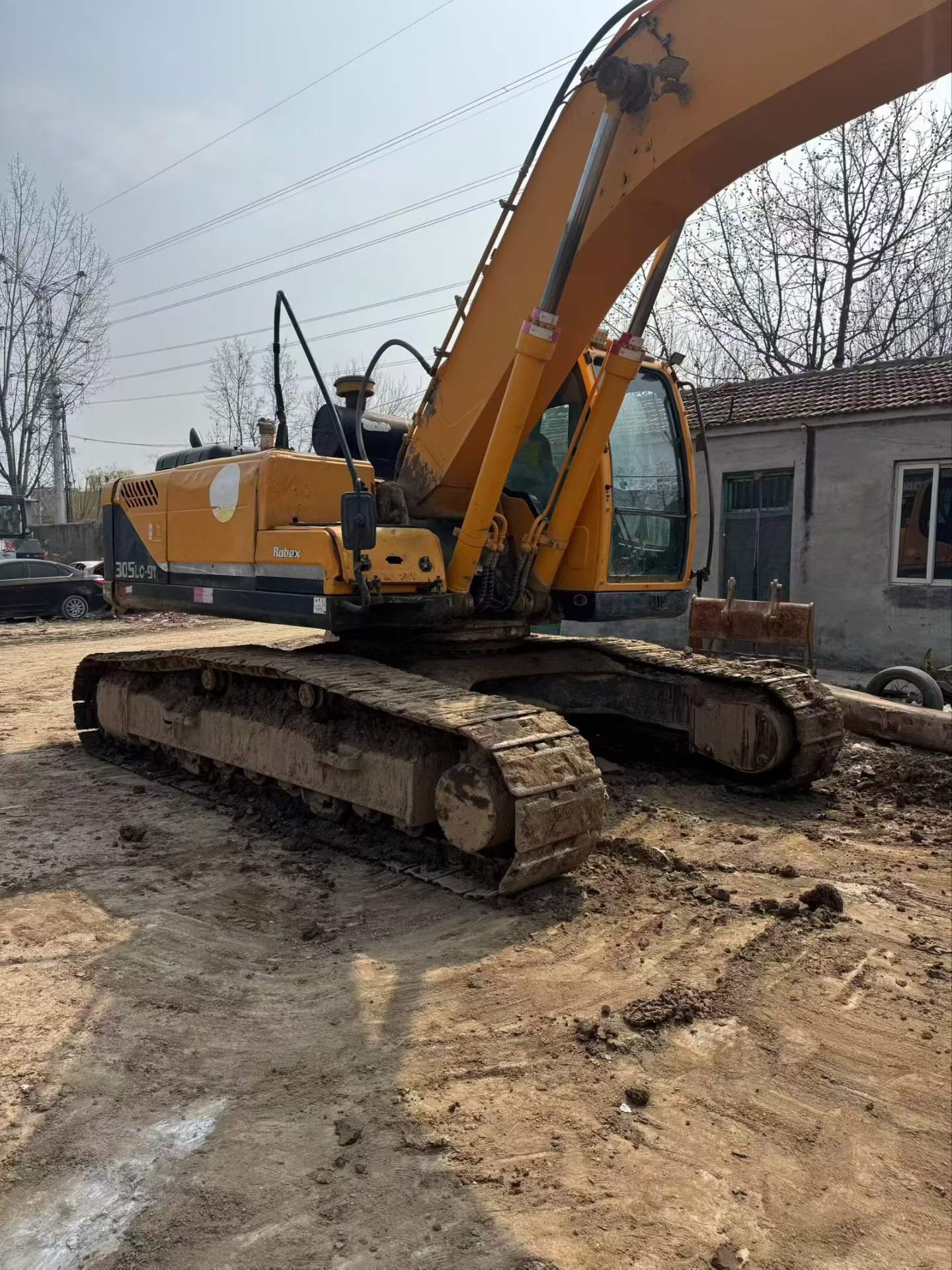

Built for heavy-duty excavation and grading tasks, this 27-ton crawler excavator delivers consistent performance on demanding job sites. Powered by a Hyundai HE6.7 turbocharged diesel engine producing 146 kW at 1900 rpm, this machine handles deep trenching, foundation work, and material loading with proven reliability. The 5850mm boom and 2850mm arm provide a maximum digging depth of 6900mm and a reach of 10200mm, making it ideal for large-scale earthmoving and utility installation projects.
- 1.35 m³ bucket capacity moves significant material per cycle

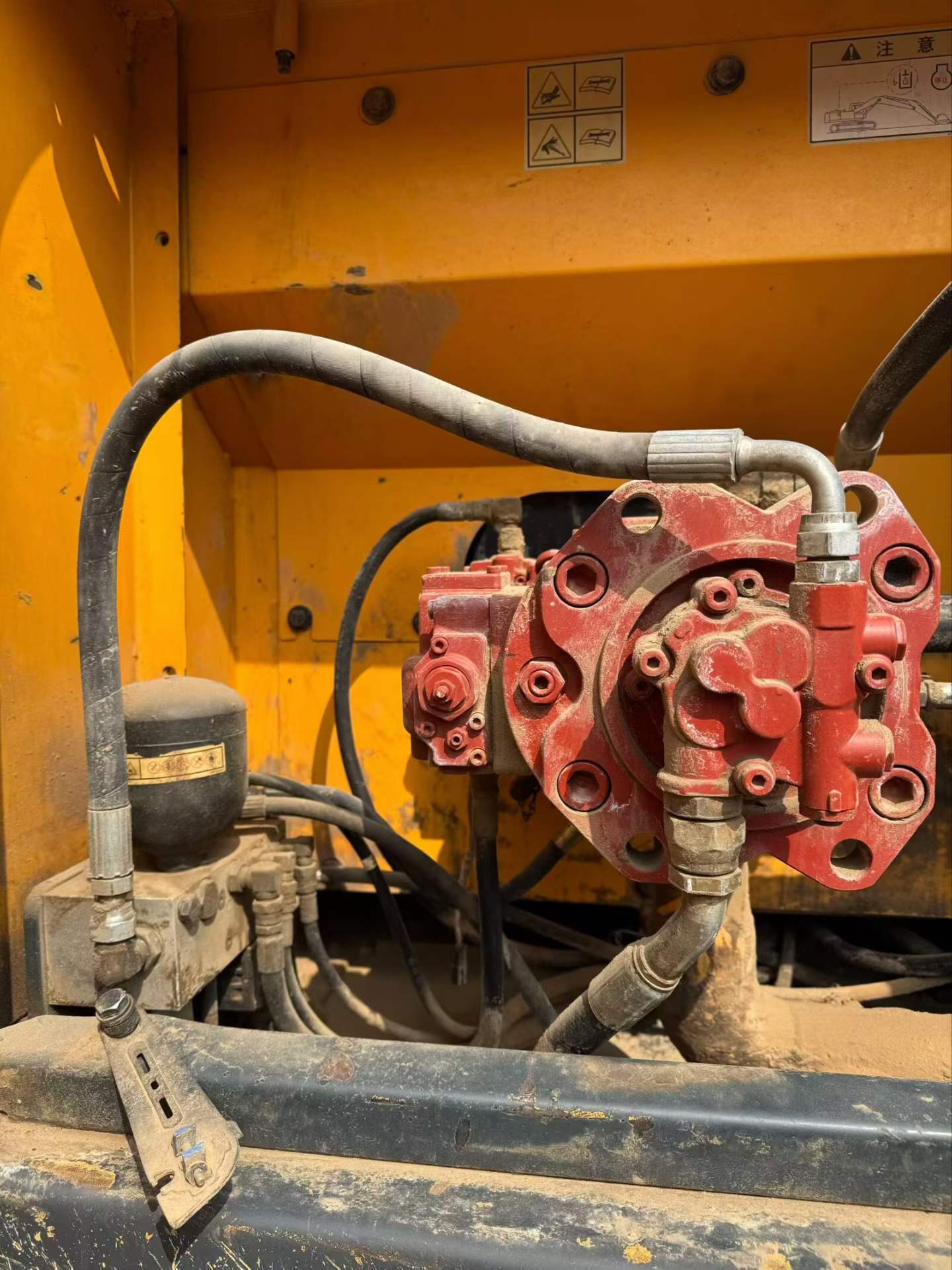

- Dual variable plunger pumps deliver 2 x 222 L/min hydraulic flow for responsive operation
- Operating weight of 25,700 kg ensures stability during heavy digging and lifting
- 70% grading ability tackles steep terrain and sloped sites
- 440L fuel tank supports extended work shifts without refueling downtime

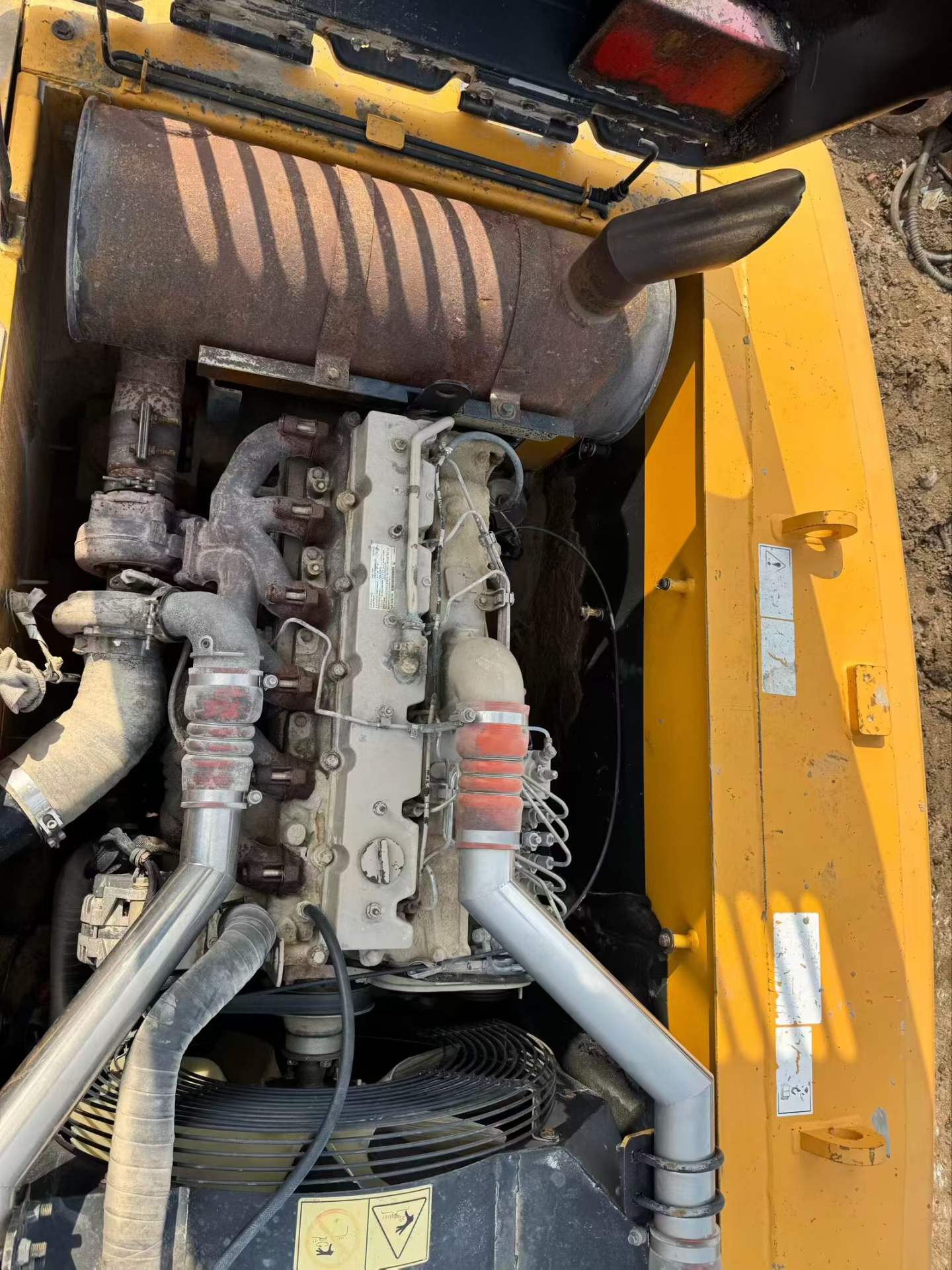

- Water-cooled 6-cylinder engine maintains optimal performance in continuous operation
Currently located in Heze, Shandong, this 2014 model is ready for immediate deployment on demolition, excavation, and site preparation projects requiring dependable hydraulic power and precision control.
| Specifications | Value |
|---|---|
| No. | 1025855 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 146 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 95 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.3 / 3.3 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-ø130 ×ø90×1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-ø145× ø105×1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-ø135 ×ø95×1380 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Theoretical fuel consumption (L/h) | 165 |
| Total transport length (mm) | 9922 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3028 |
| Onboard width (mm) | 2840 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
