Product Description

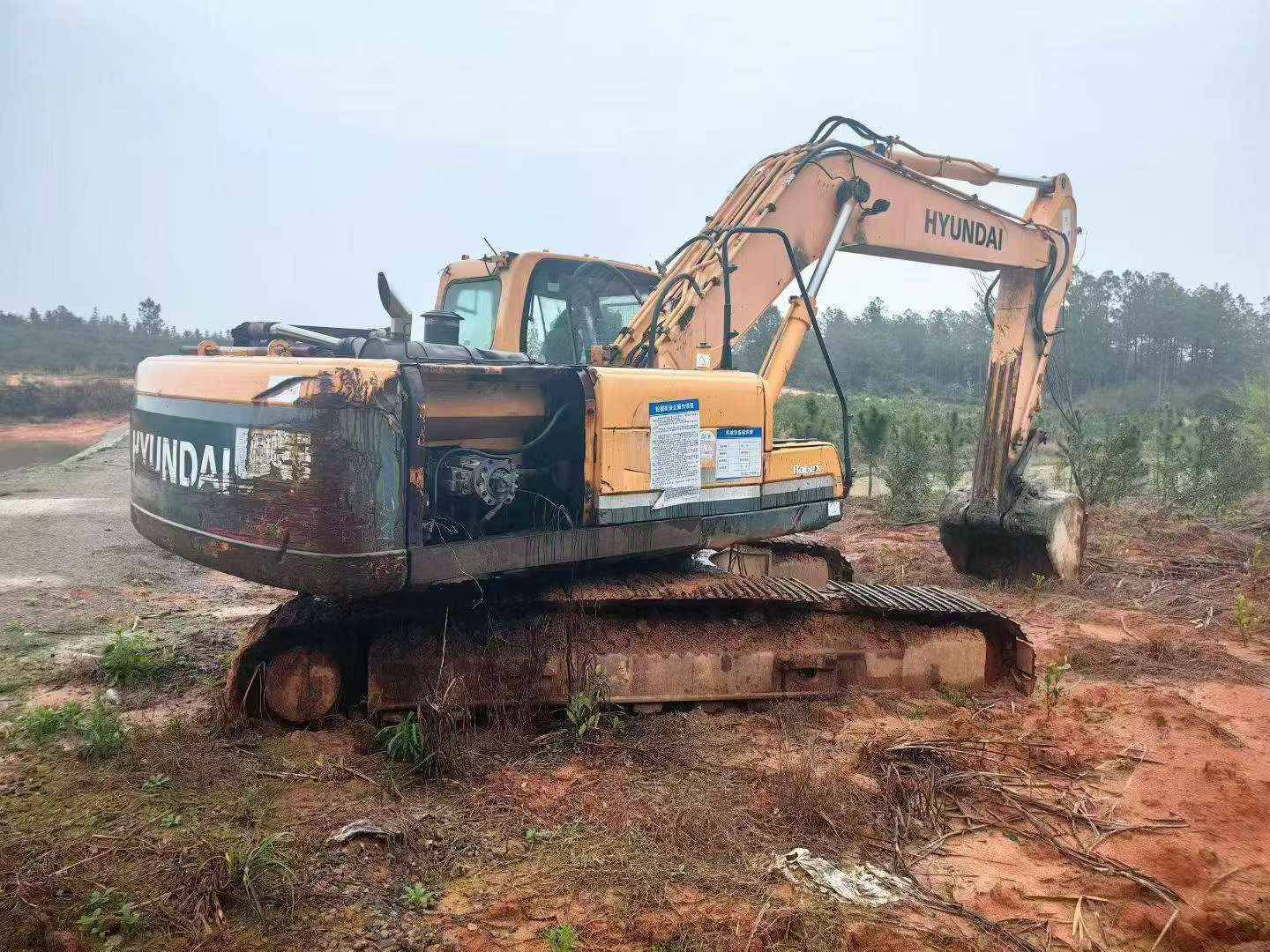

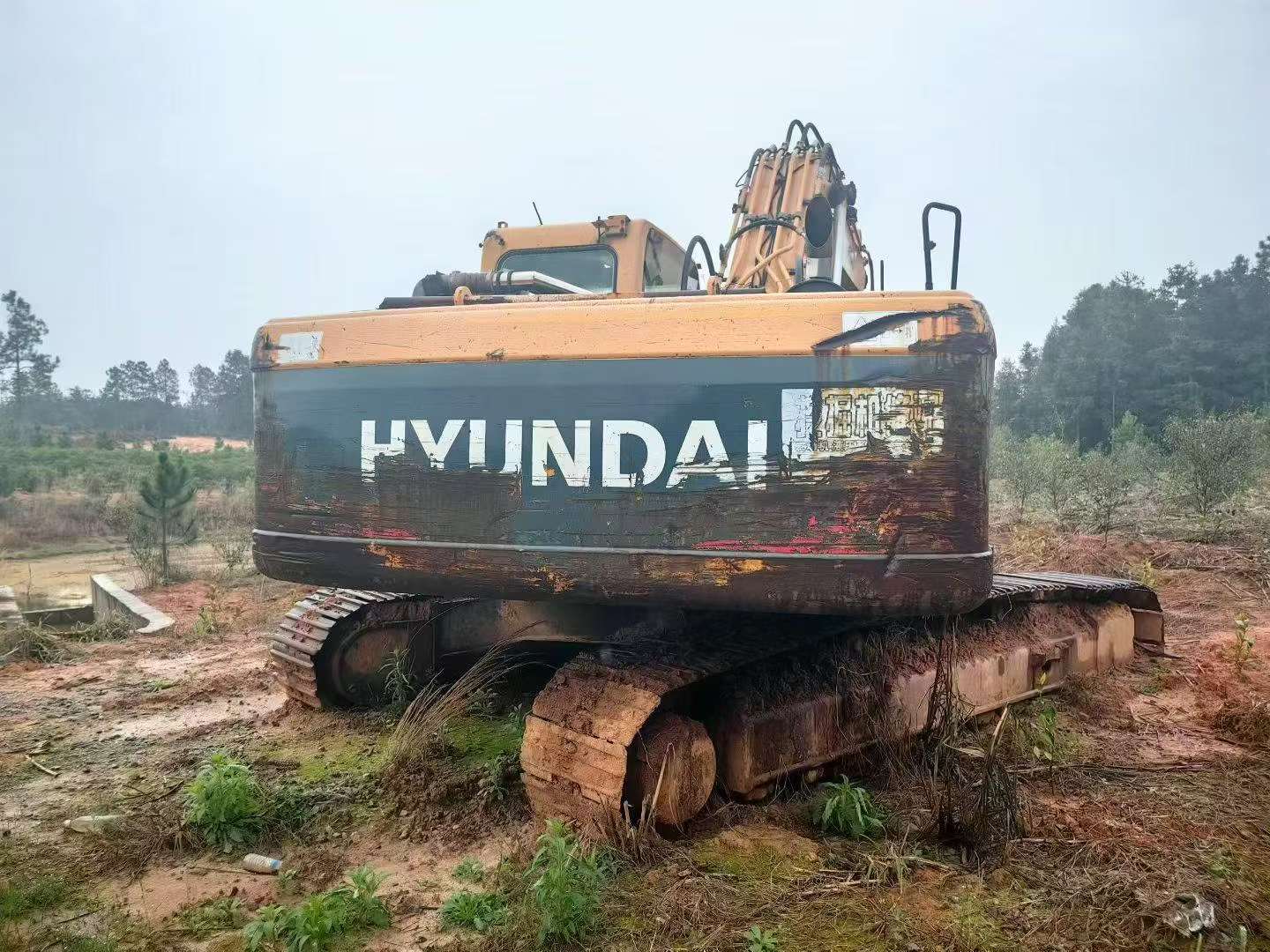

Proven in the field since 2014, this Hyundai R275LVS excavator demonstrates the engineering excellence that defines reliable heavy machinery. With a 27-ton operating weight and robust 146 kW HYUNDAI HE6.7 turbocharged engine, this workhorse delivers consistent performance across demanding jobsites. Its 1.35 m³ bucket capacity and impressive 10,200 mm maximum digging radius make quick work of large-scale earthmoving operations.

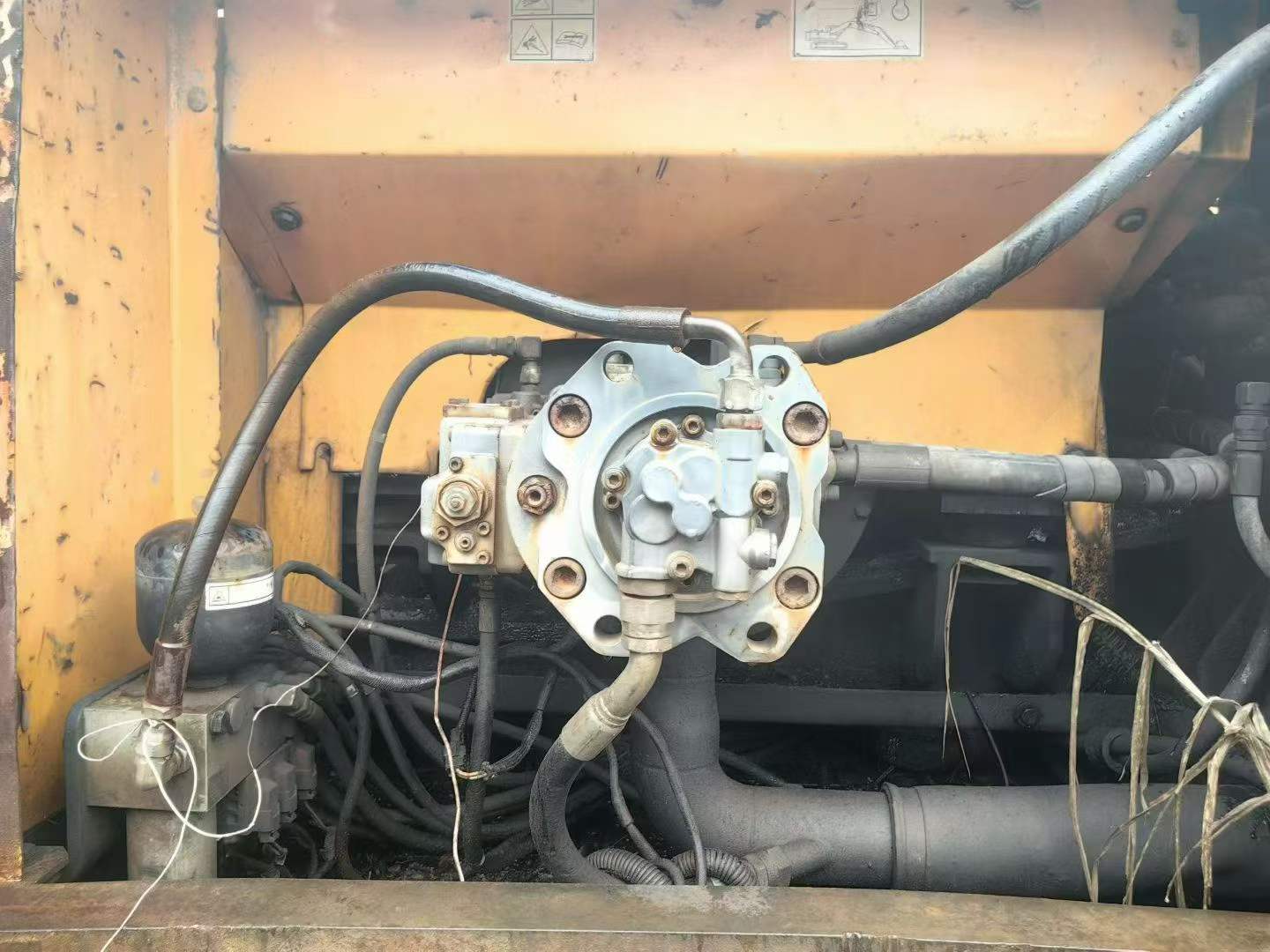

Built to withstand intensive use, this model features a dual variable plunger pump system supplying 2 x 222 l/min flow and a 6-cylinder water-cooled powerplant engineered for longevity. The 5,850 mm boom and 2,850 mm arm provide excellent reach, while achieving a maximum digging depth of 6,900 mm. With 70% climbing capability and 11.2 rpm rotation speed, this excavator maintains productivity in challenging terrain.
- Operating weight: 25,700 kg
- Maximum digging height: 9,960 mm
- Hydraulic system: 35 MPa working pressure
- 440L fuel tank for extended operation
- Currently located in Zhejiang Jinhua
A decade of service confirms its durable construction and dependable performance in real-world conditions.
| Specifications | Value |
|---|---|
| No. | 1047828 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

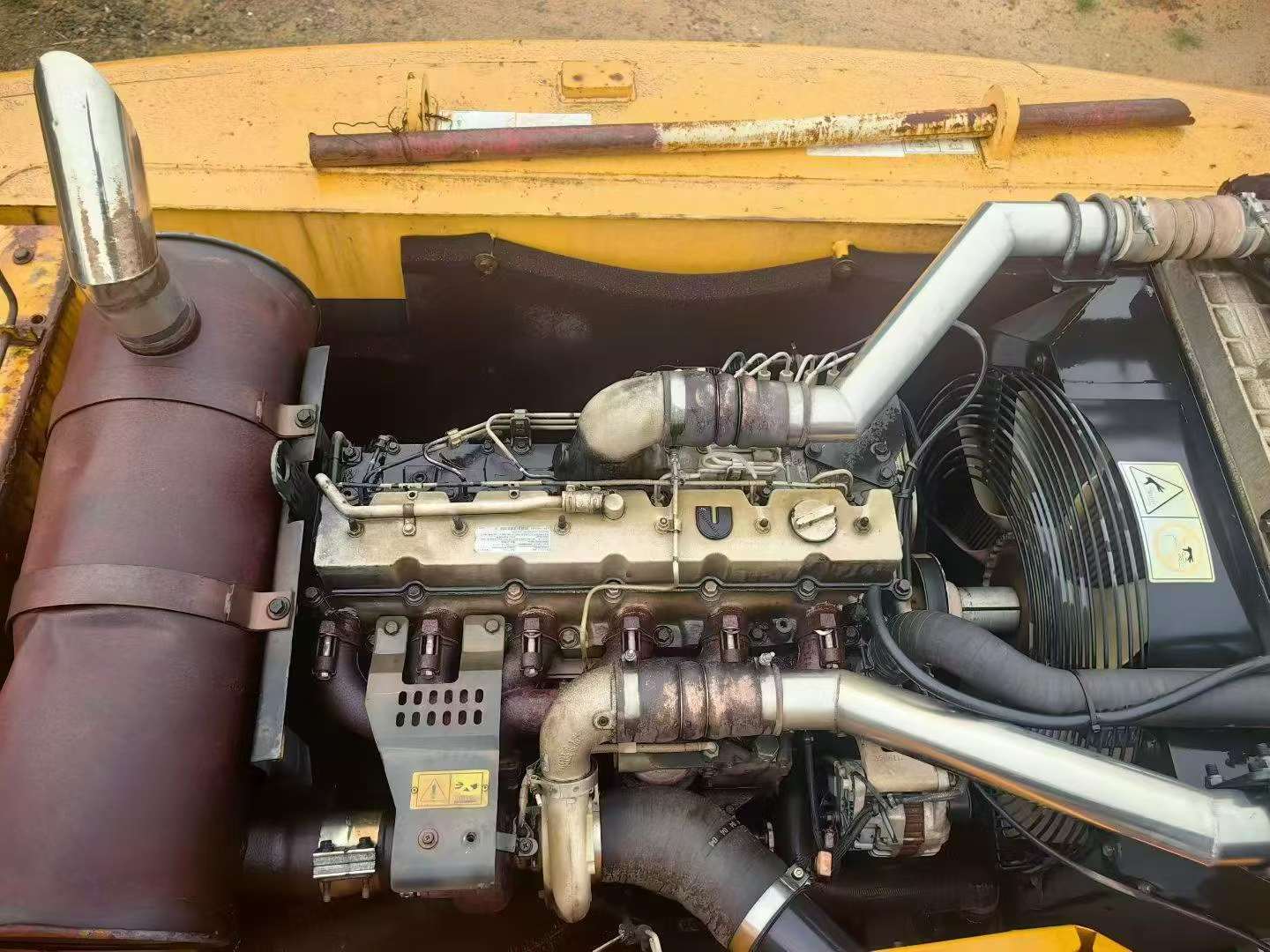

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 146 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 95 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.3 / 3.3 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-ø130 ×ø90×1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-ø145× ø105×1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-ø135 ×ø95×1380 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Theoretical fuel consumption (L/h) | 165 |
| Total transport length (mm) | 9922 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3028 |
| Onboard width (mm) | 2840 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
