Product Description

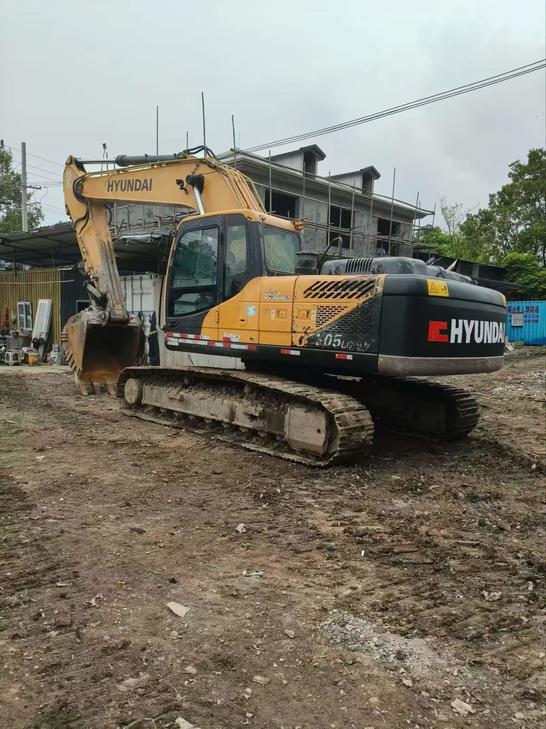

Proven performance meets intelligent value in this 2016 Hyundai R275LVS excavator, currently located in Sichuan. Engineered with a robust 27-ton operating weight and powered by a 146kW HYUNDAI HE6.7 turbocharged engine, this machine delivers professional-grade capability at a fraction of new equipment cost. With 10,200mm maximum digging radius and 6,900mm digging depth, it tackles demanding earthmoving projects with the reliability Hyundai is known for.
- Power & Efficiency: 6.7L 6-cylinder water-cooled engine with 95 N.m maximum torque ensures consistent productivity
- Hydraulic Excellence: Dual variable plunger pumps (2×222 L/min) provide smooth, responsive control across all functions
- Operational Range: 1.35m³ bucket capacity with 5,850mm boom and 2,850mm arm configuration for versatile applications
- Built to Last: Joint venture manufacturing standards with 440L fuel capacity for extended work cycles
Smart buyers recognize that purchasing quality used equipment means accessing premium construction capability without the depreciation hit of new machinery. This R275LVS represents proven technology ready for immedia
| Specifications | Value |
|---|---|
| No. | 1042252 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 146 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 95 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.3 / 3.3 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-ø130 ×ø90×1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-ø145× ø105×1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-ø135 ×ø95×1380 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Theoretical fuel consumption (L/h) | 165 |
| Total transport length (mm) | 9922 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3028 |
| Onboard width (mm) | 2840 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
