Product Description

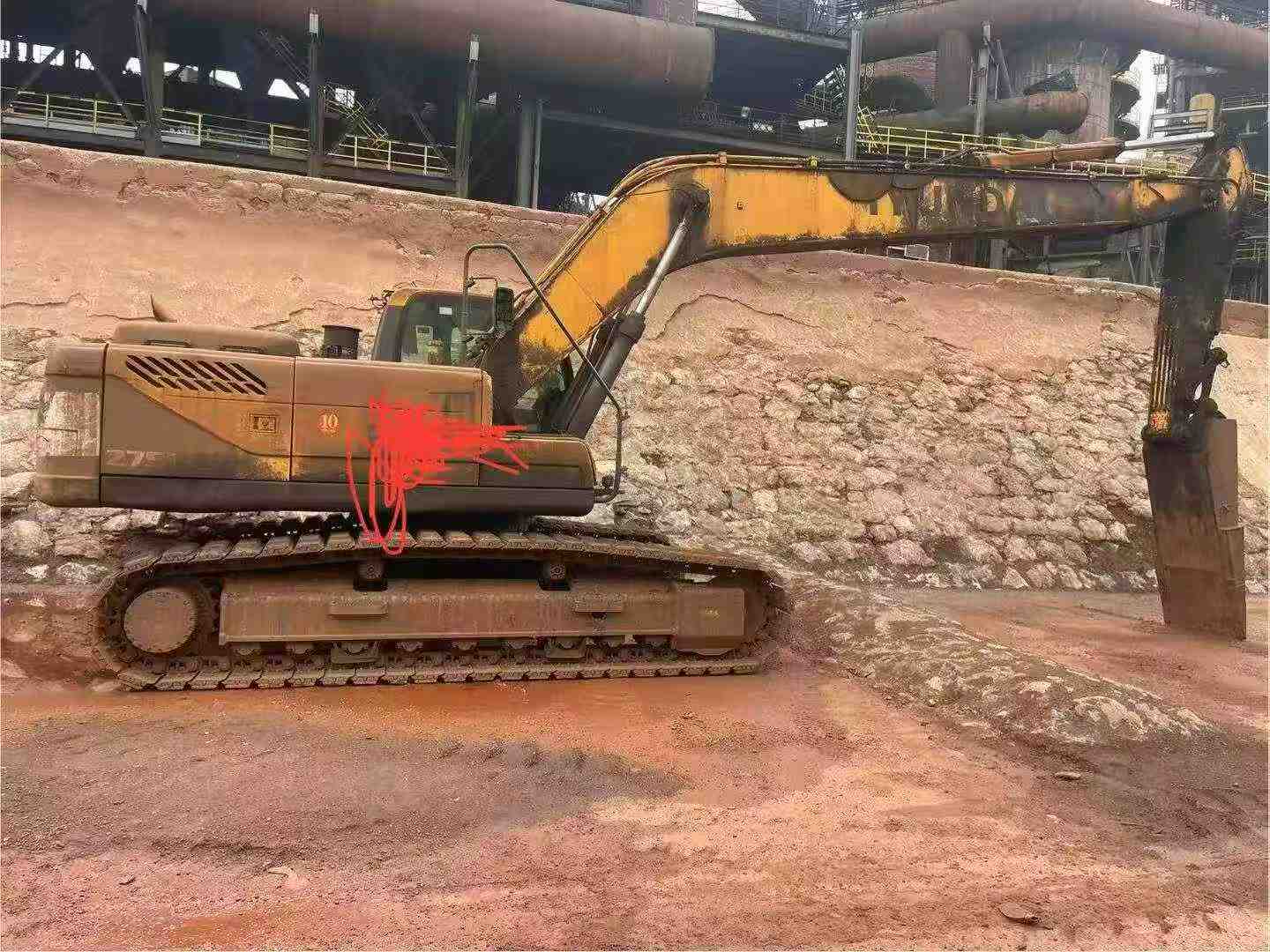

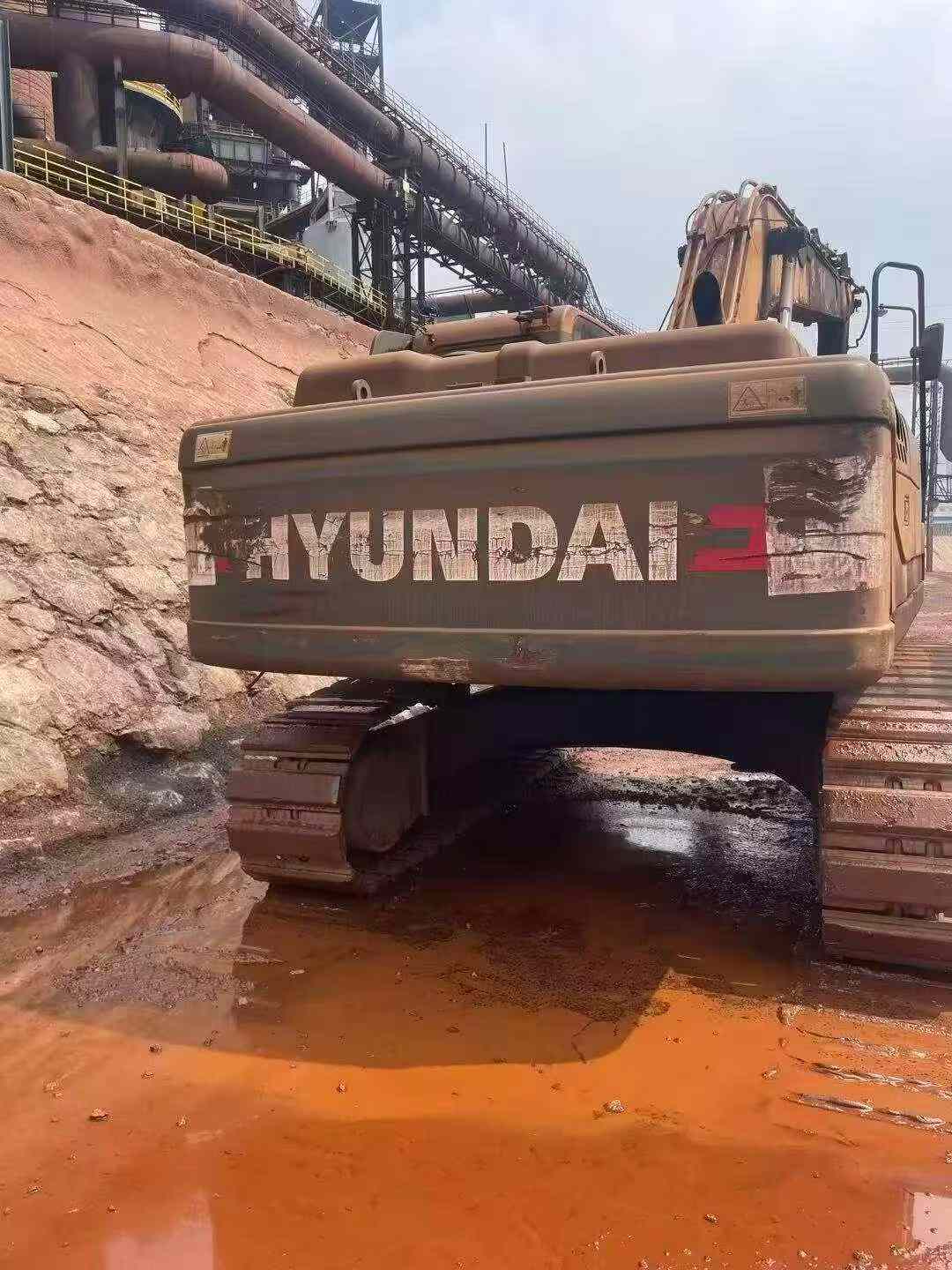

Built for demanding excavation work, this 2018 Hyundai R275LVS delivers 27-ton performance with the proven reliability that makes Hyundai a smart choice in the used equipment market. Powered by a 146kW HYUNDAI HE6.7 turbocharged engine, this machine combines a 10,200mm maximum digging radius with a 6,900mm digging depth—ideal for large-scale earthmoving, foundation work, and heavy construction projects.
Hyundai's global parts network ensures minimal downtime, while their strong resale value protects your investment. With dual variable plunger pumps delivering 2×222 L/min flow and a 1.35m³ bucket capacity, productivity remains consistently high. The 5,850mm boom and 2,850mm arm provide exceptional reach and versatility across varied job sites.

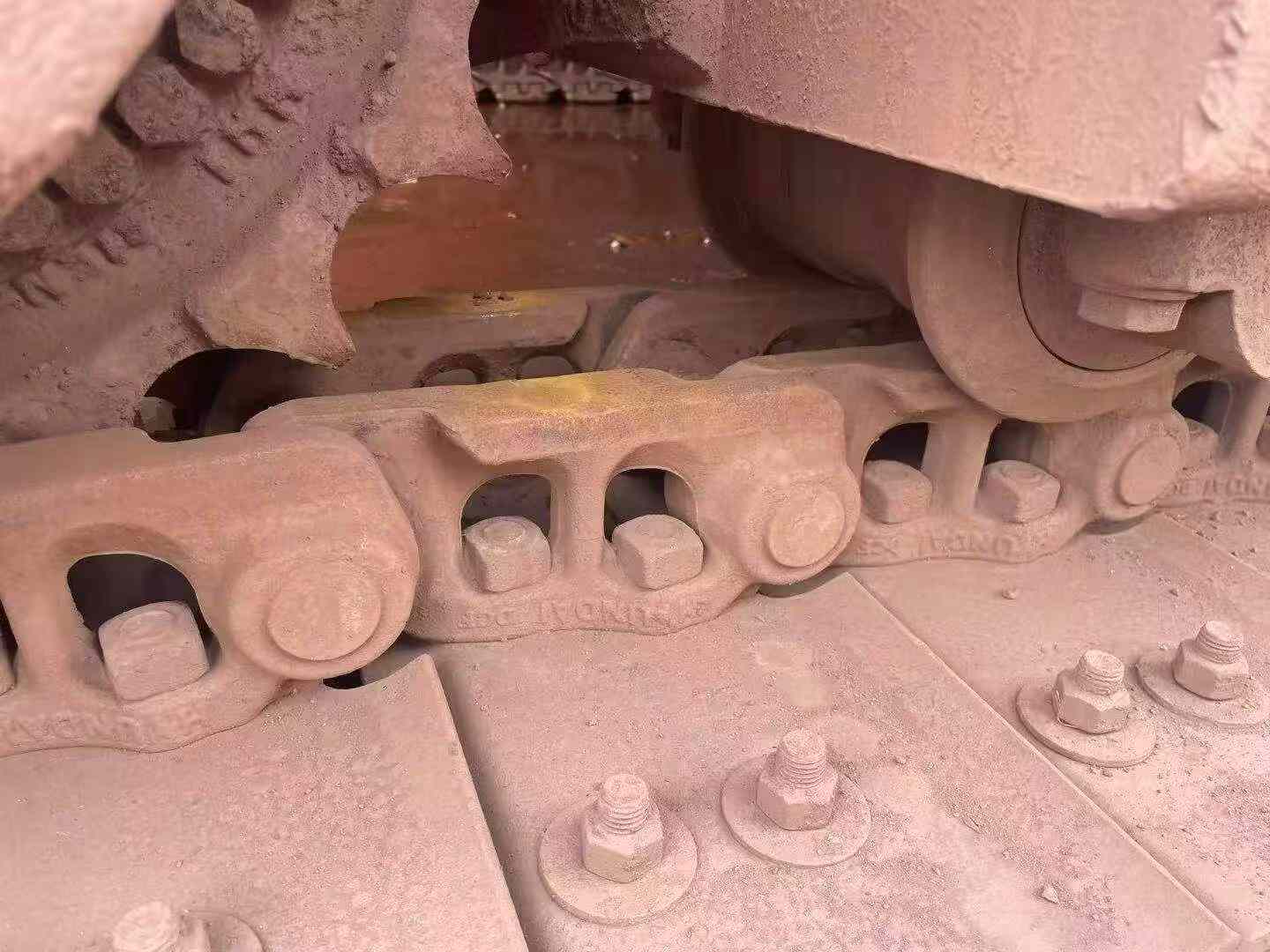

- Operating weight: 25,700kg with robust undercarriage (51 track plates per side)
- Fuel-efficient 6.7L displacement engine with water-cooling system
- 440L fuel tank for extended operation between refills
- Currently located in Luzhou, Sichuan—ready for inspection
- Backed by Hyundai's reputation for durability and parts availability
Invest in proven Korean engineering with worldwide support infrastructure.
| Specifications | Value |
|---|---|
| No. | 1031218 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 25700 |
| Bucket capacity (m³) | 1.35 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 146 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 95 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.3 / 3.3 |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-ø130 ×ø90×1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-ø145× ø105×1620 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-ø135 ×ø95×1380 |
| Pilot pump type | Gear pump, interactive sensing fuel saving pump system |
| Fuel Tank (L) | 440 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 285 |
| Theoretical fuel consumption (L/h) | 165 |
| Total transport length (mm) | 9922 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1115 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 3028 |
| Onboard width (mm) | 2840 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10200 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 6900 |
| Maximum vertical digging depth (mm) | 6020 |
| Maximum excavation radius of stop surface (mm) | 10050 |
| Maximum effective digging depth (mm) | 6700 |
