Product Description

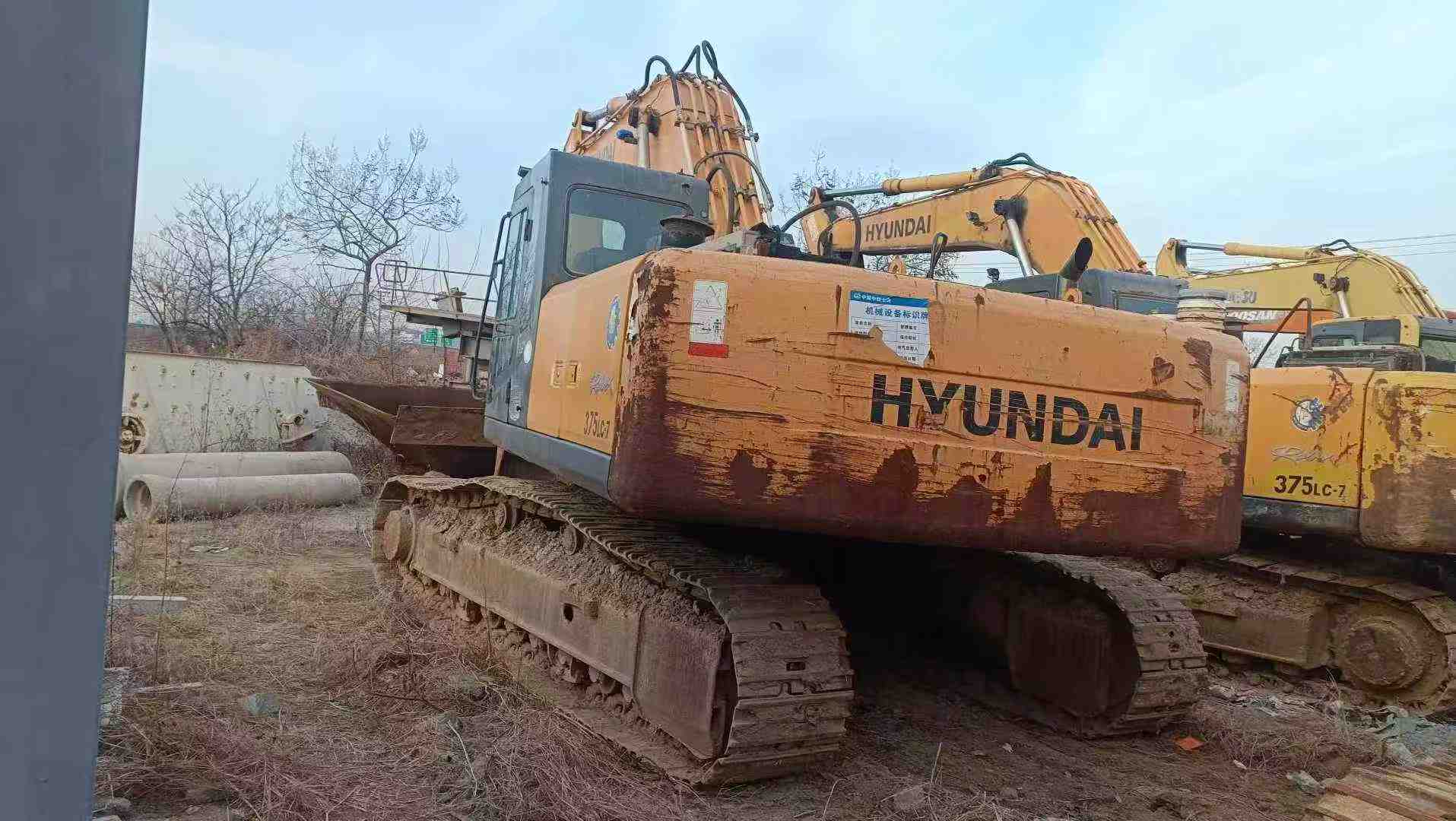

Built for heavy-duty excavation, this 2012 Hyundai R305LC-7 delivers 30-ton performance with proven Cummins C8.3-C power. Rated at 190 kW, the water-cooled 6-cylinder engine drives dual variable axial piston pumps producing 2×260 l/min flow for responsive hydraulics across digging, grading, and demolition tasks. Maximum digging depth reaches 7,500 mm with 10,820 mm operating radius, while bucket digging force of 192.2 kN tackles compact soil and fractured rock efficiently.
- Working weight: 29,400 kg with 1.38 m³ backhoe bucket capacity
- Boom/arm configuration: 6,250 mm / 3,050 mm for versatile reach
- Travel speed: 3.1–5.2 km/h with 70% gradeability (35°)
- Hydraulic system: 330 MPa working circuit, 480 L fuel tank for extended shifts
- Transport dimensions: 10,560 × 3,200 × 3,290 mm
- Currently located in Qingdao, Shandong
Equipped with full cab protection and 500 mm ground clearance, this machine handles site conditions from foundation excavation to utility trenching. Hydraulic tank holds 210 L with 320 L total system capacity for sustained operation. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 1024700 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29400 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 192.2 |
| Rod digging force (kN) | 128.5 |
| Travel speed (km/h) | 3.1-5.2 |
| Maximum flow of main pump (l/min) | 2 x 260 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1465 |
| Fuel Tank (L) | 480 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 19 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3290 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 10820 |
| Maximum digging depth (mm) | 7500 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10620 |
| Maximum effective digging depth (mm) | 7300 |
