Product Description

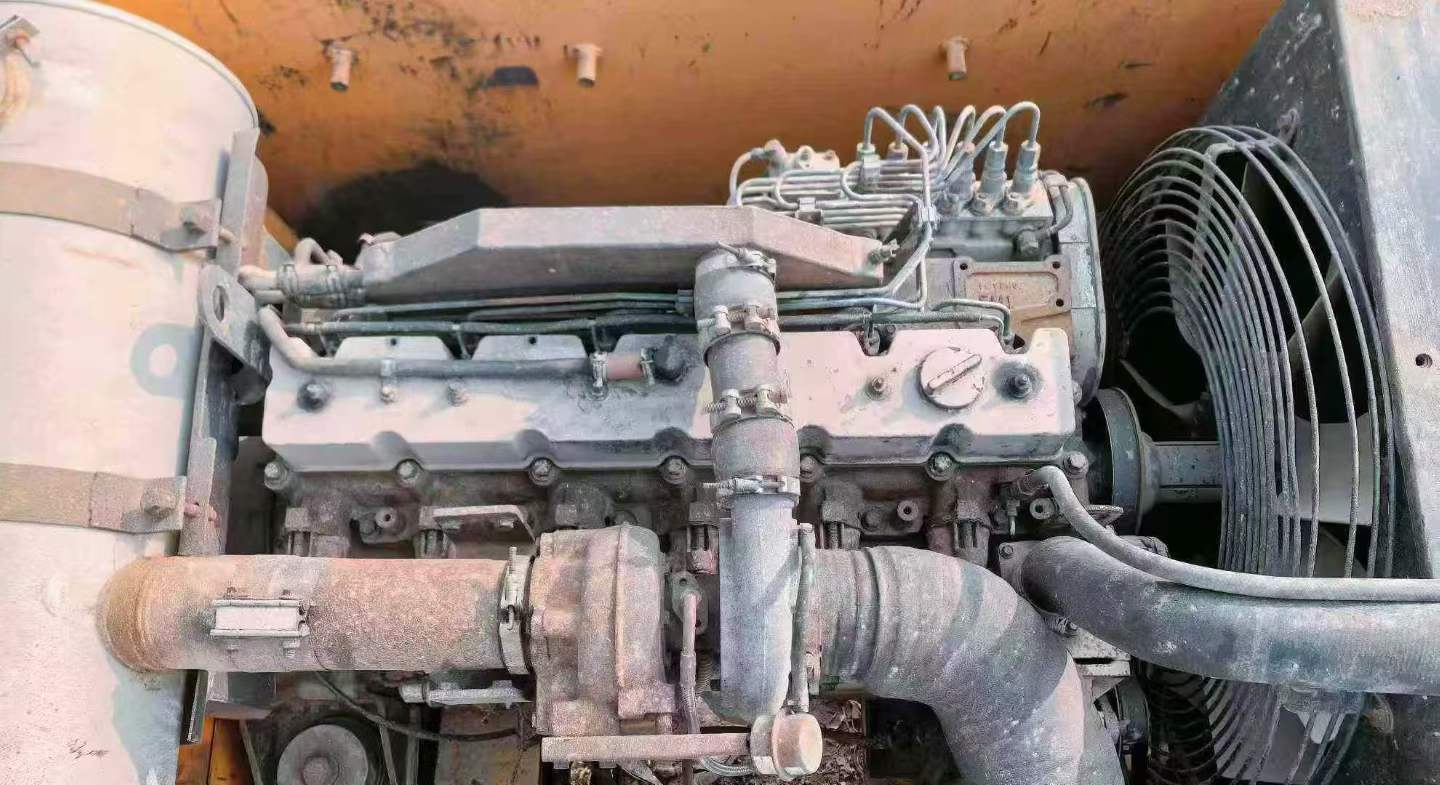

With a working weight of 29,400 kg and a bucket capacity of 1.38 m³, the Hyundai R305LC-7 excavator, manufactured in 2016, stands as a robust and reliable choice for demanding construction projects. Located in 广东深圳, this model is powered by a Cummins C8.3-C engine, delivering 190 kW at 1900 rpm, ensuring consistent performance and efficiency.
- Equipped with a 6-cylinder, 8.27 L displacement engine, it offers a strong ground specific pressure of 56 Kpa, ideal for various terrains.
- Hyundai's global reputation for durability and parts availability makes this excavator a safe investment, promising high resale value.
- Featuring a 2× variable axial piston pump and gear pump, the hydraulic system operates at 330 Mpa, providing precise control and power.
- Maximum digging depth of 7500 mm and a maximum unloading height of 7110 mm ensure versatility and productivity on any job site.
| Specifications | Value |
|---|---|
| No. | 1000202 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29400 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 192.2 |
| Rod digging force (kN) | 128.5 |
| Travel speed (km/h) | 3.1-5.2 |
| Maximum flow of main pump (l/min) | 2 x 260 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 110 * 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1465 |
| Fuel Tank (L) | 480 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 19 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3290 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 10820 |
| Maximum digging depth (mm) | 7500 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10620 |
| Maximum effective digging depth (mm) | 7300 |
