Product Description
Commanding a 30-ton workhorse demands precision and confidence. This 2016 Hyundai R305LVS excavator delivers both through its operator-centric design and robust hydraulic performance. Powered by a 169kW HYUNDAI HE6.7 engine paired with dual variable plunger pumps flowing 2 x 252 L/min, operators experience responsive control across demanding excavation tasks. The spacious cab provides exceptional visibility with a 3010mm full-height design, enabling clear sightlines to the 10590mm maximum digging radius and 7180mm maximum depth.
- Enhanced stability: 30,200kg working weight with 1190mm counterweight clearance ensures balanced operation on challenging terrain
- Precise handling: 10.2 rpm rotation speed and 4300mm front turning radius facilitate accurate positioning in confined spaces
- Operator comfort: Water-cooled engine system and ergonomic controls reduce fatigue during extended shifts
- Proven reliability: Joint venture manufacturing standards with comprehensive hydraulic system (330L capacity)
- Versatile performance: 70% climbing ability and dual travel speeds (5.6/3.2 km/h) adapt to varied jobsite conditions
Currently available in Guangxi, this machine combines
| Specifications | Value |
|---|---|
| No. | 1004870 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

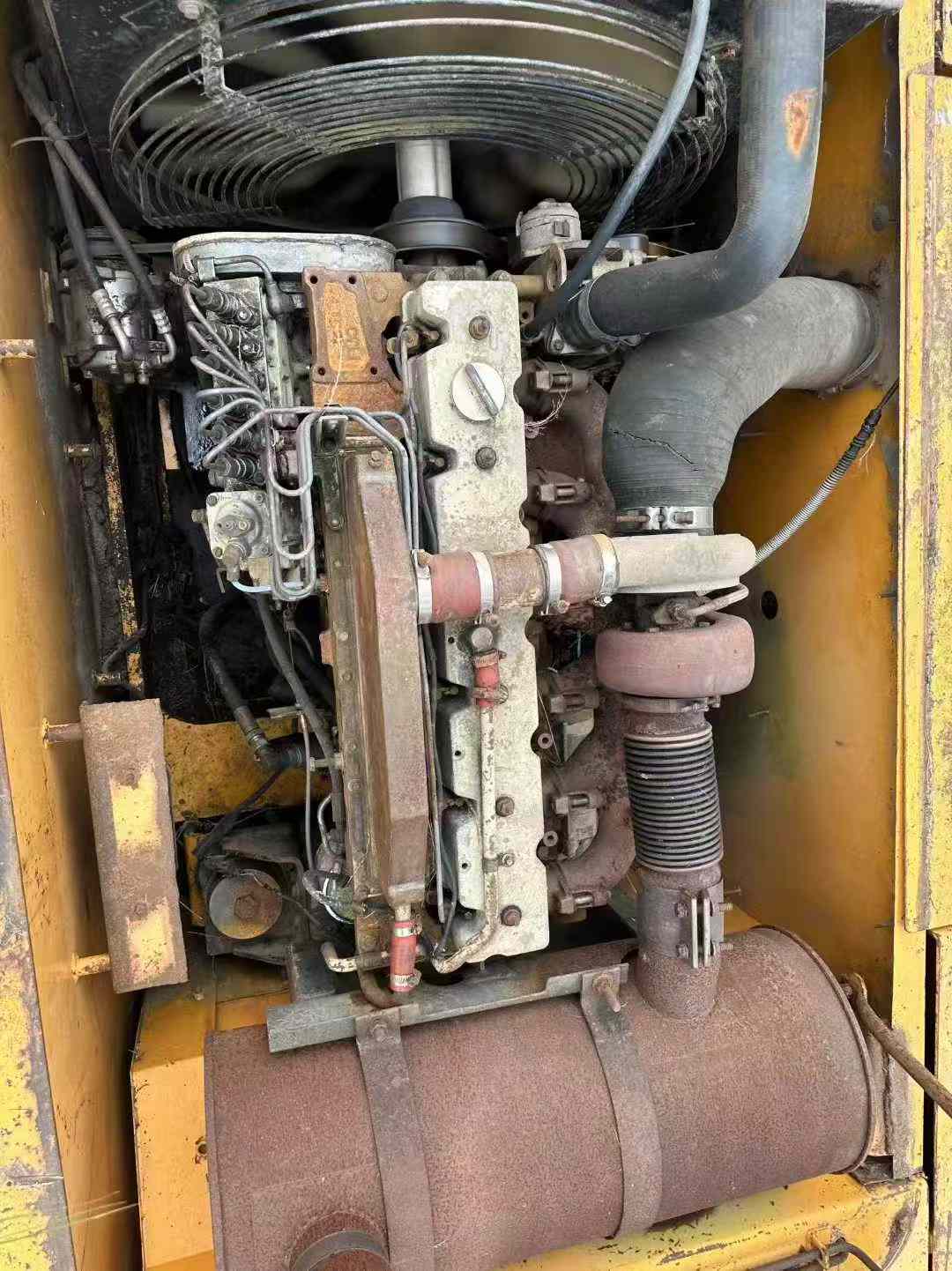

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |

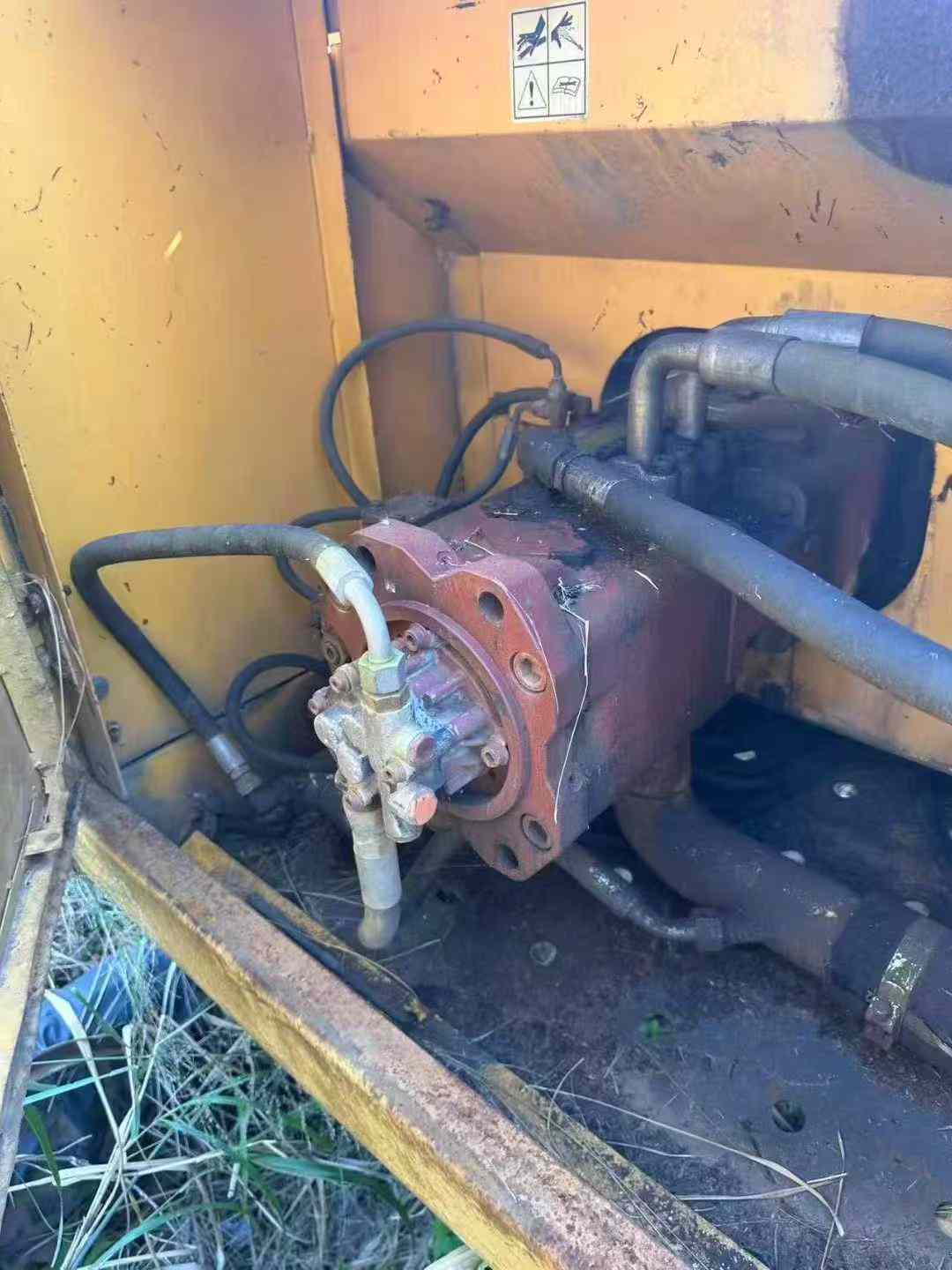

| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
