Product Description

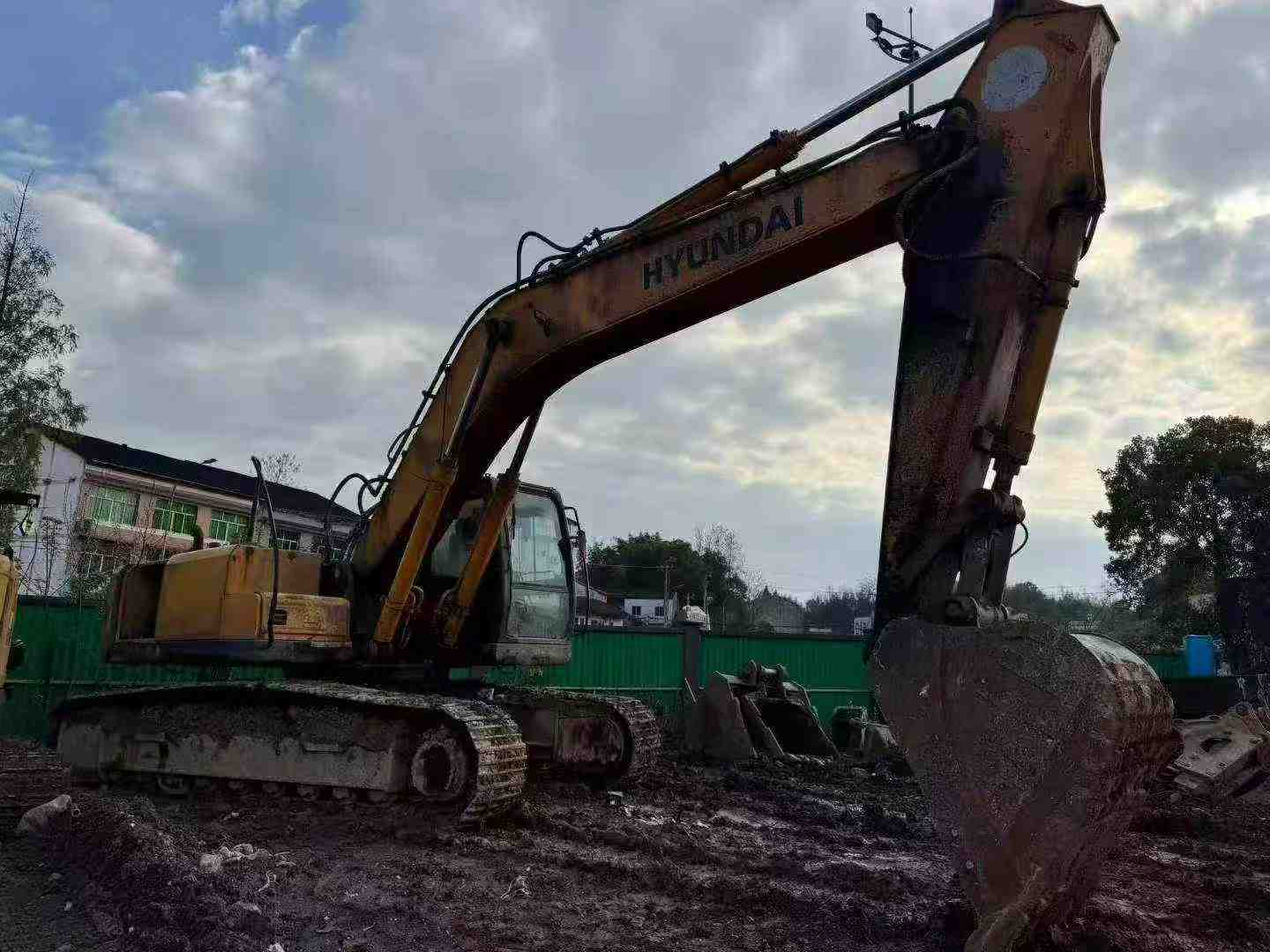

Acquire proven excavation power without the premium price tag. This 2016 Hyundai R305LVS delivers 30-ton performance with a 169kW HYUNDAI HE6.7 engine and dual variable plunger pumps generating 2×252 L/min flow—specifications that match current production models at a fraction of new equipment cost. Currently located in Luzhou, Sichuan, this imported excavator combines joint-venture reliability with impressive operational capabilities including a 10,590mm maximum digging radius and 7,180mm digging depth.
- Working weight: 30,200kg with 1.44m³ bucket capacity for optimal productivity
- Hydraulic system: 330L total capacity with water-cooled 6-cylinder configuration
- Mobility: 70% climbing ability and 10.2 rpm rotation speed for versatile jobsite performance
- Transport dimensions: 10,453×3,200×3,350mm for standard logistics compatibility
- Fuel efficiency: 560L tank capacity supports extended operation cycles
Smart buyers recognize that well-maintained used machinery offers identical performance to new units while preserving capital for fleet expansion or project investment. Backed by Hyundai's engineering standards, this R305LVS represents strategic value for contractors demandi
| Specifications | Value |
|---|---|
| No. | 1041743 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
