Product Description

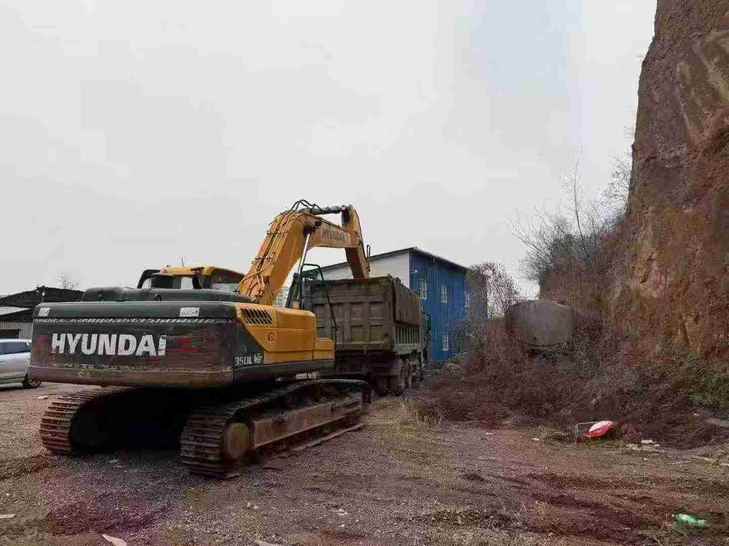

Featuring a powerful HYUNDAI HE6.7 engine, the 2018 Hyundai R305LVS delivers 169 kW at 1900 rpm, ensuring robust performance and efficiency. With a working weight of 30,200 kg and a bucket capacity of 1.44 m³, this excavator is equipped to handle demanding tasks. The hydraulic system, powered by two variable plunger pumps, provides a maximum flow of 2 x 252 l/min, enhancing operational precision and control.
- Engine: HYUNDAI HE6.7, 6-cylinder, 6.7 L displacement
- Hydraulic System: Two variable plunger pumps, 2 x 252 l/min flow
- Bucket: Backhoe, 1.44 m³ capacity
- Travel Speed: 5.6/3.2 km/h
- Maximum Digging Depth: 7180 mm
- Total Transport Dimensions: 10453 mm (length) x 3200 mm (width) x 3350 mm (height)
Engineered with high-quality components and advanced technology, the R305LVS offers exceptional reliability and durability. Its climbing ability of 70% and efficient water-cooling system further enhance its capability in various terrains and conditions.
| Specifications | Value |
|---|---|
| No. | 1020843 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
