Product Description

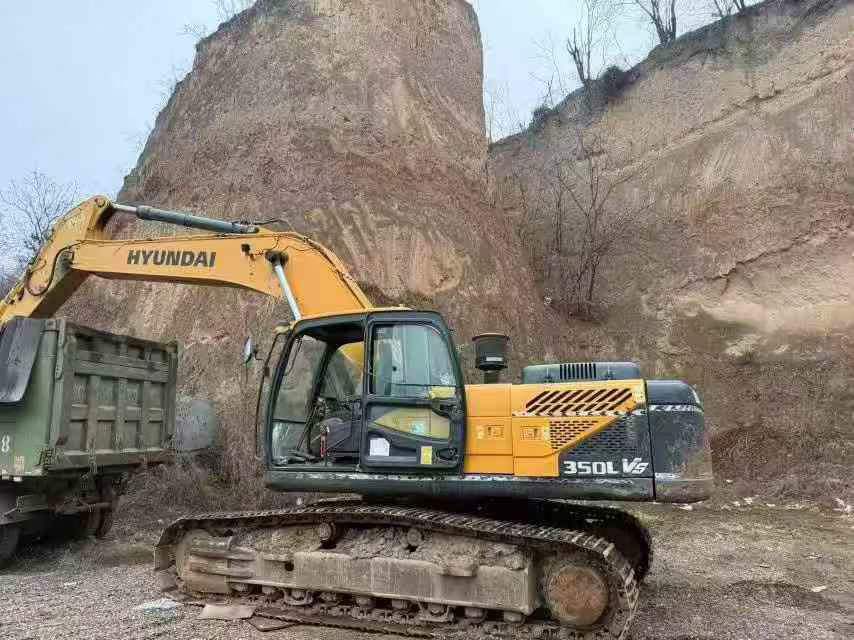

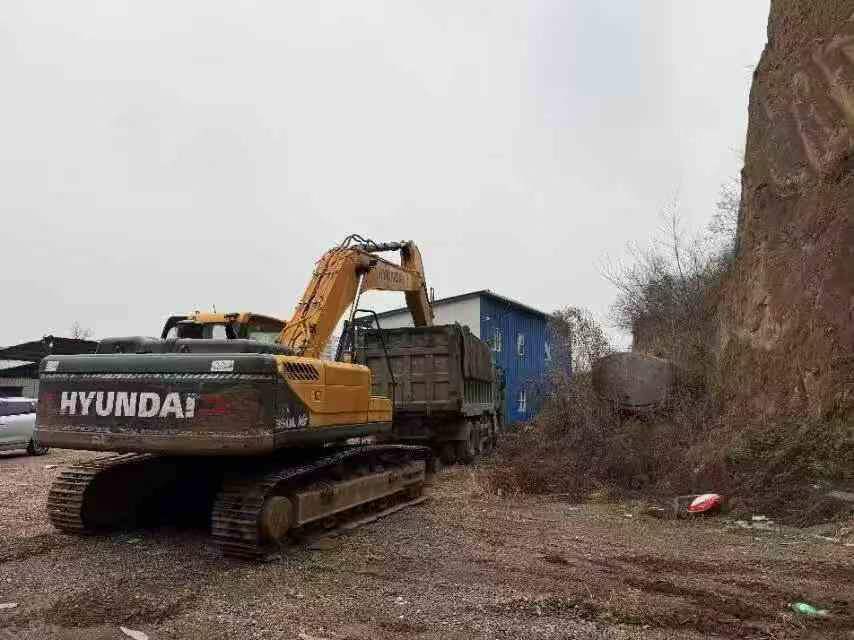

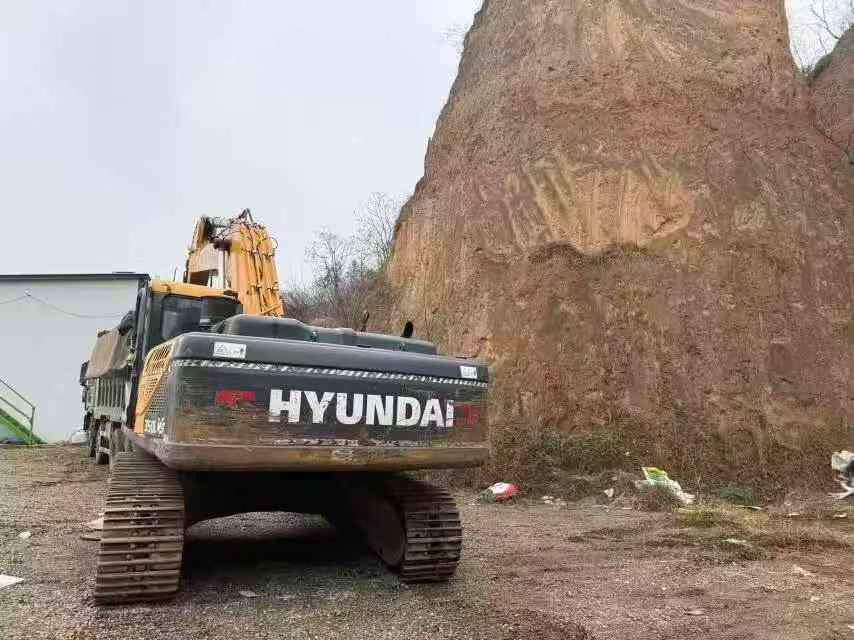

Engineered with a powerful HYUNDAI HE6.7 6-cylinder engine delivering 169 kW at 1900 rpm, this 2018 Hyundai R305LVS excavator combines robust hydraulic performance with precision control. Dual variable plunger pumps supply 2 × 252 L/min flow, ensuring responsive operation across demanding jobsites. Water-cooled 6.7L displacement and 70% climbing ability make this 30-ton machine ideal for challenging terrain and heavy-duty applications.
Key specifications include:
- Operating weight: 30,200 kg with 1.44 m³ bucket capacity
- Maximum digging reach: 10,590 mm; depth: 7,180 mm
- Hydraulic system capacity: 330L with 190L tank
- Travel speed: 5.6/3.2 km/h for efficient repositioning
- Fuel capacity: 560L for extended operation
- Compact transport dimensions: 10,453 × 3,200 × 3,350 mm
Currently located in Hunan, this joint-venture manufactured excavator represents proven Hyundai engineering quality. Complete hydraulic cylinder specifications and 10.2 rpm rotation speed deliver consistent performance for large-scale earthmoving and construction projects.
| Specifications | Value |
|---|---|
| No. | 1020902 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
