2020 Hyundai R305LVS

1/9
Buy Hyundai R305LVS Used Excavator / 1

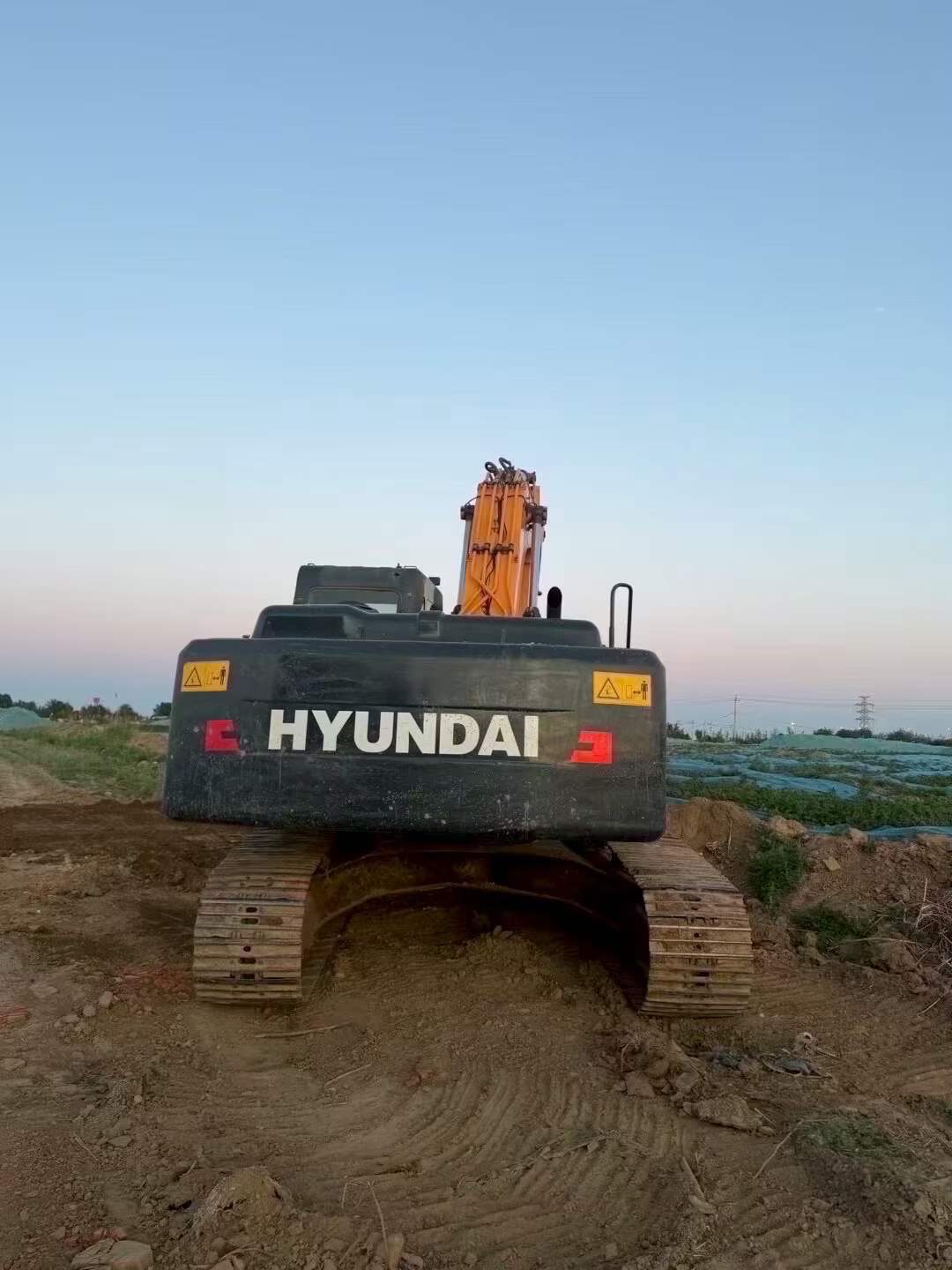

Buy Hyundai R305LVS Used Excavator / 2

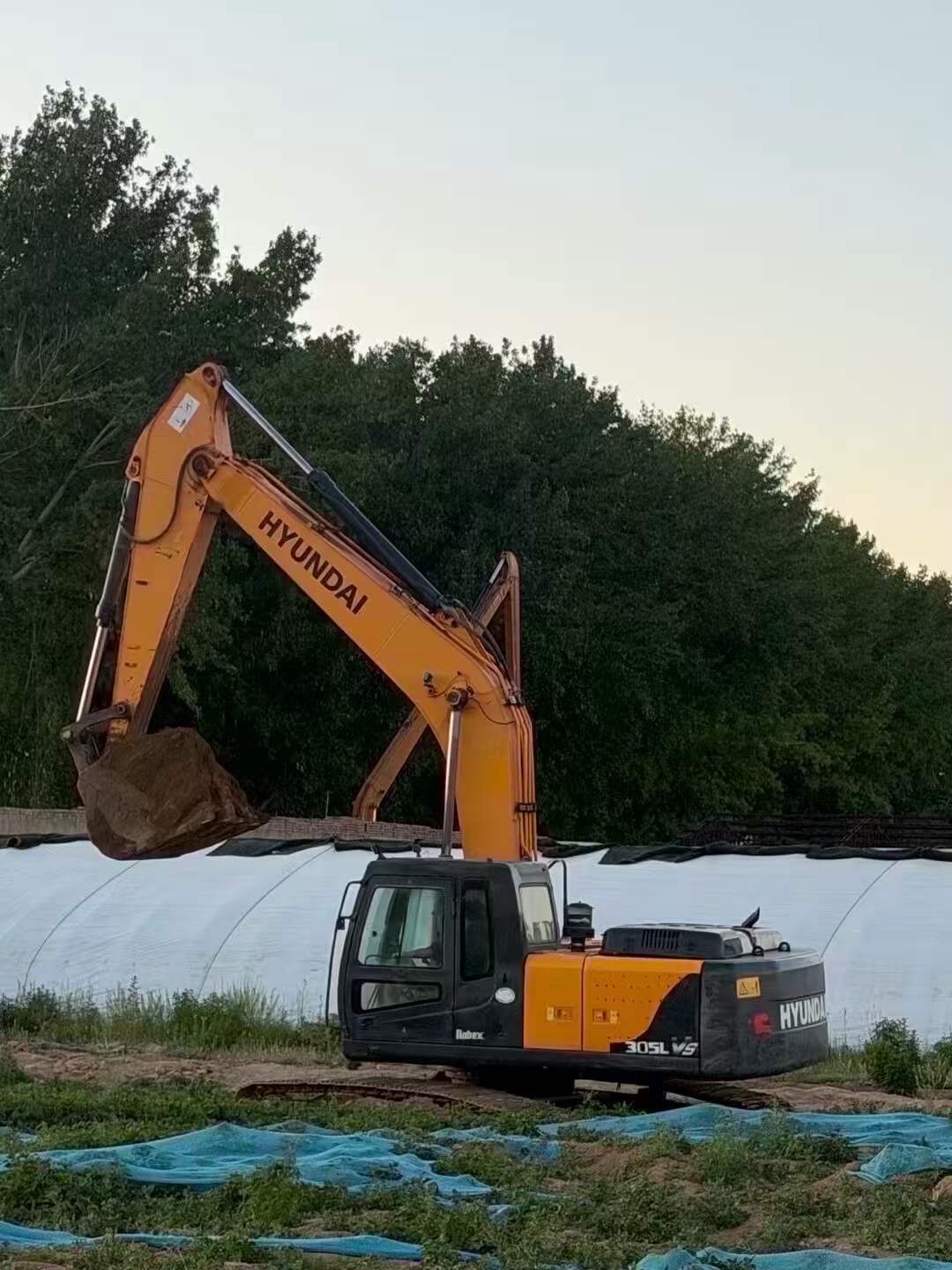

Buy Hyundai R305LVS Used Excavator / 3

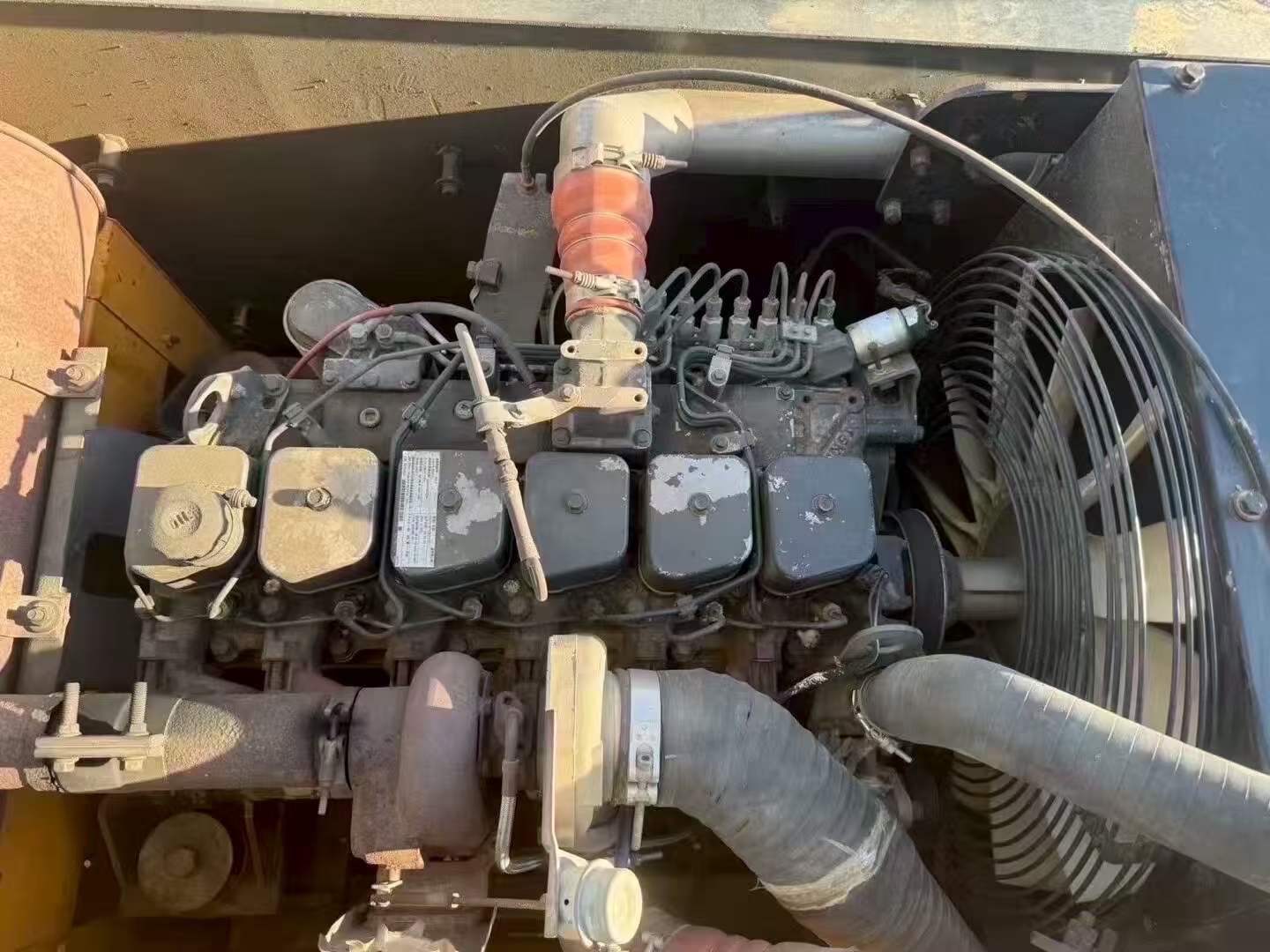

Buy Hyundai R305LVS Used Excavator / 4

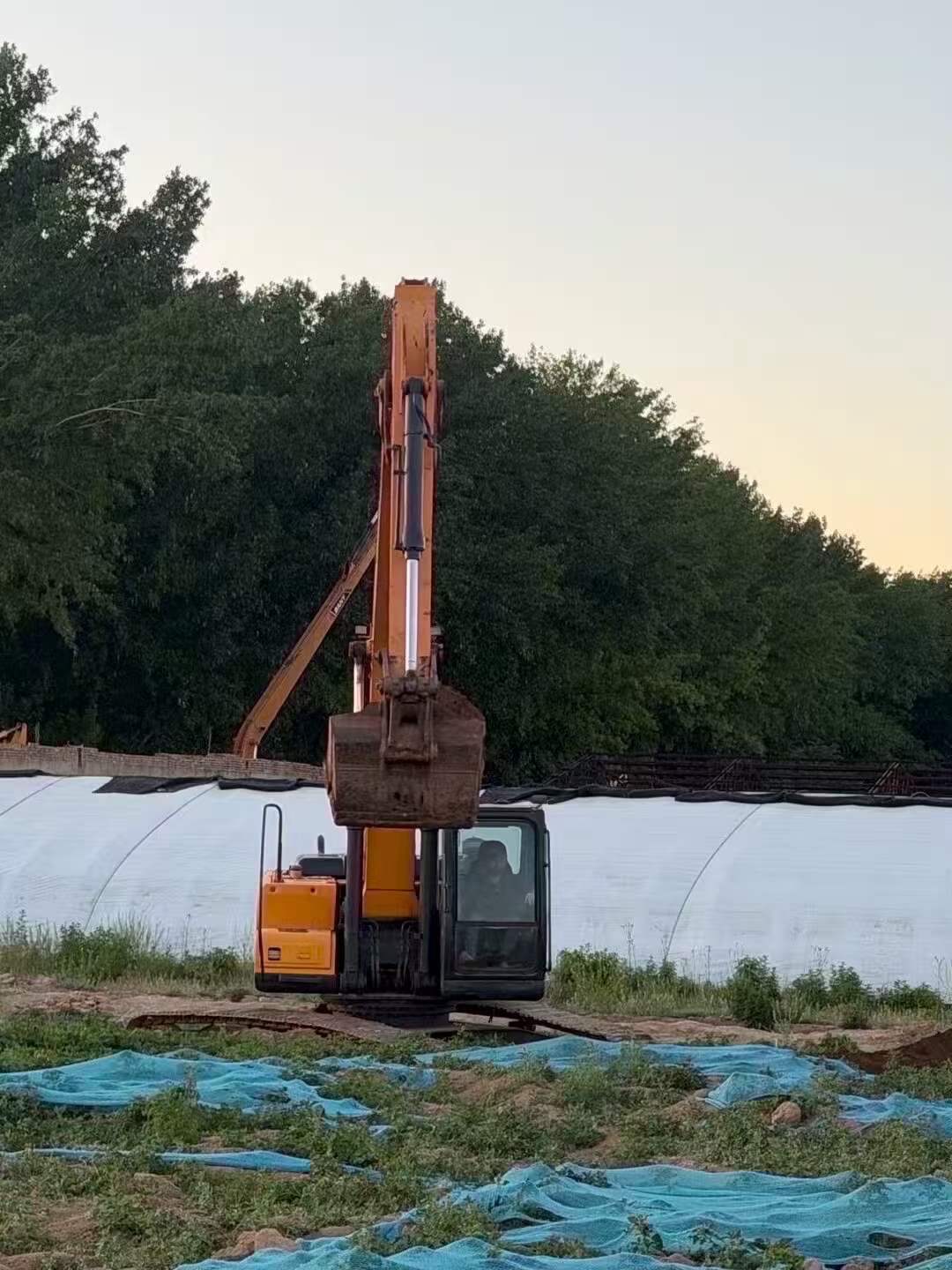

Buy Hyundai R305LVS Used Excavator / 5

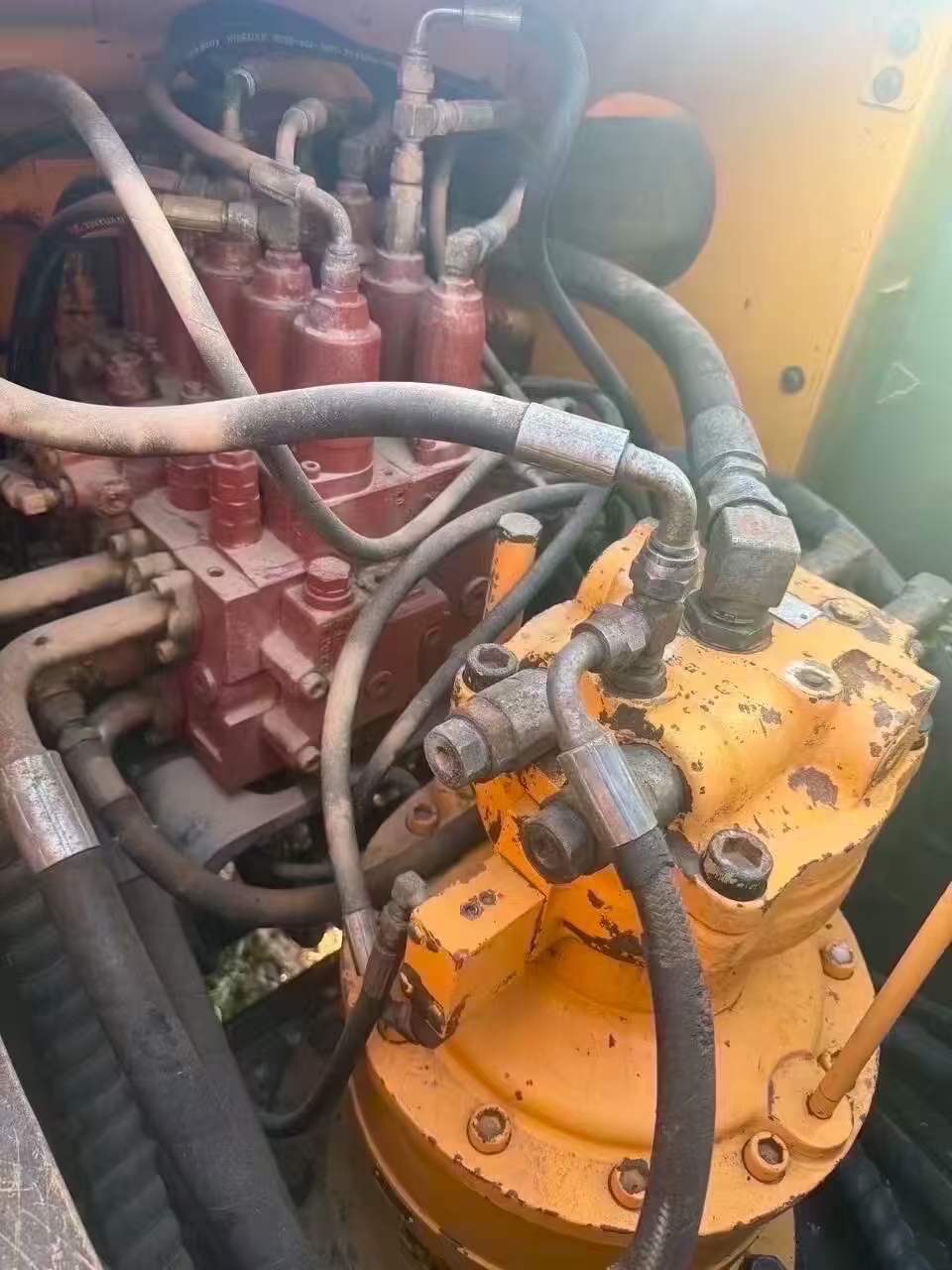

Buy Hyundai R305LVS Used Excavator / 6

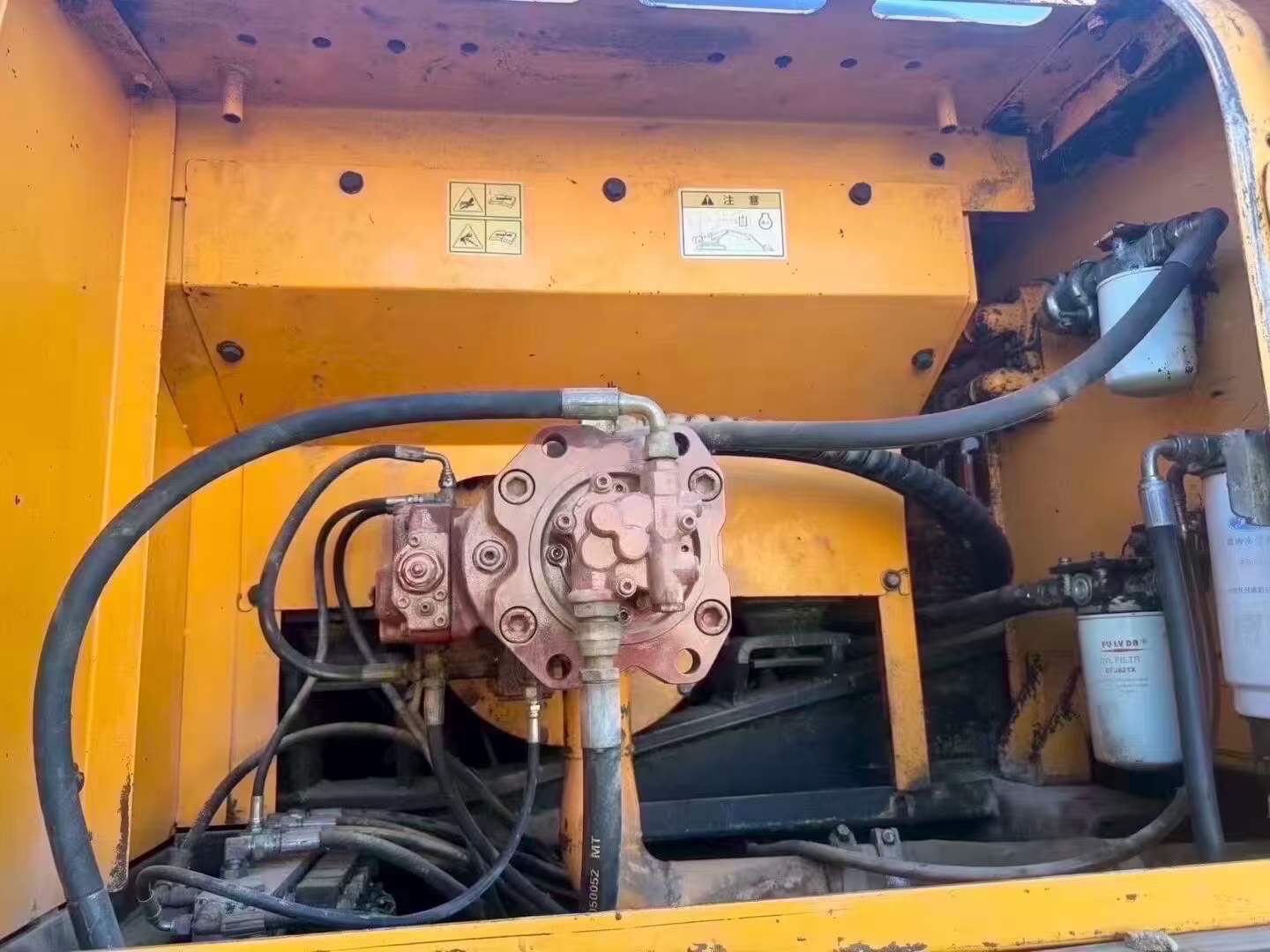

Buy Hyundai R305LVS Used Excavator / 7

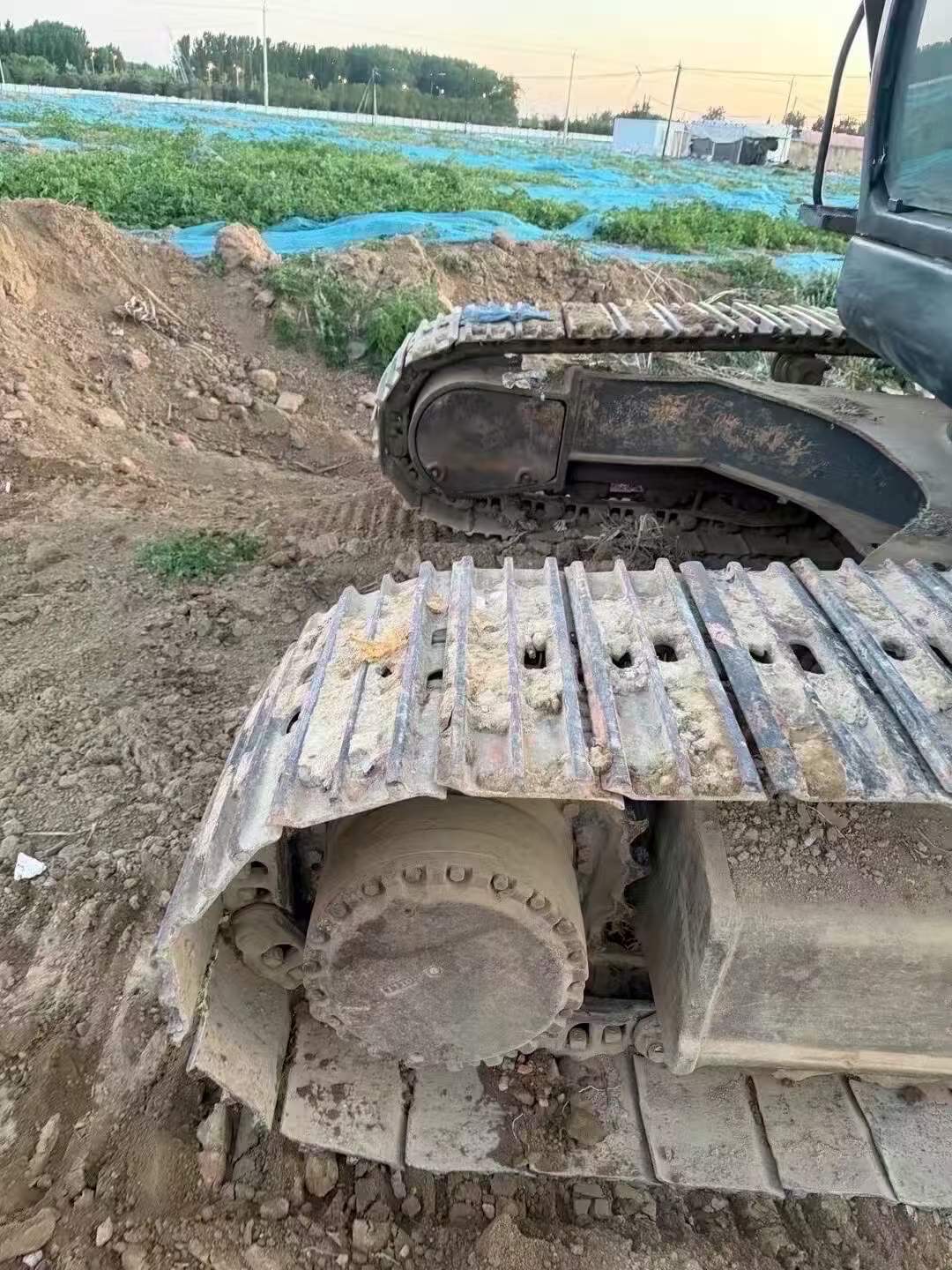

Buy Hyundai R305LVS Used Excavator / 8

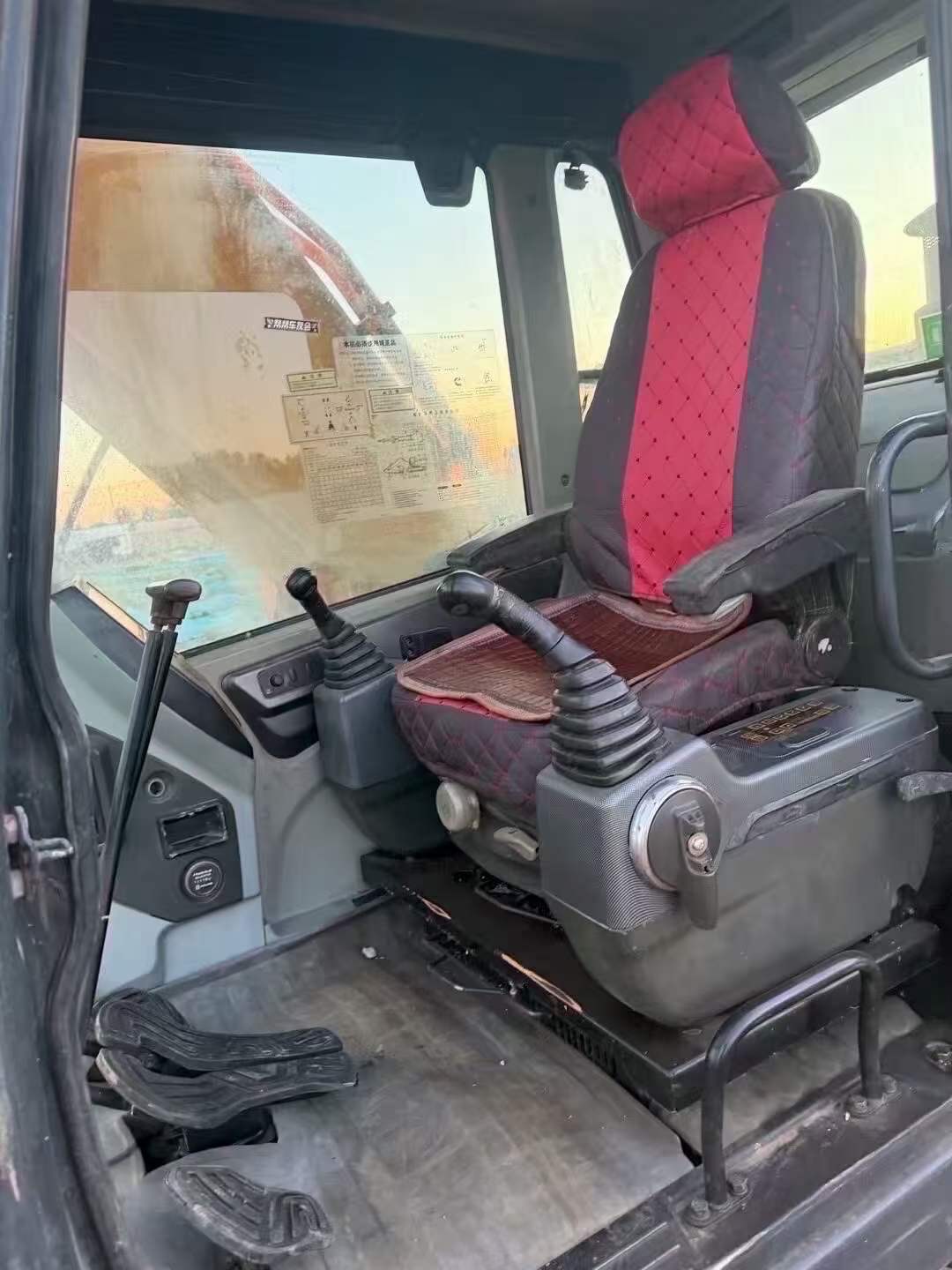

Buy Hyundai R305LVS Used Excavator / 9

Product Description

This 2020 Hyundai R305LVS excavator, currently located in Beijing, China, represents a premium opportunity for contractors seeking reliable performance. This mid-sized crawler excavator delivers robust digging power and operational efficiency, making it well-suited for construction, earthmoving, and infrastructure projects.

The machine demonstrates excellent working condition with strong hydraulic performance and responsive controls. Major components show minimal wear, with no significant fluid leaks reported. The unit is field-ready and available for on-site demonstration to qualified buyers.

  • Year of Manufacture: 2020
  • Model: Hyundai R305LVS
  • Current Location: Beijing, China
  • Condition: Well-maintained, operational
  • Status: Ready for immediate deployment

Contact FairTradeMachinery for detailed specifications, inspection arrangements, and export documentation assistance.

SpecificationsValue
No.1076374
Tonnage (tons)30
Working weight (kg)30200
Bucket capacity (m³)1.44
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE6.7
Rated power (kw/rpm)169/ 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.2
Climbing ability (%)70
Travel speed (km/h)5.6/3.2
Maximum flow of main pump (l/min)2 x 252
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1185
Bucket rod cylinders - Number × diameter × stroke (mm)1-150 x 110 x 1765
Boom cylinders - Number × diameter × stroke (mm)2-140 x 100 x 1465
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)24
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10453
Total transport width (mm)3200
Total transport height (mm)3350
Full cab height (mm)3010
Counterweight ground clearance (mm)1190
Minimum turning radius of front working device (mm)4300
Back end turning radius (mm)3196
Onboard width (mm)2980
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10590
Maximum digging depth (mm)7180
Maximum excavation height (mm)10030
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)6120
Maximum excavation radius of stop surface (mm)10400
see more

Overview

No.1076374

Brand Name:

Hyundai

Model Number:

R305LVS

Year:

2020

Location:

Peking China

Pub Date
