Product Description
Built for high-volume earthmoving and deep excavation projects, this 2016 Hyundai R350LVS crawler excavator delivers 221 kW of reliable power through its HYUNDAI HE8.9 water-cooled engine. With an operating weight of 33,200 kg and a 1.60 m³ bucket capacity, this 35-ton machine tackles demanding site conditions with proven durability. Maximum digging depth reaches 6,970 mm while maximum digging radius extends to 10,920 mm, providing exceptional reach for trenching, foundation work, and bulk material handling.
Dual variable plunger pumps supply 2 × 315 L/min hydraulic flow for responsive cycle times and smooth multi-function operation. The axial piston travel motors drive this excavator at 6.3 km/h high speed, ensuring efficient repositioning across large job sites. A 70% climbing ability and 9.8 rpm rotation speed maintain productivity on slopes and in confined areas. Currently located in Guizhou, this R350LVS arrives site-ready with substantial fuel (560 L) and hydraulic (190 L) tank capacities for extended operating shifts without frequent refueling interruptions.
- Operating weight: 33,200 kg | Bucket: 1.60 m³

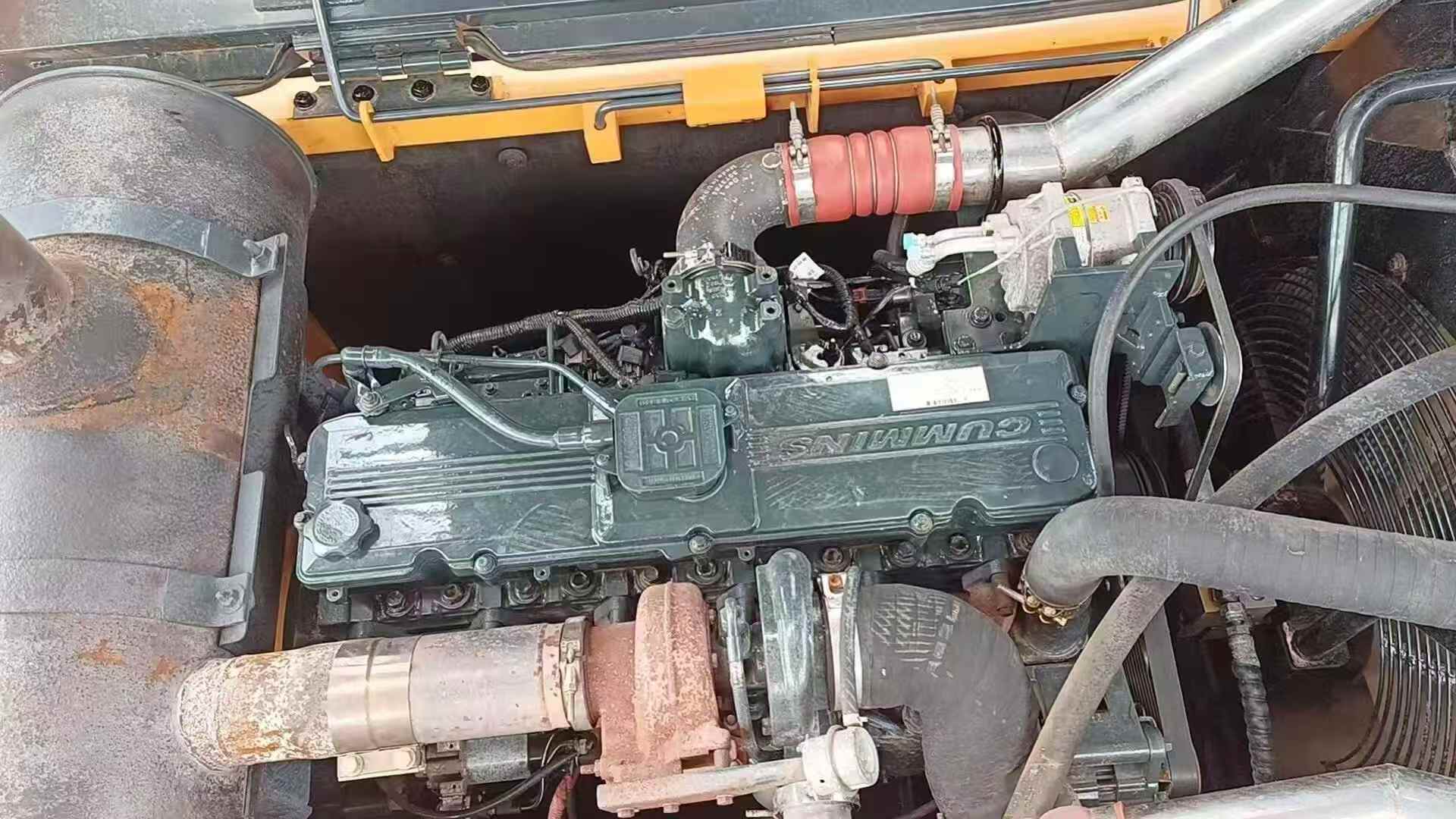

- Engine: HYUNDAI HE8.9, 221 kW @ 1850 rpm
- Max digging depth: 6,970 mm | Max reach: 10
| Specifications | Value |
|---|---|
| No. | 1025210 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |

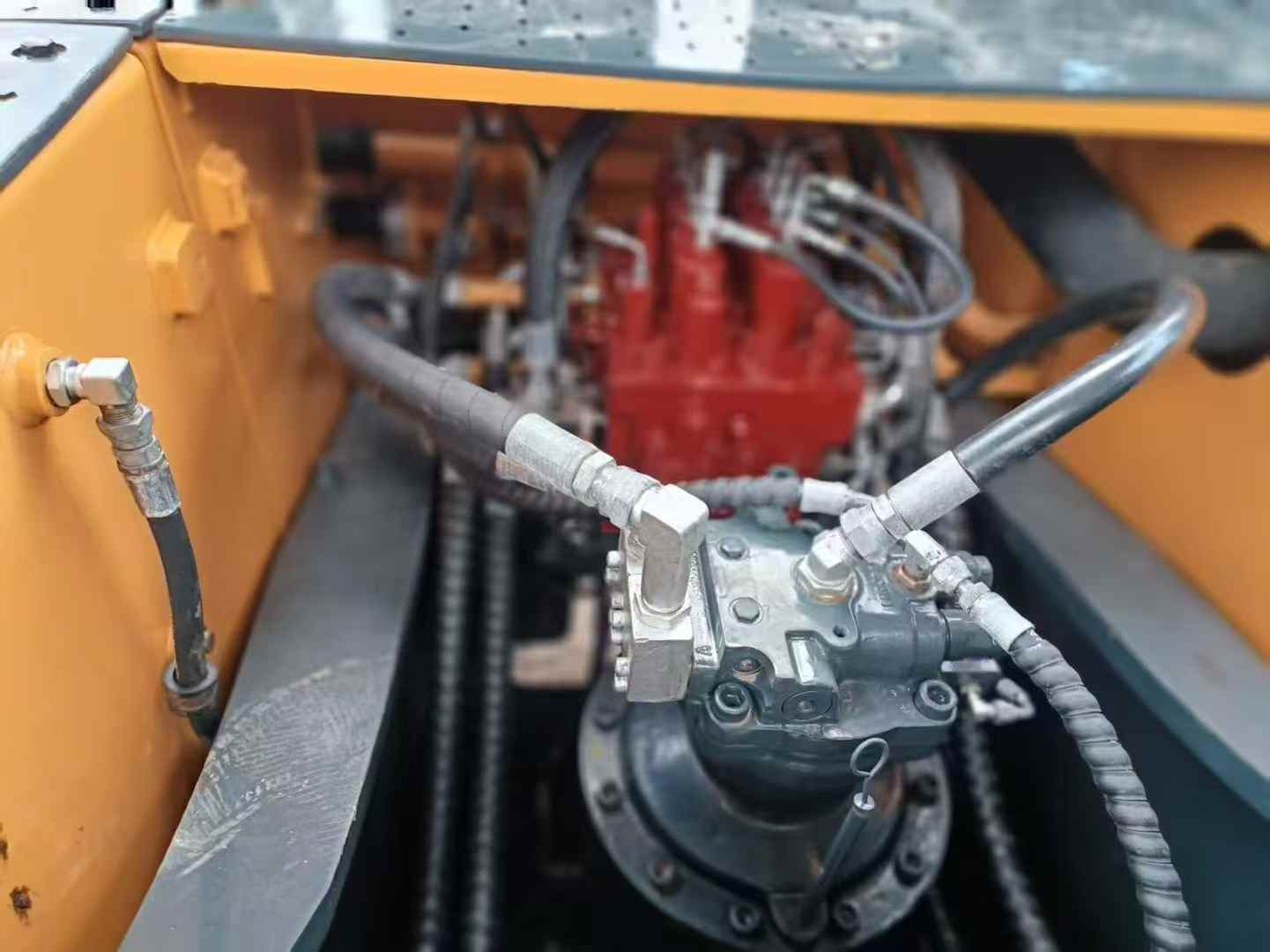

| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |

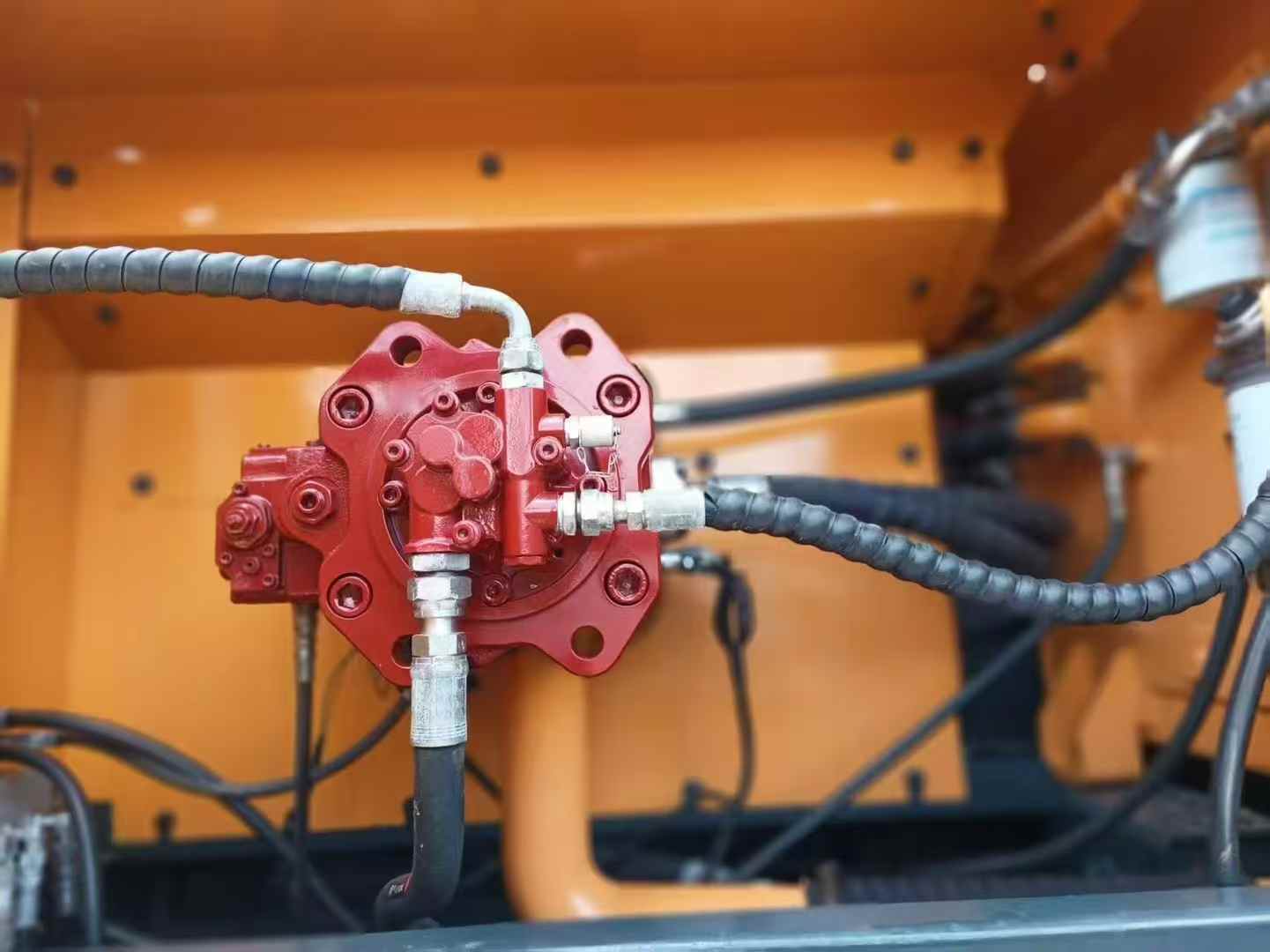

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
