Product Description
Expand your fleet capacity with this 2018 Hyundai R350LVS excavator, currently stationed in Luzhou, Sichuan. Built for contractors managing multiple jobsites simultaneously, this 35-ton workhorse delivers the backup power and reach your operation demands during peak season or when primary units are committed elsewhere.

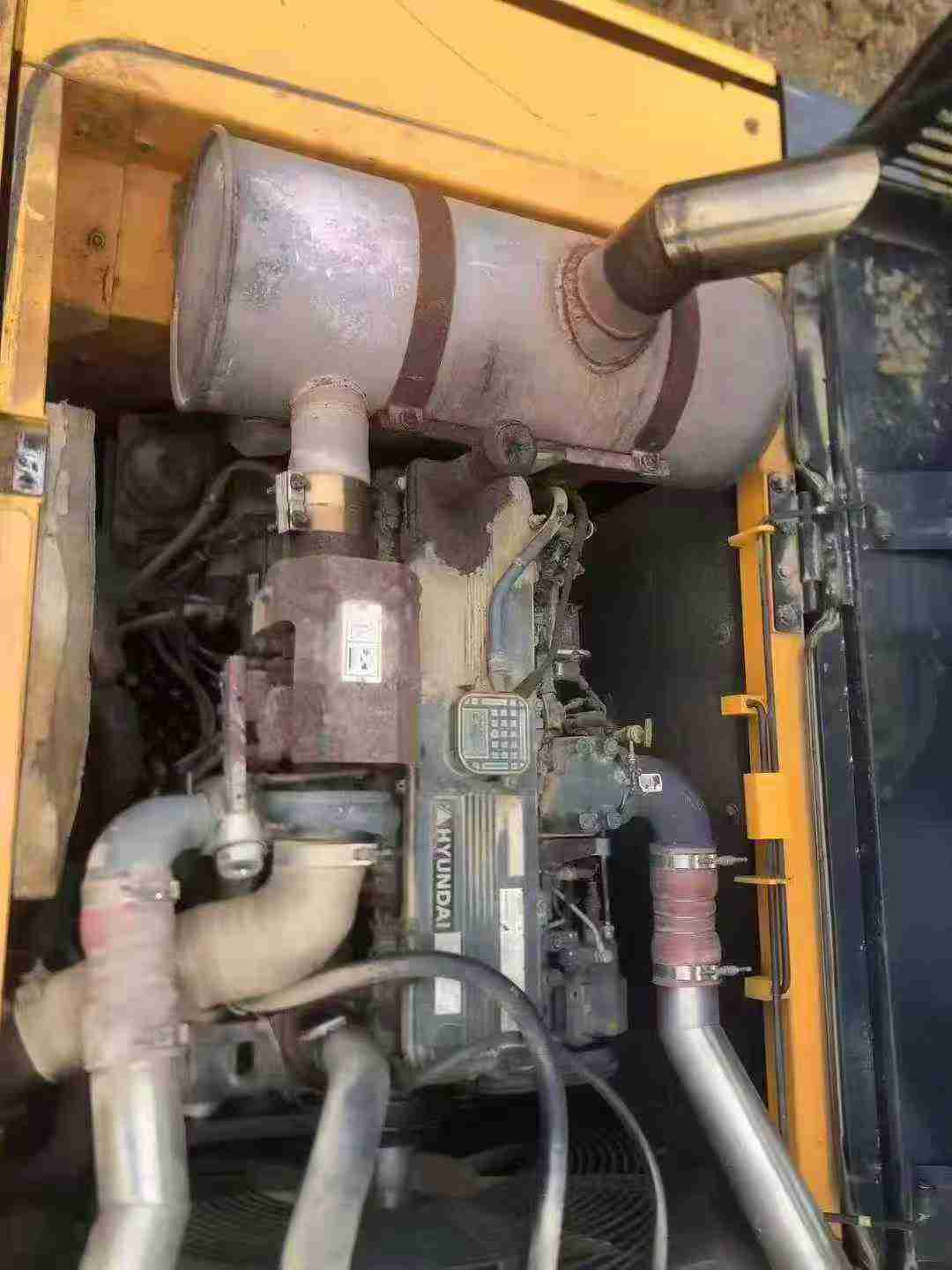

- Proven Performance: 221 kW Hyundai HE8.9 engine with water-cooling system ensures consistent output across extended shifts
- Serious Reach: 10,920 mm maximum digging radius and 6,970 mm depth capability tackle deep foundation and utility work without repositioning
- Production-Ready: 1.60 m³ bucket capacity paired with dual 315 L/min variable plunger pumps moves material efficiently
- Fleet Compatibility: Standard 3,280 mm transport width fits low-bed trailers already in your logistics chain
- Reliable Hydraulics: 330-liter system capacity with axial piston motors provides responsive control for precision grading or heavy ripping
With 6,450 mm boom and 2,850 mm arm configuration, this machine slots perfectly between compact and large excavators—giving project managers
| Specifications | Value |
|---|---|
| No. | 1025704 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
