2018 Hyundai R350LVS

1/4

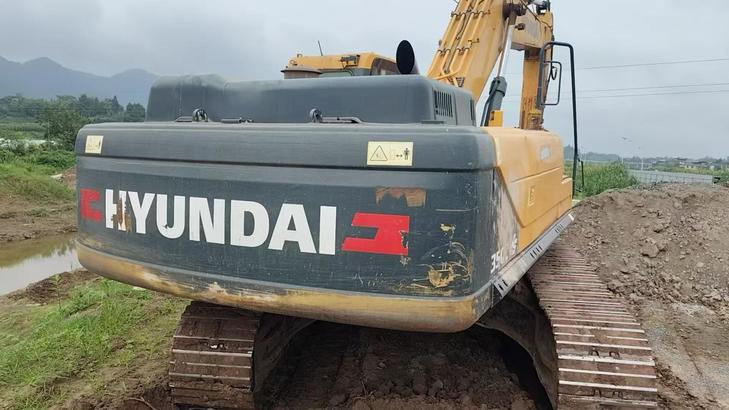

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4

Product Description

FairTradeMachinery presents a 2018 Hyundai R350LVS excavator, currently located in Chongqing, China. This crawler excavator represents Hyundai's proven mid-size platform, engineered for demanding earthmoving and construction applications. With approximately 200,000 operating hours recorded, this machine demonstrates the durability and longevity characteristic of the R350LVS series.

Key features of the Hyundai R350LVS include:

  • Robust hydraulic system designed for heavy-duty performance
  • Spacious operator cabin with ergonomic controls
  • Reliable engine platform suited for extended operational cycles
  • Versatile attachment compatibility for multiple applications
  • Strong undercarriage construction for challenging terrain

This unit is available for immediate shipment from Chongqing. Ideal for contractors and operators seeking a dependable excavator with substantial service history. Contact our team for detailed specifications, current condition assessment, and shipping arrangements to your location.

SpecificationsValue
No.1083879
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1083879

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2018

Location:

Chongqing China

Pub Date
