2018 Hyundai R350LVS

1/6
Buy Hyundai R350LVS Used Excavator / 1

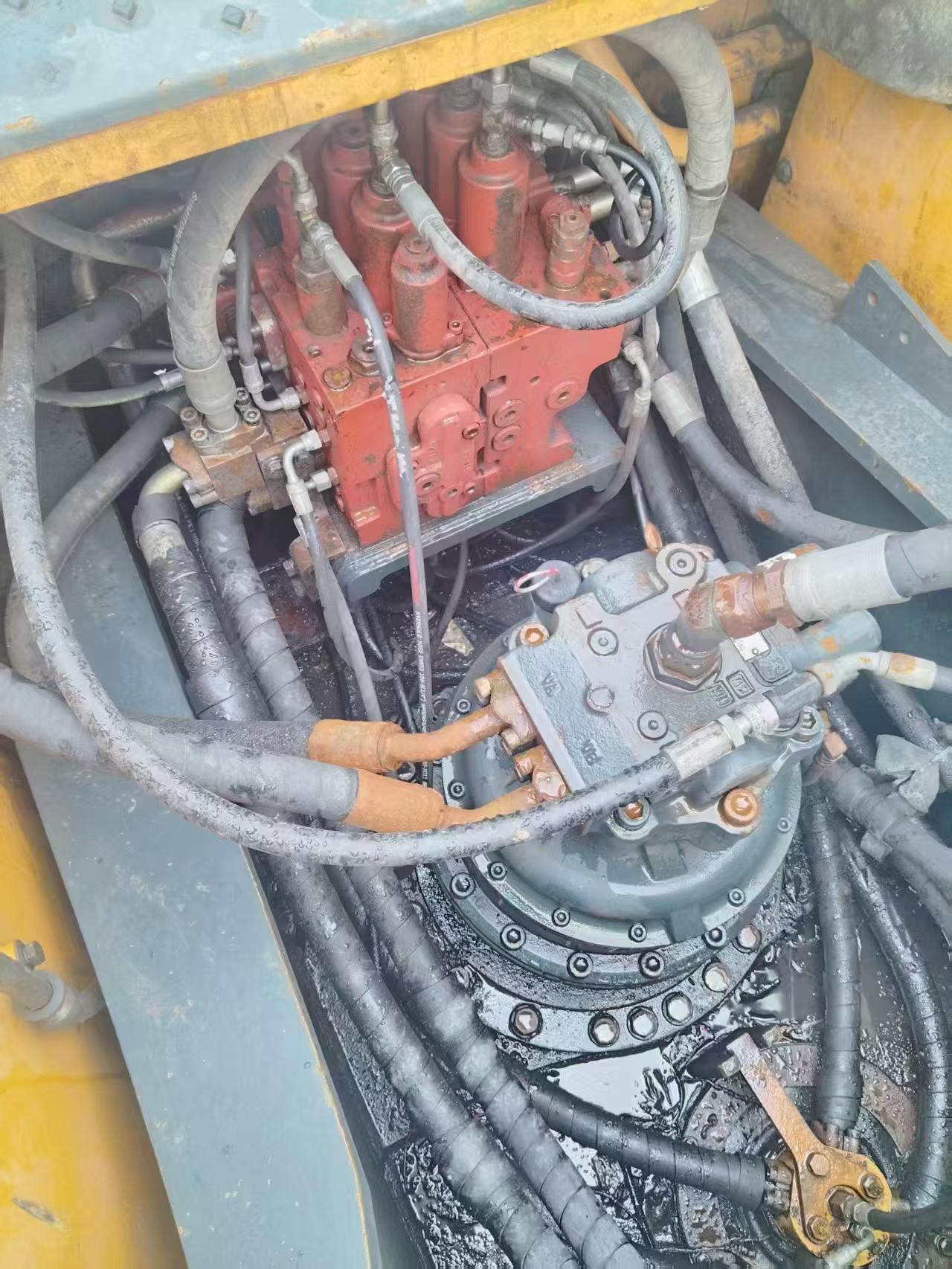

Buy Hyundai R350LVS Used Excavator / 2

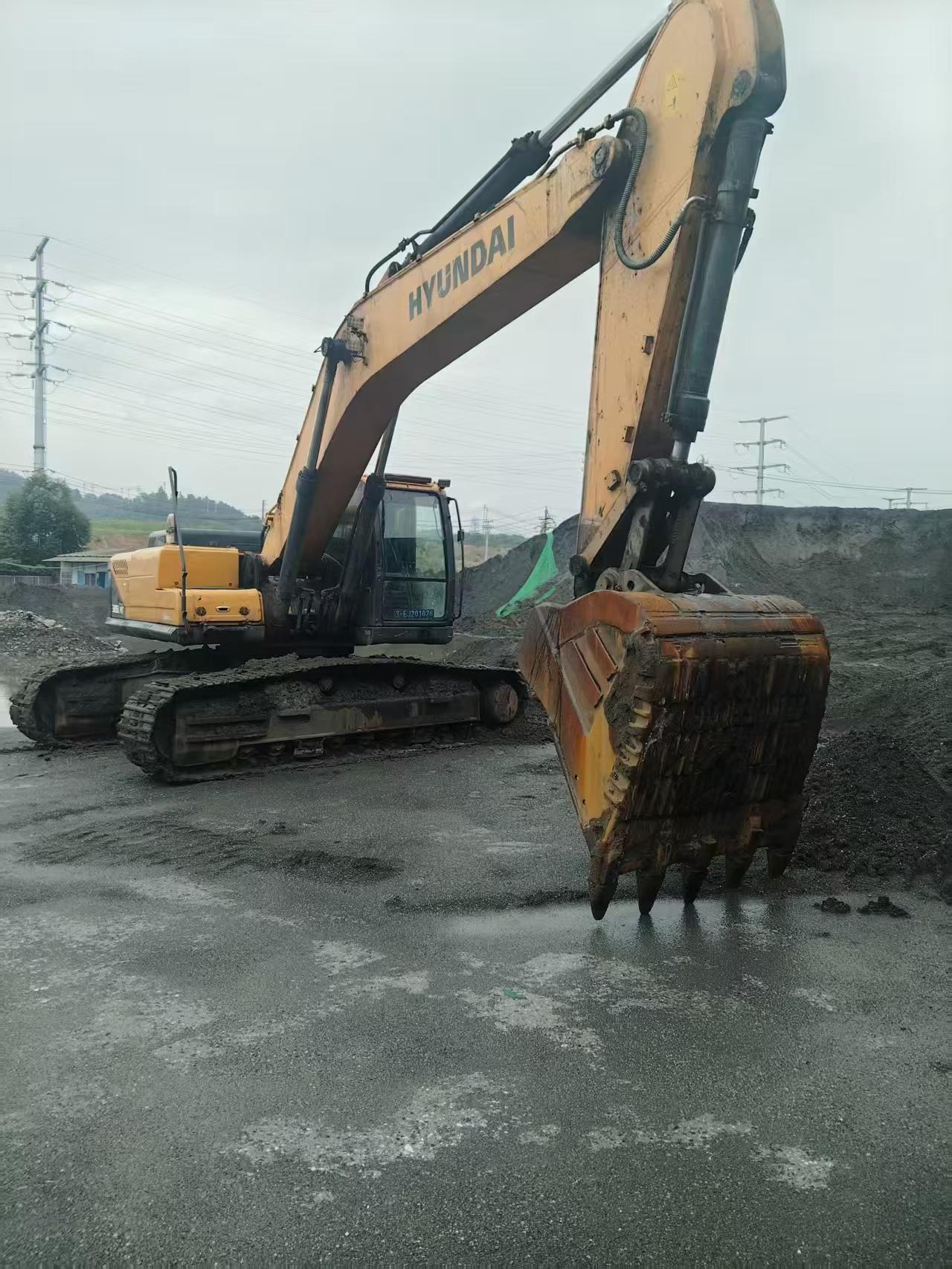

Buy Hyundai R350LVS Used Excavator / 3

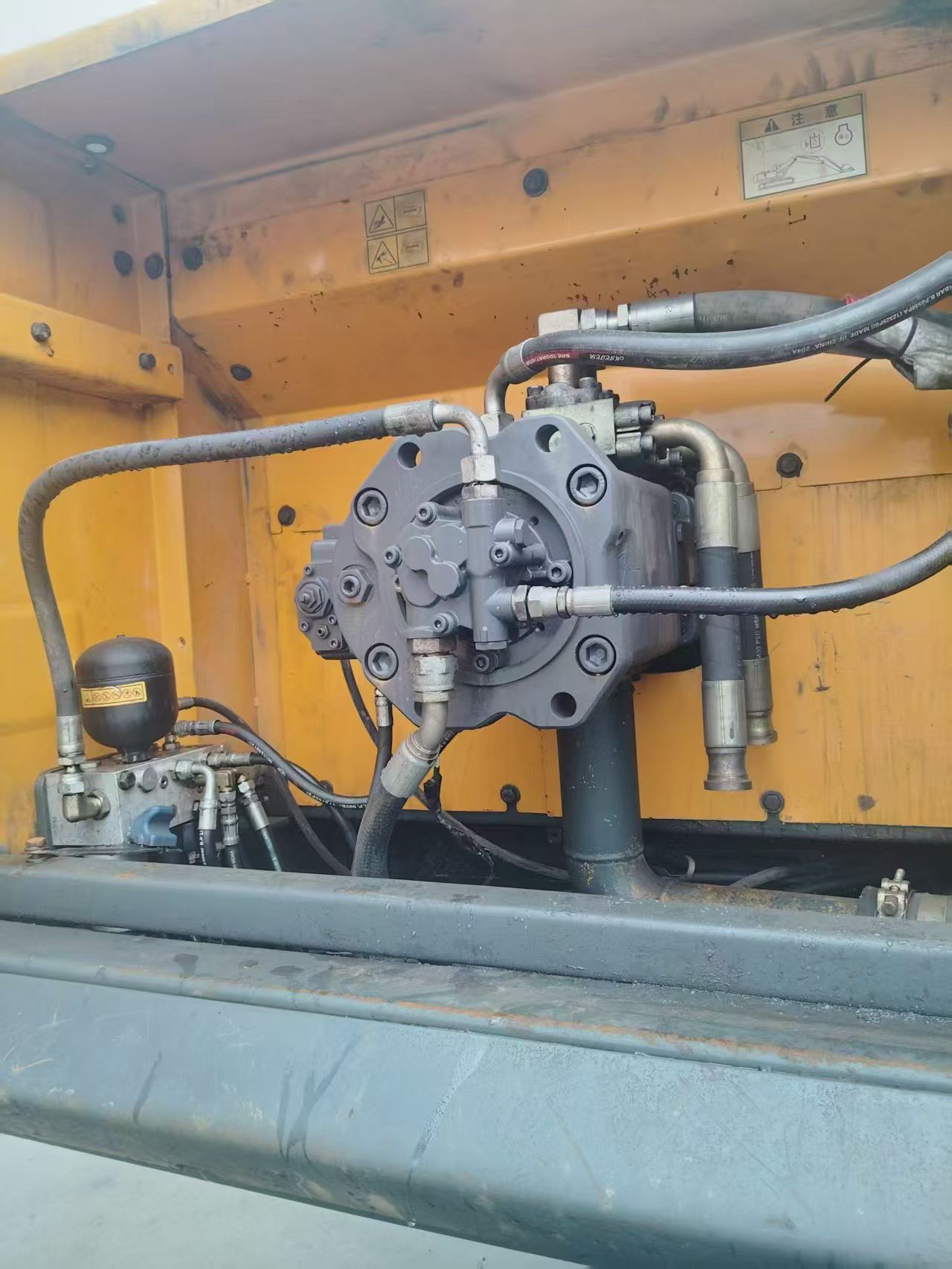

Buy Hyundai R350LVS Used Excavator / 4

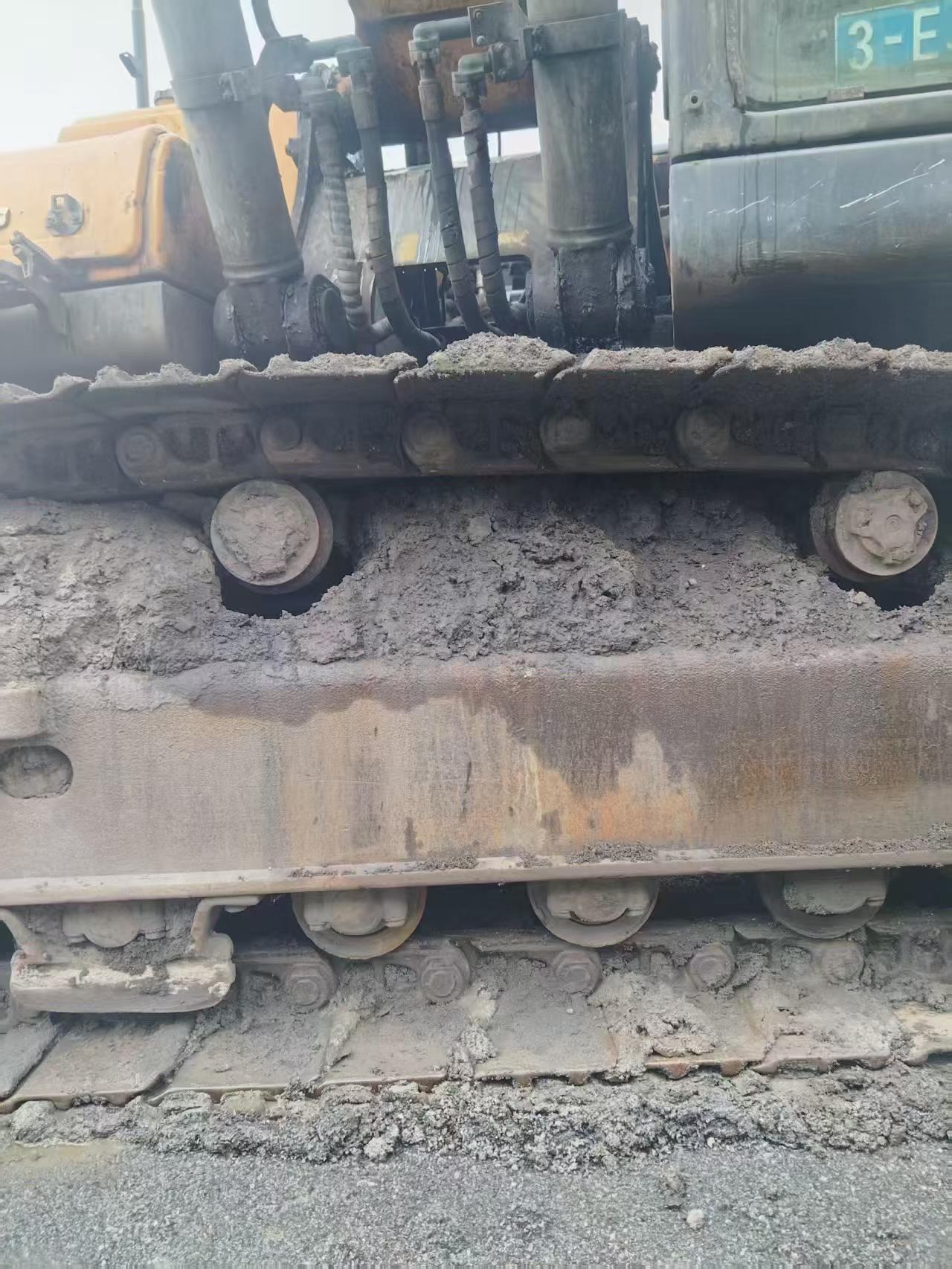

Buy Hyundai R350LVS Used Excavator / 5

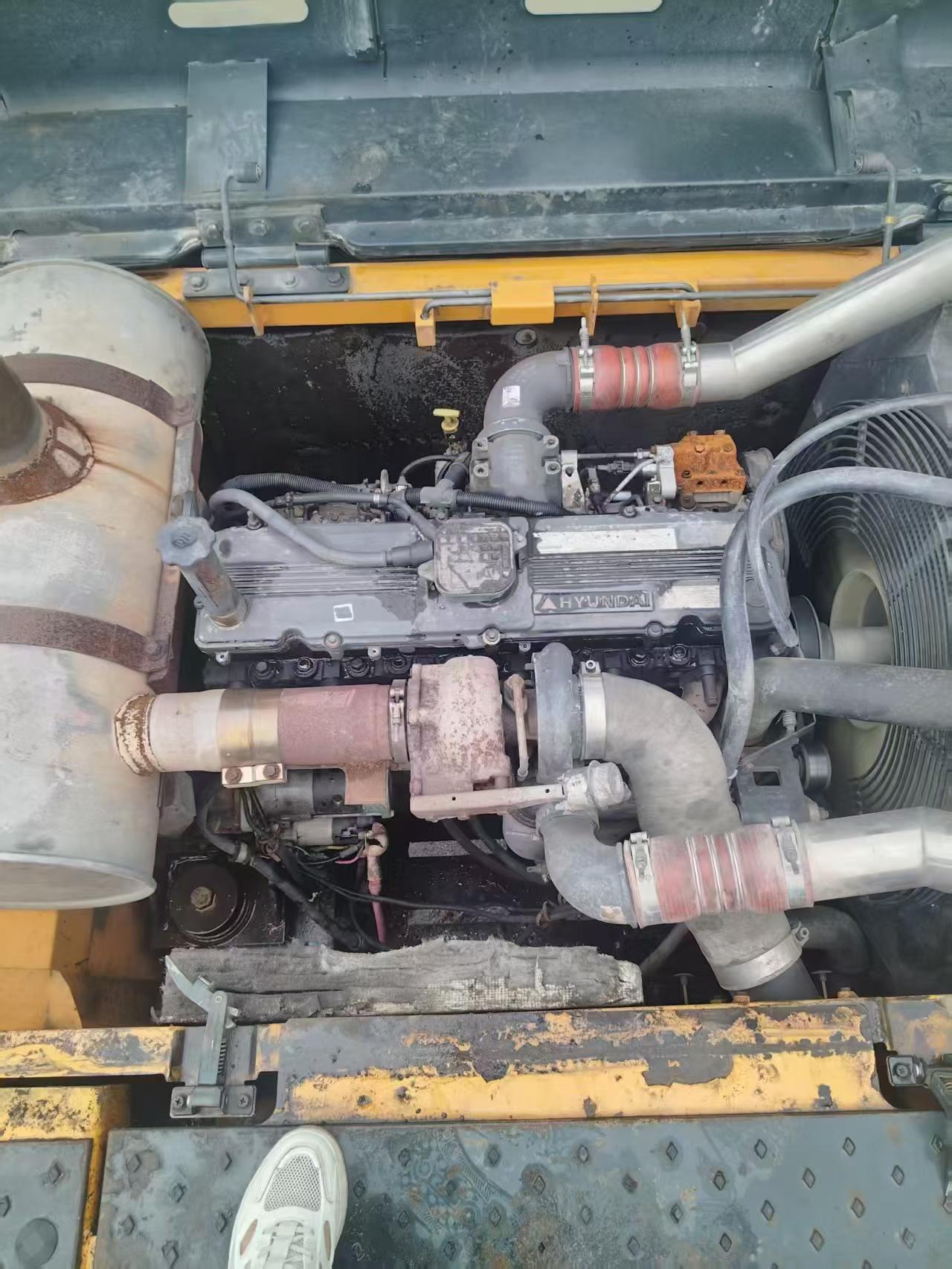

Buy Hyundai R350LVS Used Excavator / 6

Product Description

This 2018 Hyundai R350LVS excavator represents a proven solution for mid-to-large scale earthmoving operations. The R350LVS model combines Hyundai's reliable hydraulic systems with operator-focused design, delivering consistent performance in demanding construction and mining environments.

Currently located in Jiangxi, China, this machine offers buyers access to Hyundai's established parts network and service infrastructure throughout the Asia-Pacific region. The R350LVS platform is known for its fuel efficiency and reduced maintenance intervals compared to earlier generations.

Key features include:

  • 35-ton operating weight class suitable for general excavation and loading
  • 2018 model year with moderate service hours
  • Hyundai engine and hydraulic components
  • Standard cabin with ergonomic controls
  • Available for inspection in Jiangxi province

Contact FairTradeMachinery for detailed specifications, service records, and shipping arrangements.

SpecificationsValue
No.1139276
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1139276

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2018

Location:

Jiangxi China

Pub Date
