Product Description

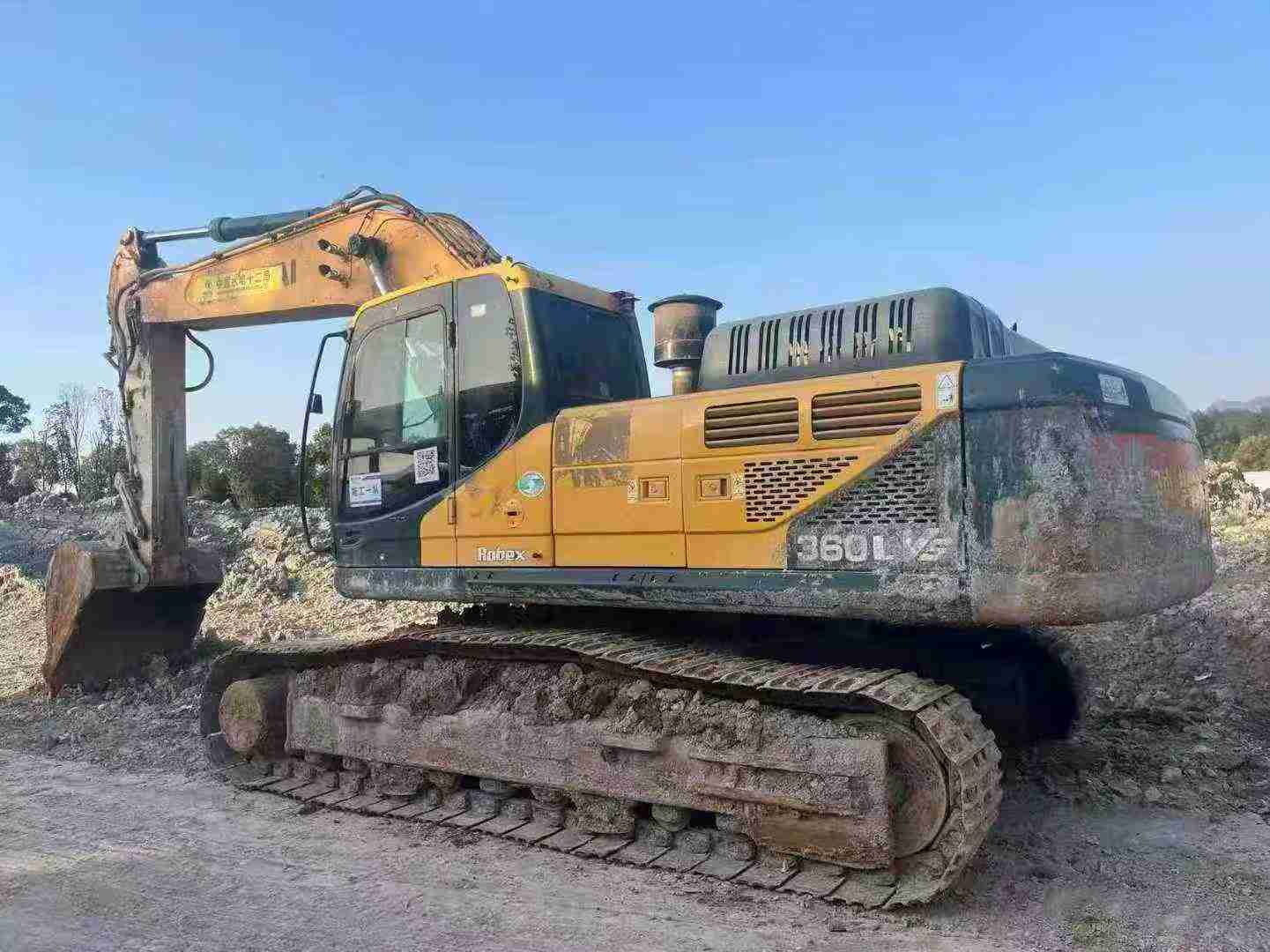

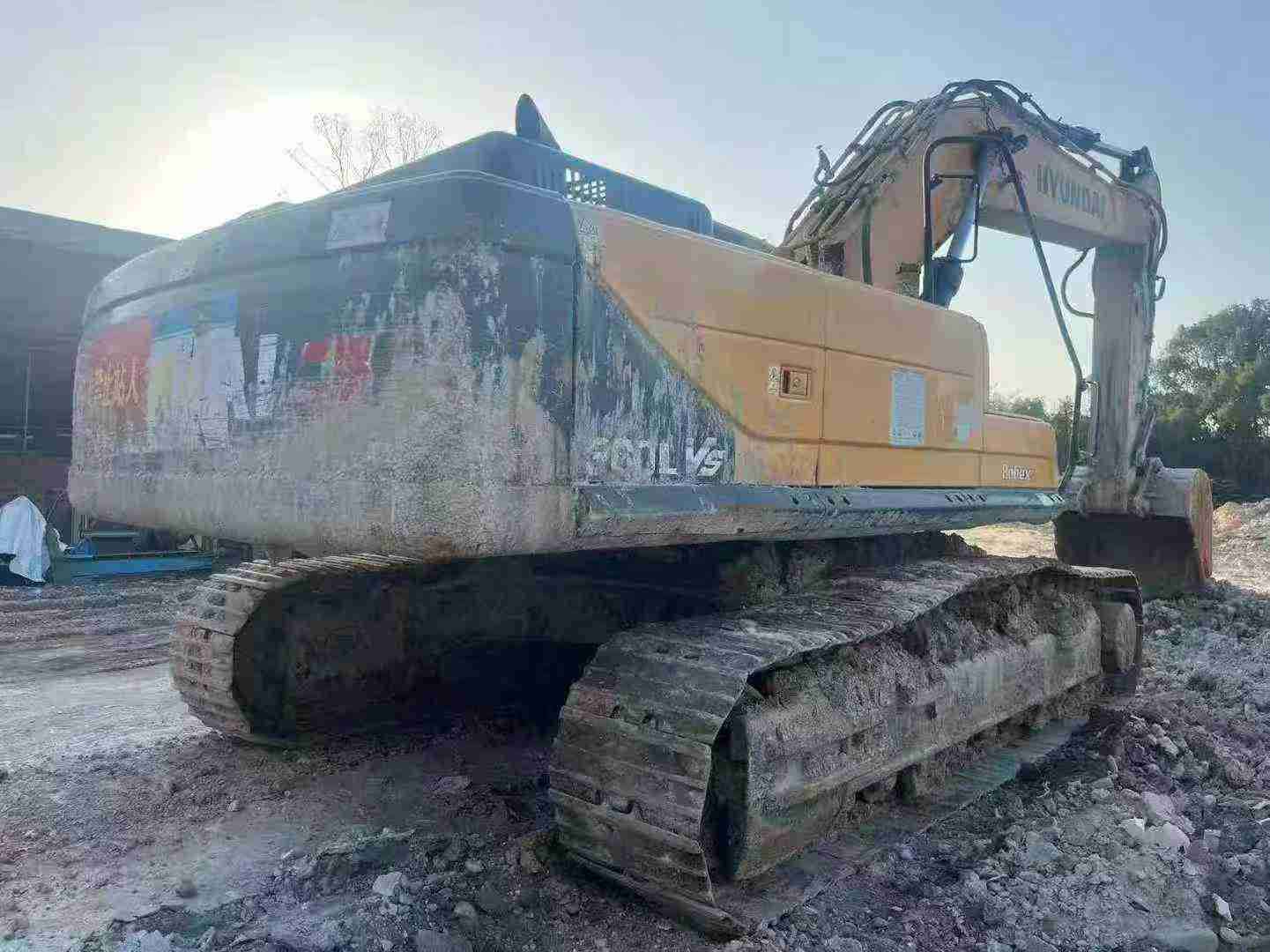

With a working weight of 33,200 kg and a bucket capacity of 1.60 m³, this 2020 Hyundai R350LVS excavator is equipped for immediate site deployment. Located in 浙江温州, it features a robust HYUNDAI HE8.9 engine, delivering 221 kW at 1850 rpm, ensuring powerful performance. Ideal for digging, grading, and demolition, the R350LVS boasts a maximum digging depth of 6,970 mm and a maximum unloading height of 7,380 mm. Its 6450 mm boom and 2850 mm rod length, combined with a backhoe bucket, make it versatile for various construction tasks. The machine is powered by a water-cooled, six-cylinder engine, providing reliable operation. Equipped with an axial piston motor and two variable plunger pumps, it offers precise control and efficiency. Ready to work, this excavator ensures productivity from day one.
| Specifications | Value |
|---|---|
| No. | 1029205 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

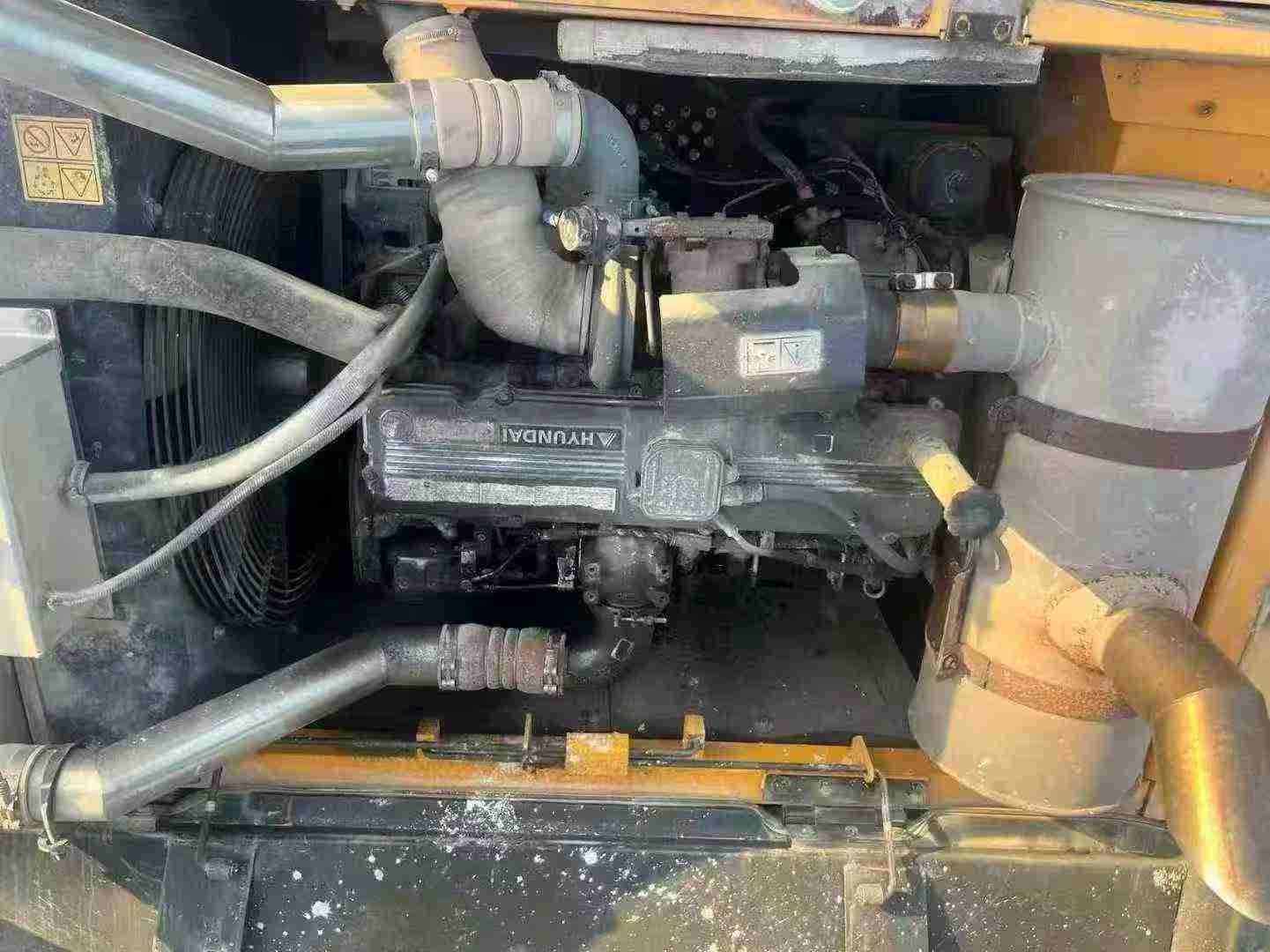

| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
