Product Description

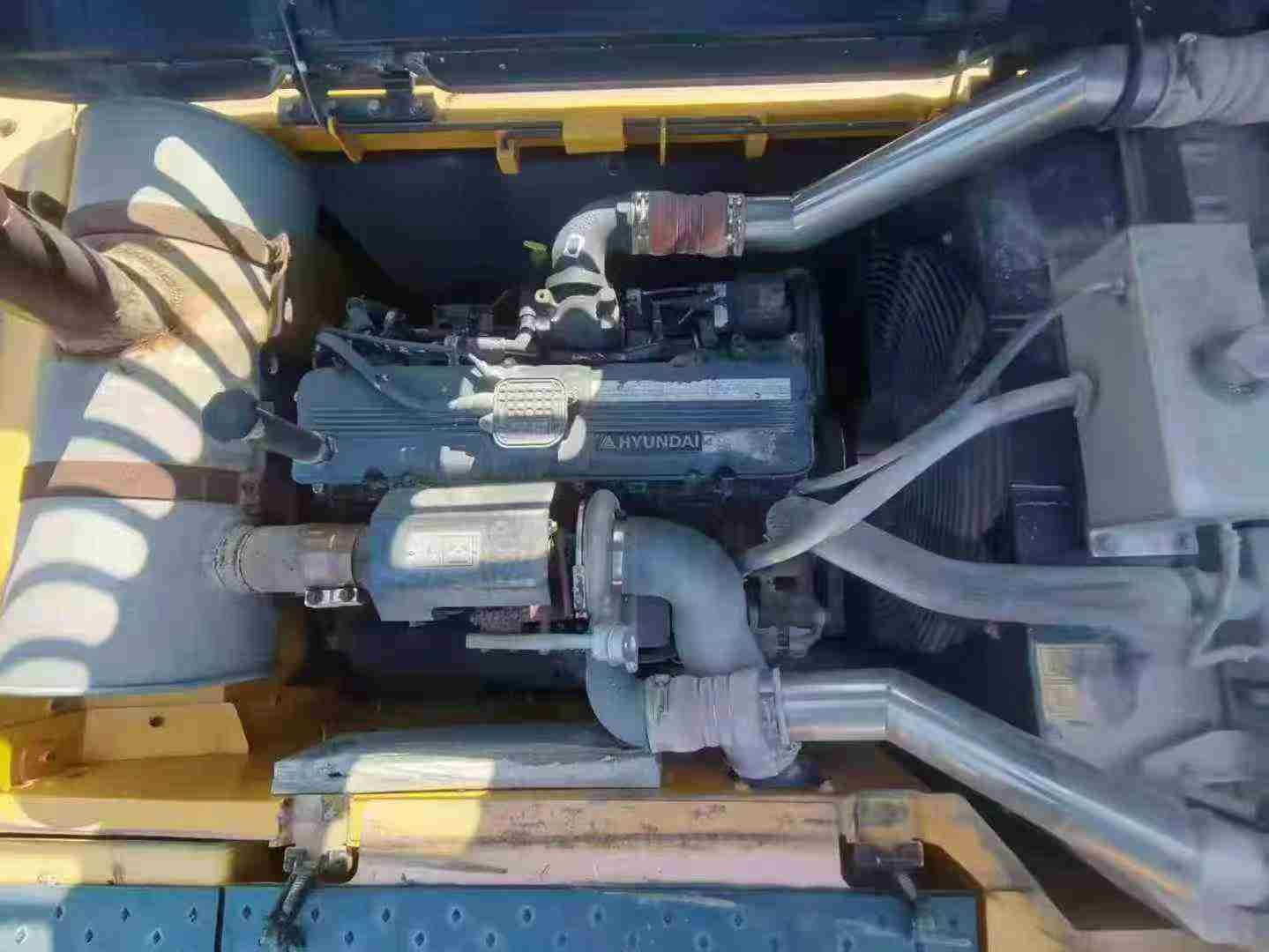

Built for demanding excavation work, this 2020 Hyundai R350LVS delivers 35-ton performance with exceptional operator-focused engineering. Powered by a robust HYUNDAI HE8.9 engine generating 221 kW at 1850 rpm, this machine combines raw power with precise hydraulic control through dual variable plunger pumps delivering 2 x 315 l/min flow.
Operators benefit from superior stability during heavy digging operations, supported by a 33,200 kg working weight and wide 3,265 mm track gauge. The spacious cab sits at 3,090 mm, providing commanding visibility across the 10,920 mm maximum digging radius. Smooth handling comes standard with axial piston travel motors and responsive joystick control of the 1.60 m³ backhoe bucket.
- Maximum digging depth: 6,970 mm with 6,800 mm effective reach
- Impressive 70% climbing ability for challenging terrain
- Dual-speed travel: 6.3/3.5 km/h for site mobility
- Extended boom (6,450 mm) and arm (2,850 mm) configuration
- Water-cooled 8.9L six-cylinder engine for reliable performance
- Currently located in Luzhou, Sichuan, ready for inspection
| Specifications | Value |
|---|---|
| No. | 1031193 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
