Product Description

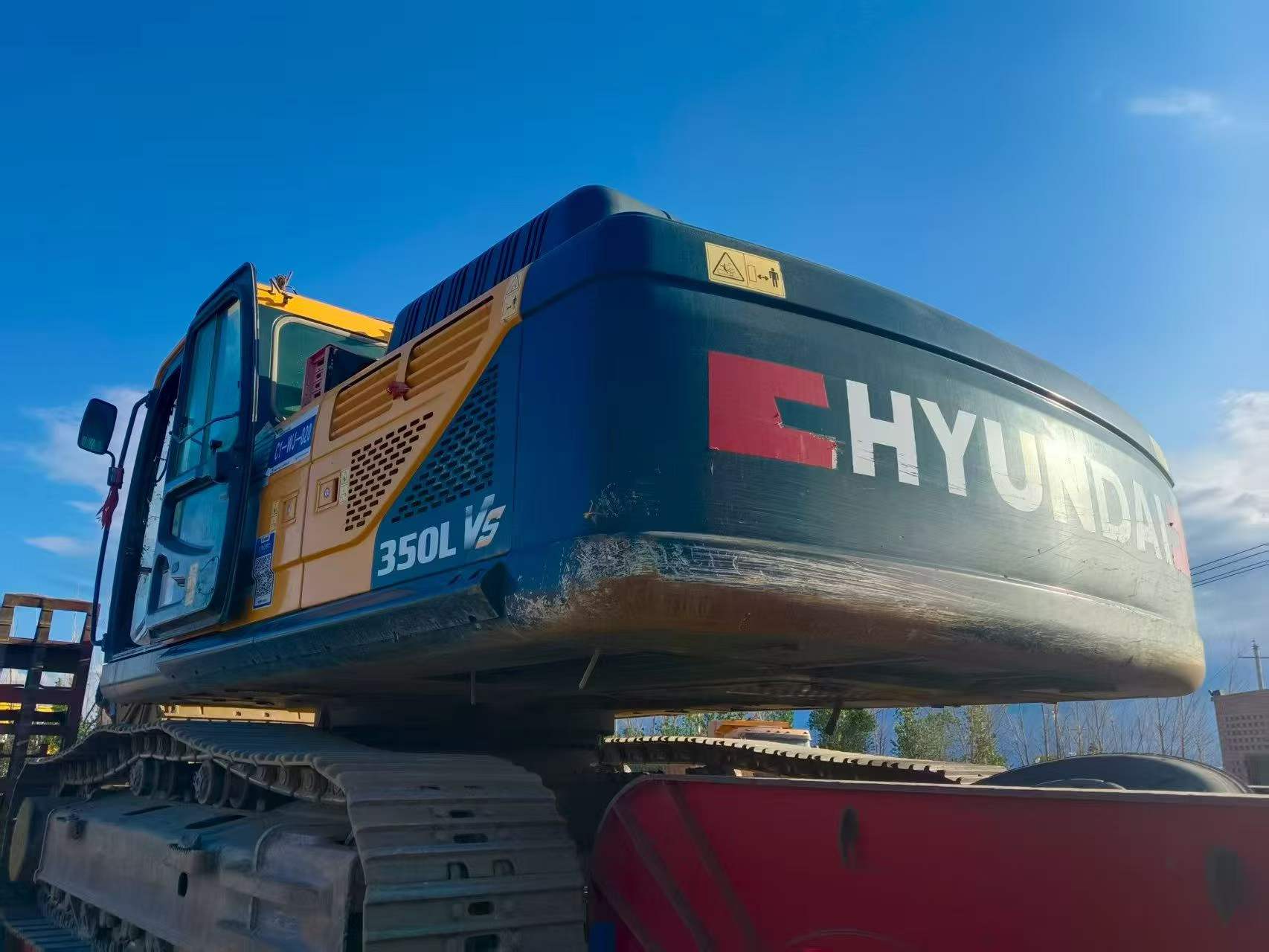

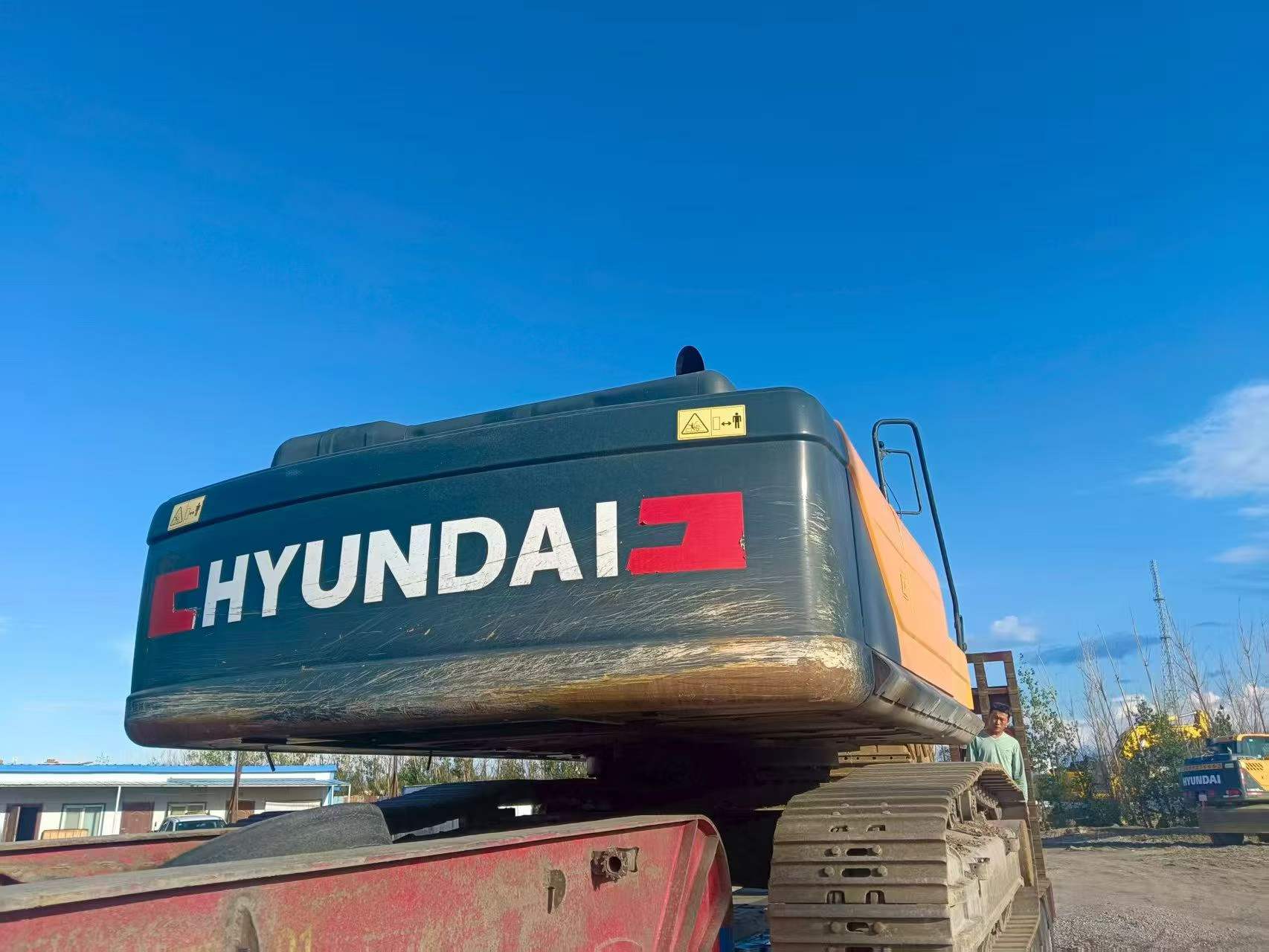

2020 Hyundai R350LVS hydraulic excavator available for immediate sale in Shanghai, China. This mid-size crawler excavator offers reliable performance for earthmoving, foundation work, and general construction applications. The machine features Hyundai's proven hydraulic system and robust undercarriage designed for demanding jobsite conditions.
Key specifications:
- Operating weight: approximately 35 tons
- Engine: Cummins diesel, meeting emission standards
- Boom and arm configuration: standard VS (Variable Swing) setup
- Hydraulic system: load-sensing for efficient fuel consumption
- Cab: ROPS/FOPS certified operator station with climate control
Unit has been maintained according to manufacturer guidelines. Suitable for contractors seeking a cost-effective solution for medium to heavy-duty excavation projects. Inspection welcome by appointment. Competitive pricing reflects current market conditions for used equipment of this class.
| Specifications | Value |
|---|---|
| No. | 1083015 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |

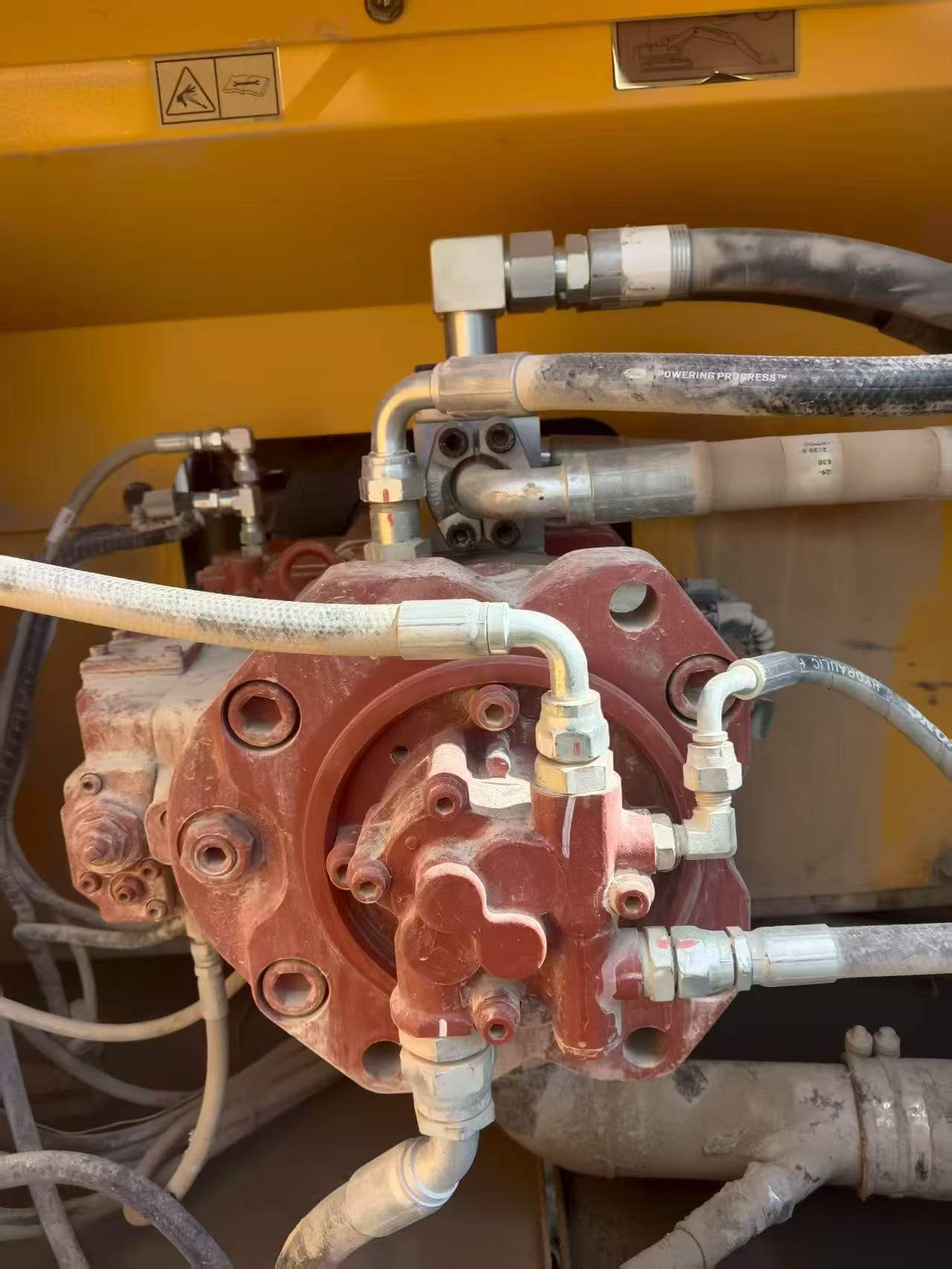

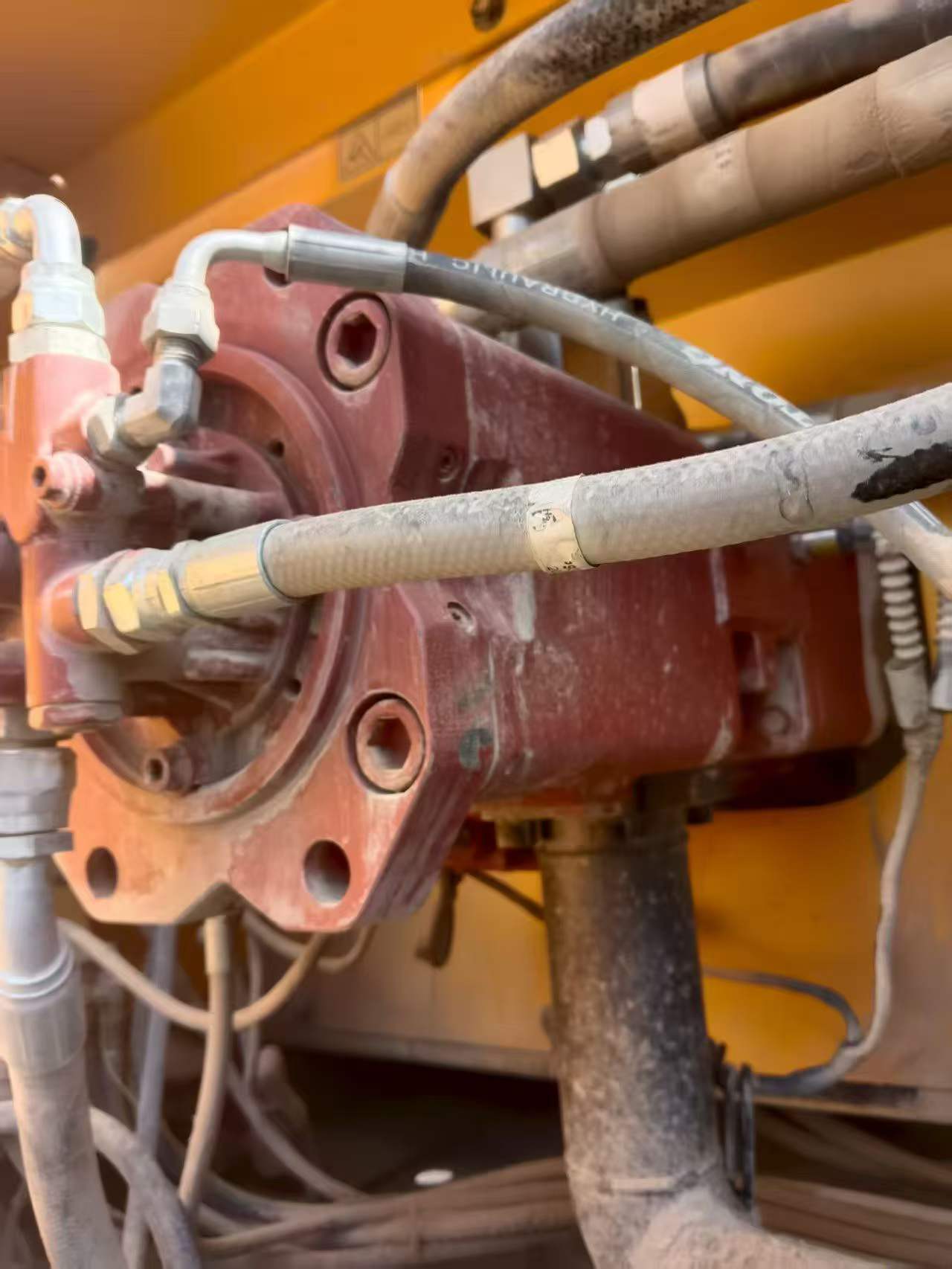

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
