2020 Hyundai R350LVS

1/3
Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3

Product Description

This 2020 Hyundai R350LVS crawler excavator is now available from our Jiangsu, China location. This machine represents a reliable mid-size solution for construction, mining, and earthmoving operations requiring substantial reach and digging force.

Key features of this unit include:

  • Model year 2020 with documented maintenance history
  • Original factory configuration maintained throughout service life
  • Hyundai R350LVS standard specifications and genuine components
  • Suitable for heavy-duty excavation and material handling applications
  • Currently located in Jiangsu Province, China for inspection

This excavator offers the proven performance and durability associated with Hyundai's construction equipment lineup. The machine is available for immediate viewing by qualified buyers. Contact our sales team to schedule an inspection or request additional documentation and export arrangements.

SpecificationsValue
No.1086843
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

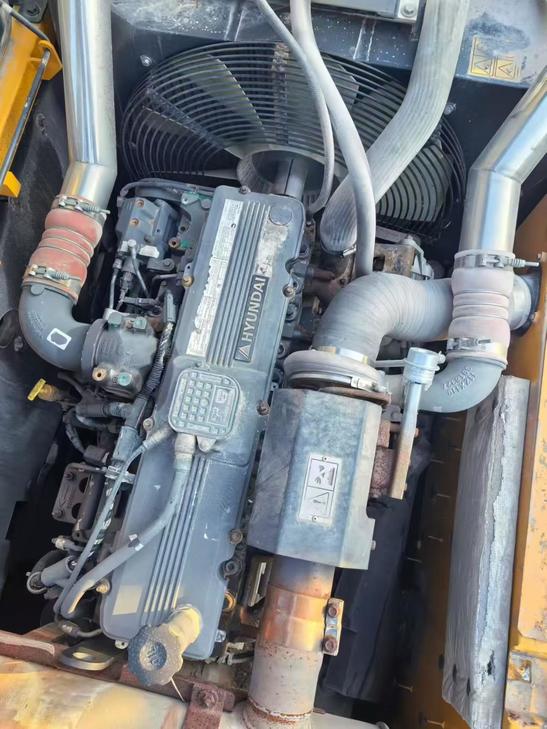

Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1086843

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2020

Location:

Jiangsu China

Pub Date
