2020 Hyundai R350LVS

1/9

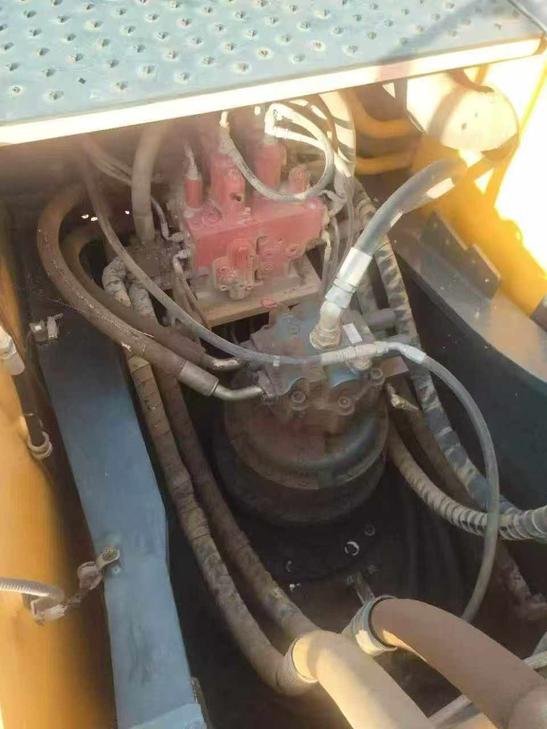

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4
Buy Hyundai R350LVS Used Excavator / 5
Buy Hyundai R350LVS Used Excavator / 6
Buy Hyundai R350LVS Used Excavator / 7
Buy Hyundai R350LVS Used Excavator / 8
Buy Hyundai R350LVS Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Hyundai R350LVS, now available in Zhejiang, China. This used excavator has been meticulously maintained and is in excellent condition, with just over 30 hours of operational use. Ideal for construction, mining, and large-scale earthmoving projects, the R350LVS offers a powerful performance and durability that Hyundai is known for. Invest in a machine that promises to deliver on both productivity and cost-effectiveness, ensuring your projects stay on schedule and within budget.

  • Year: 2020
  • Brand: Hyundai
  • Model: R350LVS
  • Location: Zhejiang, China
  • Operational Hours: Slightly over 30
SpecificationsValue
No.1088728
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1088728

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2020

Location:

Zhejiang China

Pub Date
