Product Description

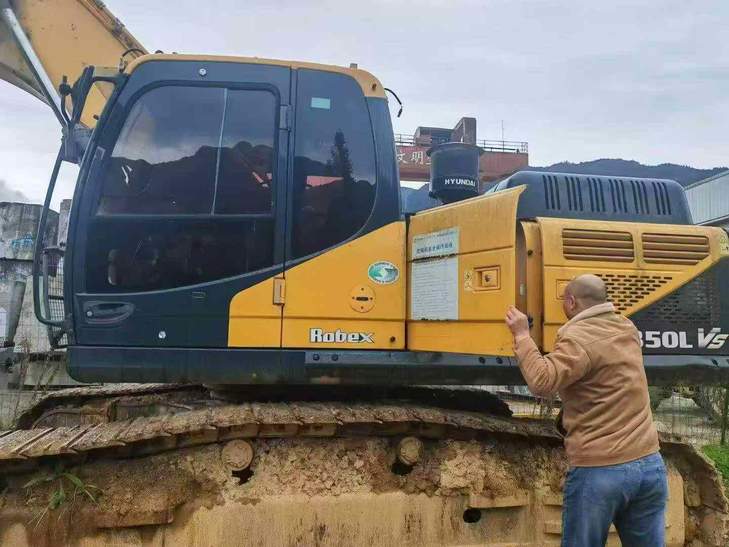

Expand your operational capacity with this 2021 Hyundai R350LVS excavator, a proven 35-ton workhorse engineered for demanding jobsites. Powered by a robust Hyundai HE8.9 engine delivering 221 kW at 1850 rpm, this machine combines reliability with the performance metrics busy contractors depend on. Currently located in Luzhou, Sichuan, it's ready to integrate seamlessly into multi-unit fleets requiring consistent productivity across simultaneous projects.
- Power & Efficiency: 8.9L water-cooled engine with dual variable plunger pumps (2 x 315 L/min flow)
- Reach & Depth: 10,920 mm maximum digging radius, 6,970 mm digging depth with 1.60 m³ bucket capacity
- Mobility: 9.8 rpm rotation speed, 70% climbing ability, and compact 3,330 mm rear turning radius for confined sites
- Uptime-Ready: 560L fuel tank and 330L hydraulic system minimize refueling interruptions during extended shifts
With proven joint venture/import build quality and comprehensive specifications suited for earthmoving, trenching, and loading operations, this R350LVS serves as the ideal backup unit or fleet expansion asset when project timelines wo
| Specifications | Value |
|---|---|
| No. | 1040623 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
