Product Description

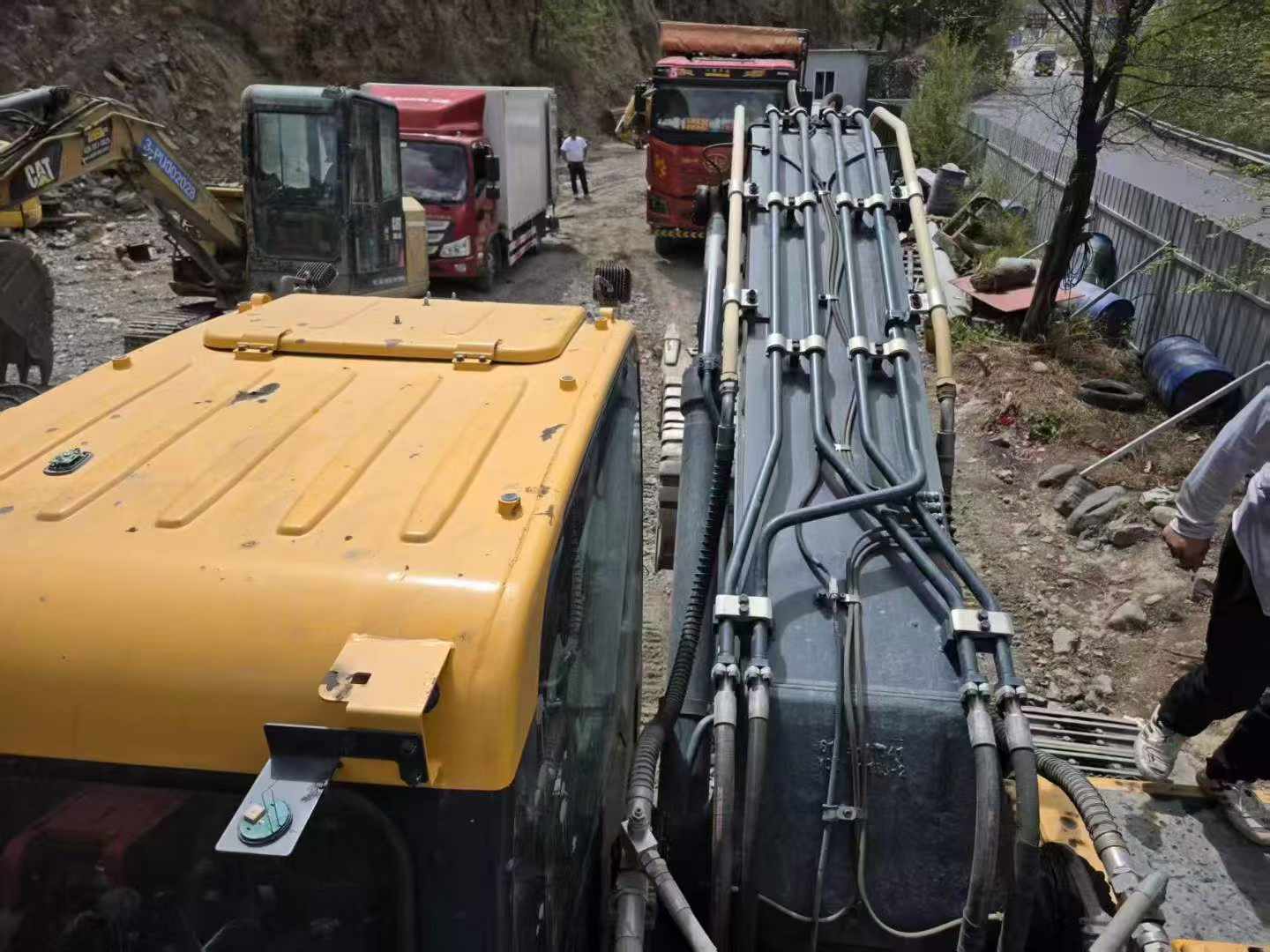

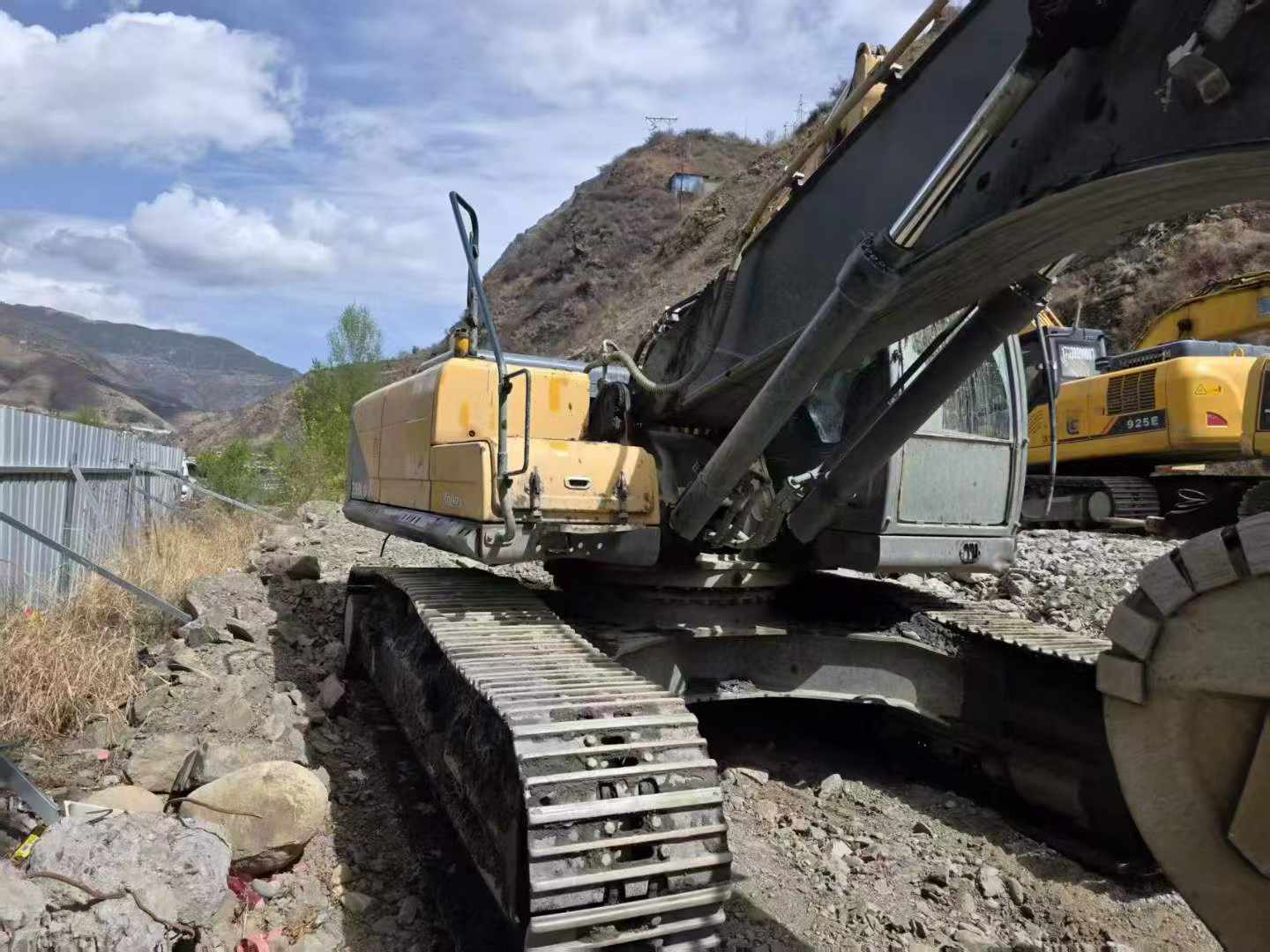

Maximize your ROI with this 2021 Hyundai R350LVS excavator—engineered for serious earthmoving at a price point that outperforms new equipment investments. Operating at 35 tons with a robust 221kW Hyundai HE8.9 engine, this machine delivers proven performance across demanding job sites. The 1.60m³ bucket capacity and 10,920mm maximum digging radius handle high-volume excavation efficiently, while dual variable plunger pumps (2 x 315 L/min) ensure responsive hydraulic power when you need it most.
- Year: 2021
- Operating Weight: 33,200 kg
- Engine: HYUNDAI HE8.9, 221kW @ 1850 rpm
- Digging Depth: 6,970mm
- Bucket Capacity: 1.60m³
- Location: Zhejiang Jinhua, China
Currently positioned in Zhejiang Jinhua, this joint-venture manufactured excavator combines import-quality engineering with practical operational costs. Water-cooled reliability, 560L fuel capacity, and 70% climbing ability make this R350LVS a smart alternative to depreciation-heavy new purchases. Secure proven Hyundai performance without the premium price tag.
| Specifications | Value |
|---|---|
| No. | 1043293 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 33200 |
| Bucket capacity (m³) | 1.60 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221 / 1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 6.3/3.5 |
| Type of walking hydraulic motor | Axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 100 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 105 x 1480 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10990 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3460 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum turning radius of front working device (mm) | 4520 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 3265 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7380 |
| Maximum vertical digging depth (mm) | 6270 |
| Maximum excavation radius of stop surface (mm) | 10710 |
| Maximum effective digging depth (mm) | 6800 |
