2021 Hyundai R350LVS

1/9
Buy Hyundai R350LVS Used Excavator / 1

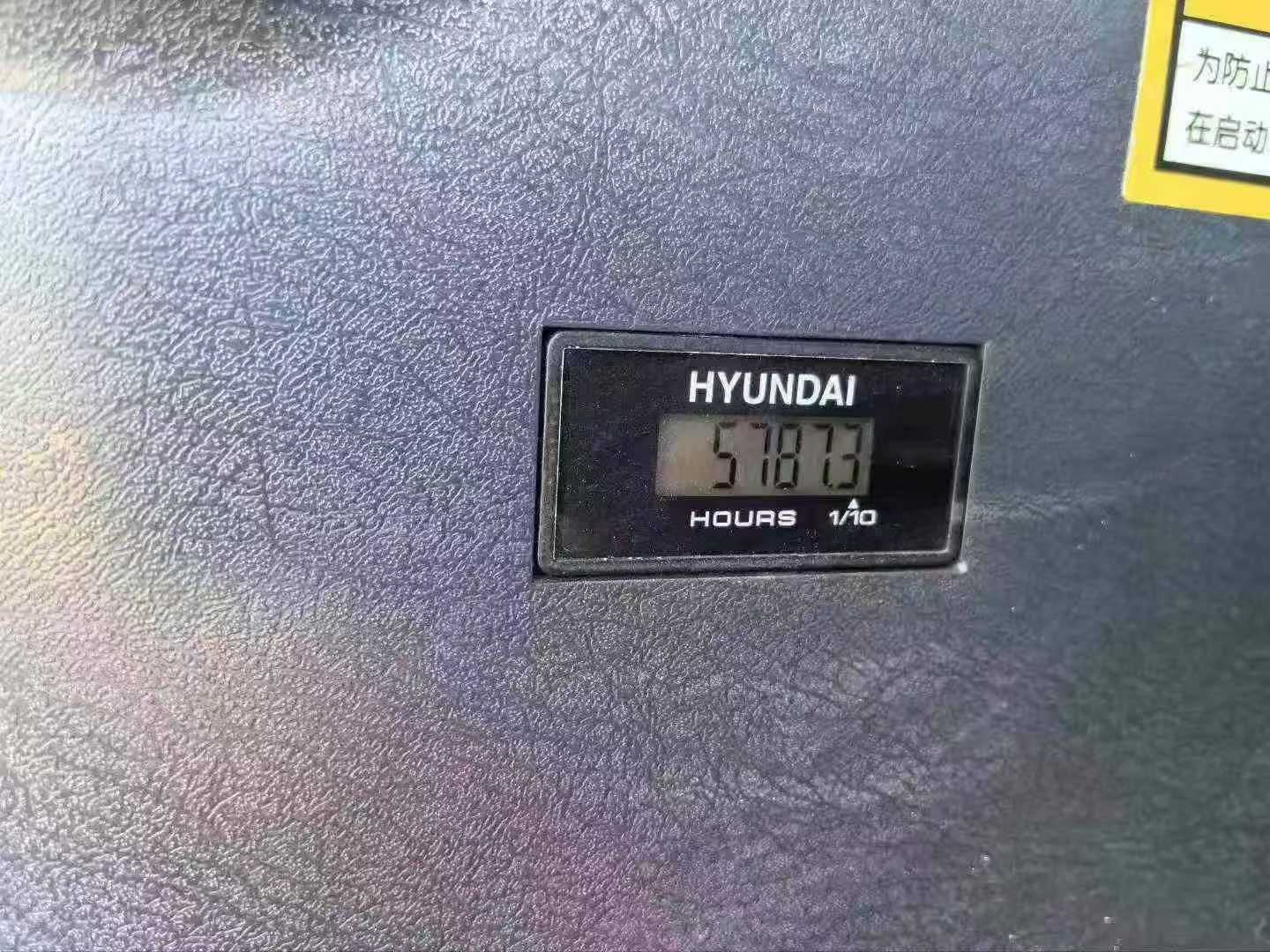

Buy Hyundai R350LVS Used Excavator / 2

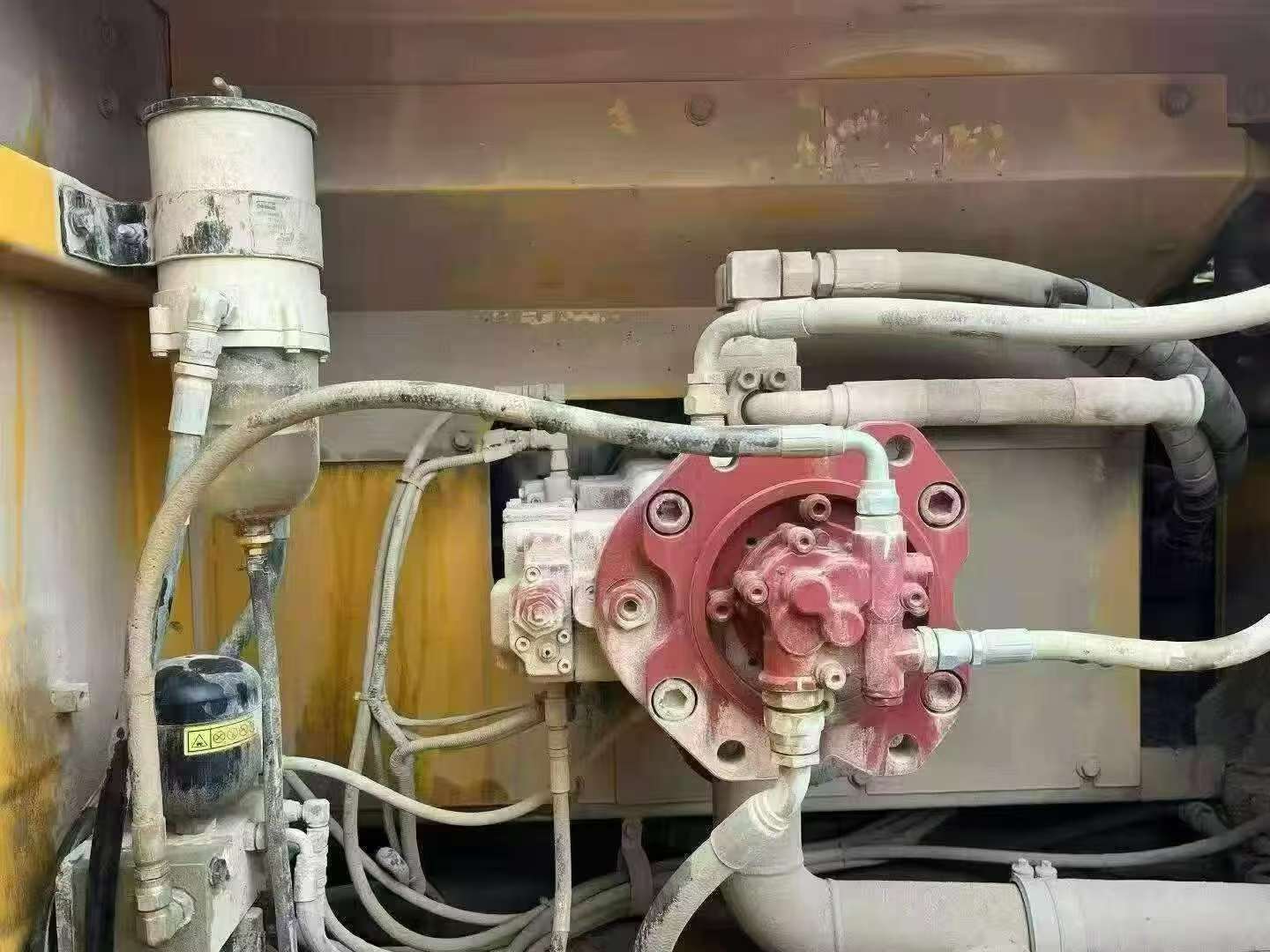

Buy Hyundai R350LVS Used Excavator / 3

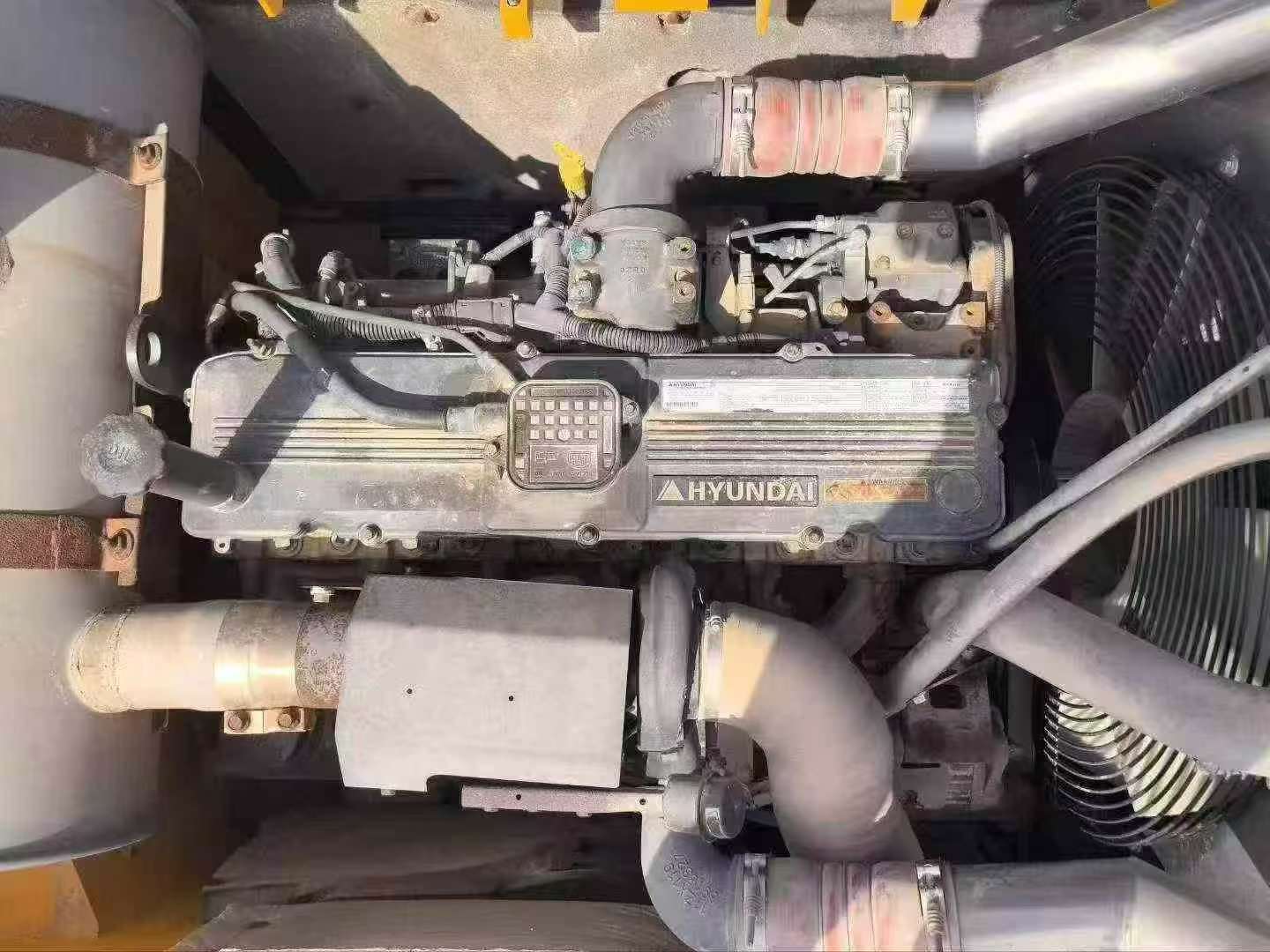

Buy Hyundai R350LVS Used Excavator / 4

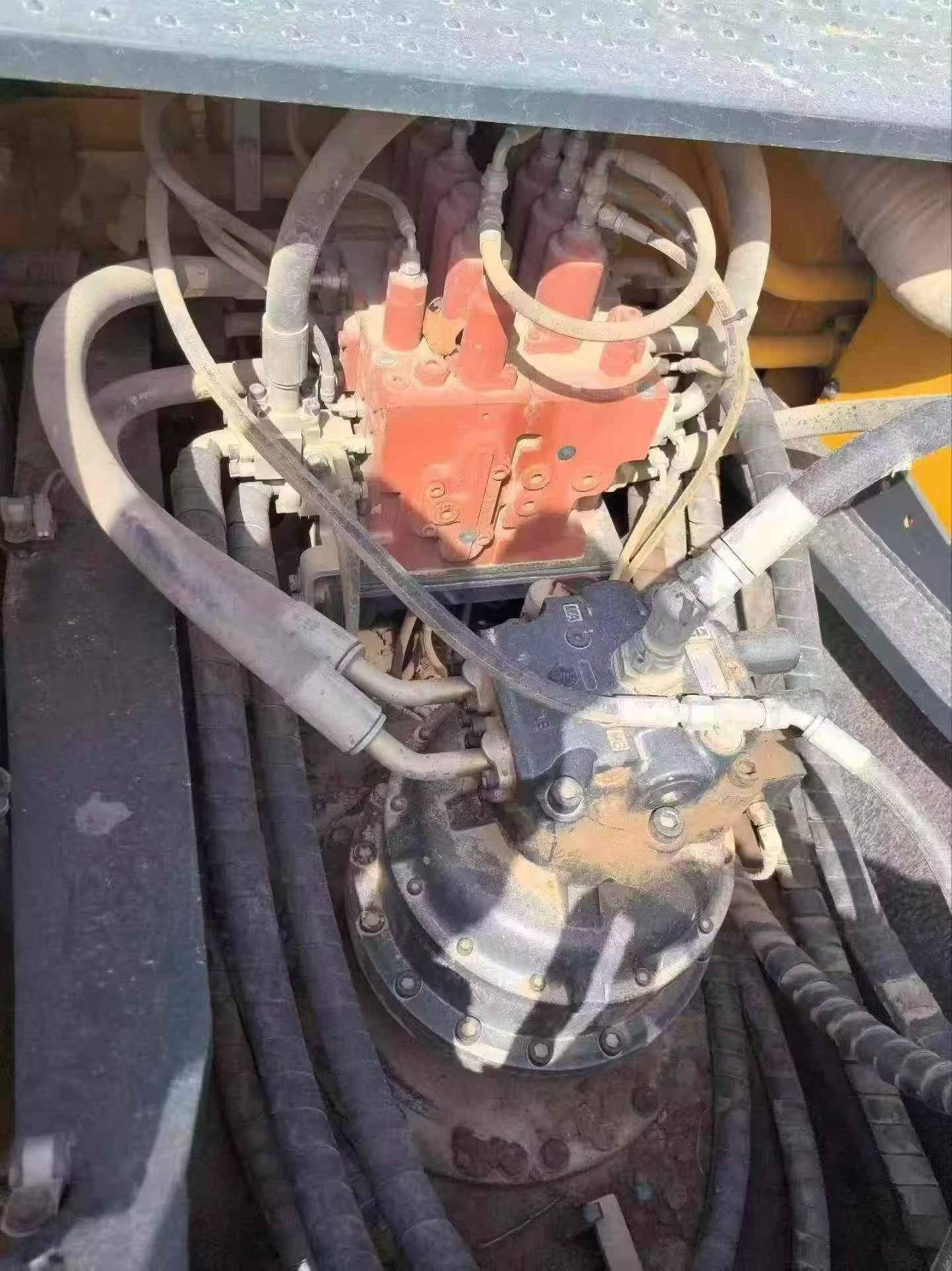

Buy Hyundai R350LVS Used Excavator / 5

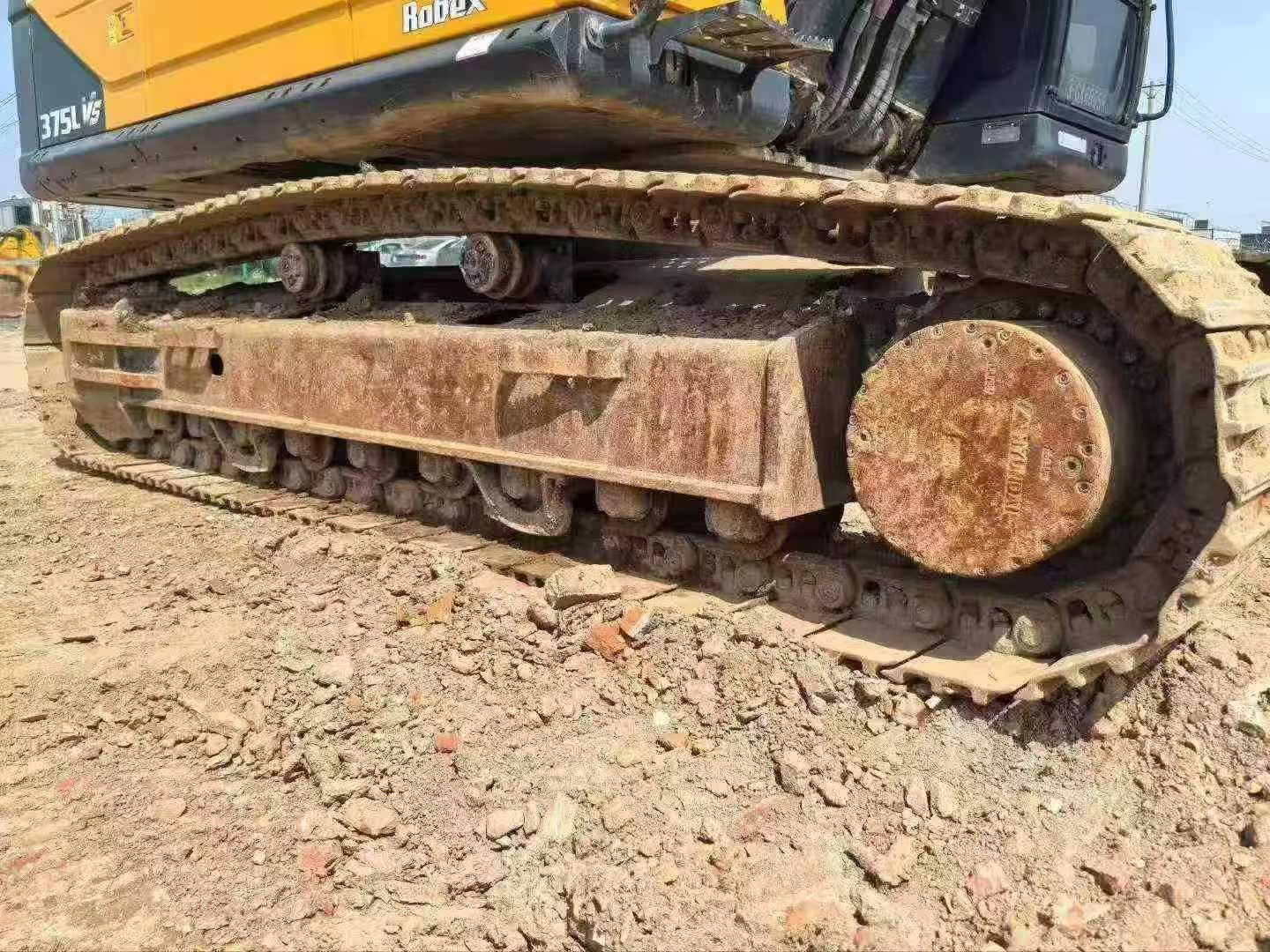

Buy Hyundai R350LVS Used Excavator / 6

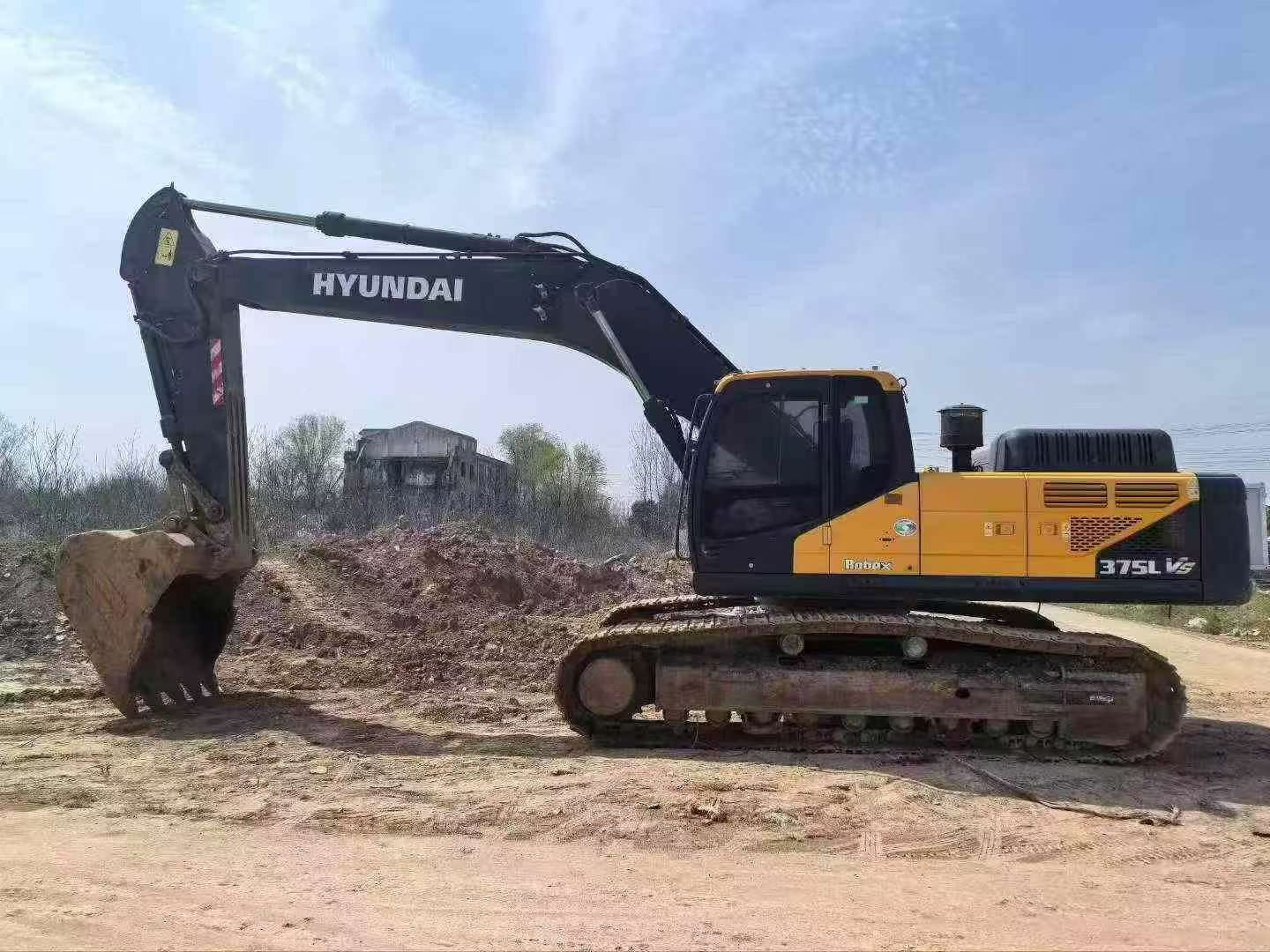

Buy Hyundai R350LVS Used Excavator / 7

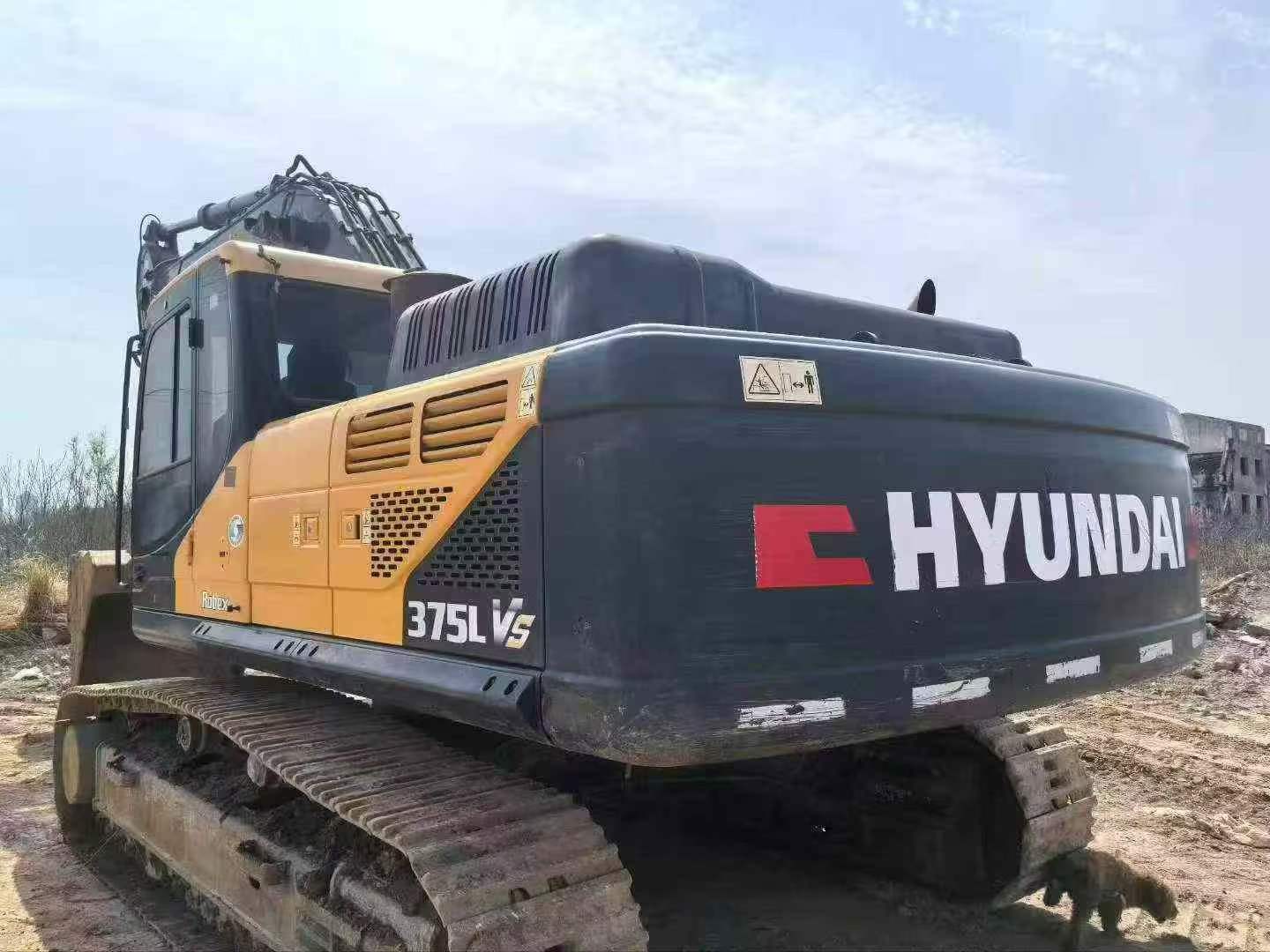

Buy Hyundai R350LVS Used Excavator / 8

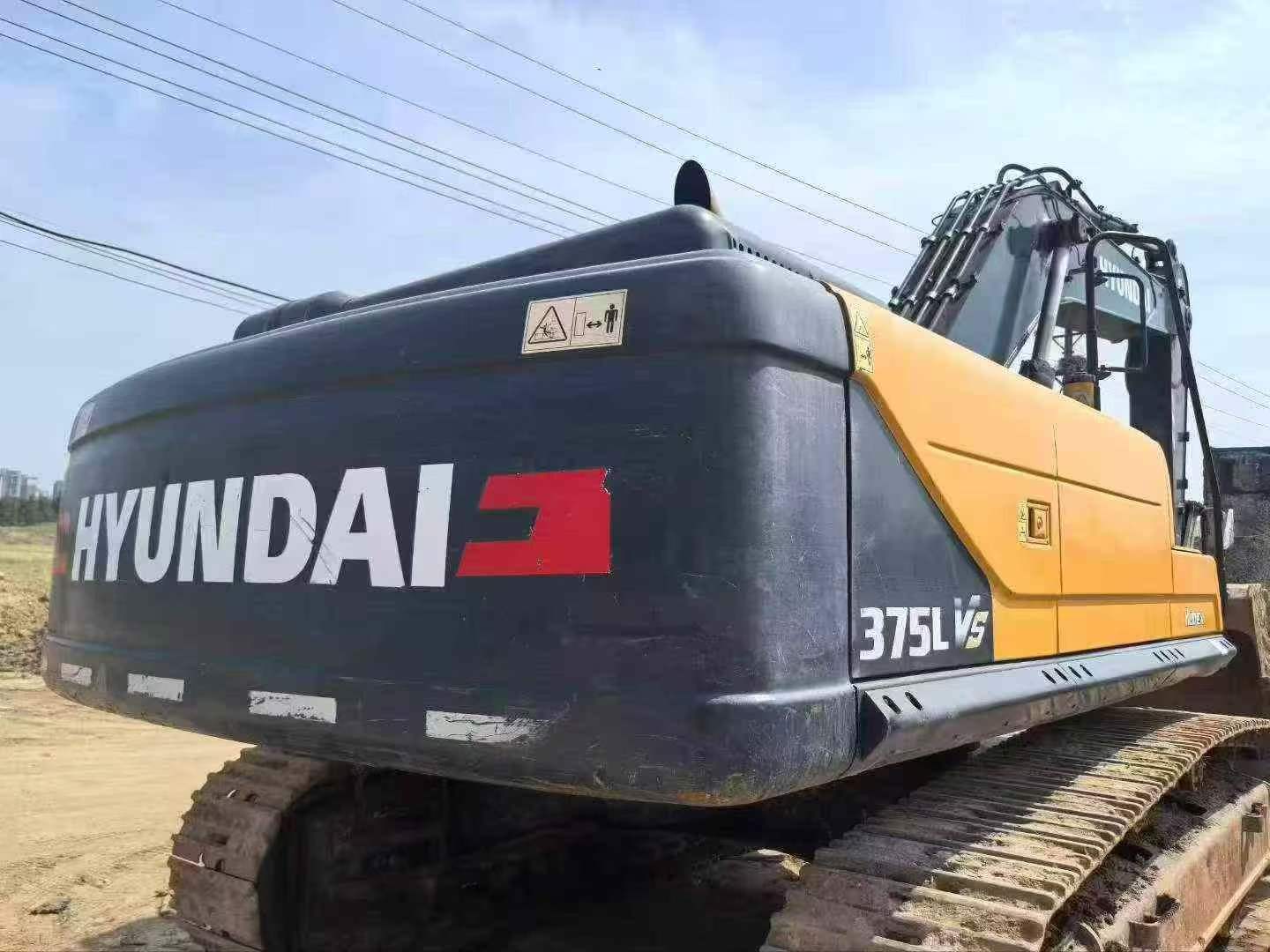

Buy Hyundai R350LVS Used Excavator / 9

Product Description

Available now in Zhejiang Shaoxing, this 2021 Hyundai R350LVS excavator delivers immediate deployment without factory lead times. Operating at 35 tons with a 33,200 kg working weight, this machine combines a powerful 221 kW Hyundai HE8.9 engine with a 1.60 m³ bucket capacity for serious earthmoving performance. Dual variable plunger pumps provide 2 x 315 L/min flow, ensuring responsive hydraulics across all functions.

Designed for demanding projects, the R350LVS offers a maximum digging reach of 10,920 mm and depth of 6,970 mm. Water-cooled reliability meets efficient fuel management with a 560L tank, while the 6,450 mm boom and 2,850 mm arm deliver exceptional versatility. With 70% climbing ability and 6.3 km/h travel speed, this excavator adapts to challenging terrain.

Key specifications include:

  • Rated power: 221 kW at 1,850 rpm
  • Maximum digging height: 10,540 mm
  • Hydraulic system capacity: 330L
  • Transport dimensions: 10,990 x 3,280 x 3,460 mm

Skip months of waiting—secure this ready-to-work excavator for fast deployment to your site. Contact Fair Trade Machinery today.

SpecificationsValue
No.1047235
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
see more

Overview

No.1047235

Brand Name:

Hyundai

Model Number:

R350LVS

Year:

2021

Location:

Zhejiang China
