2022 Hyundai R350LVS

1/9

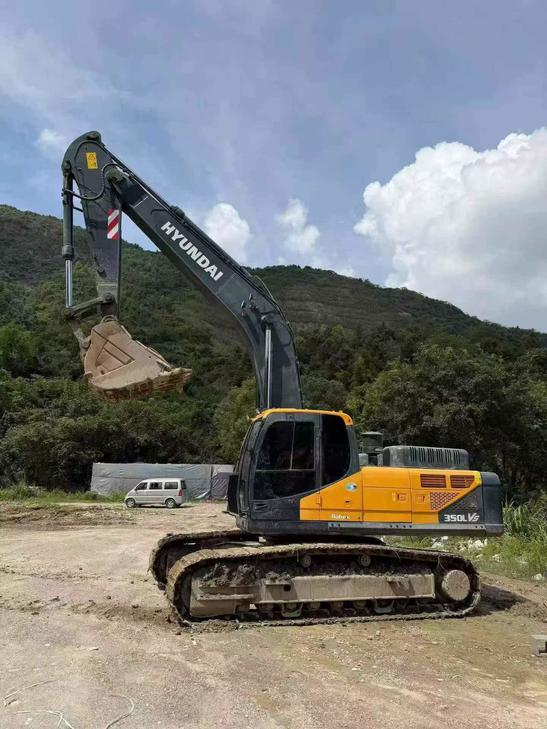

Buy Hyundai R350LVS Used Excavator / 1
Buy Hyundai R350LVS Used Excavator / 2
Buy Hyundai R350LVS Used Excavator / 3
Buy Hyundai R350LVS Used Excavator / 4
Buy Hyundai R350LVS Used Excavator / 5
Buy Hyundai R350LVS Used Excavator / 6
Buy Hyundai R350LVS Used Excavator / 7
Buy Hyundai R350LVS Used Excavator / 8
Buy Hyundai R350LVS Used Excavator / 9

Product Description

2022 Hyundai R350LVS hydraulic excavator available from Zhejiang, China. This earthmoving-focused machine has been maintained in excellent operational condition with verified performance across all systems. The R350LVS features a 35-ton operating weight class with reliable fuel efficiency and hydraulic responsiveness suited for mass excavation, grading, and site development projects.

  • Year: 2022
  • Model: Hyundai R350LVS
  • Primary application: Earthmoving and bulk excavation
  • Condition: Inspection-ready with verified mechanical and hydraulic systems
  • Location: Zhejiang Province, China

This unit has been operated exclusively in soil-moving applications, minimizing wear from demolition or heavy breaking work. All major components including engine, hydraulics, undercarriage, and cabin systems are fully functional. Competitive pricing available for qualified buyers. Suitable for contractors requiring dependable performance in high-volume earthwork operations.

SpecificationsValue
No.1085222
Tonnage (tons)35
Working weight (kg)33200
Bucket capacity (m³)1.60
Boom length (mm)6450
Rod length (mm)2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221 / 1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.8
Climbing ability (%)70
Travel speed (km/h)6.3/3.5
Type of walking hydraulic motorAxial piston motor
Maximum flow of main pump (l/min)2 x 315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 100 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1685
Boom cylinders - Number × diameter × stroke (mm)2-150 x 105 x 1480
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10990
Total transport width (mm)3280
Total transport height (mm)3460
Full cab height (mm)3090
Counterweight ground clearance (mm)1200
Minimum turning radius of front working device (mm)4520
Back end turning radius (mm)3330
Onboard width (mm)3265
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10920
Maximum digging depth (mm)6970
Maximum excavation height (mm)10540
Maximum unloading height (mm)7380
Maximum vertical digging depth (mm)6270
Maximum excavation radius of stop surface (mm)10710
Maximum effective digging depth (mm)6800
