Product Description

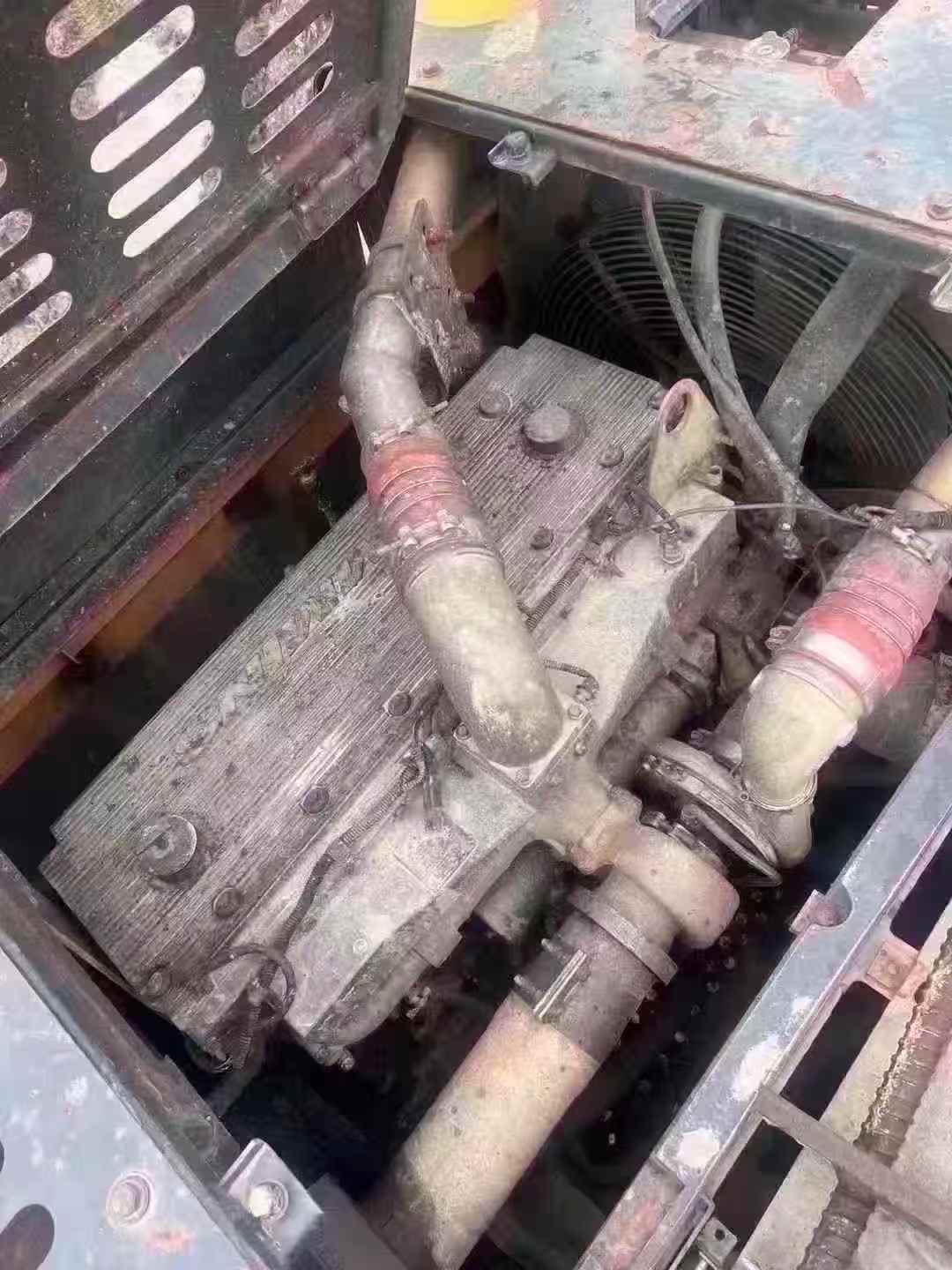

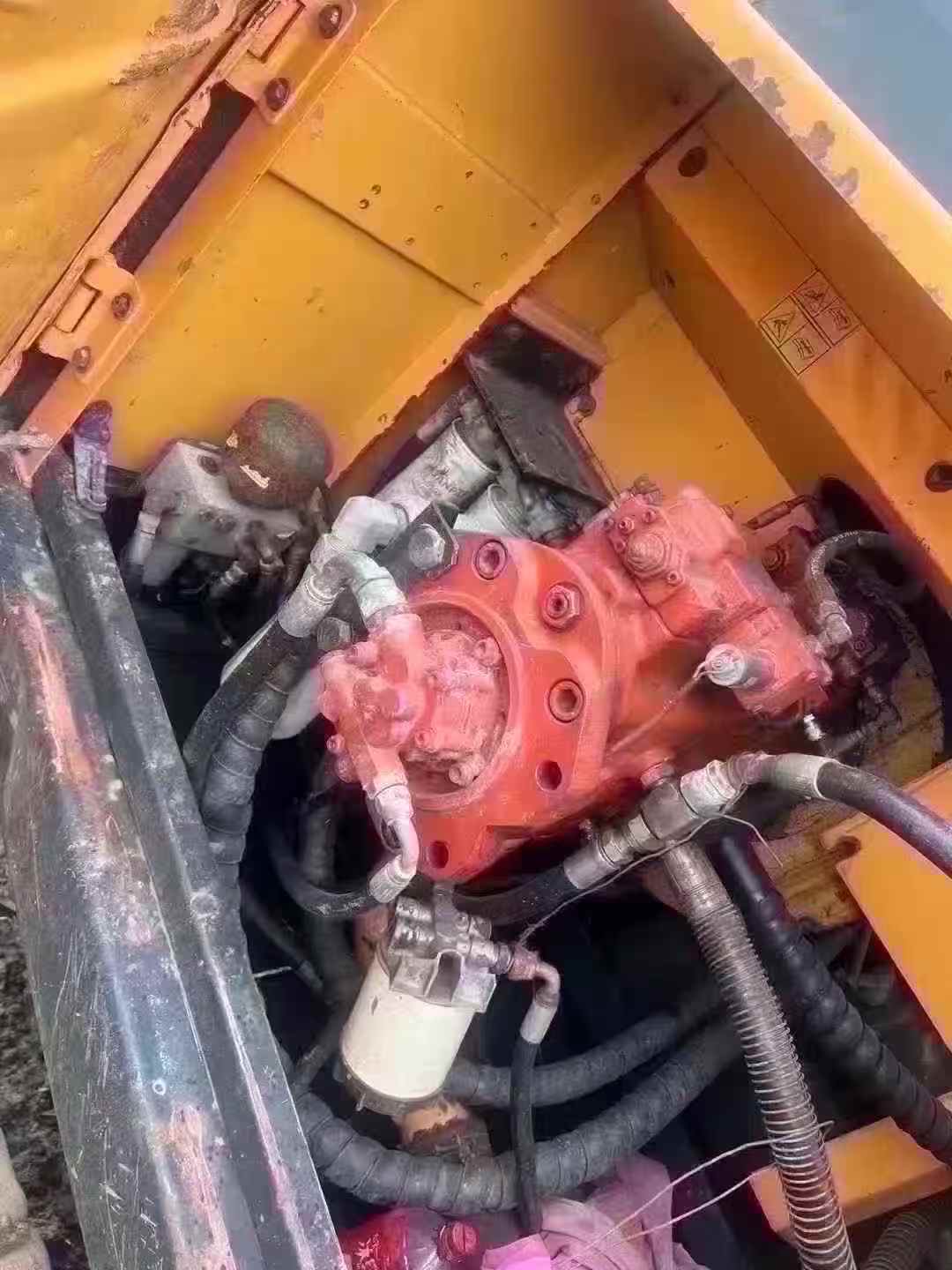

Engineered for demanding excavation operations, this 2016 Hyundai R385LC-9 delivers 38-ton performance through proven Cummins QSL power. The six-cylinder turbocharged intercooled engine produces 221 kW at 1850 rpm with 1450 N·m maximum torque, driving dual variable axial piston pumps that supply 2×288 l/min hydraulic flow. Precision control comes from quantitative swash plate rotary motors and variable traveling motors, enabling 9.3 rpm swing speed and smooth operation across 36 MPa working circuits.
Built to joint venture standards, this excavator combines a 6500mm boom with 3200mm arm for 11,250mm maximum reach and 7520mm digging depth. Hydraulic muscle generates 228.5 kN bucket force and 156.9 kN arm force through optimized cylinder configurations. The 1.62 m³ bucket capacity matches the machine's 38,200 kg operating weight for balanced productivity.
- Cummins QSL 8.9L six-cylinder turbocharged diesel
- Dual variable piston pumps: 576 l/min combined flow
- 11,250mm reach radius / 7,520mm dig depth
- 228.5 kN bucket digging force
- Currently located in Jiangsu Province
| Specifications | Value |
|---|---|
| No. | 1040892 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.62 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSL |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 145 |
| Maximum torque (N.m/rpm) | 1450 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8900 |
| Working form | Six-cylinder four-stroke turbocharged intercooled EFI engine |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 228.5 |
| Rod digging force (kN) | 156.9 |
| Travel speed (km/h) | 3.0-4.8 |
| Main overflow set pressure (Mpa) | 36 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 36 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Pilot Oil Circuit (MPa) | 4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 160 x 1500 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 33.5 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 11120 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3415 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 5280 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4340 |
| Maximum digging radius (mm) | 11250 |
| Maximum digging depth (mm) | 7520 |
| Maximum excavation height (mm) | 10570 |
| Maximum unloading height (mm) | 7410 |
| Maximum vertical digging depth (mm) | 6330 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11040 |
| Maximum effective digging depth (mm) | 7360 |
