Product Description

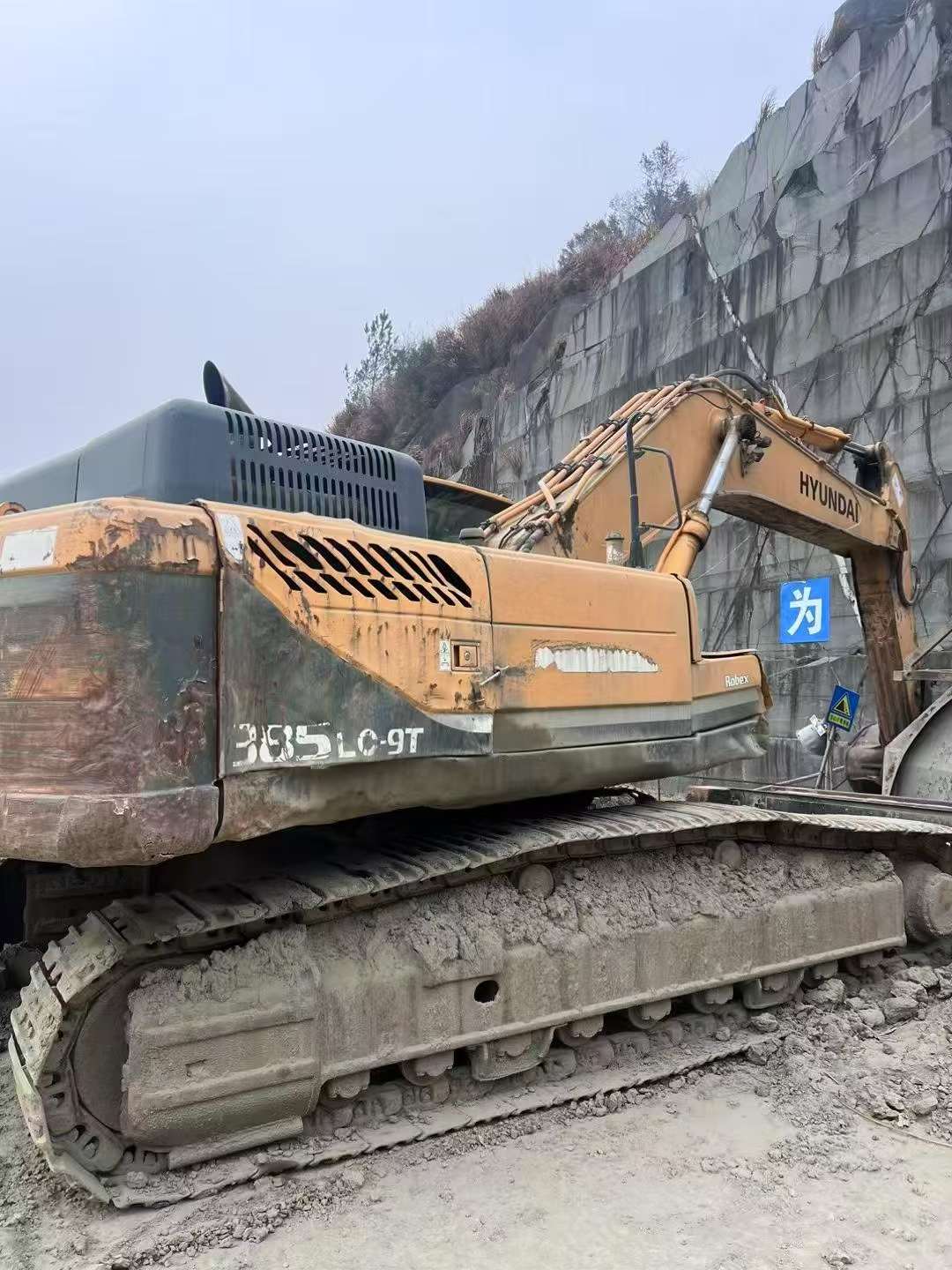

Acquiring quality performance doesn't require a new-machine budget. This 2012 Hyundai R385LVS delivers the excavation power your operation demands at a fraction of replacement cost. Operating at 38 tons with a robust 221 kW HYUNDAI HE8.9 engine, this crawler excavator handles demanding earthmoving tasks with professional-grade reliability. The 1.9 m³ backhoe bucket, combined with a 10,520 mm maximum digging radius and 6,750 mm digging depth, provides exceptional versatility across construction and mining applications.
Key Performance Specifications:
- 221 kW rated power at 1,850 rpm for consistent hydraulic performance
- Dual variable plunger pumps (2×315 L/min) ensure responsive control
- 70% climbing ability and 9.5 rpm rotation speed maximize productivity
- 610 L fuel capacity reduces downtime on extended jobsites
- Currently located in Jiangsu, ready for global shipment
Smart buyers recognize value beyond the purchase price. With proven Hyundai engineering and substantial operating hours remaining, this R385LVS represents strategic capital allocation—delivering new-machine capability without the depreciation curve. Invest wisely in equipment that work
| Specifications | Value |
|---|---|
| No. | 1012504 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |

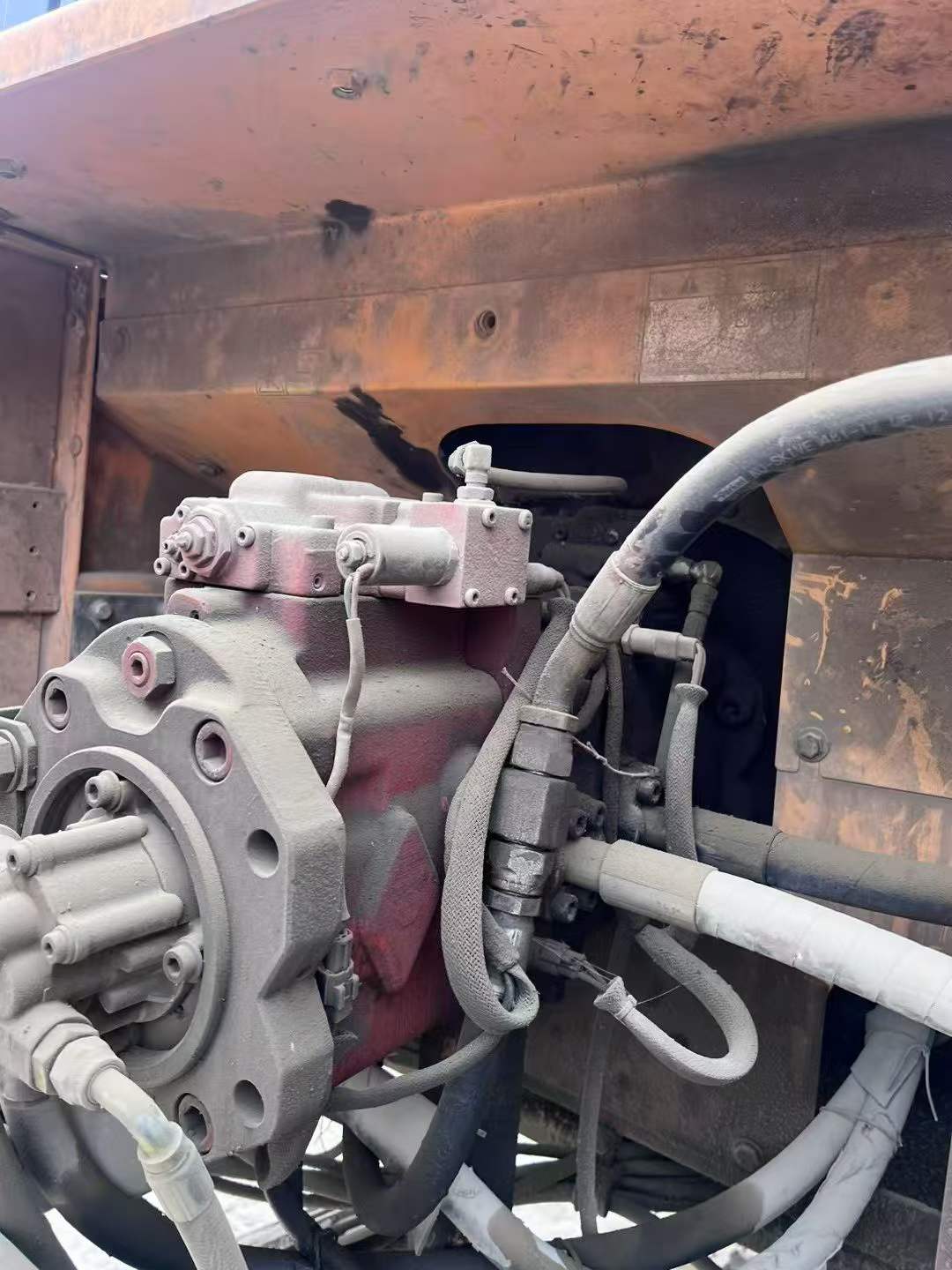

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
