Product Description

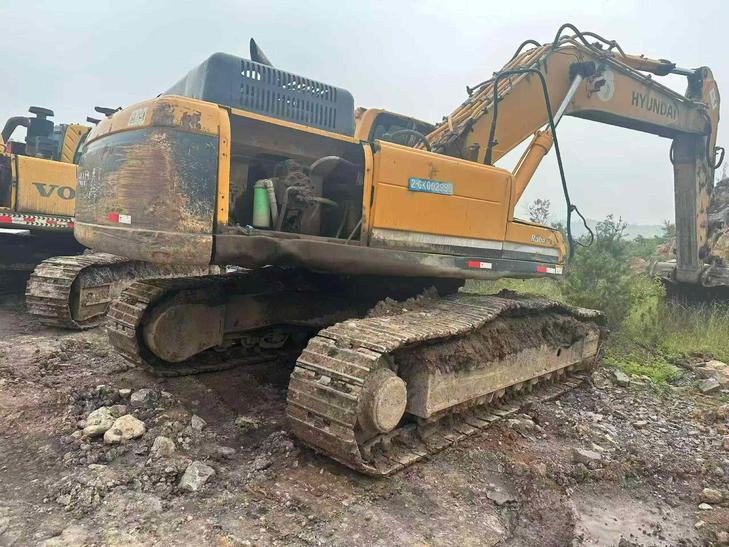

Built for serious earthmoving, this 2013 Hyundai R385LVS is a 38-ton hydraulic excavator ready to go to work on your next digging, grading, or demolition project. Sourced from Zhejiang, China, this machine is site-ready and backed by a robust HYUNDAI HE8.9 6-cylinder water-cooled engine producing 221 kW at 1,850 rpm — enough muscle to handle demanding ground conditions without hesitation.
With a 1.9 m³ backhoe bucket, a maximum digging depth of 6,750 mm, and a maximum digging radius of 10,520 mm, this excavator covers serious ground on every pass. A dual variable plunger pump system delivering 2×315 L/min keeps hydraulic response sharp across all attachments and work cycles.
- Working weight: 38,900 kg
- Engine: HYUNDAI HE8.9 | 221 kW / 1,850 rpm | 8.9L displacement
- Max digging depth: 6,750 mm | Max digging radius: 10,520 mm
- Max excavation height: 10,150 mm | Max unloading height: 7,030 mm
- Bucket capacity: 1.9 m³ | Boom: 6,150 mm | Arm: 2,800 mm
- Fuel tank: 610 L | Hydraulic system: 415 L
- Travel speed: 5.0 / 3.2 km/h | Climbing ability: 70%
- Transport dimensions: 10,830 × 3,340 × 3,680 mm
| Specifications | Value |
|---|---|
| No. | 1073449 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
