Product Description
Built to withstand the toughest jobsites, this 2018 Hyundai R385LVS crawler excavator delivers proven performance backed by over six years of reliable service. Operating at 38 tons with a robust 38,900 kg working weight, this workhorse combines power and precision through its HYUNDAI HE8.9 engine rated at 221 kw/1850 rpm and dual variable plunger pumps flowing 2×315 l/min. Engineered for demanding applications, it reaches a maximum digging depth of 6,750 mm and an impressive digging radius of 10,520 mm, while the 1.9 m³ backhoe bucket tackles high-volume earthmoving with efficiency.
- Proven Durability: 2018 model with joint venture/import quality standards
- Powerful Performance: 221 kw water-cooled 6-cylinder engine, 8.9L displacement
- Maximum Reach: 10,520 mm digging radius, 10,150 mm excavation height
- Heavy-Duty Hydraulics: Two variable plunger pumps, 415L system capacity
- Superior Mobility: 70% climbing ability, 9.5 rpm rotation speed
- Current Location: Yichun, Jiangxi, China – ready for global export
Designed for contractors who demand reliability, this R385LVS
| Specifications | Value |
|---|---|
| No. | 1035678 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

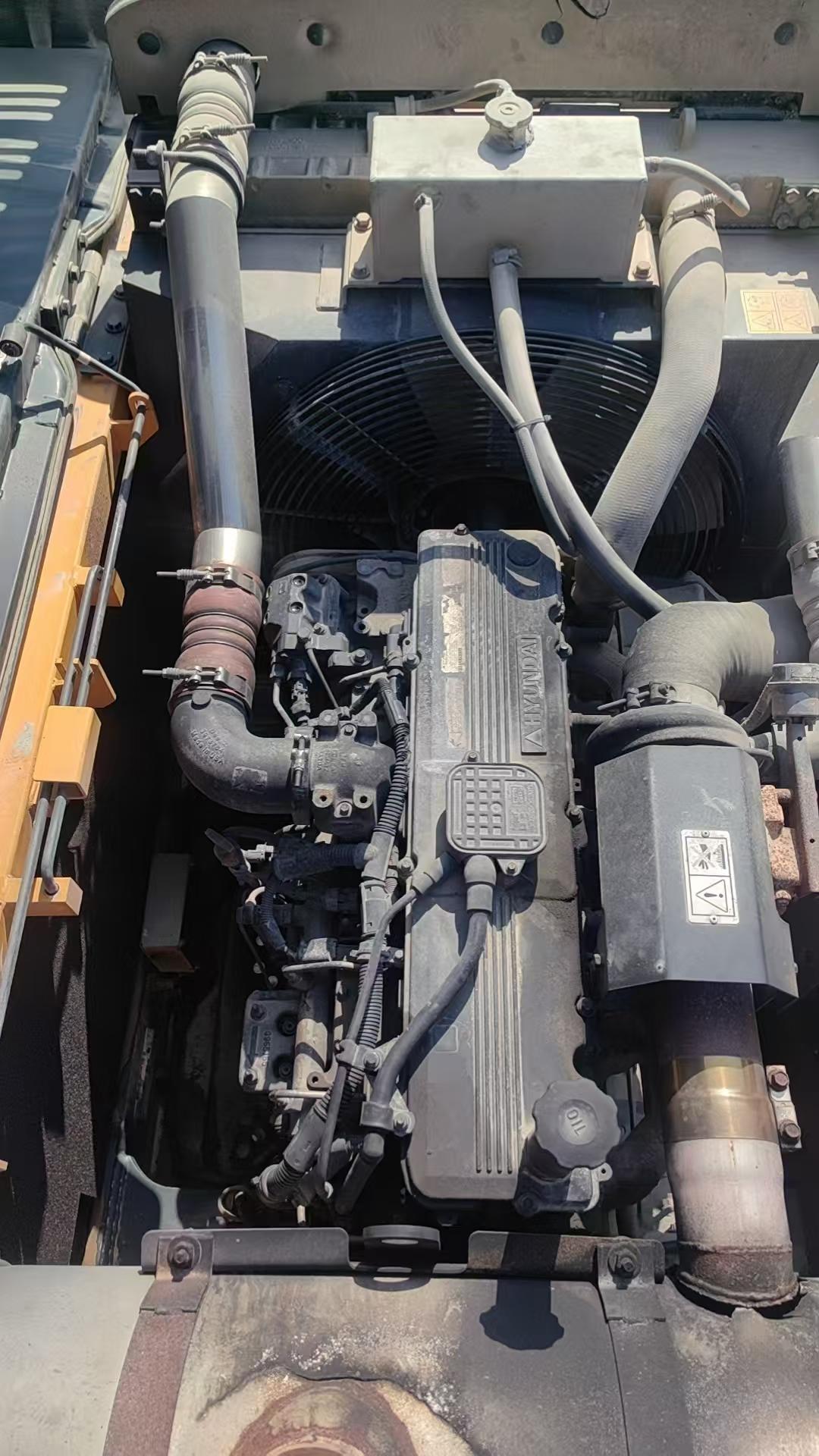

| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |

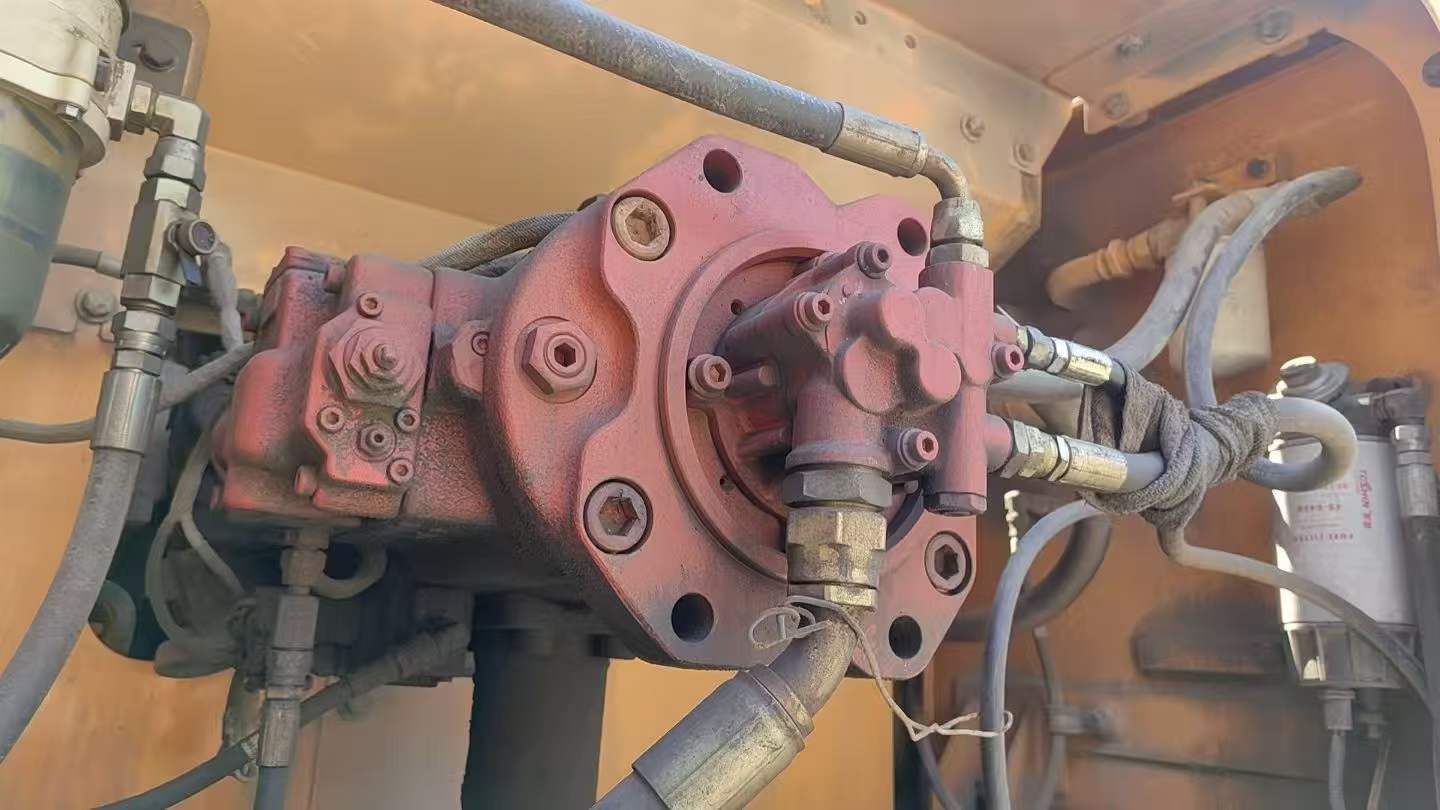

| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
