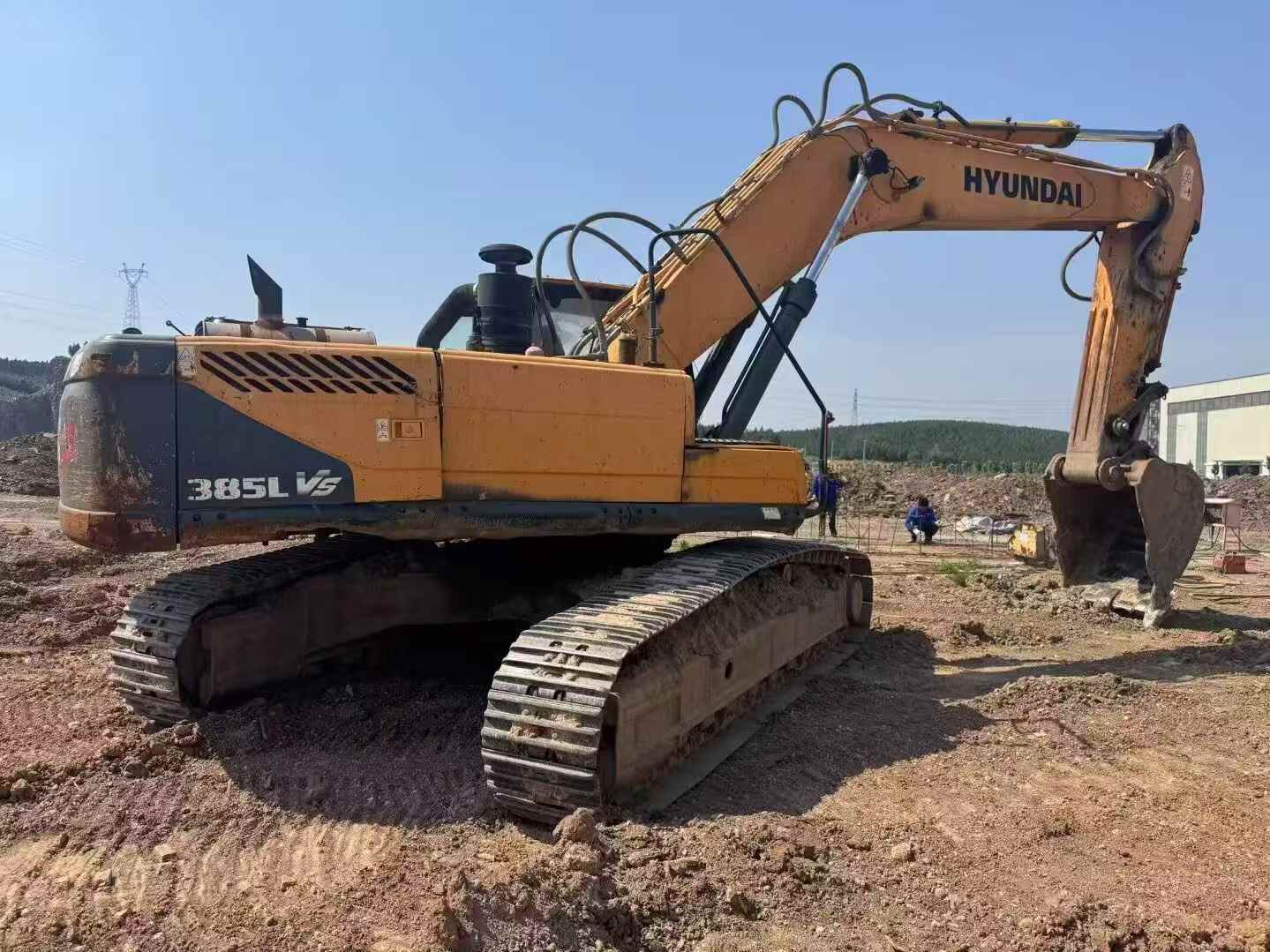

2018 Hyundai R385LVS

1/7
Buy Hyundai R385LVS Used Excavator / 1

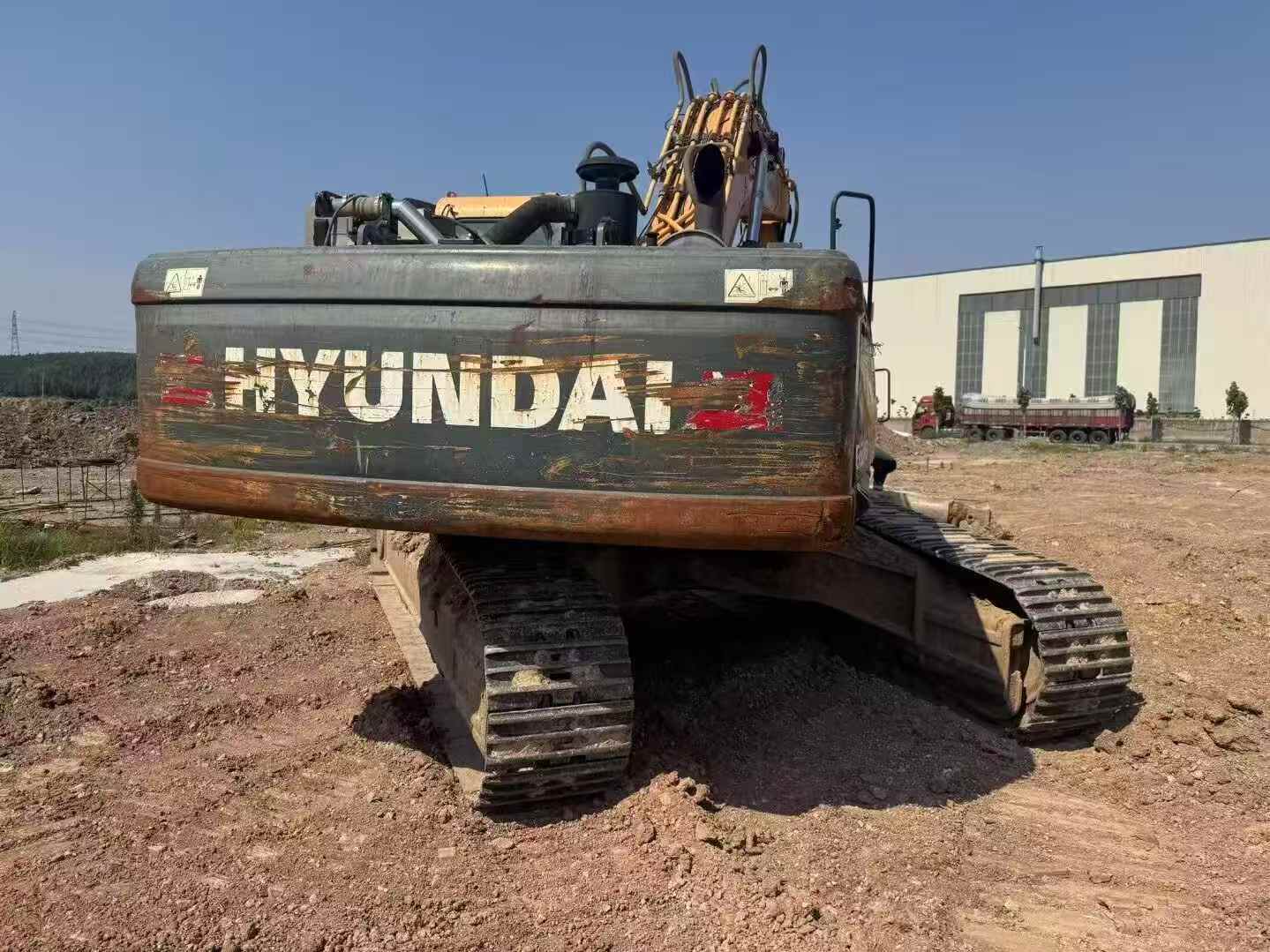

Buy Hyundai R385LVS Used Excavator / 2

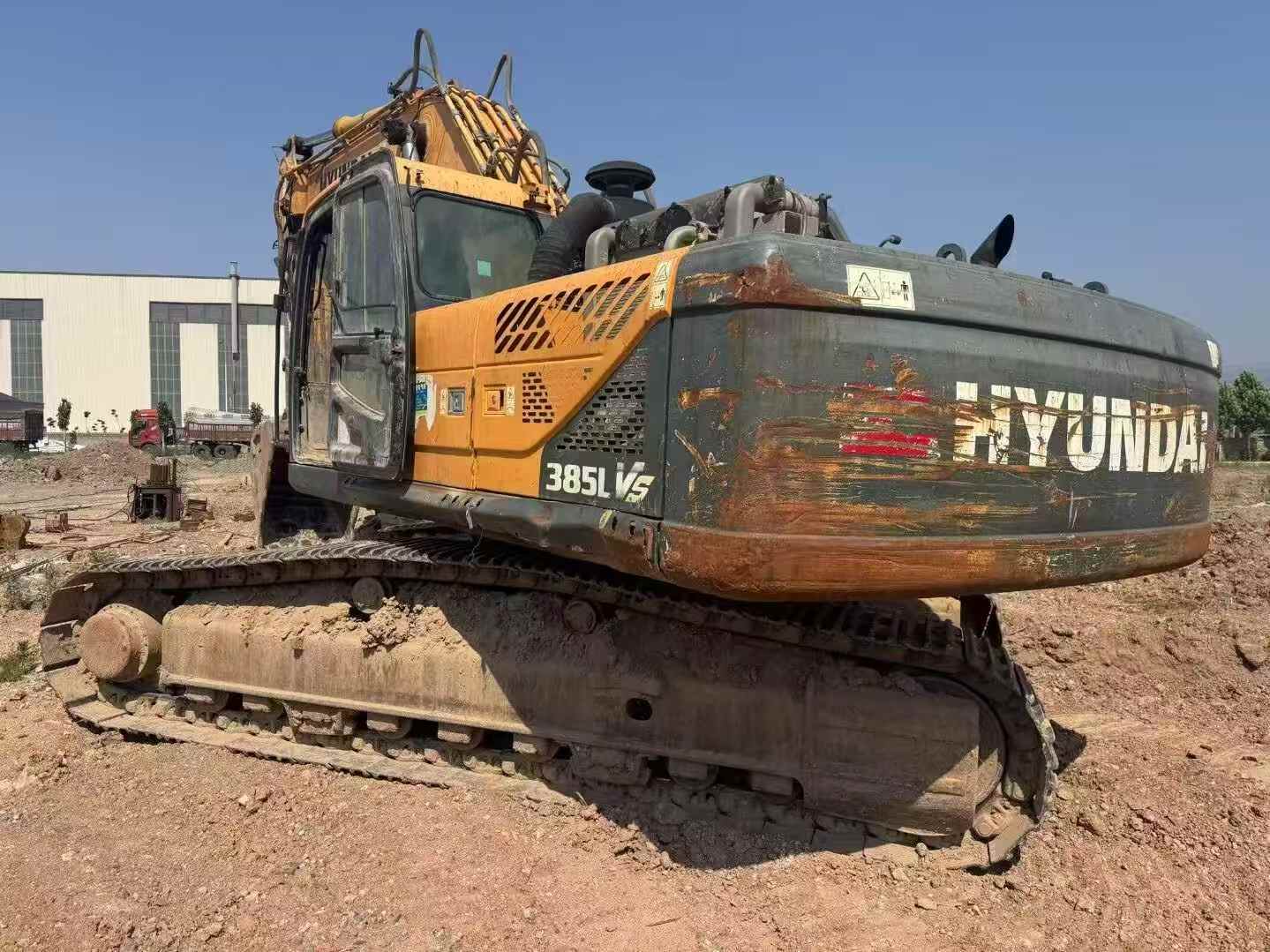

Buy Hyundai R385LVS Used Excavator / 3

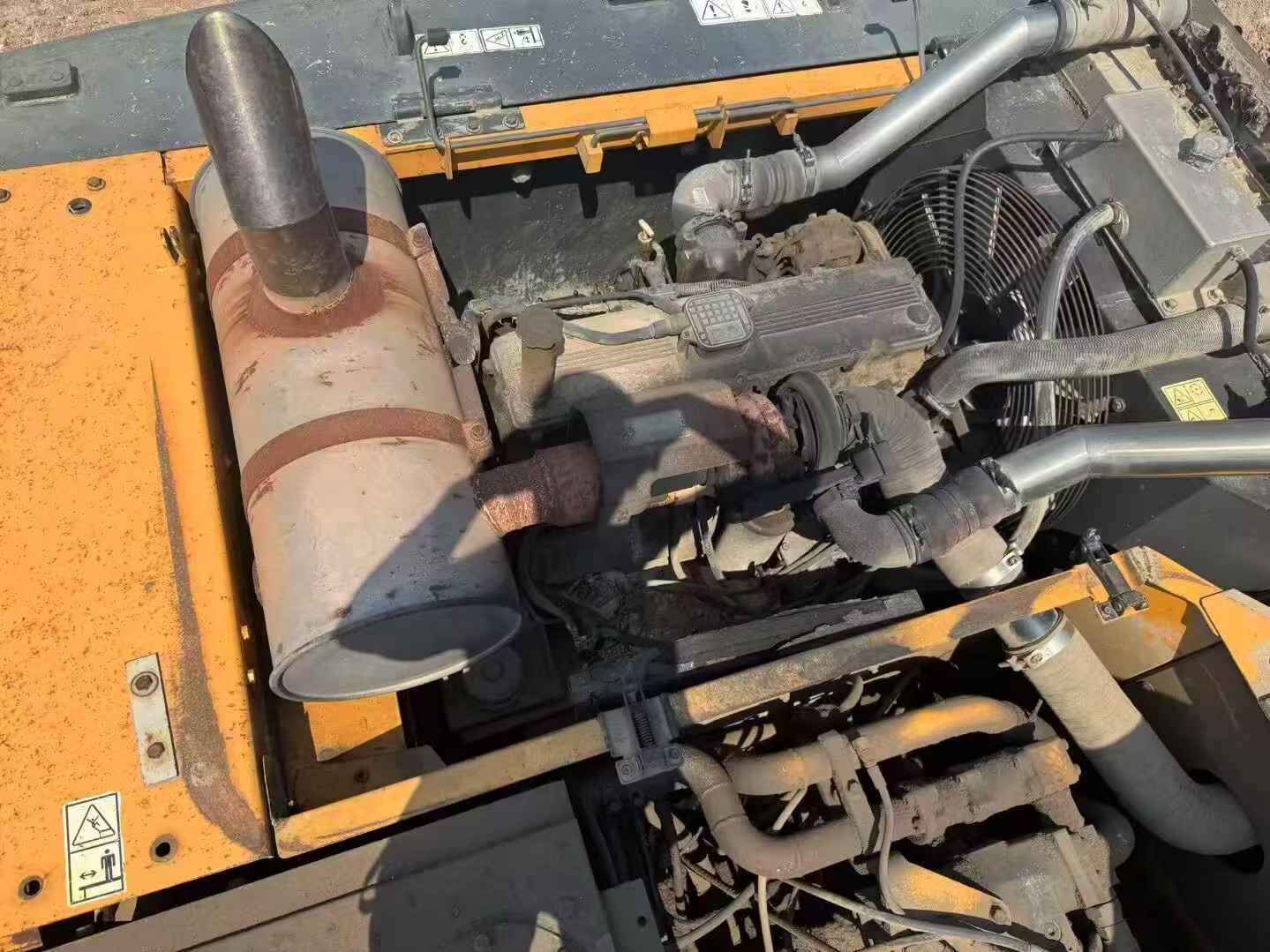

Buy Hyundai R385LVS Used Excavator / 4

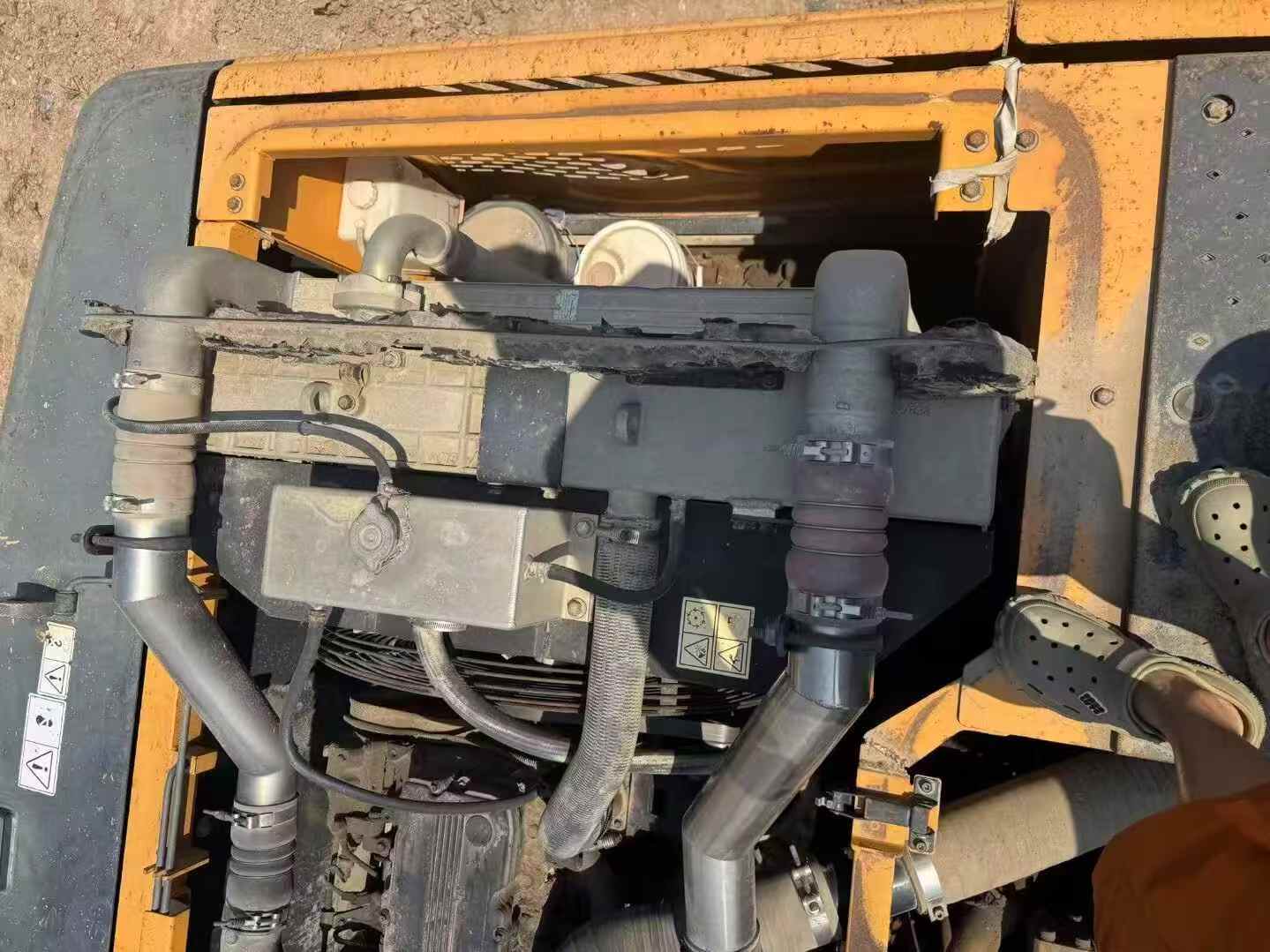

Buy Hyundai R385LVS Used Excavator / 5

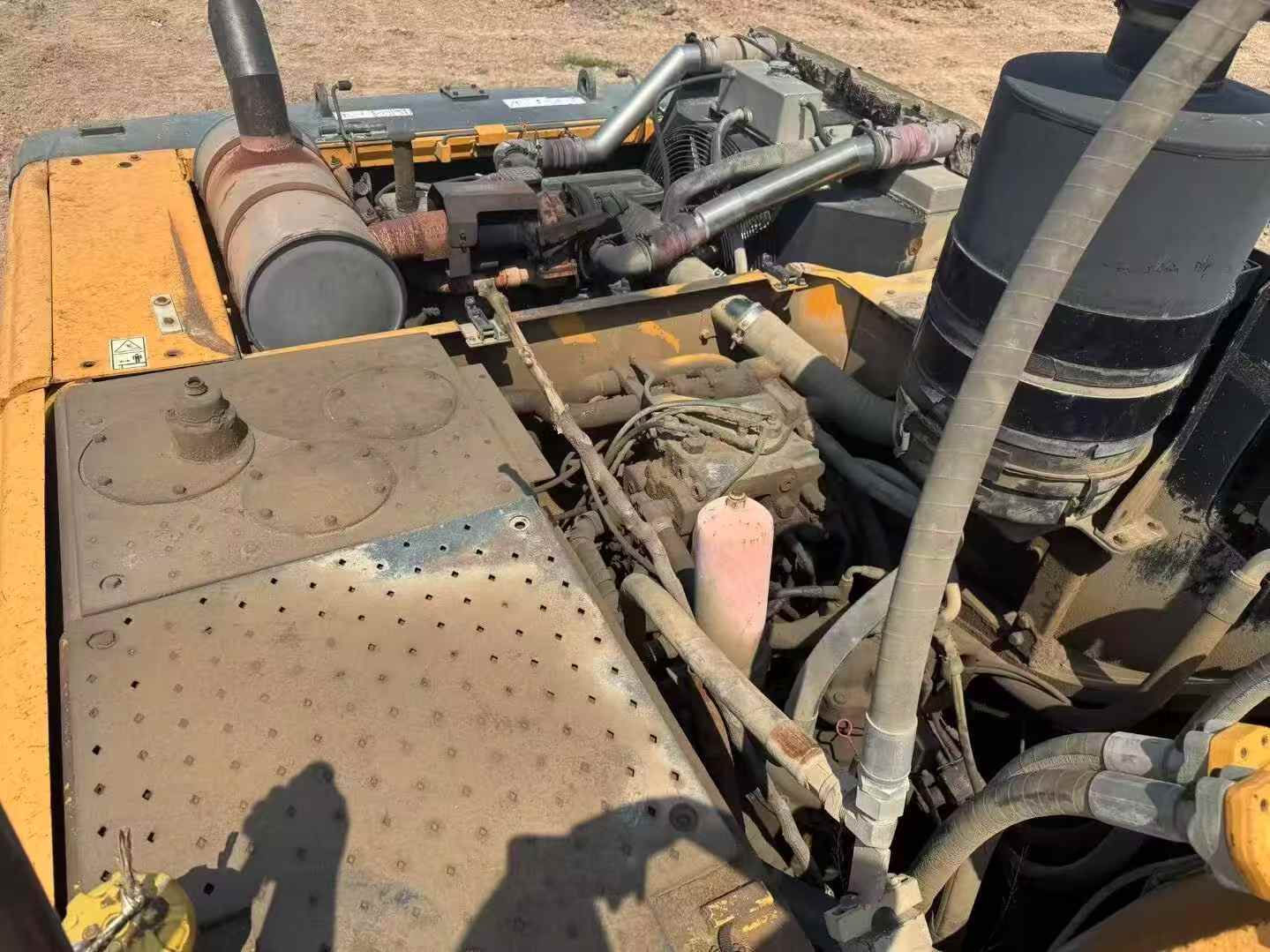

Buy Hyundai R385LVS Used Excavator / 6

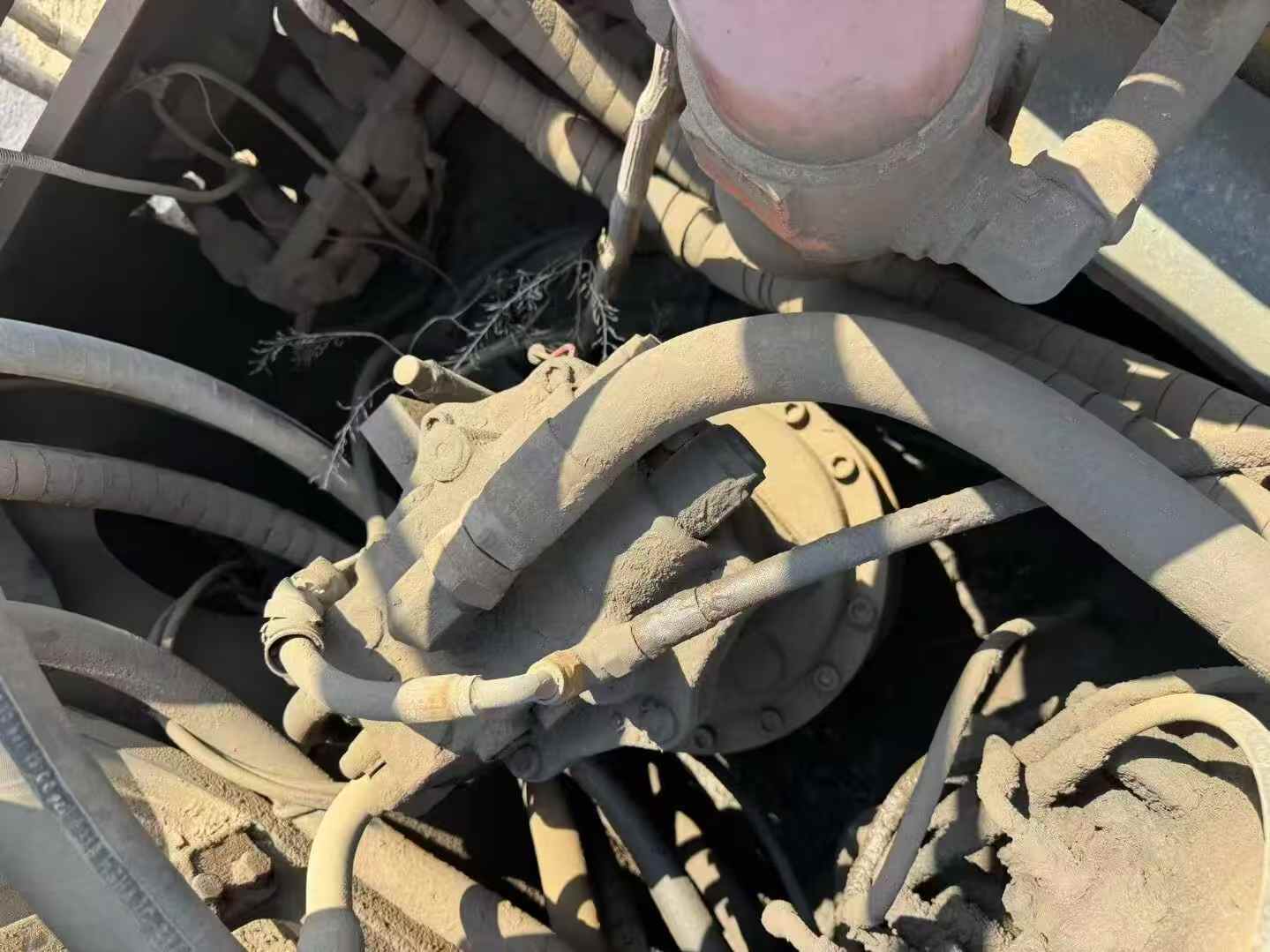

Buy Hyundai R385LVS Used Excavator / 7

Product Description

This 2018 Hyundai R385LVS excavator represents a solid opportunity for contractors seeking reliable heavy-duty performance. Currently located in Guizhou, China, this machine comes from Hyundai's respected large excavator lineup, engineered for demanding earthmoving and construction applications.

The R385LVS model features:

  • Robust operating weight class suitable for mining, quarrying, and large-scale excavation projects
  • Hyundai's proven hydraulic system delivering efficient power management
  • Durable undercarriage designed for extended service life in challenging terrain
  • Spacious operator cabin with ergonomic controls for enhanced productivity

With approximately eight years of service, this excavator offers a balance between proven field performance and remaining operational life. Ideal for operations requiring substantial digging force and reach. Currently priced competitively for the Asian market. Contact us for detailed inspection reports and shipping arrangements to your location.

SpecificationsValue
No.1086127
Tonnage (tons)38
Working weight (kg)38,900
Bucket capacity (m³)1.9
Boom length (mm)6150
Rod length (mm)2800
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHYUNDAI HE8.9
Rated power (kw/rpm)221/1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114*145
Number of cylinders (PCS)6
Displacement (L)8.9
Rotation speed (rpm)9.5
Climbing ability (%)70
Travel speed (km/h)5.0 / 3.2
Maximum flow of main pump (l/min)2*315
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*150*105*1295
Bucket rod cylinders - Number × diameter × stroke (mm)1*170*120*1760
Boom cylinders - Number × diameter × stroke (mm)2*160*110*1500
Pilot pump typeGear pump
Fuel Tank (L)610
Hydraulic Tank (L)210
Engine Oil changes (L)31.7
Coolant (L)50
Hydraulic System (L)415
Total transport length (mm)10830
Total transport width (mm)3340
Total transport height (mm)3680
Counterweight ground clearance (mm)1290
Minimum turning radius of front working device (mm)4220
Back end turning radius (mm)3415
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)51
Maximum digging radius (mm)10520
Maximum digging depth (mm)6750
Maximum excavation height (mm)10150
Maximum unloading height (mm)7030
Maximum vertical digging depth (mm)4480
Maximum excavation radius of stop surface (mm)10290
Maximum effective digging depth (mm)6580
see more

Overview

No.1086127

Brand Name:

Hyundai

Model Number:

R385LVS

Year:

2018

Location:

Guizhou China

Pub Date
