Product Description
With a robust 263 kW of power and a 45-ton capacity, the Hyundai R455LC-7 excavator is ready for immediate deployment from 四川泸州. Featuring a Cummins QSM11-C engine, this machine ensures reliable performance and efficiency. Available now, it allows you to skip the factory lead times, ensuring fast deployment to your site. Equipped with a 2.15 m³ bucket and a maximum digging depth of 7790 mm, it handles demanding tasks with ease. The water-cooled, 6-cylinder engine and 2× variable axial piston pump + gear pump system provide the hydraulic power needed for consistent operation. Ideal for logistics and speed, this excavator from 四川泸州 is the perfect addition to any construction fleet.
- Year: 2016
- Brand: Hyundai
- Model: R455LC-7
- Location: 四川泸州
- Bucket capacity: 2.15 m³
- Maximum digging depth: 7790 mm
- Engine: Cummins QSM11-C, 263 kW
- Travel speed: 3.2-5.3 km/h
- Fast deployment, available now
| Specifications | Value |
|---|---|
| No. | 1020865 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 44900 |
| Bucket capacity (m³) | 2.15 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11-C |
| Rated power (kw/rpm) | 263/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10800 |
| Ground specific pressure (Kpa) | 78 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 256 |
| Rod digging force (kN) | 187.3 |
| Travel speed (km/h) | 3.2-5.3 |
| Maximum flow of main pump (l/min) | 2 x 380 |
| Traveling Hydraulic Circuit (Mpa) | 345 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Hydraulic crushing pipeline is standard | no |

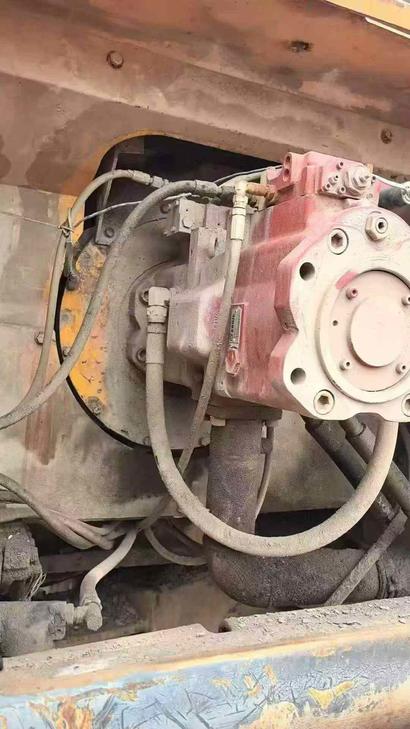

| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 110 * 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 125 * 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 * 120 * 1570 |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 250 |
| Engine Oil changes (L) | 37.9 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 12000 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3600 |
| Full cab height (mm) | 3250 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3720 |
| Total track length (mm) | 5462 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 12100 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 11030 |
| Maximum unloading height (mm) | 7660 |
| Maximum vertical digging depth (mm) | 6560 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11900 |
| Maximum effective digging depth (mm) | 7640 |
