Product Description

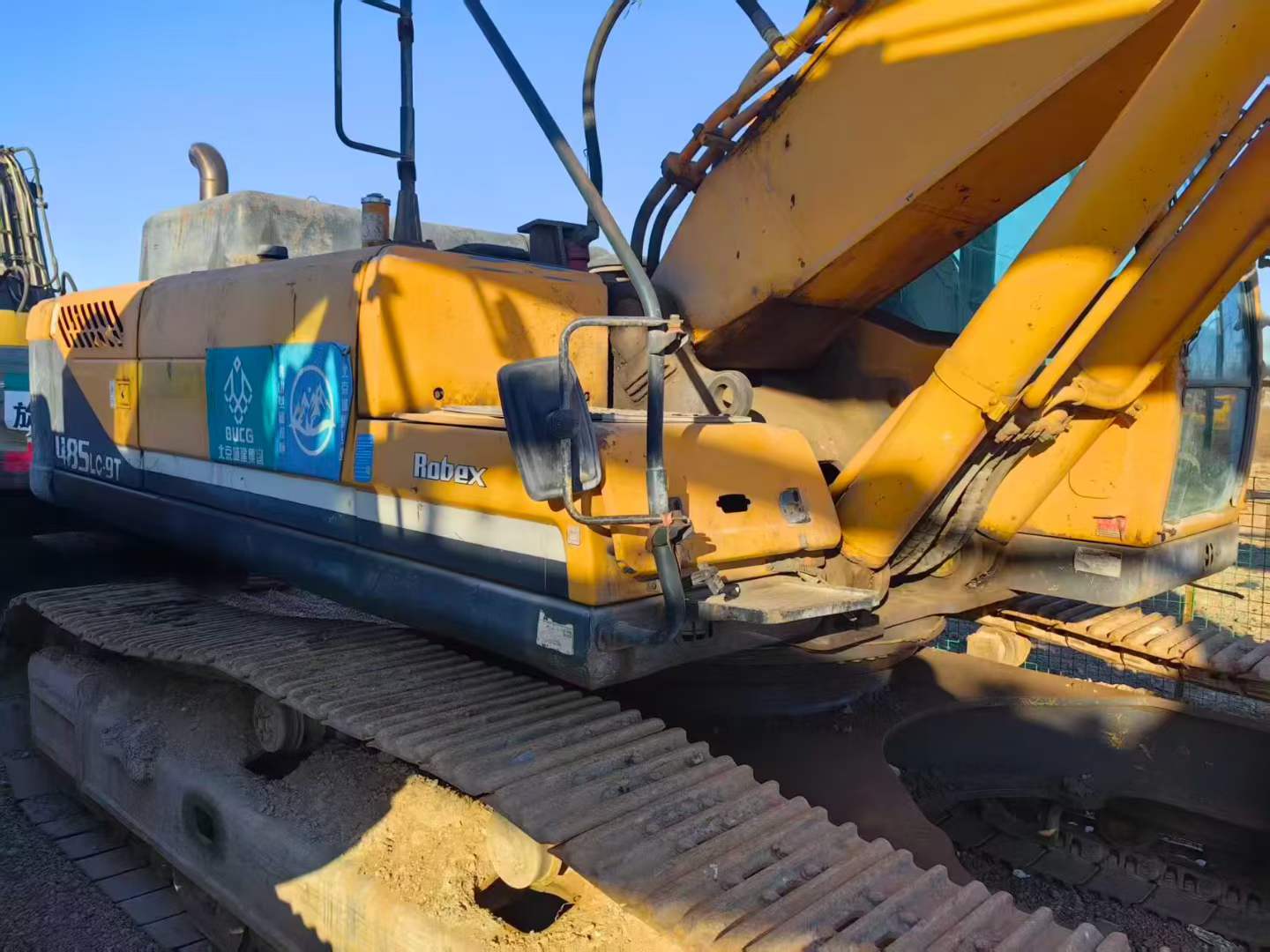

Maximize your ROI with this 2016 Hyundai R485LVS excavator—a proven workhorse delivering flagship performance at a fraction of new equipment costs. Powered by a robust Cummins QSM11 engine producing 266kW, this 48-ton machine combines exceptional digging force with operational efficiency that protects your bottom line. The 2.2m³ bucket capacity and 11,040mm maximum digging radius tackle high-volume earthmoving projects with ease, while dual variable plunger pumps (2×370 L/min) ensure responsive hydraulic performance across demanding applications.
- 48,400kg working weight with 6,550mm boom and 2,900mm arm configuration

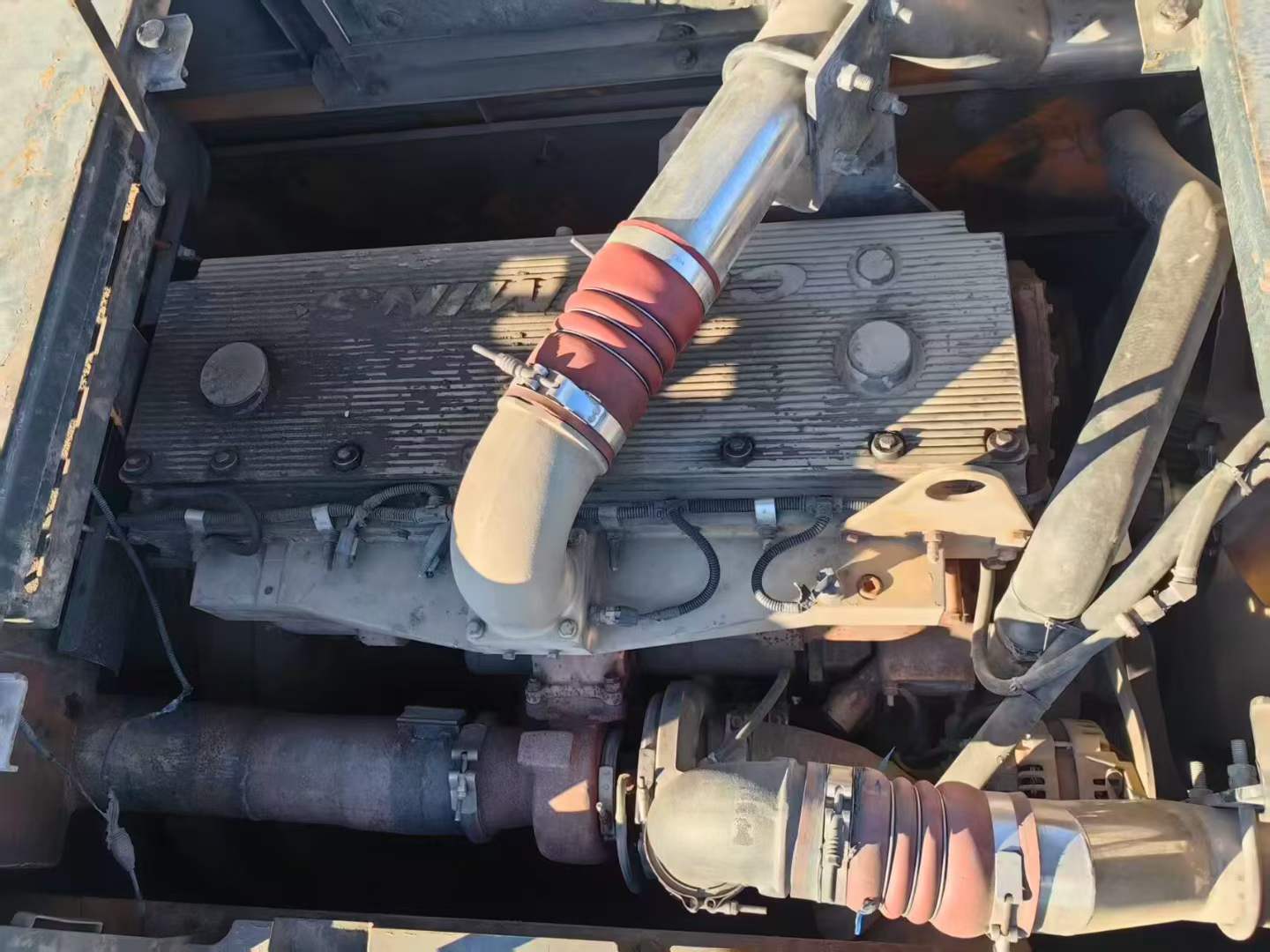

- Cummins QSM11 water-cooled diesel: 10.8L displacement, proven durability
- Impressive reach: 6,860mm dig depth, 10,440mm excavation height
- 70% climbing ability and 8.3 RPM rotation speed for challenging terrain
- Currently located in Fujian Putian—ready for immediate deployment
Smart buyers recognize that well-maintained used equipment eliminates depreciation losses while delivering identical productivity to new models. This R485LVS represents intelligent capital allocation for contractors seeking maximum excavation capacity without premium pricing.
| Specifications | Value |
|---|---|
| No. | 1031806 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
